Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Remark |
|---|---|---|---|---|
| 201-26-00130 | [1] | SWING MACHINERY A. Komatsu | 64.94 kg. | |
| ["SN: 59579-UP"] |1. | ||||

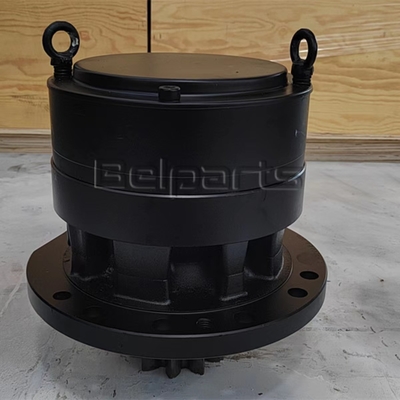

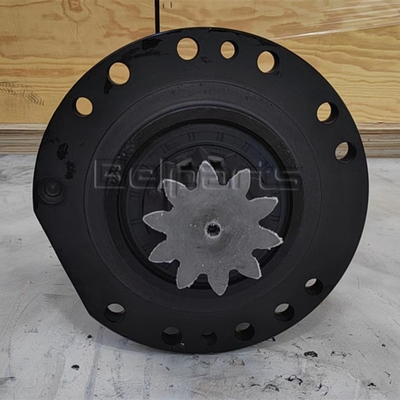

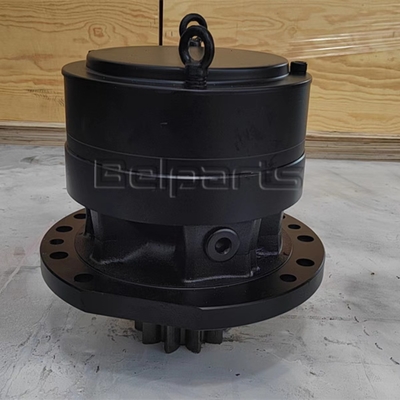

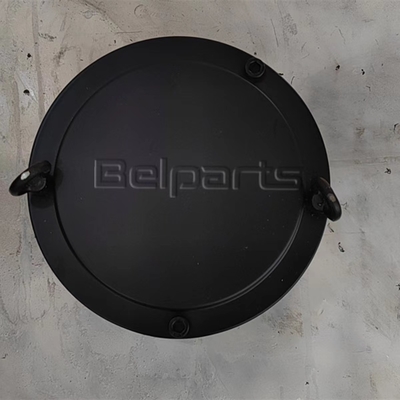

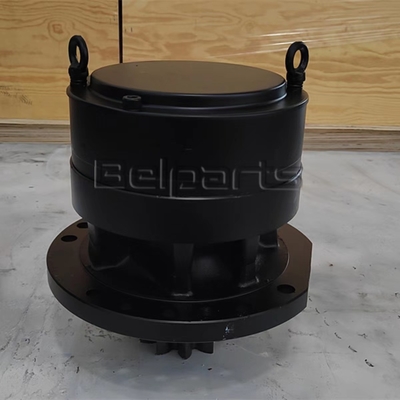

| 201-26-00060 | [1] | SWING MACHINERY A. Komatsu China | ||
| ["SN: 52374-59578"] |1. | ||||
| 201-26-00040 | [1] | SWING MACHINERY A. Komatsu | 79.01 kg. | |
| ["SN: 45001-52373"] |1. | ||||
| 1. | 201-26-71113 | [1] | Komatsu | 20.5 kg. |
| ["SN: 54161-UP"] | ||||
| 201-26-71112 | [1] | Komatsu China | ||
| ["SN: 52374-54160"] |1. | ||||
| 201-26-71111 | [1] | Komatsu China | ||
| ["SN: 45001-52373"] |1. | ||||
| 2. | 201-26-71140 | [1] | SHAFT Komatsu | 6.18 kg. |
| ["SN: 45001-UP"] | ||||
| 3. | 201-26-71261 | [1] | PLATE Komatsu | 0.56 kg. |
| ["SN: 53993-UP"] | ||||
| 201-26-71260 | [1] | PLATE Komatsu | 0.56 kg. | |
| ["SN: 45001-53992"] analogs:["2012671261"] |3. | ||||
| 4. | 201-26-71210 | [1] | BEARING Komatsu | 2.073 kg. |
| ["SN: 45001-UP"] | ||||
| 5. | 07012-00065 | [1] | SEAL,OIL Komatsu | 0.062 kg. |
| ["SN: 45001-UP"] | ||||
| 6. | 201-26-62320 | [1] | BEARING Komatsu China | |
| ["SN: 45001-UP"] analogs:["890001448"] | ||||
| 7. | 201-26-71250 | [1] | SPACER Komatsu China | |
| ["SN: 45001-UP"] analogs:["890001449"] | ||||
| 8. | 07145-00125 | [1] | SEAL,OIL Komatsu China | 0.07 kg. |
| ["SN: 45001-UP"] | ||||
| 9. | 07020-00900 | [1] | FITTING,GREASE Komatsu | 0.01 kg. |
| ["SN: 45001-UP"] analogs:["0700000900", "M012443000109", "R0702000900"] | ||||
| 10. | 21W-26-41310 | [1] | PIPE Komatsu China | |
| ["SN: 59579-UP"] | ||||
| 201-26-62420 | [1] | PIPE Komatsu China | ||
| ["SN: 45001-59578"] analogs:["890001452"] |10. | ||||
| 11. | 07042-30312 | [1] | PLUG Komatsu China | |
| ["SN: 45001-UP"] analogs:["890001453", "0704220312"] | ||||
| 12. | 07029-00000 | [1] | VALVE Komatsu | 0.09 kg. |
| ["SN: 45001-UP"] analogs:["6127613890"] | ||||
| 13. | 07042-00415 | [1] | PLUG Komatsu | 0.056 kg. |
| ["SN: 45001-UP"] | ||||
| 14. | 201-26-71130 | [1] | CARRIER Komatsu | 1.61 kg. |
| ["SN: 45001-UP"] | ||||
| 15. | 201-26-71230 | [3] | SHAFT Komatsu | 0.27 kg. |
| ["SN: 45001-UP"] | ||||
| 16. | 20S-26-71250 | [3] | PIN Komatsu China | |
| ["SN: 45001-UP"] analogs:["890001458"] | ||||
| 17. | 201-26-71180 | [3] | GEAR Komatsu | 0.54 kg. |
| ["SN: 45001-UP"] | ||||
| 18. | 201-26-71290 | [3] | BEARING Komatsu | 0.1 kg. |
| ["SN: 45001-UP"] | ||||
| 19. | 201-26-71270 | [6] | WASHER,THRUST Komatsu | 0.011 kg. |
| ["SN: 45001-UP"] | ||||
| 20. | 04064-02512 | [3] | RING,SNAP Komatsu | 0.002 kg. |
| ["SN: 45001-UP"] | ||||
| 21. | 201-26-71240 | [1] | WASHER,THRUST Komatsu | 0.32 kg. |
| ["SN: 45001-UP"] | ||||
| 22. | 201-26-71121 | [1] | CARRIER Komatsu | 0.65 kg. |
| ["SN: 52374-UP"] | ||||
| 201-26-71120 | [1] | CARRIER Komatsu China | ||
| ["SN: 45001-52373"] |22. | ||||
| 23. | 201-26-71220 | [3] | SHAFT Komatsu | 0.12 kg. |
| ["SN: 45001-UP"] | ||||
| 25. | 201-26-71160 | [3] | GEAR Komatsu | 0.15 kg. |
| ["SN: 45001-UP"] | ||||
| 26. | 424-15-12580 | [3] | BEARING Komatsu China | |
| ["SN: 45001-UP"] analogs:["890001468"] | ||||
| 30. | 201-26-71150 | [1] | GEAR Komatsu | 0.19 kg. |
| ["SN: 45001-UP"] | ||||
| 31. | 201-26-71171 | [1] | GEAR Komatsu | 0.45 kg. |
| ["SN: 52374-UP"] analogs:["2012671170"] | ||||
| 201-26-71170 | [1] | GEAR Komatsu | 0.45 kg. | |
| ["SN: 45001-52373"] analogs:["2012671171"] |31. | ||||
| 32. | 201-26-71190 | [1] | GEAR,RING Komatsu | 6.6 kg. |
| ["SN: 45001-UP"] | ||||
| 33. | 07049-01620 | [2] | PLUG Komatsu | 0.002 kg. |
| ["SN: 45001-UP"] | ||||
| 34. | 07049-02025 | [4] | PLUG Komatsu | 0.002 kg. |
| ["SN: 54161-UP"] | ||||
| 35. | 04020-01638 | [2] | PIN Komatsu | 0.064 kg. |
| ["SN: 45001-UP"] | ||||
Product description
| Appliion | Komatsu Excavator |
| Quality | High Guarantee |
| Model | PC70-8 |
| Package | Standard Packing at Normal |
| Warranty | 1 Year |
| Payment term | T/T,, PayPal, Alibaba Trade Assurance |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
1 . How do I contact you?
You can add me on WhatsApp: +86 189 9845 5434,Or send me an email: rayhan@belparts-china.com
2 . How long can I enjoy the warranty period?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How do I pay?
You can complete the payment through PaPal, T/T and other methods.
4 . When will get the items after I place order?
Once we receive your payment, we will arrange delivery within 24 hours; if there is no stock, we will tell you before payment.
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts. If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
