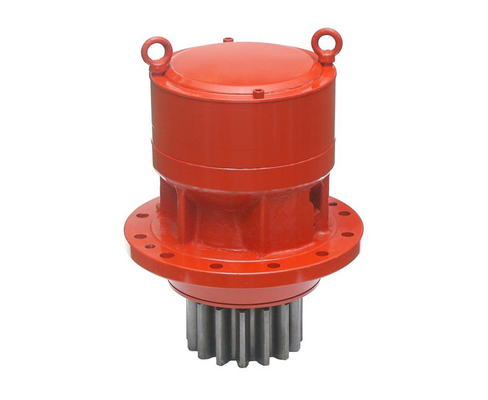

Excavator parts swing gearbox DX480 DX520 130426-00005A swing reduction gearbox for doosan
Production Description

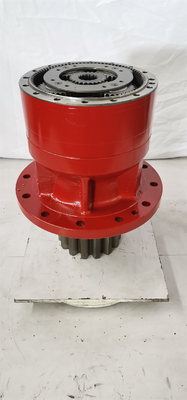

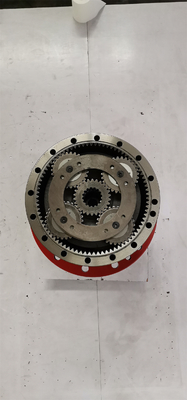

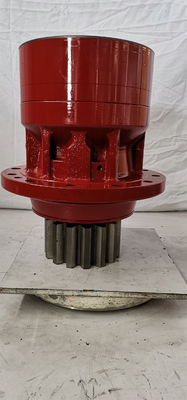

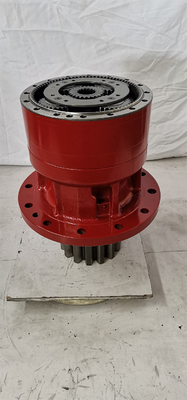

Detail Image

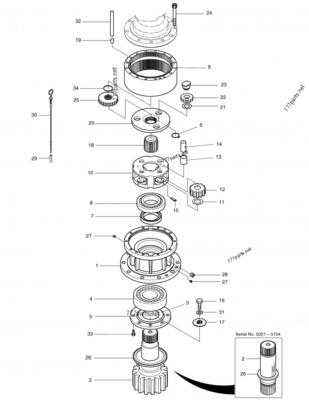

| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | K1000350 | BOX, SWING REDUCTION GEAR | 160 kg | 2 | |
| - | K1033589 | BOX, SWING REDUCTION GEAR | 157 kg | 2 | |
| 1 | 2402-6003C | CASING | 37 kg | 1 | |
| 2 | 2405-1018C | SHAFT, DRIVE | 19 kg | 1 | |
| 2 | K1033590 | SHAFT, DRIVE | 33 kg | 1 | |
| 3 | 2412-1040 | RING, NILOS | 1 | ||
| 4 | 2109-9033 | ROLLER BEARING(=2109-9033P) | 13 kg | 1 | |
| 5 | 2891-1421B | PLATE, COVER | 1 kg | 1 | |
| 6 | S6500380 | RING, RETAINING | 3 | ||
| 7 | 2180-1254 | SEAL, OIL | 1 | ||
| 8 | 2109-1050 | ROLLER BEARING( 2109-1050P) | 3 kg | 1 | |
| 8 | 109-00174 | CYLINDRICAL BEARING | 3 kg | 1 | |
| 9 | 104-00051A | GEAR, RING | 21 kg | 1 | |
| 10 | 230-00061 | CARRIER NO.2 | 11 kg | 1 | |
| 11 | 2114-1901A | WASHER, THRUST NO.2 | 4 | ||
| 12 | 104-00050 | GEAR, PLANET NO.2 | 2 kg | 4 | |
| 13 | 110-00219 | BUSH NO.2 | 4 | ||
| 14 | 123-00437A | PIN NO.2 | 1 kg | 4 | |
| 15 | S5741341 | PIN, SPRING | 4 | ||
| 16 | S0121061 | BOLT, HEX.HD. | 1 | ||
| 17 | 114-00548 | WASHER, THRUST NO.3 | 1 | ||
| 18 | 104-00048 | GEAR, SUN NO.2 | 2 kg | 1 | |
| 19 | 2705-1030 | PIN, KNOCK | 1 kg | 4 | |
| 20 | 230-00060A | CARRIER NO.1 | 6 kg | 1 | |
| 21 | 114-00527 | WASHER, THRUST NO.1 | 3 | ||
| 22 | 104-00049A | GEAR, PLANET NO.1 | 1 kg | 3 | |
| 23 | 123-00435A | PIN ASS`Y NO.1 | 1 kg | 3 | |
| 24 | S2217471 | BOLT, SOCKET M12X150 | 16 | ||
| 25 | 104-00047A | GEAR, SUN NO.1 | 1 kg | 1 | |
| 26 | 2114-1914A | SPACER | 1 | ||
| 26 | K1033591 | SPACER | 1 | ||
| 27 | 2181-1116D2 | PLUG, RECHECK | 2 | ||
| 28 | 2181-1116D4 | PLUG, RECHECK | 97123-04111 | 1 | |
| 29 | 2140-1406 | PIPE, LEVEL GAUGE | 1 | ||
| 30 | 2119-1065 | GAUGE, LEVEL | 1 | ||
| 31 | S5231090 | WASHER, DOUBLE TAP | 1 | ||
| 32 | 140-01374A | PIPE | 4 | ||
| 33 | 120-00144 | BOLT , HEX. HD | 8 | ||
| 34 | S6500450 | RING, SNAP | 1 |
