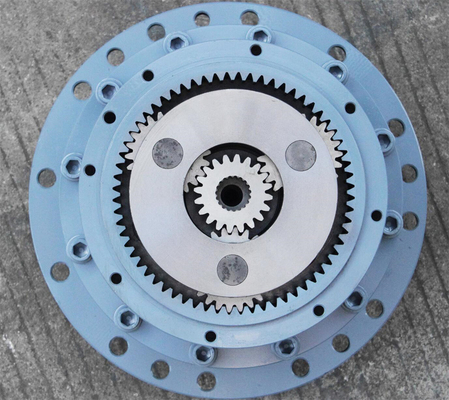

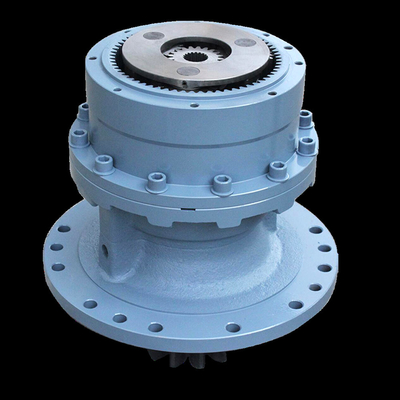

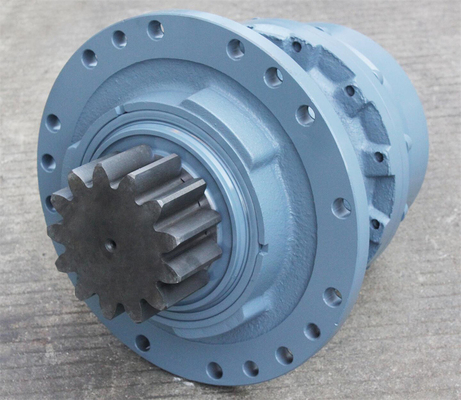

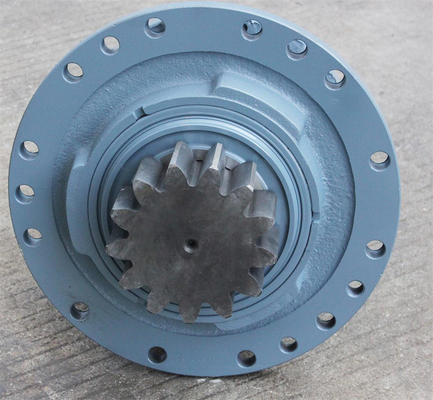

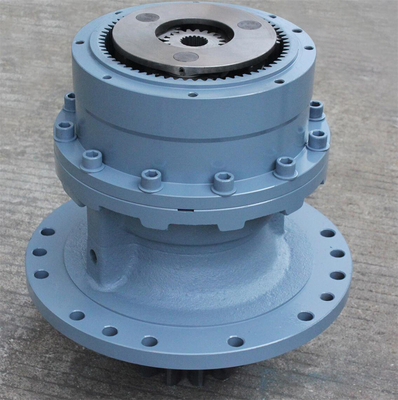

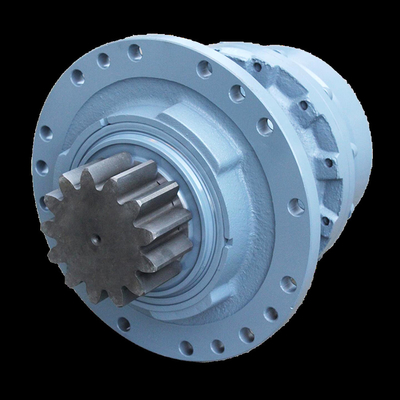

Excavator ZX200-3 ZX200-5 ZX170W-3 ZX210W-3 9260804/9262916 swing gearbox
Production Description
Detail Image
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 9276405 | [1] | SWING DEVICE | I 9262916 (for assembly of machine) |
| 01. | 9262916 | [1] | SWING DEVICE | (for transportation) |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 9276406 | [1] | SWING DEVICE | I 9262916 (for assembly of machine) |
| 01. | 9262916 | [1] | SWING DEVICE | (for transportation) |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9260805 | [1] | SWING DEVICE | ||
| 00. | 4610138 | [1] | MOTOR;OIL (SWING) | |
| 01. | 991342 | [1] | RING;RETAINING | |
| 02. | 9260804 | [1] | T.MISSION (SWING) | I 9262916 <for assembly of machine> |
| 02. | 9262916 | [1] | T.MISSION (SWING) | <for transportation> |
| 03. | 4614096 | [8] | BOLT;SOCKET | |
| 04. | 4449144 | [1] | PIPE | |
| 05. | 3107447 | [1] | GAUGE;LEVEL | |
| 06. | 4332658 | [1] | PIPE | |
| 07. | 4343365 | [1] | CAP | |
| 09. | +++++++ | [1] | NAME-PLATE | |
| 10. | M492564 | [2] | SCREW;DRIVE |
