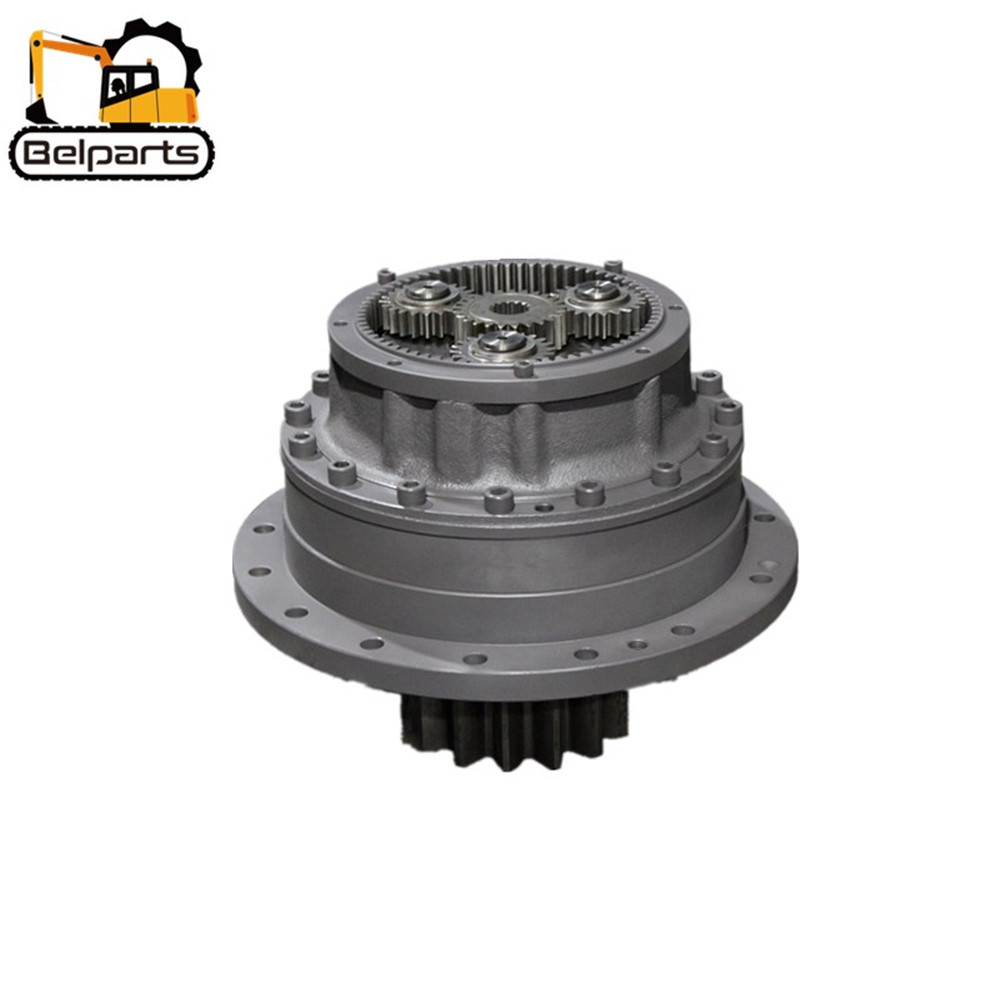

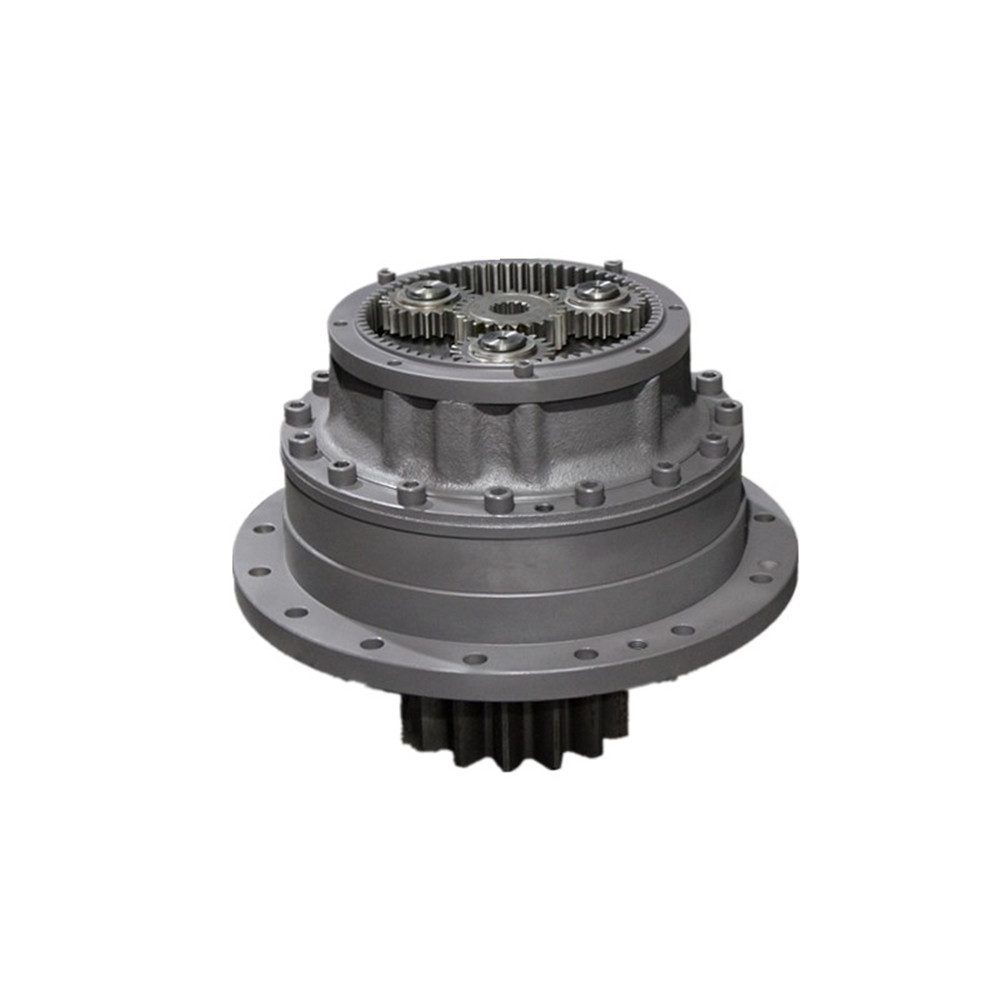

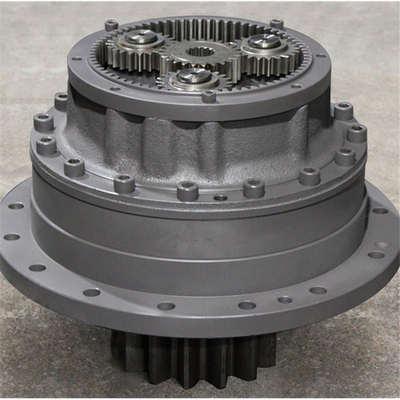

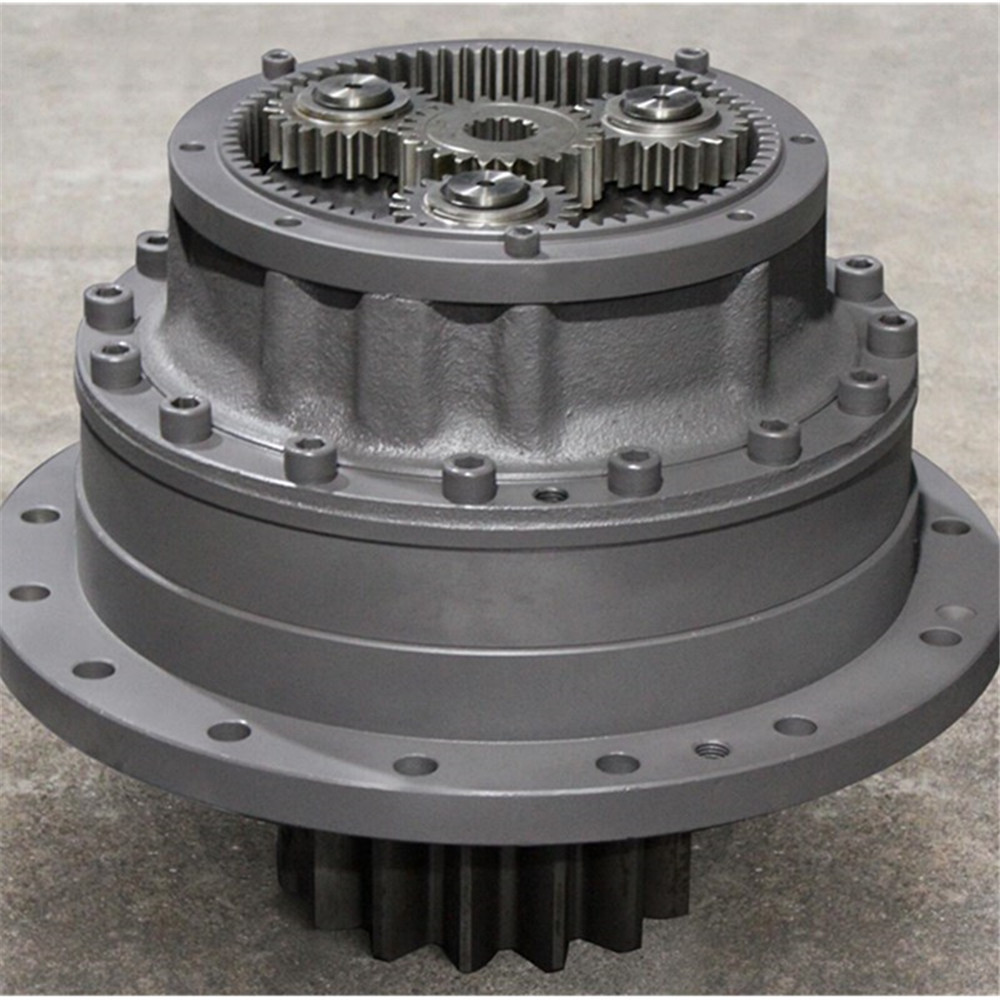

Excavator Swing Gearbox Reduction EC240BLC VOE14566202 VOE14542163 Swing Gearbox
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | EC240BLC | Part Number | VOE14566202 VOE14542163 |
|---|---|---|---|
| Product Name | Excav Swing Gearbox | Packing Size | 62*62*70 |
| Weight | 275KG | ||
| Highlight | VOE14542163 Swing Gearbox,EC240BLC Swing Gearbox,EC240BLC Excavator Swing Gearbox |
||
Product Description
Excavator swing gearbox reduction EC240BLC VOE14566202 VOE14542163 swing gearbox
Production Description
Detail Image

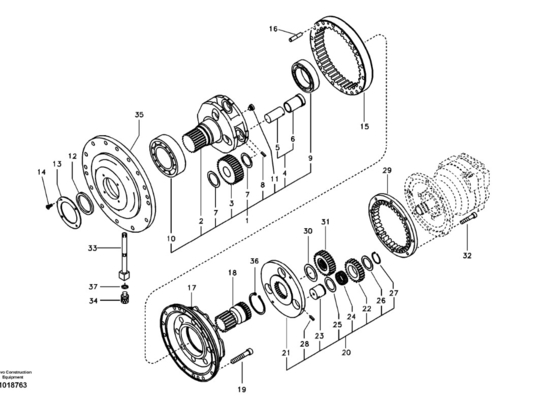

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 8277587 | ||||
| VOE 14503783 | Gearbox SER NO 10001-12701 |
1 | ||
| VOE 14542163 | Gearbox SER NO 12702- |
1 | ||
| 1 | VOE 14518703 | Carrier | 1 | |
| 2 | SA 1036-00530 | Crankshaft | 1 | |
| 3 | SA 1036-00550 | Planetary Gear | 3 | |
| 4 | SA 1036-00610 | Pin | 3 | |
| 5 | SA 7118-34231 | Pin | 3 | |
| 6 | SA 7118-34260 | Bushing | 3 | |
| 7 | SA 1036-00620 | Washer | 6 | |
| 8 | SA 9325-10012 | Spring Pin | 3 | |
| 9 | SA 1036-00710 | Bearing | 1 | |
| 10 | SA 1036-00720 | Bearing | 1 | |
| 11 | SA 1036-00630 | Knob | 1 | |
| 12 | SA 1036-00761 | Seal | 1 | |
| 13 | SA 7118-01560 | Plate | 1 | |
| 14 | SA 7114-12590 | Screw | 4 | |
| 15 | VOE 14504206 | Gear | 1 | |
| 16 | SA 1036-00700 | Pin | 4 | |
| 17 | SA 7118-34340 | Casing | 1 | |
| 18 | VOE 14510986 | Gear | 1 | |
| 19 | VOE 984369 | Screw | 16 | |
| 20 | SA 7118-34400 | Carrier | 1 | |
| 21 | SA 7118-34410 | Carrier | 1 | |
| 22 | SA 7118-34420 | Planetary Gear | 3 | |
| 23 | SA 7118-34430 | Pin | 3 | |
| 24 | SA 7118-34440 | Needle Bearing | 3 | |
| 25 | SA 7118-34450 | Washer | 3 | |
| 26 | SA 7118-34460 | Washer | 3 | |
| 27 | SA 9541-01040 | Ring | 3 | |
| 28 | SA 9325-08010 | Spring Pin | 3 | |
| 29 | SA 7118-34470 | Gear | 1 | |
| 30 | SA 7118-34480 | Washer | 1 | |
| 31 | SA 7118-34490 | Gear | 1 | |
| 32 | VOE 984354 | Screw more | 8 | |
| 33 | VOE 14514384 | Pipe SER NO 10001-12701 more |
1 | |
| VOE 14540597 | Pipe SER NO 12702- more |
1 | ||
| 34 | SA 1012-01500 | Valve more | 1 | |
| 35 | SA 7118-34290 | Casing | 1 | |
| 36 | SA 9541-01085 | Ring | 1 | |
| 37 | SA 9426-20090 | Gasket more | 1 | |
| 100 | VOE 14526215 | Reduction | 1 |
