Belparts Excavator Hydraulic Pump For 325D 329 328DLCR Escavadeira Main Pumps 272-6959
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Warranty | 12month |
|---|---|---|---|
| Part Name | Excavator Hydraulic Pump | Part Number | 272-6959 |
| Availability | In Stock | Place Of Origin | Huangpu Port |
| Highlight | Belparts Excavator Hydraulic Pump,325D Excavator Hydraulic Pump,272-6959 Excavator Hydraulic Pump |
||
Product Description

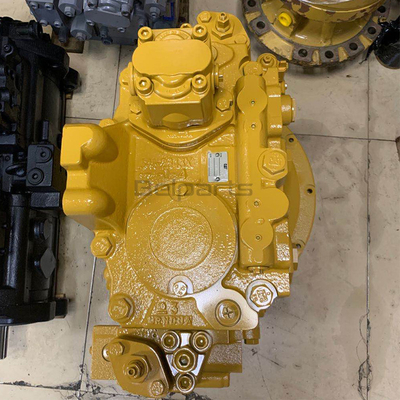

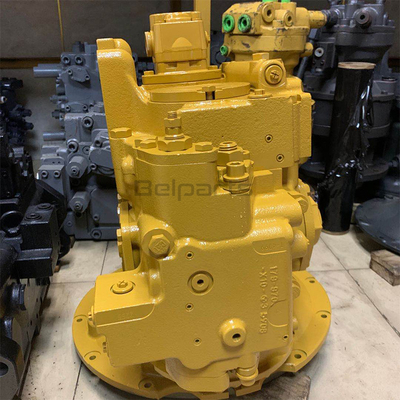

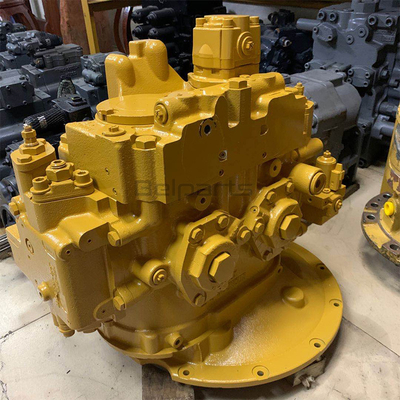

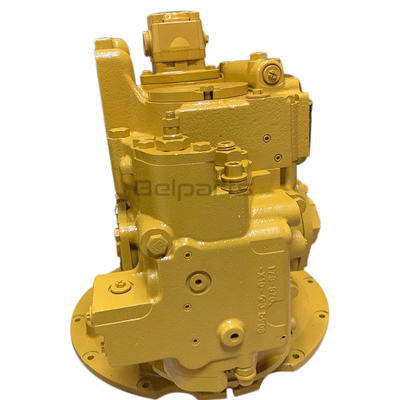

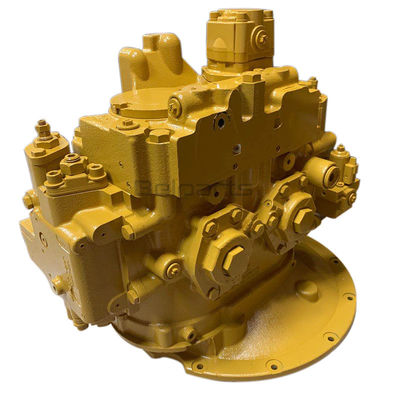

Belparts Excavator Hydraulic Pump for 325D 329 328DLCR Escavadeira main pumps 272-6959
Parts scheme
List of spare parts
| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 1 | 4I1022 | ORIFICE | 2 | |
| 2 | 7Y4215 | SPACER | 2 | |
| 3 | 0963983 | RING-RETAINING | 1 | |
| 4 | 0964389 | SPRING | 18 | |
| 5 | 1262016 | PUMP GROUP-GEAR (PILOT) | 1 | |
| 5A | 9T0835 | RING-RETAINING | 1 | |
| 6 | 2254611 | 1 | ||
| 7 | 2344494 | GASKET | 1 | |
| 8 | 2344493 | GASKET | 1 | |
| 9 | 1948325 | SET-BEARING | 2 | |
| 10 | 1297863 | COVER | 1 | |
| 11 | 1297921 | RING-RETAINING | 2 | |
| 12 | 2344498 | SEAL-LIP TYPE | 1 | |
| 13 | 1297927 | BEARING | 2 | |
| 14 | 1297979 | DOWEL | 4 | |
| 15 | 1505782 | COVER | 2 | |
| 16 | 2254541 | SHAFT-DRIVE | 1 | |
| 17 | 1733427 | GUIDE-BALL | 2 | |
| 18 | 1297853 | PLATE-CREEP | 2 | |
| 19 | 2560081 | BARREL AS-DRIVE | 1 | |
| 20 | 2560083 | BARREL AS-PUMP | 1 | |
| 21 | 1772470 | COVER | 1 | |
| 22 | 1772471 | COVER | 1 | |
| 23 | 1778740 | SEAL-O-RING | 1 | |
| 24 | 1799763 | FLANGE | 1 | |
| 25 | 1884210 | PISTON AS | 2 | |
| 26 | 1920573 | PIN-DOWEL | 4 | |
| 27 | 2003333 | HEAD-PUMP | 1 | |
| 28 | 2003334 | COVER | 1 | |
| 29 | 2254542 | SHAFT-DRIVEN | 1 | |
| 30 | 2560074 | ACTUATOR GROUP-PUMP -DRIVE | 1 | |
| 31 | 2560077 | ACTUATOR GROUP-PUMP -DRIVEN | 1 | |
| 32 | 2426801 | SWASHPLATE AS | 2 | |
| (EACH INCLUDES) | ||||
| 32A | 0941875 | PIN, ROLLER | 1 | |
| 32B | 1733428 | BEARING-SLEEVE | 1 | |
| 32C | 2426803 | PIN-DOWEL | 2 | |
| 33 | 2426804 | BEARING | 4 | |
| 34 | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 2 | |
| 35 | 2478782 | BODY | 1 | |
| 36 | 2478920 | ORIFICE | 2 | |
| 37 | 0941875 | PIN, ROLLER | 6 | |
| 38 | 0941882 | PLUG, TAPERED | 16 | |
| 39 | 0950946 | RING (RETAINING) | 2 | |
| 40 | 8T4196 | CAPSCREW (HEX HD) (M10 X1.5 X 35, GR10.9, Z) | 2 | |
| 41 | 0963944 | SEAL-O-RING | 1 | |
| 42 | 1899763 | SEAL (13.6mm OD) | 8 | |
| 43 | 1904896 | PLUG | 2 | |
| 44 | 1931736 | SEAL (85.6mm OD) | 4 | |
| 45 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 2 | |
| 46 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 | |
| 47 | 7X2557 | BOLT (M16X2.0X140MM) | 1 | |
| 48 | 8J4645 | PLUG (FRONT 5 STEM MAIN CONTROL VALVE) | 2 | |
| 49 | 8T3338 | SEAL-O-RING (ID=84.40mm) | 2 | |
| 50 | 8T4136 | CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9) | 18 | |
| 51 | 8T4137 | BOLT (M10X1.50X20MM) | 2 | |
| 52 | 8T4139 | CAPSCREW (HEX HD) (M12 X 1.75 X 30L GR 10.9) | 10 | |
| 53 | 8T4140 | BOLT-PLT (M16 X 2.0 X 60) | 4 | |
| 54 | 8T4175 | BOLT (M16X2X90-MM) | 2 | |
| 55 | 8T4176 | BOLT-PLT (M12 X 1.75 X 90) | 2 | |
| 56 | 8T4192 | CAPSCREW (HEX HD) (M12 X 1.75 X 25, GR10.9, Z) | 10 | |
| AVAILABLE REPAIR KIT(S): | ||||
| 2502503 | KIT-SEAL (PILOT GEAR PUMP) | 1 | ||
| (INCLUDES 2 GASKETS, LIP SEAL, SEAL & RETAINING RING) | ||||
| KIT MARKED J SERVICES PART(S) MARKED J | ||||
| METRIC PART | ||||
| SEPARATE ILLUSTRATION |
Product description
| Appliion Hitachi | Excavator for |
| Quality | High Guarantee |
| Model | 325D 329 328DLCR |
| Package | Standard Packing at Normal |
| Warranty | 1 Year |
| Payment term | T/T,, PayPal, Trade Assurance |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
FAQ
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
