Excavator 31NA-10150 swing gearbox reduction R360LC-7 swing gearbox assy
|
Product name |
Swing Gearbox
|
|
Weight: |
344KG
|
|
Name
|
Swing gearbox |
|
Model: |
R360LC-7
|
|
Part number: |
31NA-10150
|
|
Packing size: |
60X60x64
|
|
Brand: |
Hyundai
|

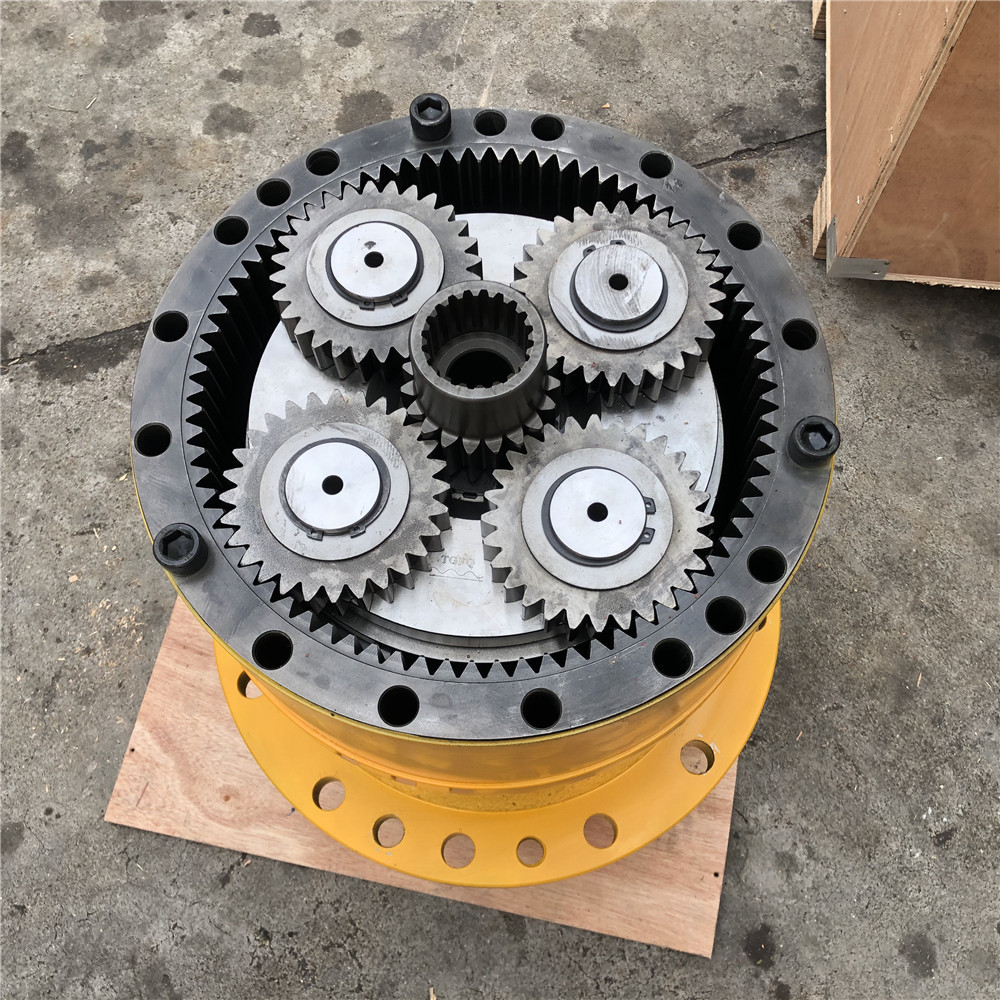

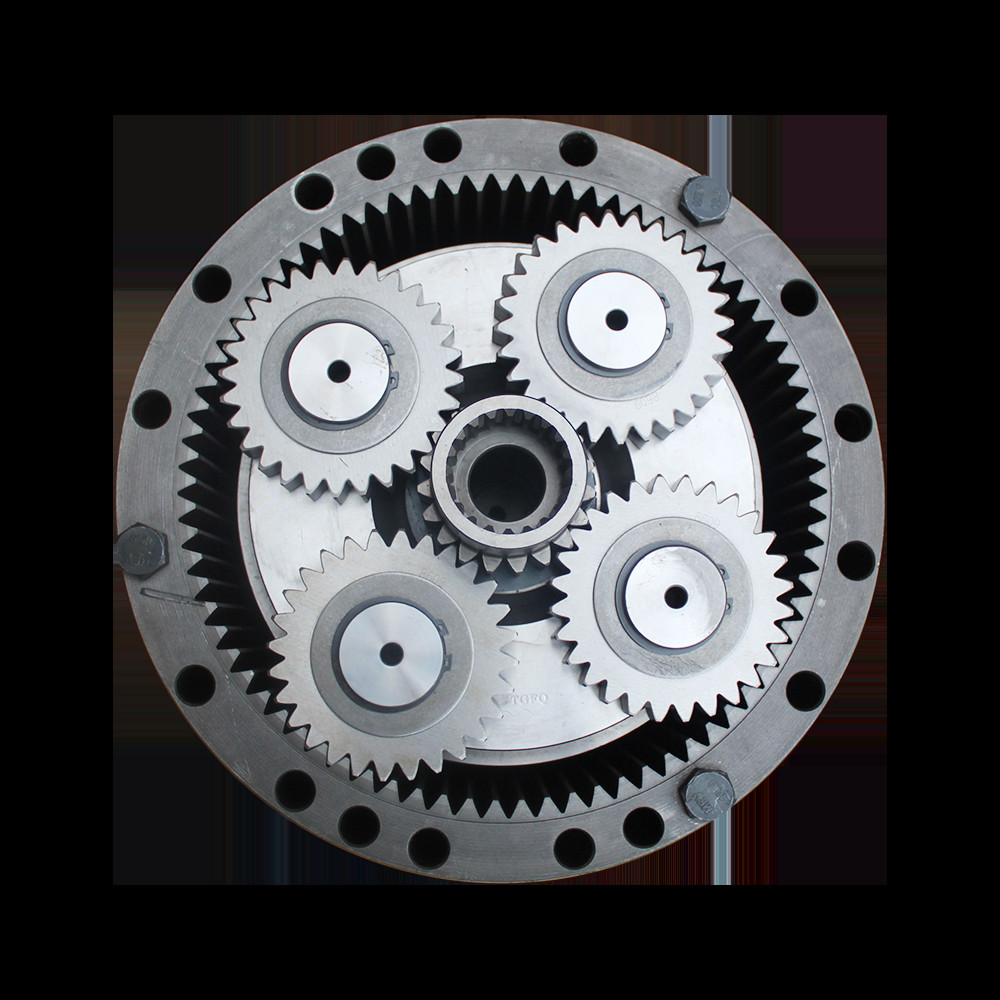

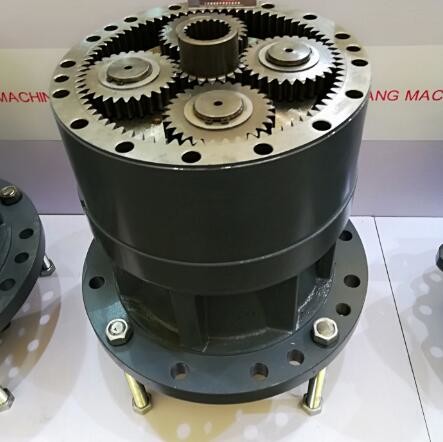

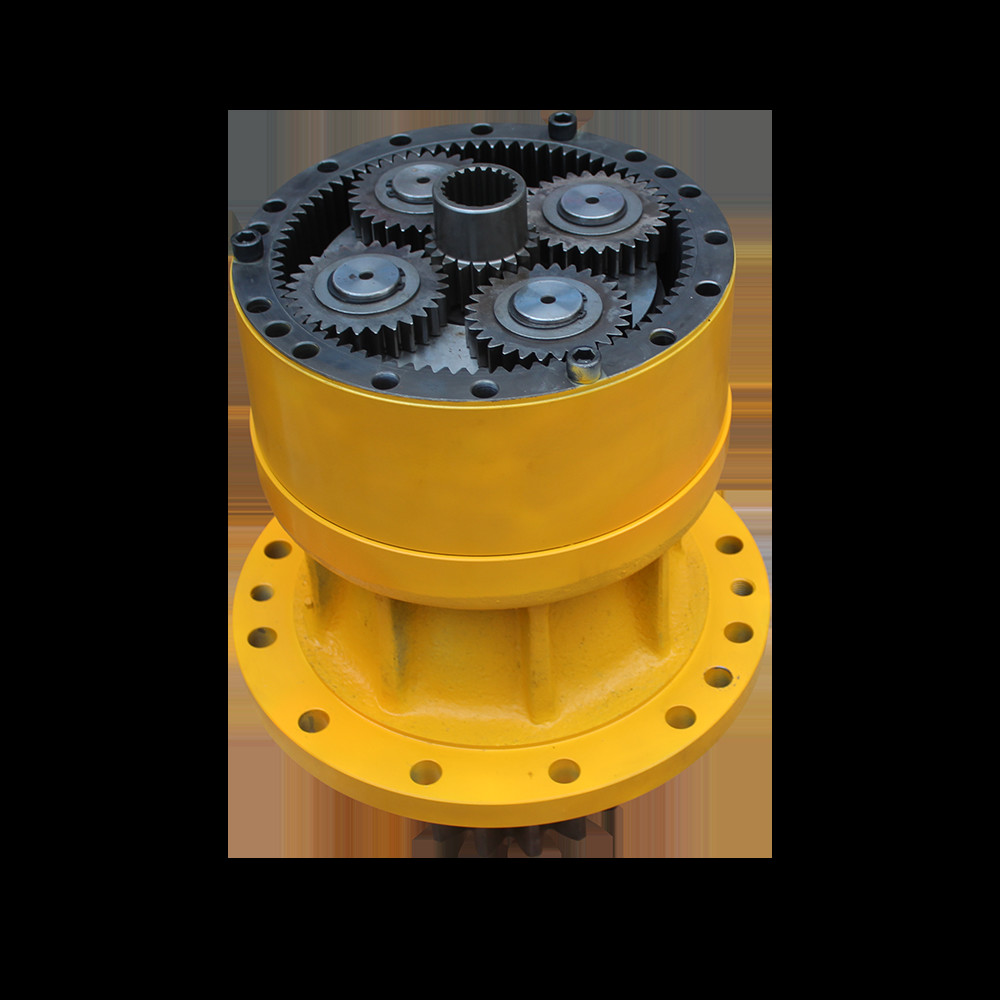

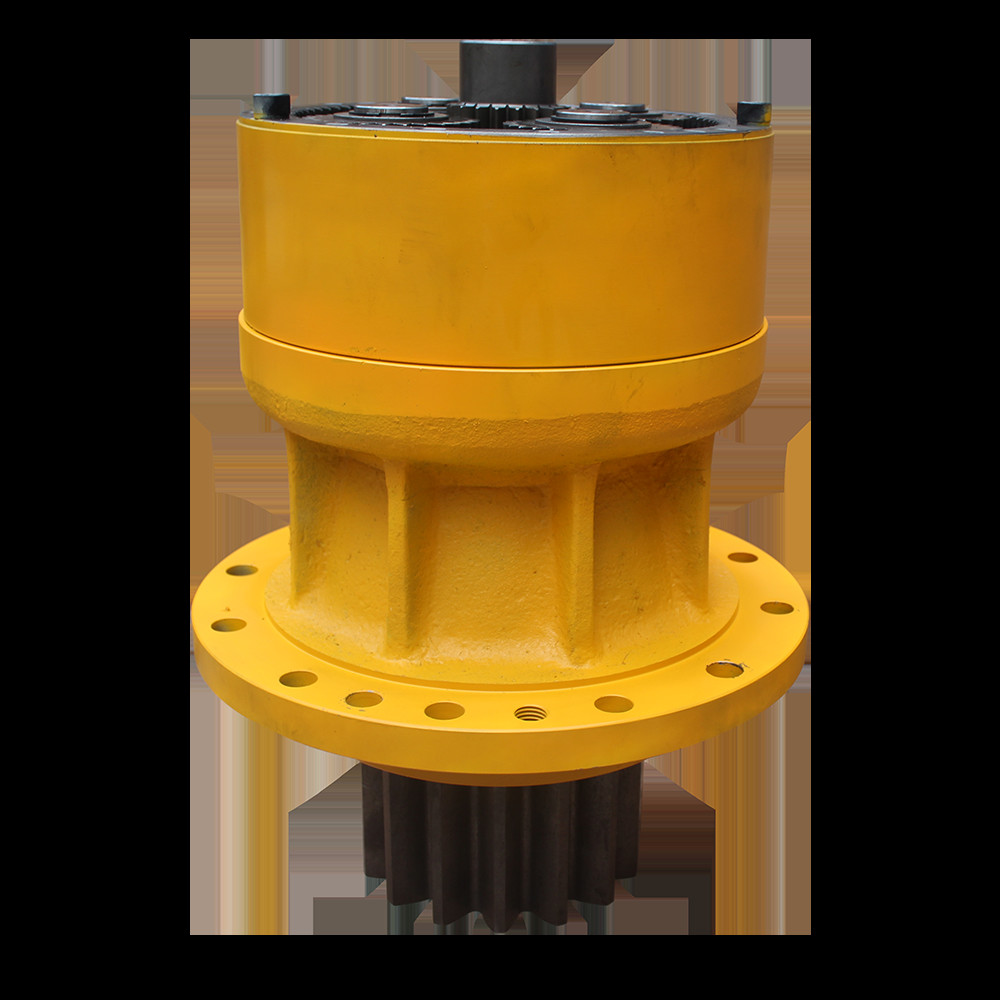

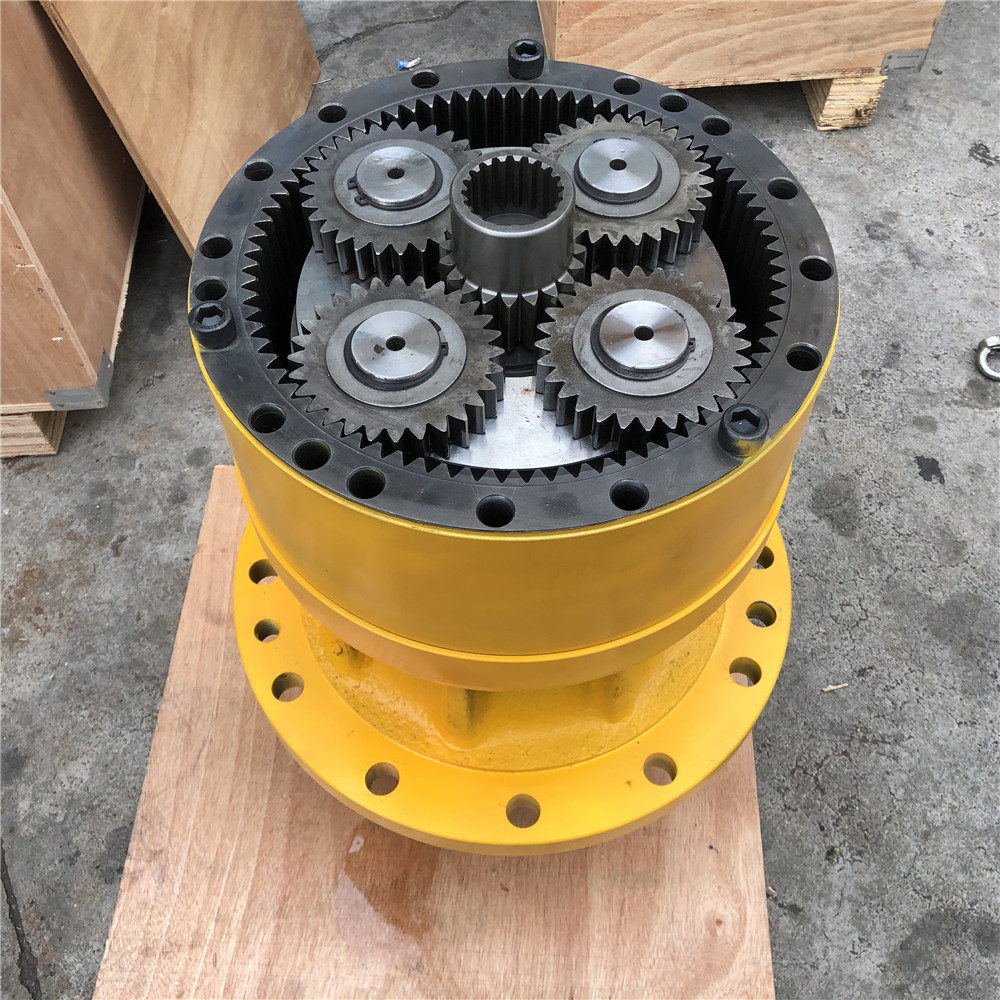

The Pictures

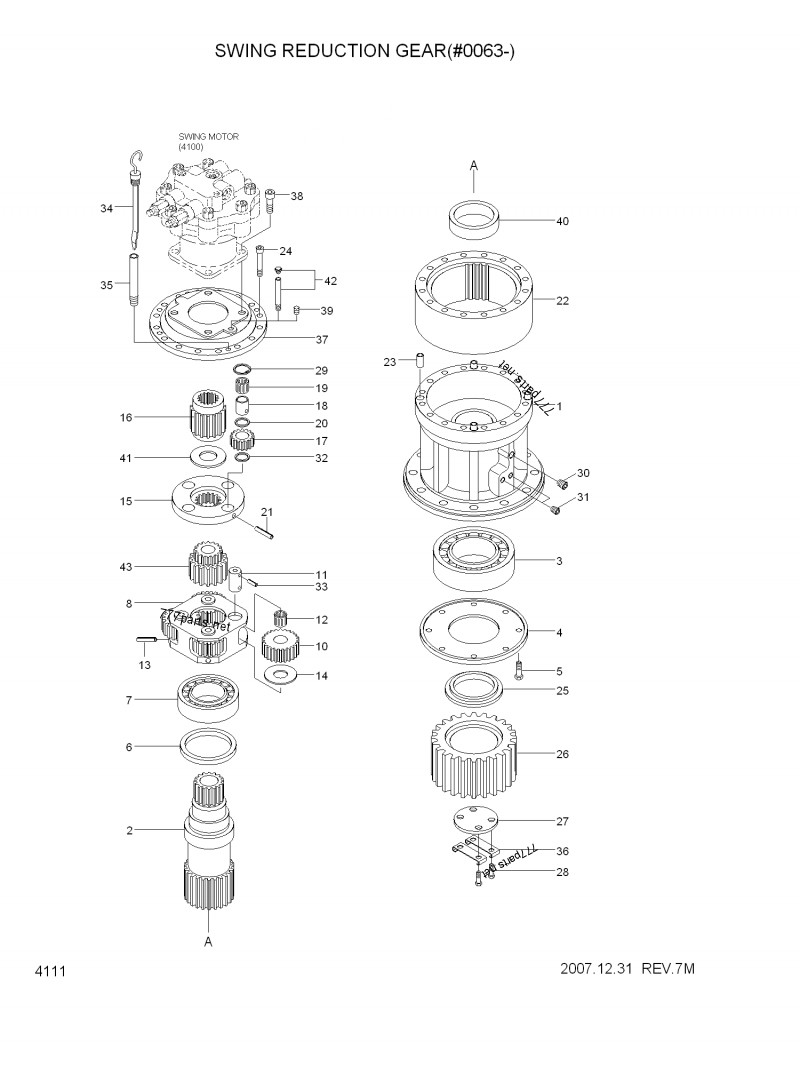

| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| *-2 | 31NA-10150 | SWING REDUCTION GEAR | 1 | |
| 1 | XKAQ-00144 | CASING | 1 | |
| 2 | XKAQ-00145 | SHAFT-DRIVE | 1 | |
| 2 | XKAQ-00300 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00146 | BEARING-ROLLER | 1 | |
| 4 | XKAQ-00147 | PLATE-COVER | 1 | |
| 5 | XKAQ-00148 | BOLT-HEX | 8 | |
| 6 | XKAQ-00149 | SEAL-OIL | 1 | |
| 7 | XKAQ-00027 | BEARING-ROLLER | 1 | |
| * | XKAQ-00263 | CARRIER ASSY 2 | 1 | |
| * | XKAQ-00264 | CARRIER ASSY-NO 2 | 1 | |
| 8 | XKAQ-00150 | CARRIER 2 | 1 | |
| 8 | XKAQ-00251 | CARRIER 2 | 1 | |
| 10 | XKAQ-00152 | GEAR-PLANET 2 | 4 | |
| 10 | XKAQ-00253 | GEAR-PLANET 2 | 4 | |
| 11 | XKAQ-00153 | PIN ASSY 2 | 4 | |
| 11 | XKAQ-00254 | PIN ASSY 2 | 4 | |
| N12 | @ | FUEL INJECTION PIPE & NOZZLE | 4 | |
| N12 | @ | FUEL INJECTION PIPE & NOZZLE | 4 | |
| N33 | @ | FUEL INJECTION PIPE & NOZZLE | 4 | |
| 13 | XKAQ-00050 | PIN-SPRING | 4 | |
| 14 | XKAQ-00156 | WASHER | 4 | |
| * | XKAQ-00261 | CARRIER ASSY-NO 1 | 1 | |
| * | XKAQ-00262 | CARRIER ASSY-NO 1 | 1 | |
| 15 | XKAQ-00157 | CARRIER 1 | 1 | |
| 15 | XKAQ-00325 | CARRIER 1 | 1 | |
| 16 | XKAQ-00158 | GEAR-SUN 1 | 1 | |
| 16 | XKAQ-00257 | GEAR-SUN 1 | 1 | |
| 17 | XKAQ-00774 | GEAR-PLANET 1 | 4 | |
| 18 | XKAQ-00019 | PIN 1 | 4 | |
| 19 | XKAQ-00030 | CAGE-NEEDLE | 4 | |
| 20 | XKAQ-00040 | PLATE-SIDE 2 | 4 | |
| 21 | XKAQ-00048 | PIN-SPRING | 4 | |
| 22 | XKAQ-00160 | GEAR-RING | 1 | |
| 22 | XKAQ-00258 | GEAR-RING | 1 | |
| 23 | XKAQ-00072 | PIN-KNOCK | 4 | |
| 24 | XKAQ-00161 | BOLT-SOCKET | 16 | |
| 24 | XKAQ-00259 | BOLT-SOCKET | 16 | |
| 25 | XKAQ-00162 | SPACER | 1 | |
| 26 | XKAQ-00163 | GEAR-PINION | 1 | |
| 27 | XKAQ-00164 | PLATE-LOCK | 1 | |
| 27 | XKAQ-00299 | PLATE-LOCK | 1 | |
| 28 | XKAQ-00042 | BOLT-HEX | 2 | |
| 28 | XKAQ-00042 | BOLT-HEX | 4 | |
| 29 | XKAQ-00041 | RING-STOP | 1 | |
| 30 | XKAQ-00273 | PLUG | 1 | |
| 31 | XKAQ-00274 | PLUG | 2 | |
| 32 | XKAQ-00057 | PLATE-SIDE 1 | 4 | |
| 34 | XKAQ-00166 | BAR-GAUGE | 1 | |
| 35 | XKAQ-00167 | PIPE-GAUGE | 1 | |
| 36 | XKAQ-00168 | WASHER-LOCK | 1 | |
| 36 | XKAQ-00292 | WASHER-LOCK | 2 | |
| 37 | XKAQ-00169 | COVER | 1 | |
| 38 | XKAQ-00170 | BOLT-HEX SOCKET | 4 | |
| 39 | XKAQ-00155 | PLUG-SOCKET | 1 | |
| 40 | XKAQ-00171 | RING-SPACER | 1 | |
| 41 | XKAQ-00076 | PLATE-THRUST | 1 | |
| 41 | XKAQ-00260 | RING-THRUST | 1 | |
| 42 | XKAQ-00143 | AIR BREATHER ASSY | 1 | |
| 43 | XKAQ-00151 | GEAR-SUN 2 | 1 | |
| 43 | XKAQ-00252 | GEAR-SUN 2 | 1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | 1 |
