Excavator swing gearbox reduction DX420LC 130426-00015 swing gearbox
|
Product name |
Swing Gearbox
|
|
Weight: |
300KG
|
|
Name
|
Swing gearbox |
|
Model: |
DX420LC
|
|
Part number: |
130426-00015
|
|
Packing size: |
43*43*52
|
|
Brand: |
Doosan
|

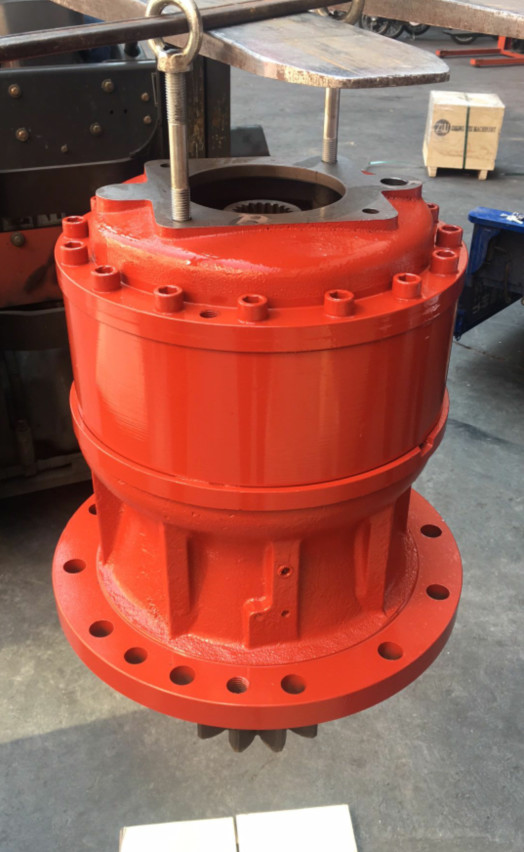

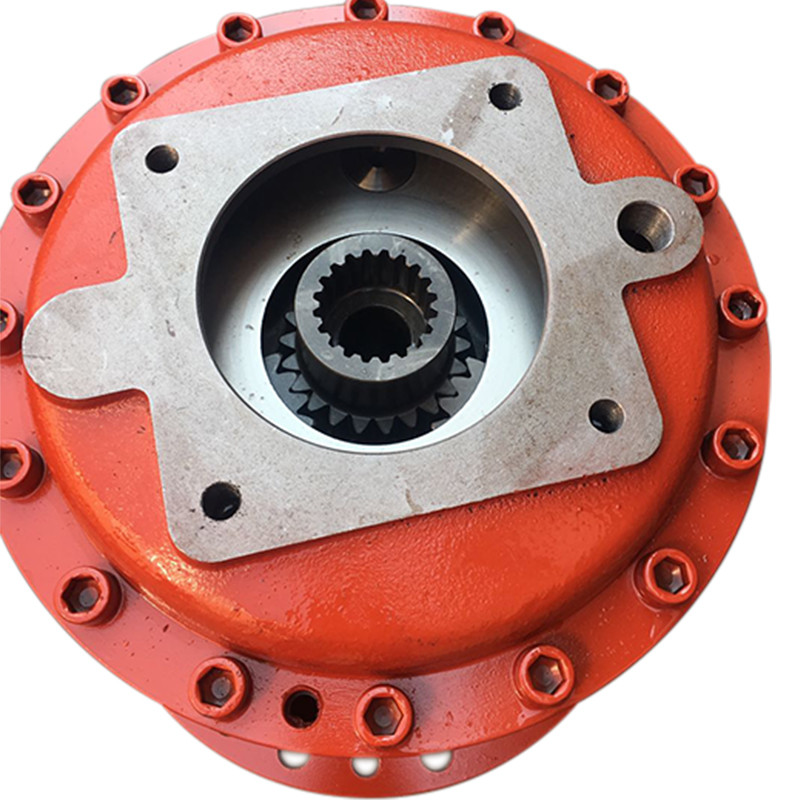

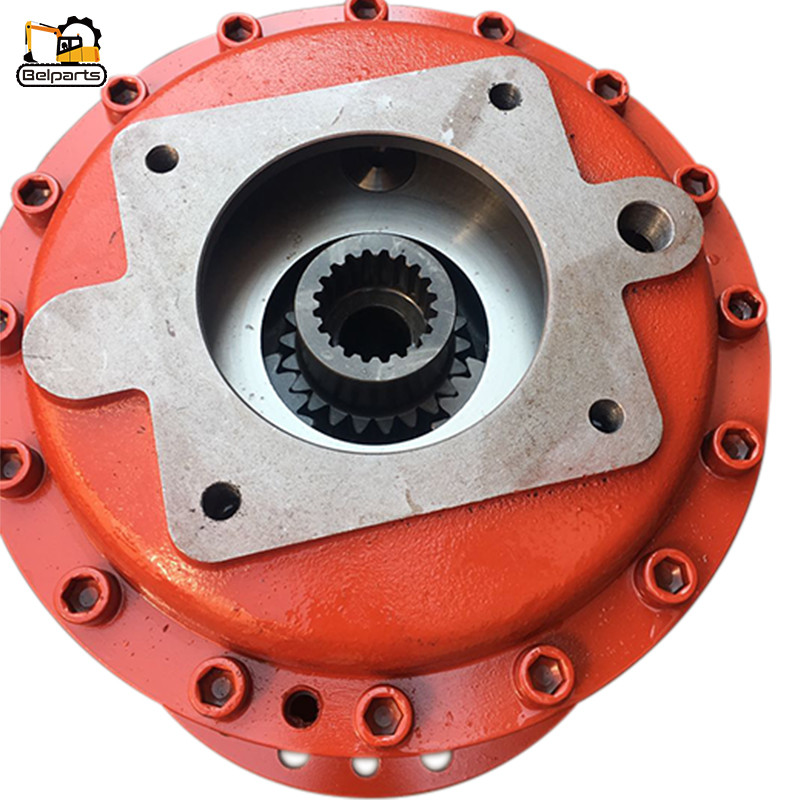

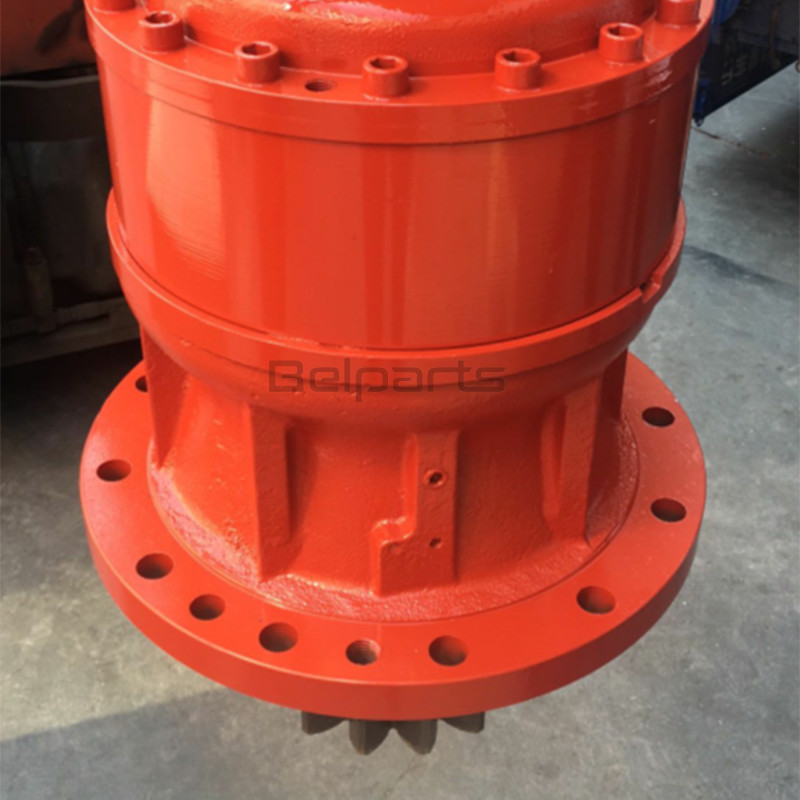

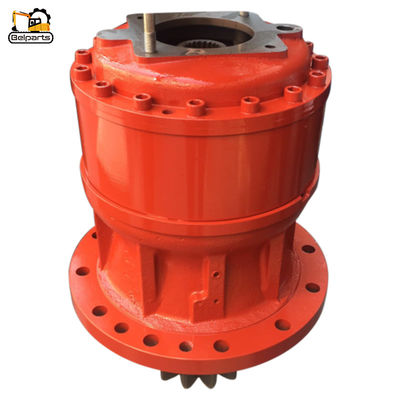

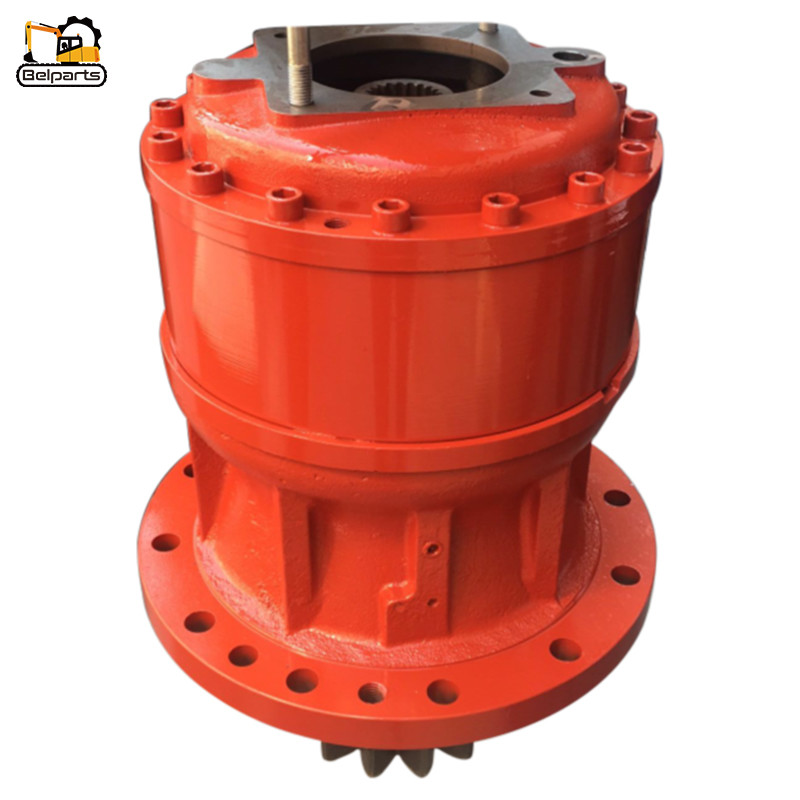

The Pictures
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | K1045875 | DEVICE, SWING | 80 kg | 1 | |
| 1 | 170303-00039 | MOTOR, SWING | 1 | ||
| 2 | GS08-002 | PINOIN SHAFT GEAR | 8 kg | 1 | |
| 3 | 2114-6040 | COLLAR | 1 | ||
| 4 | 2412-1026 | PLATE | 1 | ||
| 5 | 2109-9041 | BEARING, TAPER ROLLER | 4 kg | 1 | |
| 6 | GS08-003 | GEAR | 20 kg | 1 | |
| 7 | 2181-1116D1 | PLUG, RECHECK | 97123-01111 | 2 | |
| 8 | 2180-9154 | SEAL, OIL D90XD65 | 1 | ||
| 9 | 2109-9042 | BEARING, TAPER ROLLER | 1 kg | 1 | |
| 10 | 2114-1633 | COLLAR | 1 | ||
| 11 | 2123-1631 | PIN | 2 kg | 2 | |
| 12 | GS08-004 | #2 CARRIER ASS'Y | 6 kg | 1 | |
| 13 | GS08-005 | #2 SUN GEAR | 1 kg | 1 | |
| 14 | GS08-006 | RING GEAR | 8 kg | 1 | |
| 15 | GS08-007 | #1 CARRIER ASS'Y | 3 kg | 1 | |
| 16 | GS08-008 | #1 SUN GEAR | 1 | ||
| 17 | GS08-009 | BOLT, HEX SOCKET | 6 | ||
| 18 | 2181-1116D6 | PLUG PT3/8 | 1 | ||
| 19 | 2180-1220 | PACKING | 1 | ||
| * | 130426-00007 | GEAR, SWING REDUCTION | 55 kg | 1 |
