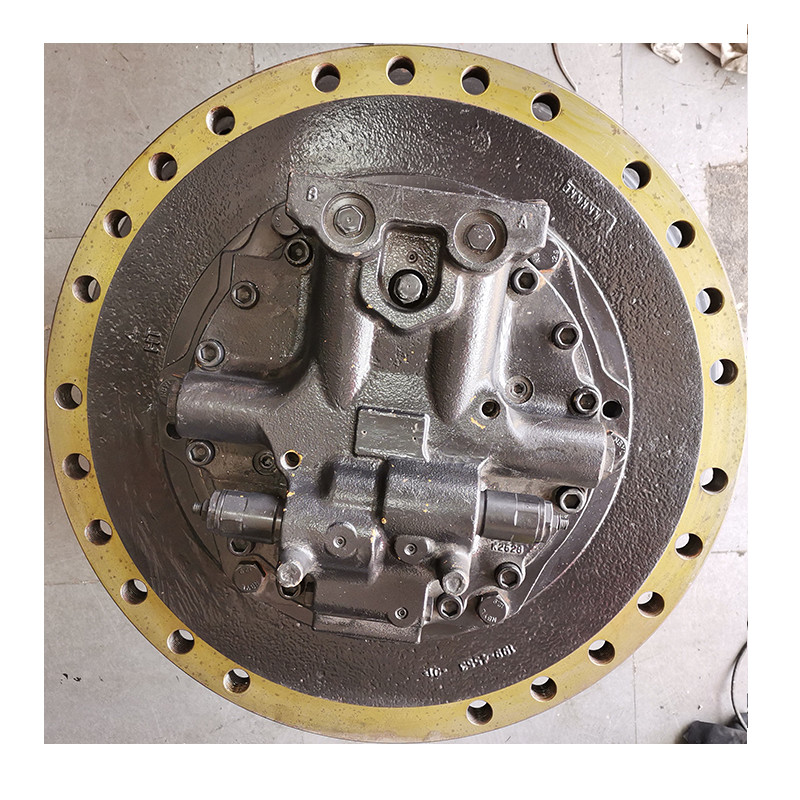

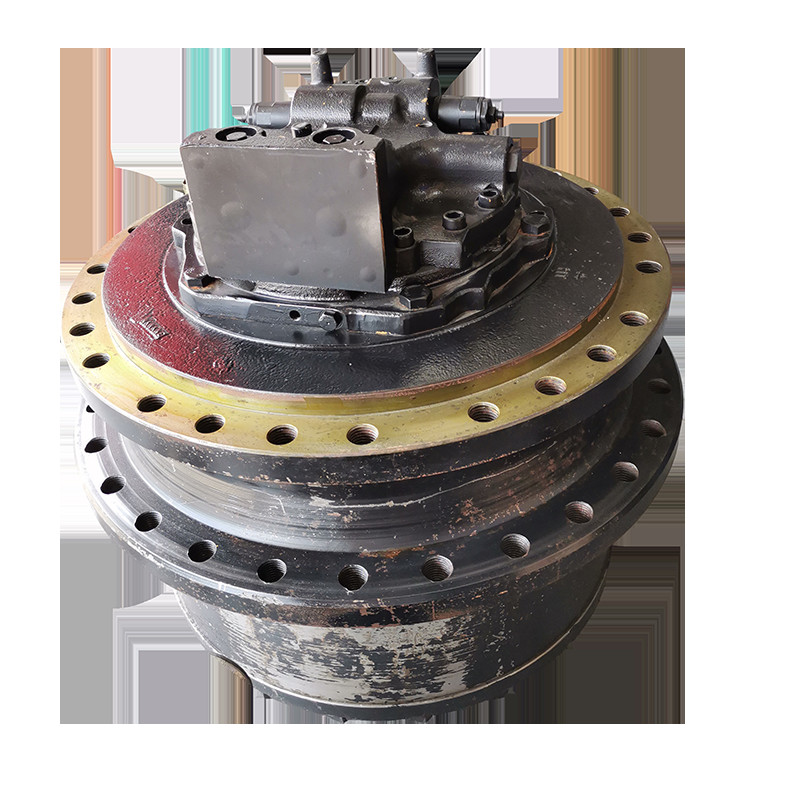

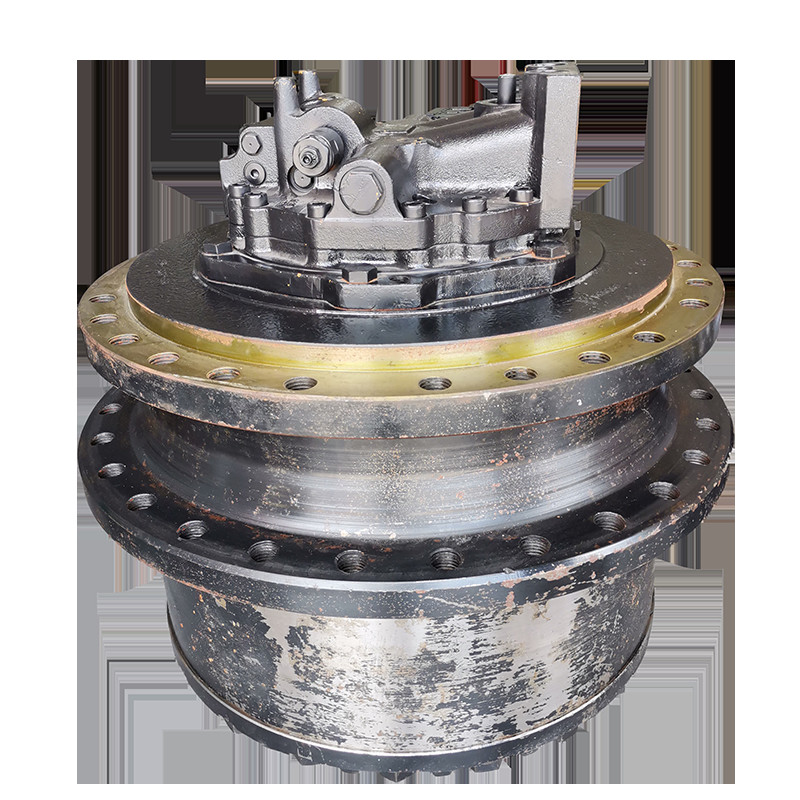

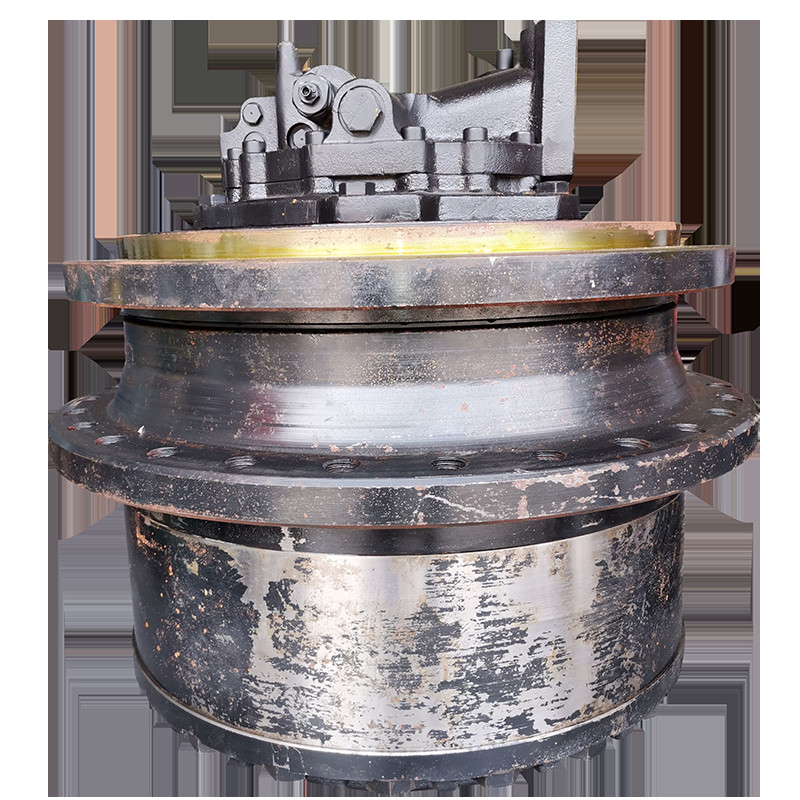

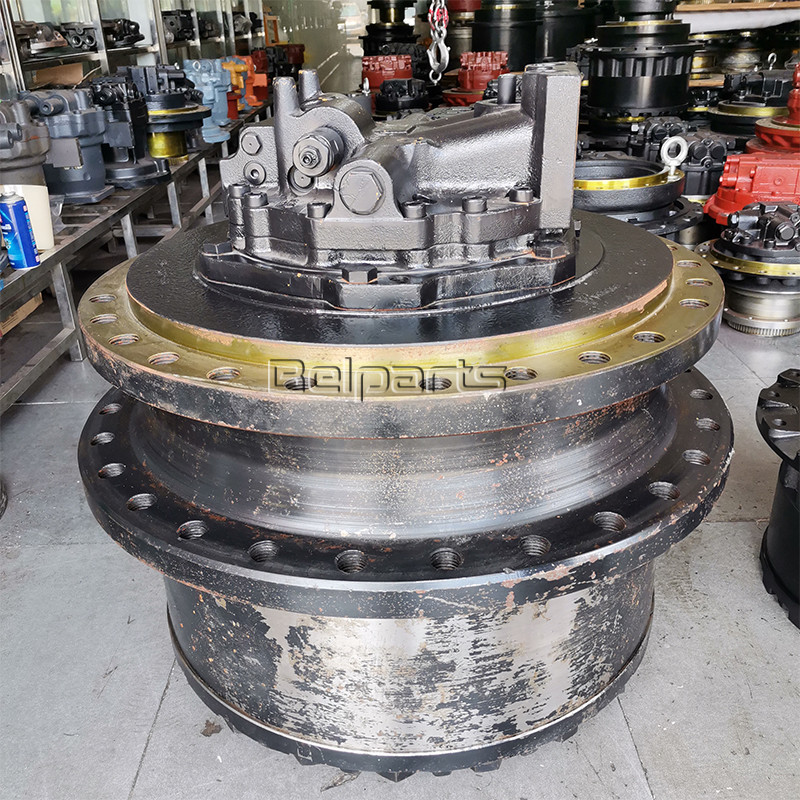

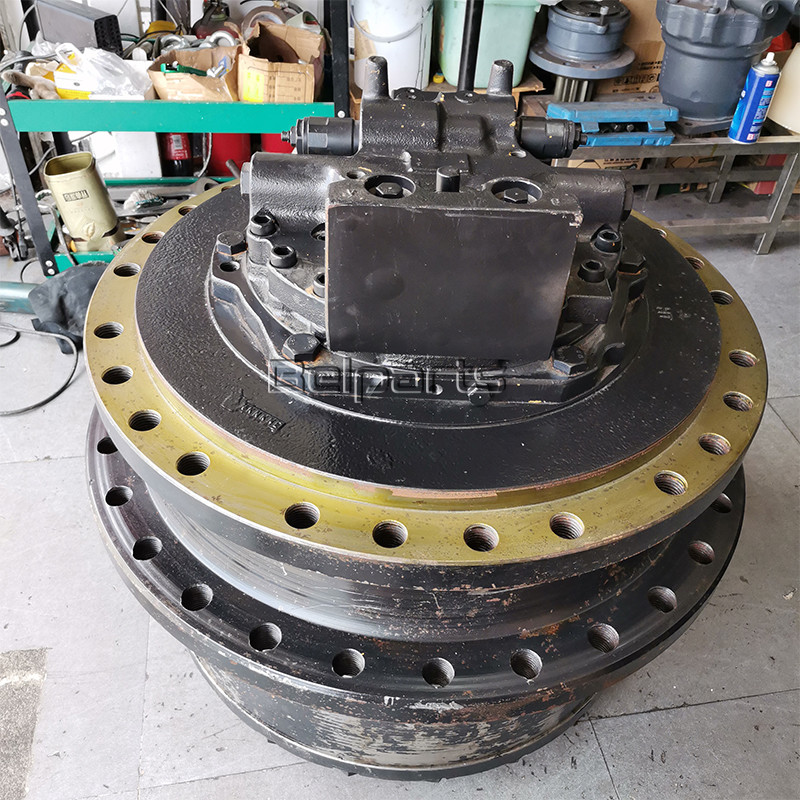

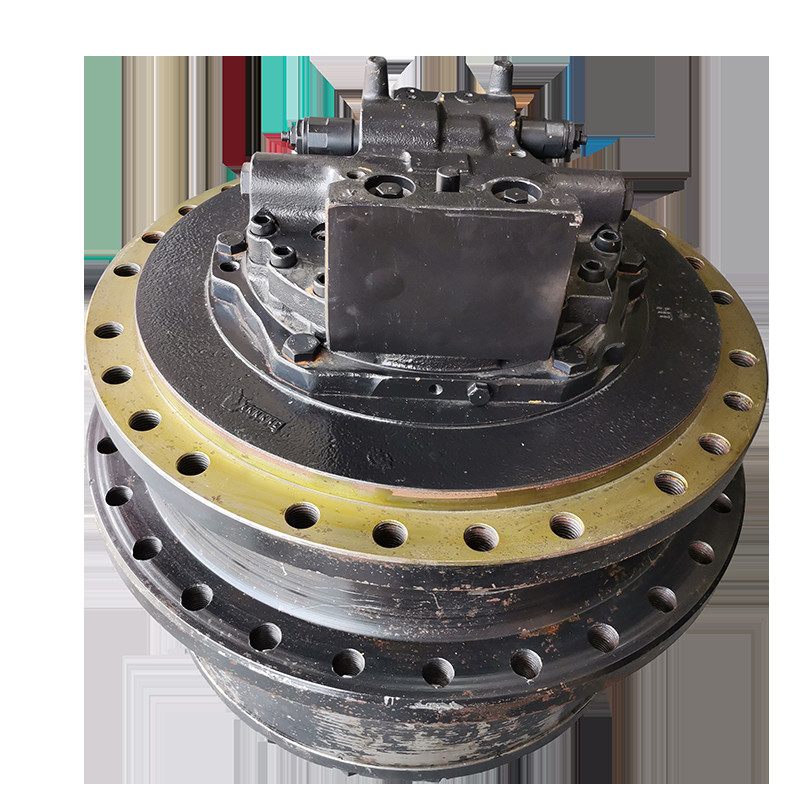

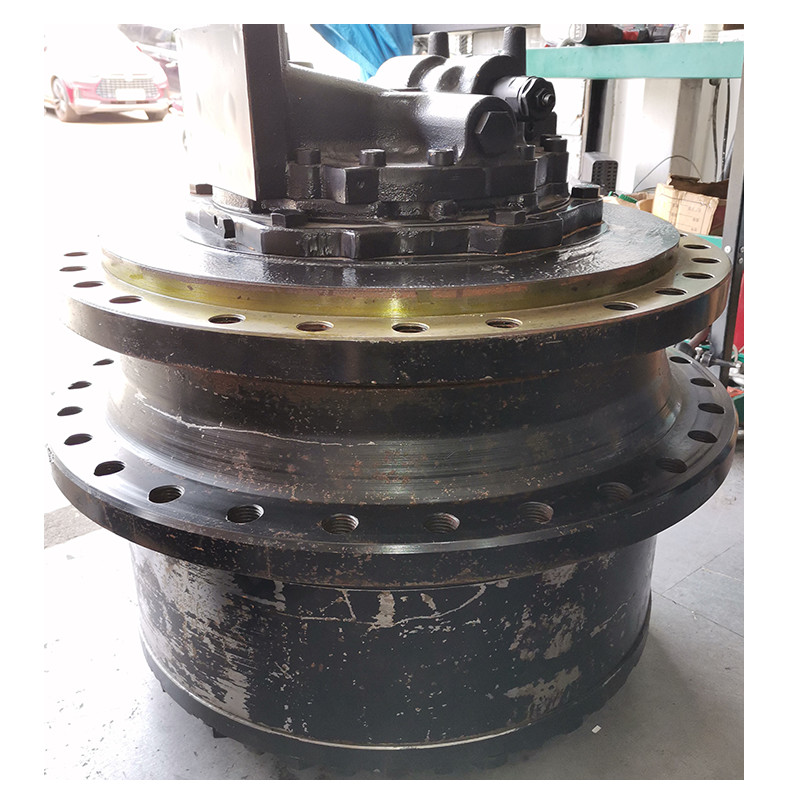

Belparts Excavator parts travel motor assy E390D 1559198 final drive assembly
Product description
| Package | 60*60*67 |
| Part name | travel motor assy |
| Machine model | E390D |
| Material | Alloy steel |
| Weight | 1300KG |
| Brand | erpillar |
| Part number | 1559198 |
| Part No | Part Name | Price request |
|---|---|---|
| 1559198 | MOTOR & MTG GROUP-TRAVEL |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 2003291 | STOP | 2 | |
| 2 | 0951787 | RING, BACK-UP (BUCK UP) | 2 | |
| 3 | 2069297 | SEAL-O-RING | 2 | |
| 4 | 2003289 | PISTON | 2 | |
| 5 | 2003297 | PIN AS | 2 | |
| 6 | 2069285 | SEAL-O-RING | 2 | |
| 7 | 0951795 | RING, BACK-UP | 2 | |
| 8 | 2003290 | STOP | 2 | |
| 9 | 2069290 | SEAL-O-RING | 19 | |
| 10 | 2003292 | SETSCREW (M20X2.5X90-MM) | 2 | |
| 11 | 2100834 | SEAL-O-RING | 1 | |
| 12 | 7Y4274 | PLUG | 2 | |
| 13 | 2069292 | SEAL-O-RING | 2 | |
| 14 | 1970226 | BOLT-SOCKET HEAD (M10X1.5X75-MM) | 2 | |
| 15 | 2069286 | SEAL-O-RING | 1 | |
| 16 | 2100835 | SEAL-O-RING | 4 | |
| 17 | 2003293 | PISTON AS | 2 | |
| 18 | 7I8084 | PLUG | 31 | |
| 19 | 1608758 | BOLT-SOCKET HEAD (M10X1.5X55-MM) | 4 | |
| 20 | 2069287 | SEAL-O-RING | 2 | |
| 21 | 2003272 | SHAFT | 1 | |
| 22 | 2003285 | COVER | 1 | |
| 23 | 7I8177 | ADAPTER | 2 | |
| 24 | 1907674 | SEAL-O-RING | 4 | |
| 25 | 2003283 | WASHER | 8 | |
| 26 | 2109434 | BOLT-SOCKET HEAD | 4 | |
| 27 | 2003286 | HOUSING | 2 | |
| 28 | 2003294 | BARREL AS | 1 | |
| 29 | 5I4168 | PIN | 2 | |
| 30 | 2003287 | COVER | 1 | |
| 31 | 2003273 | COUPLING | 1 | |
| 32 | 2003277 | PLATE | 1 | |
| 33 | 2003288 | COVER | 1 | |
| 34 | 2003275 | BEARING-NEEDLE | 2 | |
| 35 | 2095875 | SETSCREW | 8 | |
| 36 | 2003280 | SPRING | 18 | |
| 37 | 2003279 | GUIDE | 2 | |
| 38 | 2003278 | PLATE | 2 | |
| 39 | 2003281 | PLATE | 2 | |
| 40 | 2003296 | SWASHPLATE AS | 2 | |
| 41 | 2109435 | BOLT-SOCKET HEAD | 4 | |
| 42 | 2003282 | PLATE | 2 | |
| 43 | 2003274 | BEARING-ROLLER | 2 | |
| 44 | 2003276 | SPACER | 4 | |
| 45 | 0965516 | RING-RETAINING (EXTERNAL) | 2 | |
| 46 | 2003298 | SEAL | 1 | |
| 47 | 2003271 | SHAFT | 1 | |
| 48 | 2003284 | COVER | 1 | |
| 49 | 8T1158 | BOLT (SOCKET HEAD) (M8X1.25X20MM) | 4 | |
| 50 | 0931323 | PLUG | 2 | |
| 51 | 8C3347 | PIN, SPRING | 5 | |
| 52 | 0965400 | SETSCREW-SOCKET (M20X2.5X50-MM) | 2 | |
| 53 | 8T4131 | NUT (M20X2.5-THD) | 4 | |
| 54 | 0950965 | PLUG, TAPERED | 5 | |
| 55 | 7I8164 | ORIFICE | 4 | |
| 56 | 2003295 | BARREL AS | 1 | |
| METRIC PART |
