Parts scheme
List of spare parts
# | Part No | Part Name | Qty. | Remark |
---|---|---|---|---|
8277120 | ||||
VOE 14508164 | Pump SER NO 10001-11053 |
1 | ||
VOE 14531857 | Pump SER NO 11054- |
1 | ||
1 | SA 8230-14510 | Piston | 2 | |
2 | VOE 14512923 | Piston | 9 | |
3 | VOE 14502323 | Seat, Pad | 9 | |
4 | SA 8230-09880 | Cylinder | 1 | |
5 | VOE 14502321 | Block | 1 | |
6 | VOE 14502324 | Plate | 1 | |
7 | SA 8230-09890 | Cylinder | 1 | |
8 | VOE 14502321 | Block | 1 | |
9 | VOE 14502325 | Plate | 1 | |
10 | SA 8230-09810 | Support | 2 | |
11 | Plate | 1 | ||
12 | SA 7223-00240 | Bushing | 1 | |
13 | SA 9111-12000 | Nut more | 4 | |
14 | SA 8230-09110 | Shaft | 1 | |
15 | VOE 14512790 | Shaft | 1 | |
16 | SA 8230-09360 | Joint | 1 | |
17 | SA 8230-26640 | Roller Bearing | 2 | |
18 | SA 8230-26710 | Needle Bearing | 2 | |
19 | SA 8230-08850 | Spacer | 3 | |
20 | SA 8230-09090 | Booster | 1 | |
21 | SA 7242-10210 | Plate | 2 | |
22 | VOE 14510070 | Bushing more | 2 | |
23 | SA 8230-09840 | Spring | 18 | |
24 | VOE 14512543 | Plate | 2 | |
25 | SA 7223-00210 | Plate | 2 | |
26 | SA 8230-08960 | Support | 2 | |
27 | SA 8230-35460 | Cover | 1 | |
28 | SA 8230-32160 | Body | 2 | |
29 | SA 8230-08990 | Cover | 1 | |
30 | SA 8230-09000 | Cover | 1 | |
31 | SA 8230-35490 | Bolt | 4 | |
32 | SA 8230-09900 | Bolt | 4 | |
33 | SA 9016-10804 | Bolt more | 4 | |
34 | SA 9415-11021 | Plug more | 4 | |
35 | SA 9415-11051 | Plug more | 4 | |
36 | SA 7242-11040 | Plug more | 32 | |
37 | SA 8230-27740 | Plug more | 5 | |
38 | SA 8230-09780 | Pin | 2 | |
39 | Pin | 1 | ||
40 | Pin | 1 | ||
41 | SA 8230-35450 | Piston | 2 | |
42 | SA 8230-35480 | Stop | 2 | |
43 | SA 8230-35470 | Stop | 2 | |
44 | SA 7223-00690 | O-ring | 2 | |
45 | VOE 14535385 | O-ring | 1 | |
46 | VOE 14535386 | O-ring | 1 | |
47 | VOE 14533034 | O-ring | 2 | |
48 | VOE 14533035 | O-ring | 3 | |
49 | VOE 14534030 | O-ring more | 15 | |
50 | VOE 14534029 | O-ring more | 10 | |
51 | VOE 14535387 | O-ring more | 4 | |
52 | SA 7223-00700 | O-ring | 2 | |
53 | VOE 14535388 | Seal | 1 | |
54 | SA 7223-00640 | Ring | 2 | |
55 | SA 7223-00650 | Ring | 2 | |
56 | VOE 14534044 | O-ring more | 2 | |
57 | SA 9541-01045 | Snap Ring more | 2 | |
58 | SA 7242-10560 | Pin | 2 | |
59 | SA 7223-00660 | Spring Pin | 5 | |
60 | SA 8230-25460 | Eye Bolt | 2 | |
61 | SA 7223-00670 | Set Screw | 2 | |
62 | SA 7223-00680 | Set Screw | 2 | |
63 | VOE 14512544 | Cover | 1 | |
64 | SA 8240-03470 | Bolt | 8 | |
100 | VOE 14512757 | Sealing Kit SER NO 10001-11053 |
1 | |
VOE 14535392 | Sealing Kit SER NO 11054- |
1 |
|

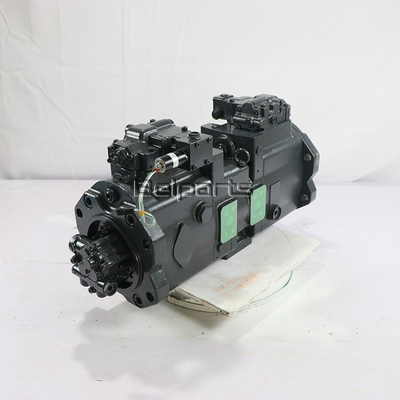

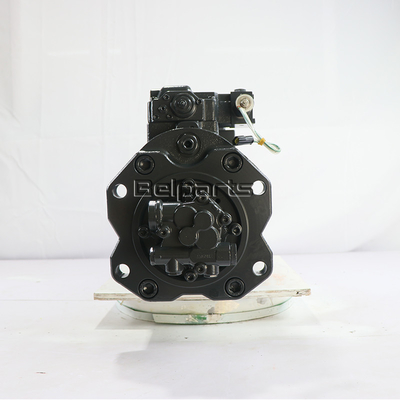

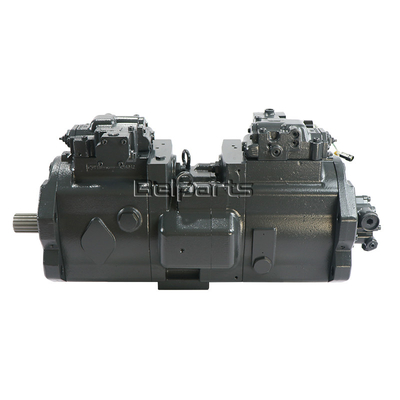

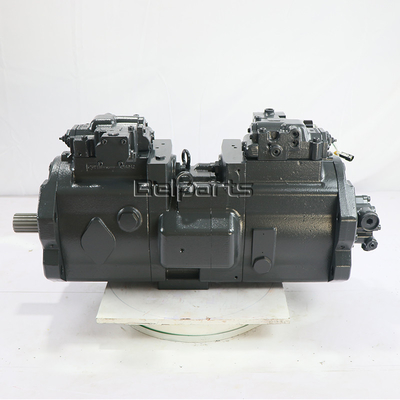

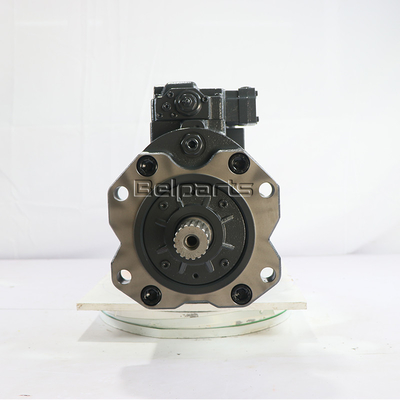

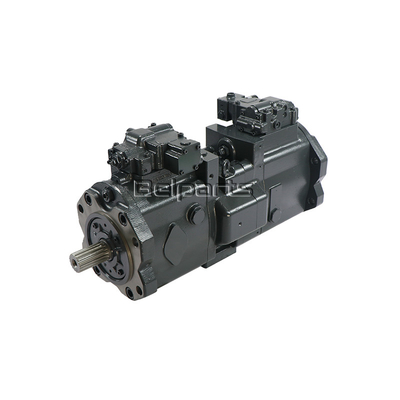

Product description
Appliion Hitachi | SANY Excavator |
Quality | High Guarantee |
Model | SY335C-9 EC460B |
Package | Standard Packing at Normal |
Warranty | 1 Year |
Payment term | T/T,, PayPal, Alibaba Trade Assurance |
Delivery | 2 days after the payment received |
Shipment | by sea, by air, by express or as required |
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
