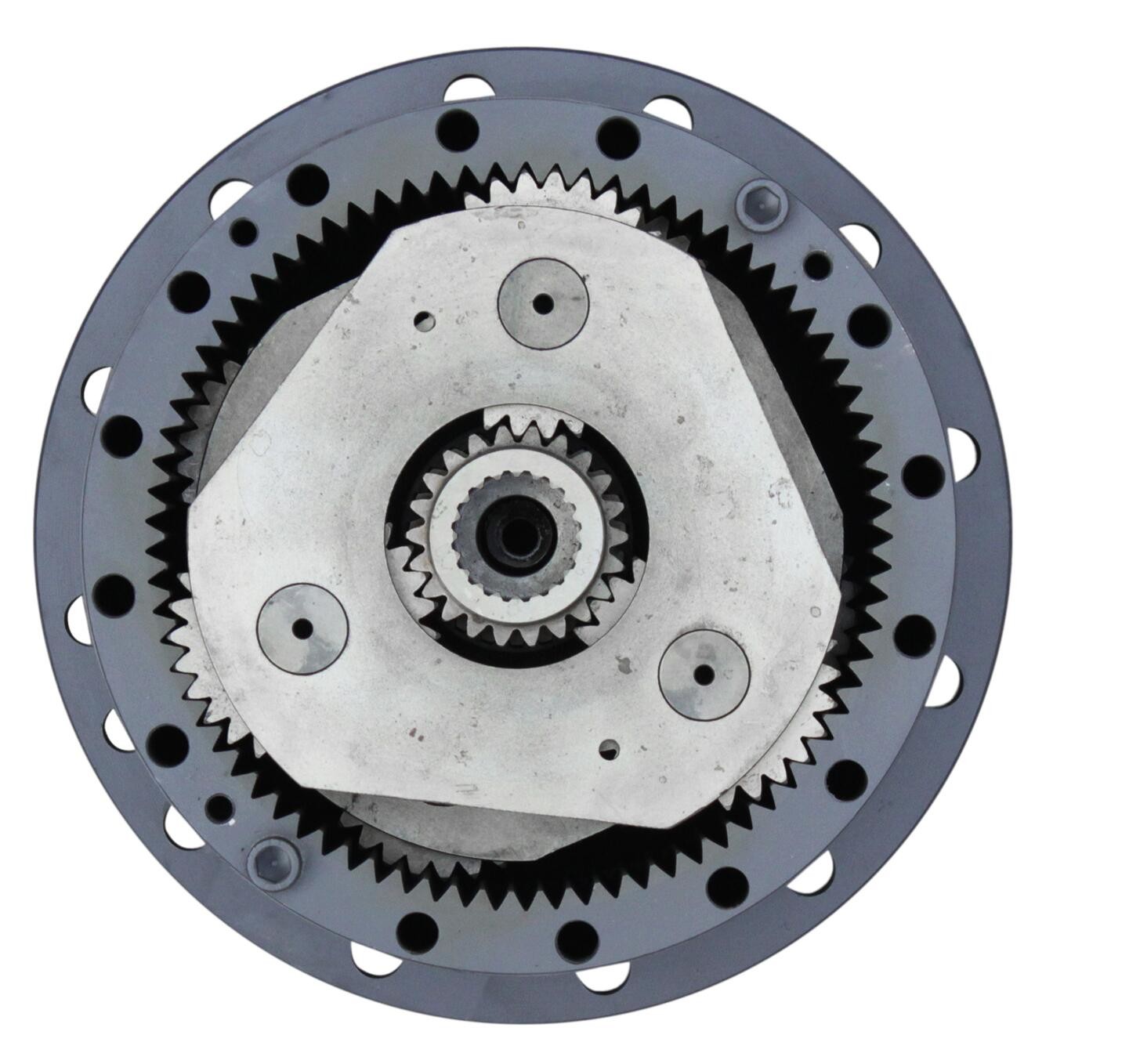

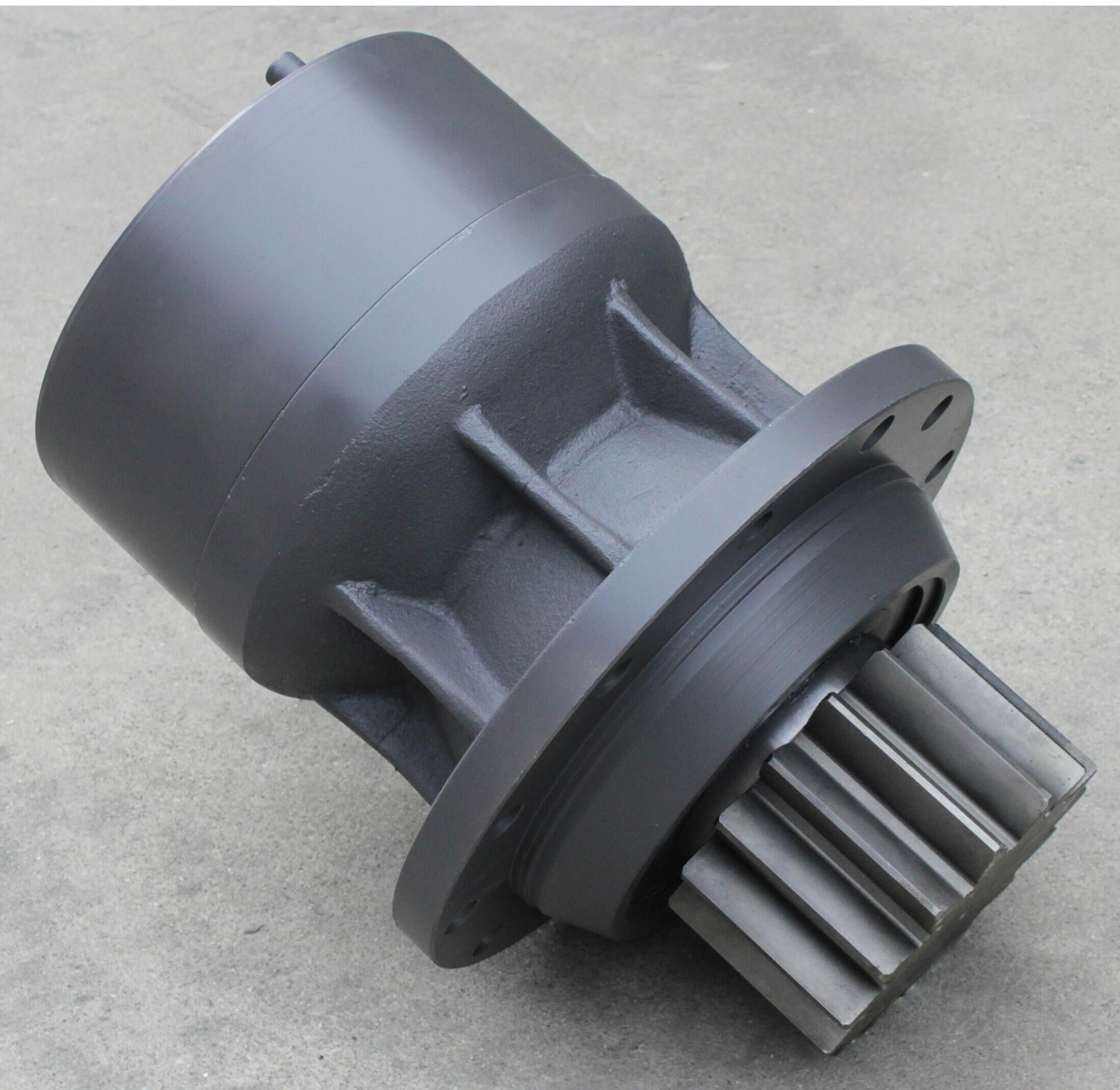

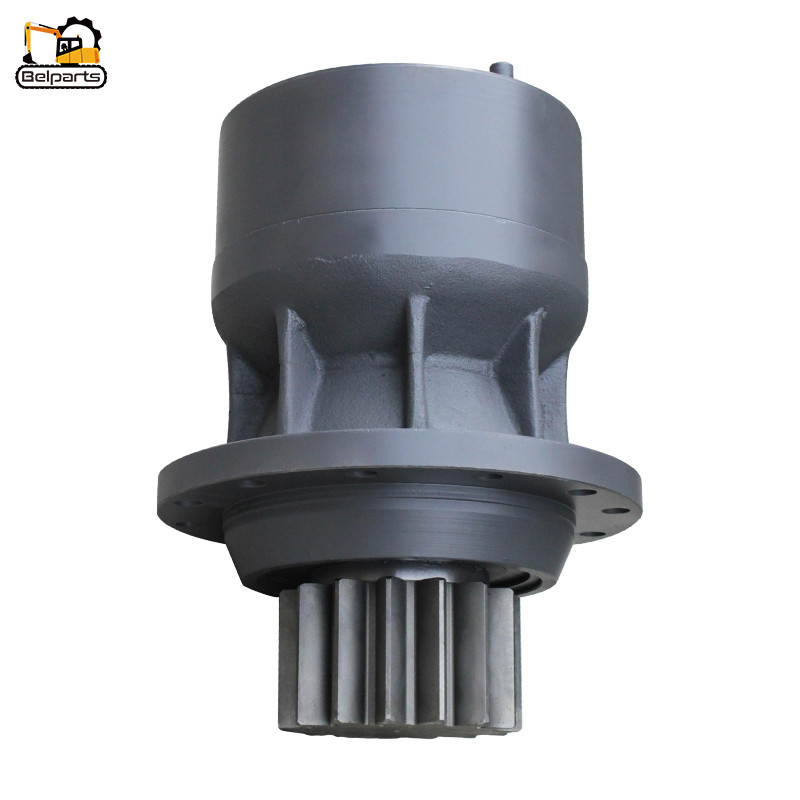

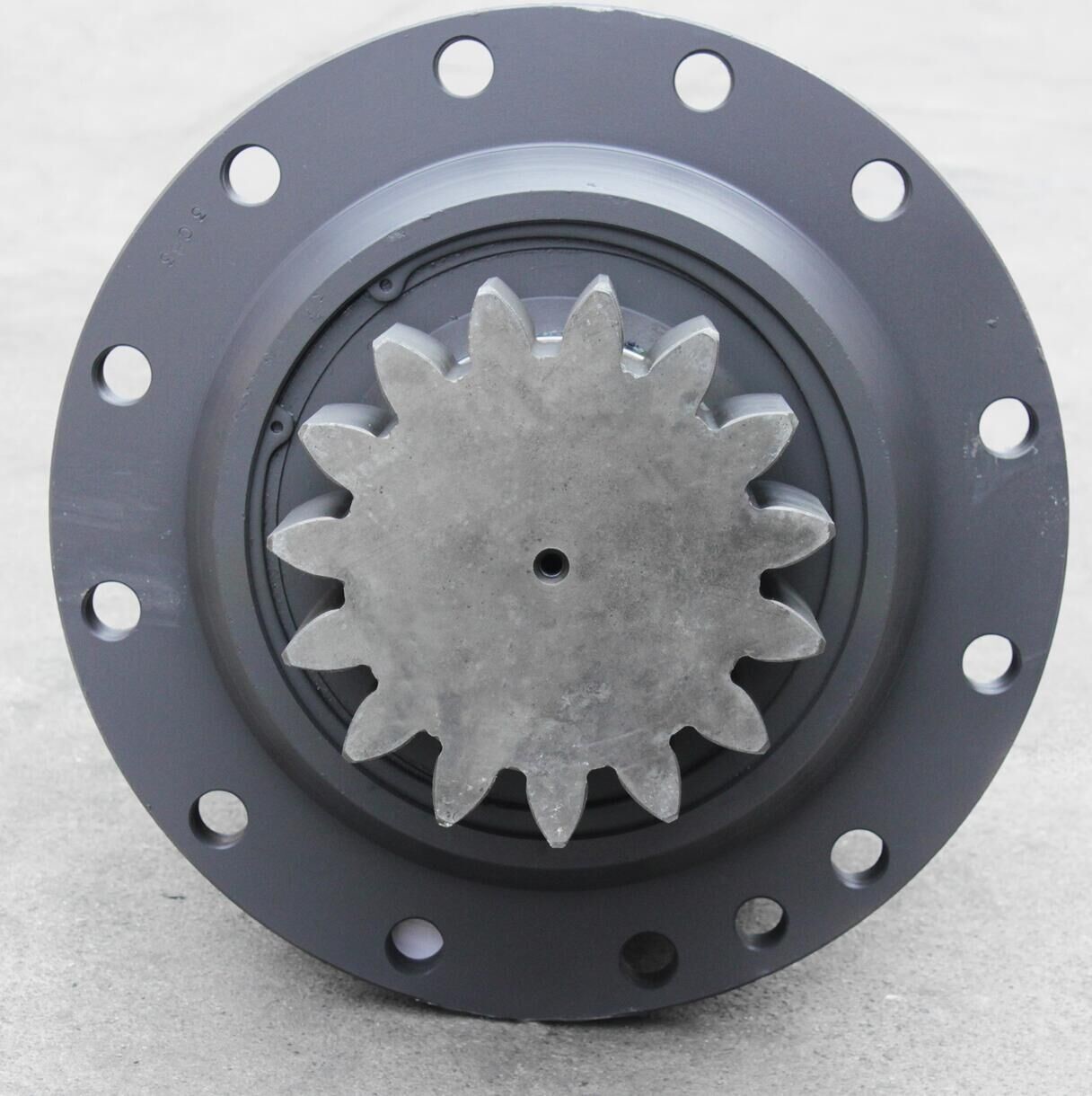

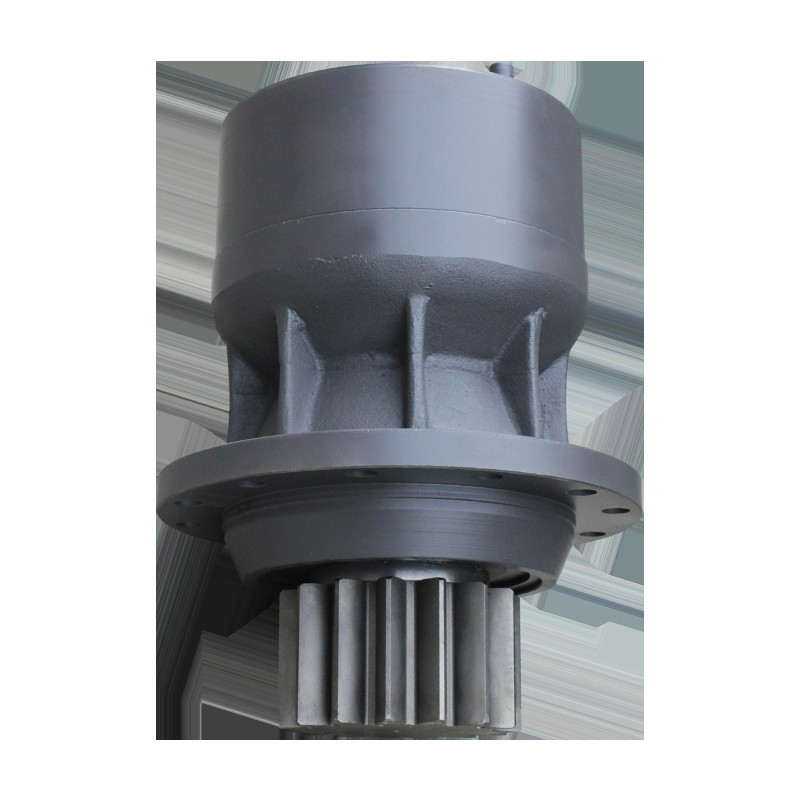

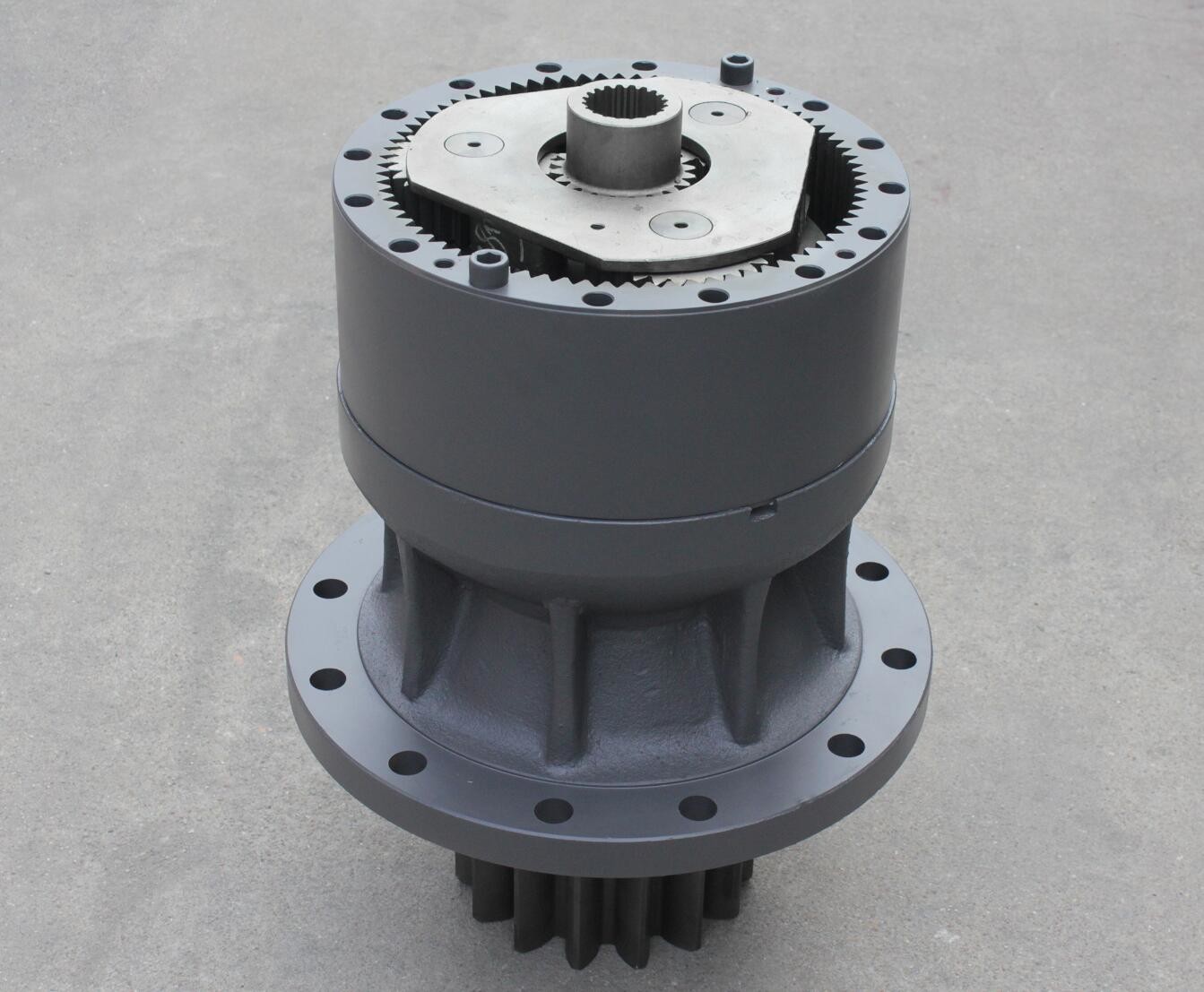

excavator swing gearbox EC380DL VOE14622901 VOE14680015 swing reduction gearbox
Product description
| Appliion | Crawler excavator |
| Part name | swing gearbox |
| Machine model | EC380DL |
| Material | Alloy steel |
| Packing | 73*56*66 |
| Brand | |
| Part number | VOE14622901 VOE14680015 |

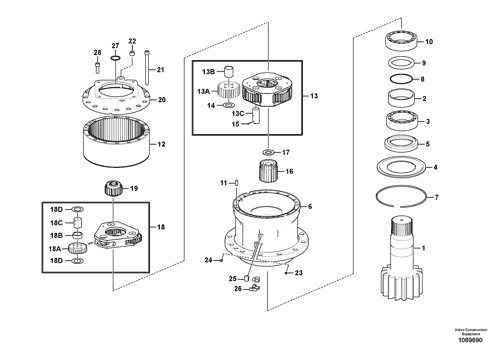

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14622901 | [1] | Swing gearbox | ||
| VOE14680015 | Swing gearbox | |||
| 1. | VOE14622865 | [1] | Shaft | |
| 2. | VOE14622869 | [1] | Collar | |
| 3. | VOE14622894 | [1] | Roller bearing | |
| 4. | VOE14622895 | [1] | Plate | |
| 5. | VOE14622896 | [1] | Collar | |
| 6. | VOE14622897 | [1] | ||
| 7. | VOE14622898 | [1] | Retaining ring | |
| 8. | VOE14622899 | [1] | Retaining ring | |
| 9. | VOE14596611 | [1] | Seal | |
| 10. | VOE14640028 | [1] | Bearing | |
| 11. | SA9324-21317 | [4] | Pin | |
| 12. | VOE14622914 | [1] | Gear | |
| 13. | VOE14622908 | [1] | Planet carrier | |
| 13A. | VOE14622910 | [4] | Gear | |
| 13B. | VOE14622911 | [4] | Bushing | |
| 13C. | VOE14622912 | [4] | Pin | |
| 14. | VOE14596618 | [4] | Washer | |
| 15. | VOE952004 | [4] | Spring pin | |
| 16. | VOE14622913 | [1] | Gear | |
| 17. | VOE14596621 | [1] | Thrust washer | |
| 18. | VOE14622902 | [1] | Planet carrier | |
| 18A. | VOE14622904 | [0003] | Gear | |
| 18B. | VOE14622905 | [3] | Bushing | |
| 18C. | VOE14622906 | [3] | Pin | |
| 18D. | VOE14596625 | [0006] | Washer | |
| 19. | VOE14622907 | [1] | Gear | |
| VOE14680062 | Gear | |||
| 20. | VOE14596630 | [1] | Cover | |
| VOE14633289 | Cover | |||
| 21. | VOE995261 | [16] | Hex. socket screw | |
| 22. | SA9415-43052 | [2] | Plug | |
| 23. | SA9415-43012 | [1] | Plug | |
| 24. | VOE914167 | [1] | Lubriing nipple | |
| 25. | SA9411-92830 | [2] | Elbow nipple | |
| 26. | VOE14529015 | [1] | Valve | |
| 27. | VOE914472 | Snap ring | ||
| 28. | VOE984138 | [4] | Hex. socket screw | |
| VOE984139 | Hex. socket screw |
About our products
Our main products are Excavator Hydraulic spare parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality.
