Parts scheme
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | (708-3T-00220) | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-11A0A T0 Y1600-14A0A | ||||
| 1 | 708-2L-25480 | Filter | 4 | |
| 2 | 708-2L-25490 | O-ring | 4 | |
| 3 | 04020-00616 | PIN,(DOWEL) | 2 | |
| 4 | 07000-11008 | O-RING,(TM8202-005) | 3 | |
| 5 | 01252-60855 | Bolt | 4 | |
| 6 | 07000-13042 | O-RING, BETWEEN TUBE AND DIVIDER VALVE | 1 | |
| 7 | 07000-11008 | O-RING,(TM8202-005) | 2 | |
| 8 | 07372-21030 | BOLT,(FOR TREE PUSHER) | 2 | |
| 9 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 2 | |
| 10 | 07000-12050 | O-RING,CYLINDER HEAD | 1 | |

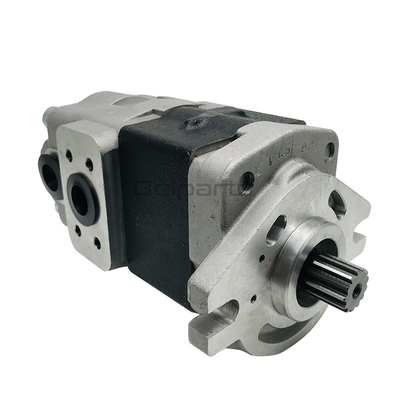

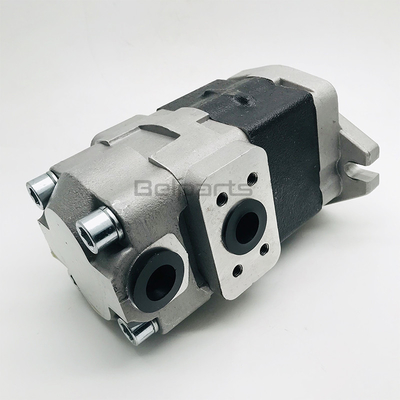

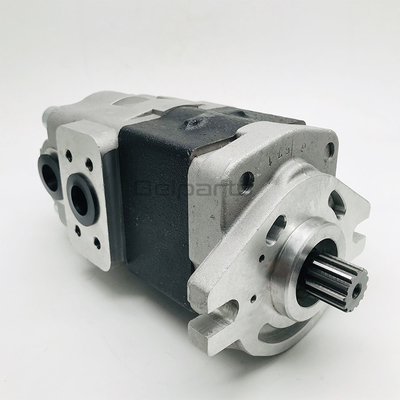

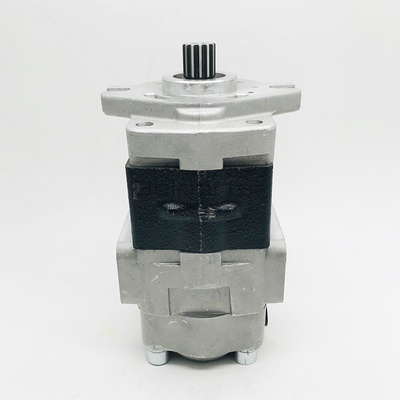

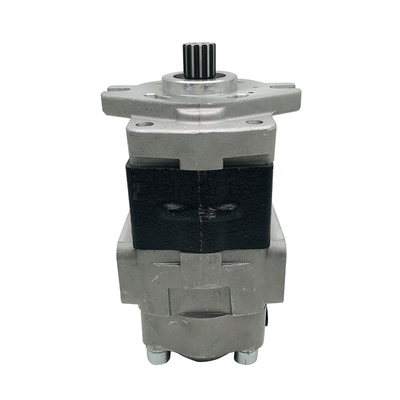

| 11 | 708-3T-04620 | PUMP ASS'Y | 1 | |
| 12 | 708-3T-04160 | PLUG ASS'Y | 2 | |
| 12 | 708-3S-15810 | Plug | 1 | |
| 13 | 07000-11003 | O-ring | 1 | |
| 14 | 07001-01003 | RING,BACK-UP | 1 | |
| 15 | 708-3S-15820 | Nut | 2 | |
| 16 | 708-1W-28150 | COUPLING,DOWEL | 1 | |
| 17 | 04065-02012 | RING, SNAP | 1 |
|
Product Description
| Appliion | Komatsu Excavator |
| Quality | High Guarantee |
| Model | PC78-6EO |
| Package | Standard Packing at Normal |
| Warranty | 6 month |
| Payment term | T/T,, PayPal, Alibaba Trade Assurance |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
