Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 708-7S-00550 | [1] | Motor Assembly Komatsu | 14.322 kg. | |
| ["SN: 65501-UP"] |$0. | ||||
| 1. | 708-7S-11740 | [1] | Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 2. | 07040-11007 | [1] | Plug Komatsu | 0.014 kg. |
| ["SN: 65501-UP"] | ||||
| 3. | 07002-21023 | [1] | O-ring Komatsu | 0.22 kg. |
| ["SN: 65501-UP"] | ||||
| 3. | 708-7S-01430 | [1] | Cover Subassembly Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 5. | 708-7R-11210 | [1] | Valve Komatsu | 0.07 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 6. | 722-10-91130 | [1] | Spring Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 7. | 709-32-12861 | [1] | Plug Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 8. | 07002-21823 | [1] | O-ring Komatsu | 0.36 kg. |
| ["SN: 65501-UP"] analogs:["0700231823"] | ||||
| 10. | 708-7S-18120 | [1] | Spring Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 11. | 708-7S-18310 | [1] | Spacer Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 12. | 708-7S-18320 | [1] | Cover Komatsu | 1.55 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 13. | 07000-E2020 | [1] | O-ring Komatsu China | 0.036 kg. |
| ["SN: 65501-UP"] | ||||
| 14. | 07000-E2025 | [1] | O-ring Komatsu | 0.002 kg. |
| ["SN: 65501-UP"] | ||||
| 15. | 07000-E2012 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65501-UP"] analogs:["0700032012"] | ||||
| 16. | 01252-60845 | [4] | Bolt, Hexagon Socket Head Komatsu | 0.025 kg. |
| ["SN: 65501-UP"] analogs:["0125230845"] | ||||
| 16. | 708-7S-01440 | [1] | Valve Assembly, Pilot Komatsu | 0.95 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 17. | 702-21-56241 | [1] | Solenoid Komatsu | 0.21 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 18. | 702-21-55870 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 21. | 702-21-56220 | [1] | Spring Komatsu | 0.002 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 22. | 708-21-12541 | [1] | Plug Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] analogs:["7068651180"] | ||||
| 23. | 01252-60616 | [2] | Bolt, Hexagon Socket Head Komatsu | 0.007 kg. |
| ["SN: 65501-UP"] analogs:["0125230616"] | ||||
| 24. | 708-2L-25490 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 25. | 708-2L-25480 | [1] | Filter Komatsu OEM | 0.5 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 26. | 702-21-54180 | [2] | Screw Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 27. | 07000-F1008 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65501-UP"] | ||||
| 28. | 708-7S-18230 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 31. | 708-2L-29460 | [1] | Orifice Komatsu China | |
| ["SN: 65501-UP"] | ||||
| 32. | 708-1S-18180 | [1] | Cover Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 33. | 708-7S-18480 | [1] | Valve Komatsu China | |
| ["SN: 65501-UP"] | ||||
| 35. | 01252-60825 | [4] | Bolt, Hexagon Socket Head Komatsu | 0.017 kg. |
| ["SN: 65501-UP"] analogs:["0125240825", "0125230825"] | ||||
| 36. | 708-7T-02281 | [1] | Valve, Relief Komatsu | 0.2 kg. |
| ["SN: 65501-UP"] | ||||
| 37. | 07000-F2016 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 65501-UP"] analogs:["0700022016"] | ||||
| 38. | 07001-02016 | [1] | Ring, Back-up Komatsu | 0.005 kg. |
| ["SN: 65501-UP"] | ||||
| 39. | 07002-12434 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 65501-UP"] analogs:["0700202434", "0700213434"] |
||||
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 708-7S-00550 | [1] | Motor Assembly Komatsu | 14.322 kg. | |
| ["SN: 65501-UP"] |$0. | ||||
| 1. | 07000-E2110 | [1] | O-ring Komatsu | 0.006 kg. |
| ["SN: 65501-UP"] | ||||
| 2. | 04020-00616 | [2] | Pin, Dowel Komatsu | 0.004 kg. |
| ["SN: 65501-UP"] | ||||
| 3. | 01252-61255 | [4] | Bolt, Hexagon Socket Head Komatsu China | |
| ["SN: 65501-UP"] analogs:["0125201255", "0125211255", "0125241255", "0125231255", "7051702670"] | ||||
| 4. | 708-7S-12330 | [1] | Shaft Komatsu | 0.56 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 5. | 708-7S-12140 | [1] | Bearing Komatsu | 0.14 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 6. | 708-7S-12220 | [1] | Bearing Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 7. | 708-7S-05110 | [1] | Shim Kit Komatsu | 0.016 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 8. | 708-7T-12330 | [1] | Seal, Oil Komatsu | 0.042 kg. |
| ["SN: 65501-UP"] | ||||
| 9. | 708-1S-11890 | [1] | Spacer Komatsu | 0.05 kg. |
| ["SN: 65501-UP"] | ||||
| 10. | 04065-04518 | [1] | Ring, Snap Komatsu | 0.006 kg. |
| ["SN: 65501-UP"] | ||||
| 11. | 708-7S-13120 | [1] | Block Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 12. | 708-7S-13260 | [1] | Plate, Valve Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 13. | 720-68-19610 | [1] | Pin Komatsu | 0.002 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 14. | 708-2L-23360 | [3] | Pin Komatsu | 0.003 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 15. | 708-7S-13530 | [2] | Spacer Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 16. | 708-7S-13560 | [1] | Spring Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 17. | 04065-03212 | [1] | Ring, Snap Komatsu | 0.002 kg. |
| ["SN: 65501-UP"] analogs:["4174317180"] | ||||
| 18. | 708-7S-13550 | [1] | Guide, Retainer Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 19. | 708-7S-13360 | [1] | Retainer, Shoe Komatsu | 0.13 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 20. | 708-7S-13350 | [5] | Piston Subassembly Komatsu | 0.1 kg. |
| ["SN: 65501-UP", "SCC: C2"] | ||||
| 21. | 708-7S-13420 | [1] | Plate, Thrust Komatsu China | |
| ["SN: 65501-UP", "SCC: C2"] | ||||

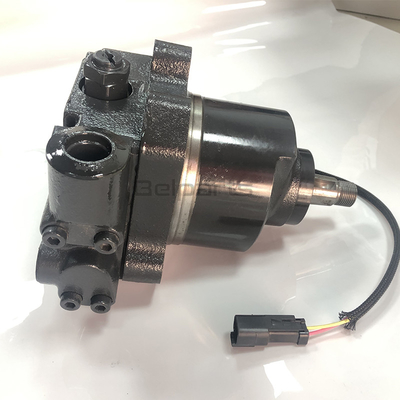

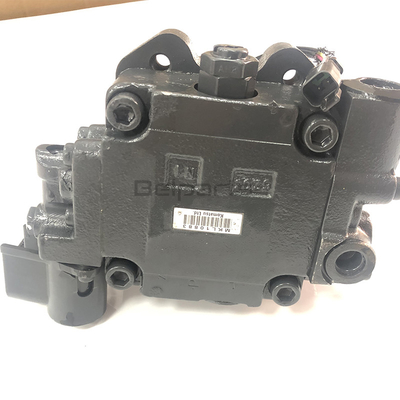

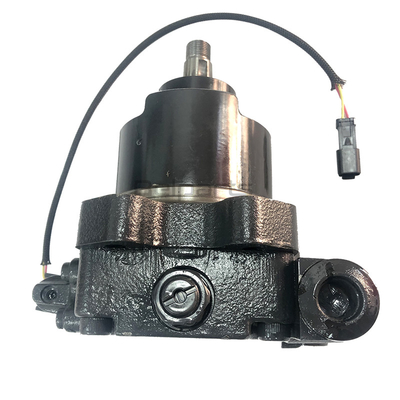

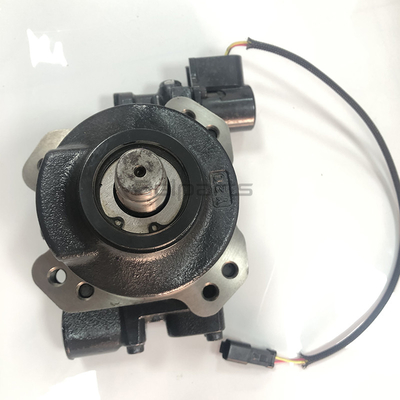

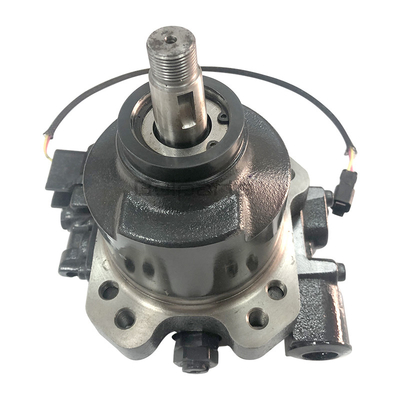

Product Description
| Appliion | Komatsu Wheel Loader |
| Quality | High Guarantee |
| Model | WA430-6 |
| Package | Standard Packing at Normal |
| Warranty | 1 Year |
| Payment term | T/T,, PayPal, Alibaba Trade Assurance |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as required |
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
