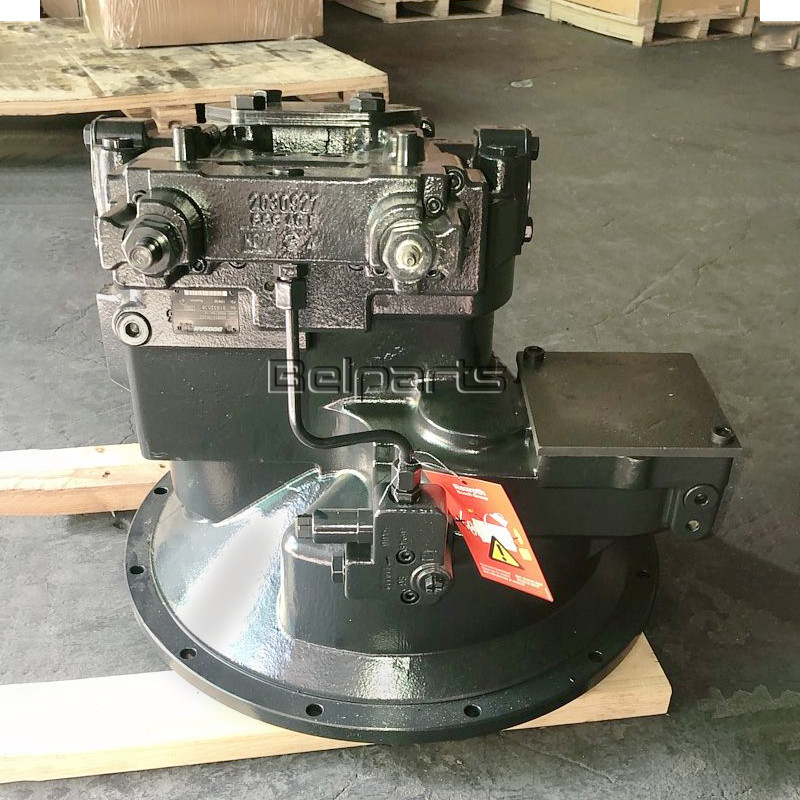

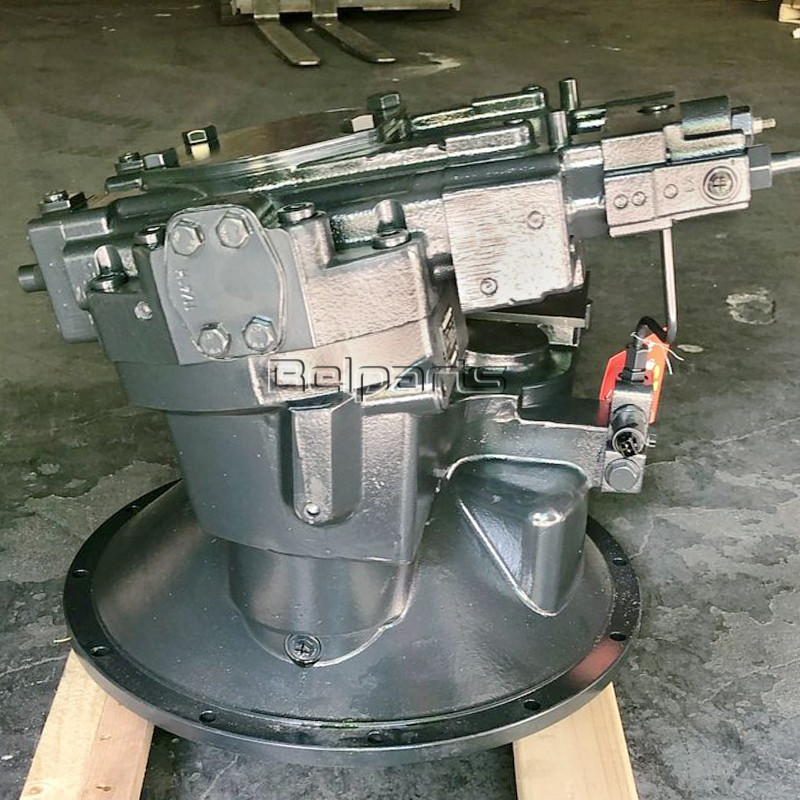

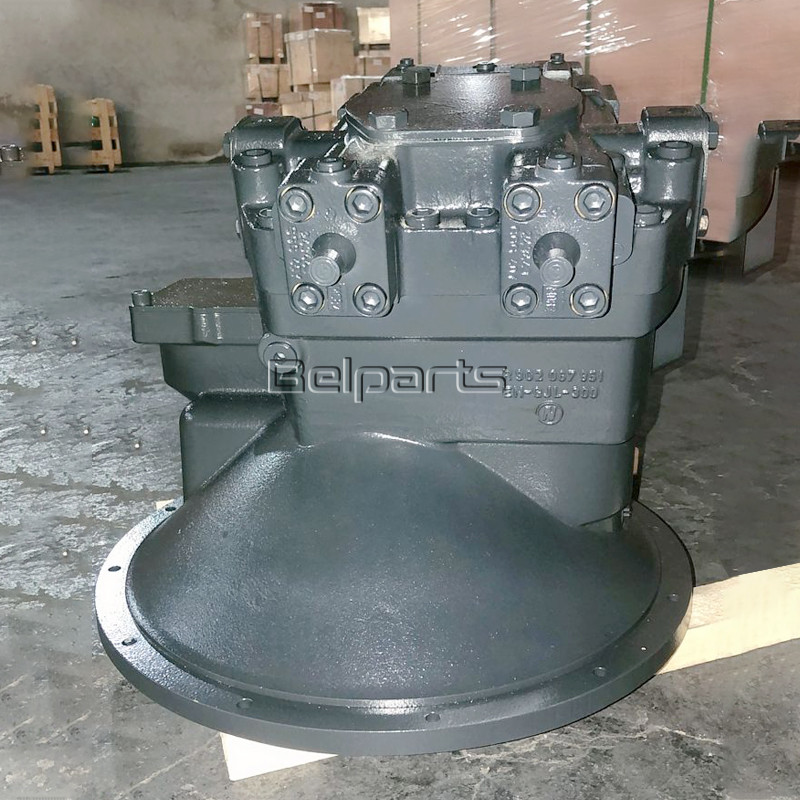

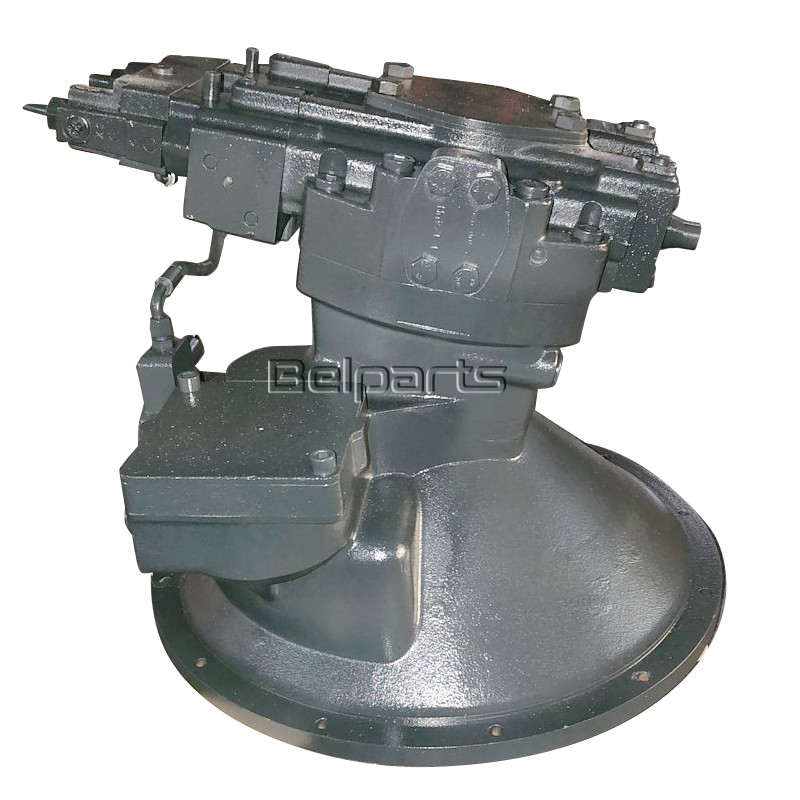

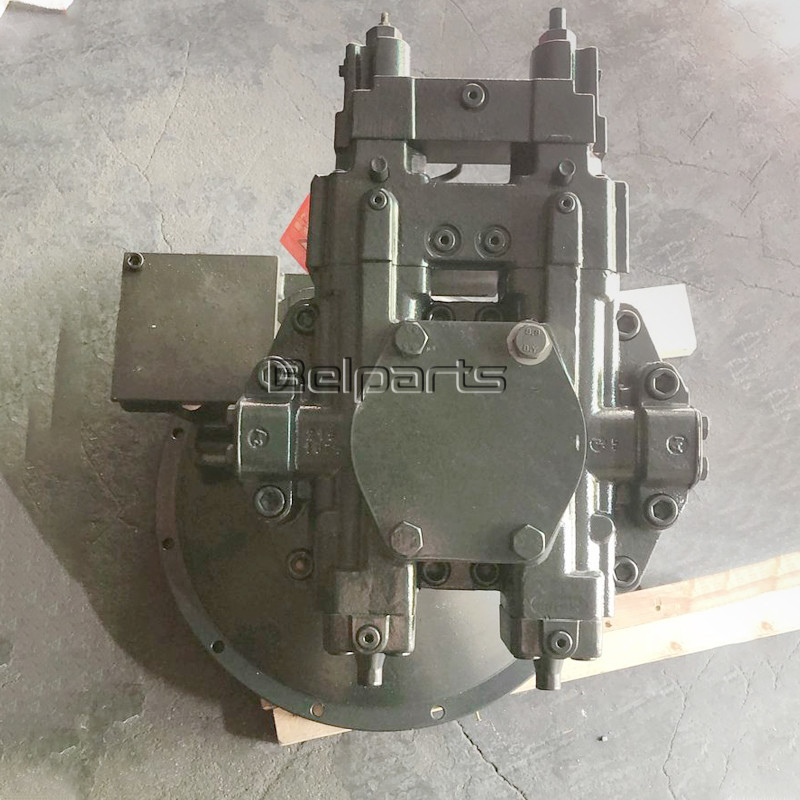

Original Dx140lcr Hydraulic Parts / Main Pump 401107-00062 K1040160a Crawler Excavator
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| * | 401107-00062 | SEAL KIT, MAIN PUMP | 1 | ||
| - | K1040160A | PUMP, MAIN | 85 kg | 1 | |
| 11 | 130602-00082 | PISTON ASSY | 2 | ||
| 111 | 130712-00052 | SHAFT, DRIVE, FRONT | 1 | ||
| 113 | 130712-00053 | SHAFT, DRIVE, REAR | 1 | ||
| 116 | 130418-00024 | GEAR, 1 ST | 1 | ||
| 123 | 140107-00023 | BEARING, ROLLER | 2 | ||
| 124 | 140104-00008 | BEARING, NEEDLE | 2 | ||
| 127 | 114-00343 | SPACER, BEARING | 2 | ||
| 13 | 150102-00019 | BLOCK ASSY, CYLINDER, R.H | 1 | ||
| 14 | 150102-00020 | BLOCK ASSY, CYLINDER, L.H | 1 | ||
| 153 | 250201-00161 | PLATE SET | 2 | ||
| 156 | 131002-00041 | BUSH, SPHERICAL | 2 | ||
| 157 | 111601-00036 | SPRING, CYLINDER | 12 | ||
| 211 | 250201-00162 | PLATE, SHOE | 2 | ||
| 261 | 110508-00320 | COVER, SEAL, F | 1 | ||
| 273 | 400923-00014 | HOUSING ASSY, PUMP, FRONT | 1 | ||
| 274 | 400923-00015 | HOUSING ASSY, PUMP, REAR | 1 | ||
| 30 | 400901-00005 | PLATE ASSY, SWASH | 1 | ||
| 312 | 100201-00064 | BLOCK, VALVE | 1 | ||
| 326 | K9001182 | COVER, SEAL(F) | 1 kg | 1 | |
| 4 | 400910-00034 | PUMP, GEAR | 1 | ||
| 401 | 120705-00013 | SCREW | 2 | ||
| 402 | 120705-00014 | SCREW | 2 | ||
| 406 | S2204663 | BOLT, HEX SOCKET HEAD | 4 | ||
| 414 | S2211861 | BOLT, SOCKET M10X1.5X20 | 4 | ||
| 466 | 2181-1890D2 | PLUG, SP | PF1/4 | 2 | |
| 467 | 2181-1890D3 | PLUG, SP | PF3/8 | 2 | |
| 468 | 2181-1890D4 | PLUG, RECHECK | PF1/2 | 4 | |
| 490 | 2.181-00214 | PLUG | 9 | ||
| 530 | 120501-00133 | PIN ASSY, TILTING | 1 | ||
| 532 | 130602-00081 | PISTON, SERVO | 2 | ||
| 533 | 430221-00071 | PLUG, QMIN | 2 | ||
| 534 | 110956-00015 | STOPPER | 2 | ||
| 535 | 110956-00016 | STOPPER | 2 | ||
| 702 | S8010305 | O-RING 4DG-30 | 2 | ||
| 710 | S8010805 | O-RING | 1 | ||
| 711 | S8010955 | O-RING | 1 | ||
| 717 | S8011255 | RING, O | 2 | ||
| 723 | S8000115 | O-RING | 6 | ||
| 724 | S8000085 | O-RING P8 | 12 | ||
| 727 | S8000185 | O-RING | 4 | ||
| 732 | S8000145 | O-RING | 4 | ||
| 733 | S8000285 | RING, O | 2 | ||
| 774 | 401106-00031 | SEAL, OIL | 1 | ||
| 789 | S8060141 | RING, BACK-UP | 2 | ||
| 792 | S8090300 | RING, BACK-UP T2 G30 | 2 | ||
| 806 | S4012733 | NUT | 2 | ||
| 808 | S4012933 | NUT (M16X2.0) | 2 | ||
| 824 | S6500350 | RING, RETAINING | 2 | ||
| 886 | S5740870 | PIN, SPRING | 4 | ||
| 901 | S3140025 | BOLT, EYE | 2 | ||
| 953 | 120706-00004 | SCREW, SET | 2 | ||
| 954 | 120706-00003 | SCREW, SET | 2 |
|
