erpillar SIS

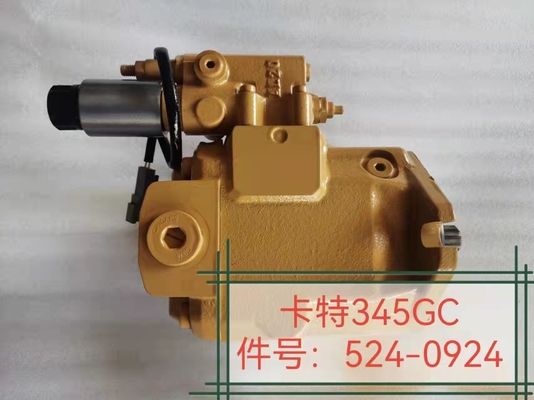

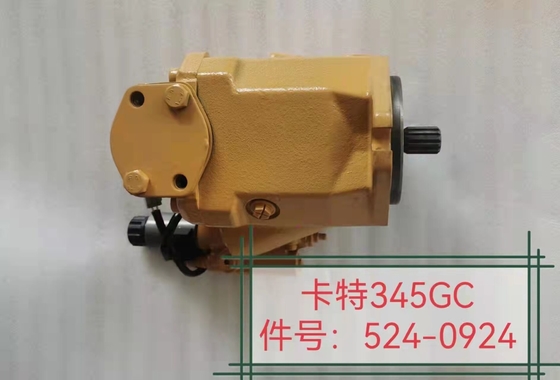

336 Excavator YBN00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
336 Excavator JHD00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
336 Excavator GDY00001-UP (MACHINE) POWERED BY C9.3 Engine » 524-0924 PUMP GP-PISTON
336 Excavator DKS00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
336 Excavator SP900001-UP (MACHINE) POWERED BY C9.3 Engine » 524-0924 PUMP GP-PISTON
340 Excavator TYH00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
345 GC Excavator KEF00001-UP (MACHINE) POWERED BY C9.3 Engine » 524-0924 PUMP GP-PISTON
336 Excavator FEL00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
340 Excavator WDN00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
340 Excavator GMJ00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
340 Excavator TMK00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
340 Excavator SZT00001-UP (MACHINE) POWERED BY C9.3B Engine » 524-0924 PUMP GP-PISTON
349 Excavator LKG00001-UP (MACHINE) POWERED BY C13 Engine » 524-0924 PUMP GP-PISTON
352 Excavator MGR00001-UP (MACHINE) POWERED BY C13 Engine » 524-0924 PUMP GP-PISTON
349 Excavator RBY00001-UP (MACHINE) POWERED BY C13 Engine » 524-0924 PUMP GP-PISTON
Information:
Personal injury can result from escaping fluid under pressure.If a pressure indiion is shown on the indior, push the release valve in order to relieve pressure before removing any hose from the radiator.
Illustration 1 g02326293
(1) Water temperature regulator housing
(2) Water temperature regulators
Remove the water temperature regulators (2) from the engine.
Heat water in a pan until the temperature of the water is equal to the fully open temperature of the water temperature regulators. Refer to Specifiions, "Water Temperature Regulator" for the fully open temperature of the water temperature regulators. Stir the water in the pan. This action will distribute the temperature throughout the pan.
Hang the water temperature regulators in the pan of water. The water temperature regulators must be below the surface of the water. The water temperature regulators must be away from the sides and the bottom of the pan.
Keep the water at the correct temperature for 10 minutes.
After 10 minutes, remove the water temperature regulators. Immediately measure the opening of each water temperature regulator. Refer to Specifiions, "Water Temperature Regulator" for the minimum opening distance of the water temperature regulator at the fully open temperature. If the distance is less than the amount listed in the manual, replace the water temperature regulator.
