Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Remark |
|---|---|---|---|---|
| *. | 31N8-17001P | [1] | MAIN CONTROL VALVE | |
| *. | 31N8-17002P | [1] | MAIN CONTROL VALVE | |
| N1. | XKBF-01551 | [1] | HOUSING(P1) | |
| 4. | XKBF-00367 | [1] | SPOOL-TRAVEL | |
| 6. | XKBF-00369 | [1] | SPOOL-BOOM | |
| 9. | XKBF-00372 | [1] | SPOOL-ARM 2 | |
| 11. | XKCG-00334 | [1] | SPOOL ASSY-ARM REGEN | |
| 12. | XKBF-00375 | [1] | SPOOL-BUCKET | |
| 16. | XKCG-00016 | [4] | COVER B1-PILOT | |
| 18. | XKCG-00423 | [1] | BLOCK-HOLDING | |
| N18. | XKCG-00426 | [1] | BLOCK-HOLDING | |
| 20. | XKCG-00020 | [5] | PLUG | |
| 21. | XKCG-00021 | [5] | POPPET 1-CHECK VALVE | |
| 22. | XKCG-00022 | [1] | POPPET 1-L/C BUCKET | |
| 23. | XKCG-00023 | [6] | SPRING 1-CHECK VALVE | |
| 24. | XKCG-00024 | [4] | PLUG | |
| N25. | XKCG-00025 | [4] | POPPET 2-CHECK VALVE | |
| N26. | XKCG-00026 | [4] | SPRING 2-CHECK VALVE | |
| N27. | XKCG-00030 | [1] | POPPET-PILOT | |
| N28. | XKCG-00028 | [1] | SPRING-LOCK VLV PILOT | |
| N29. | XKCG-00184 | [1] | HOLDING V/V ASS'Y-B | |
| N30. | XKCG-00085 | [1] | GUIDE-POPPET | |
| N31. | XKCG-00031 | [1] | SEAT-POPPET | |
| 32. | XKCG-00032 | [1] | PISTON 1 | |
| 33. | XKCG-00086 | [1] | GUIDE-PISTON | |
| 34. | XKCG-00034 | [1] | SPRING 1-LOCK VALVE | |
| 35. | XKCG-00035 | [1] | PISTON 2 | |
| 36. | XKCG-00036 | [1] | C-RING | |
| N37. | XKCG-00037 | [1] | RESTRICTOR-LOCK VALVE | |
| 42. | XKCG-00042 | [1] | RELIEF VALVE-OVERLOAD | |
| 47. | XKBF-00401 | [1] | ORIFICE-PLUG | |
| 50. | XKCG-00050 | [1] | PLUG-TAPER | |
| 51. | XKBF-00404 | [1] | NEGATIVE CONTROL VLV | |
| 52. | XKCG-00052 | [1] | PLUG | |
| 53. | XKCG-00053 | [1] | PLUG | |
| 55. | XKCG-00055 | [1] | PLUG | |
| 56. | XKCG-00056 | [1] | O-RING | |
| 59. | XKCG-00059 | [2] | O-RING | |
| 60. | XKCG-00060 | [1] | O-RING | |
| 63. | XKCG-00063 | [1] | O-RING | |
| 65. | XKCG-00065 | [5] | O-RING | |
| 66. | XKCG-00066 | [1] | O-RING | |
| 67. | XKCG-00087 | [5] | O-RING | |
| 68. | XKCG-00068 | [5] | O-RING | |
| 70. | XKCG-00070 | [1] | RING-BACK UP | |
| 72. | XKCG-00072 | [1] | RING-BACK UP | |
| 73. | XKCG-00073 | [7] | BOLT-SOCKET | |
| 75. | XKCG-00075 | [5] | BOLT-SOCKET | |
| 78. | XKCG-00078 | [4] | BOLT-SOCKET | |
| 79. | XKCG-00079 | [13] | WASHER | |
| 81. | XKCG-00081 | [4] | WASHER | |
| 82. | XKBF-00895 | [1] | MAIN RELIEF VALVE | |
| 83. | XKCG-00042 | [2] | RELIEF VALVE-OVERLOAD | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
Product detail
| Product name | Hydraulic control valve |
| Part number | 31N8-16110 31N8-17002P 31N8-17001P |
| Model | R290LC-7A |
| egory group | HYUNDAI Machinery Spare Parts |
| MOQ | 1 PCS |
| Warranty | 12 months |
| Payment term | T/T, PAYPAL,Alibaba Trade Assurance |
| Delivery time | 1-5 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |

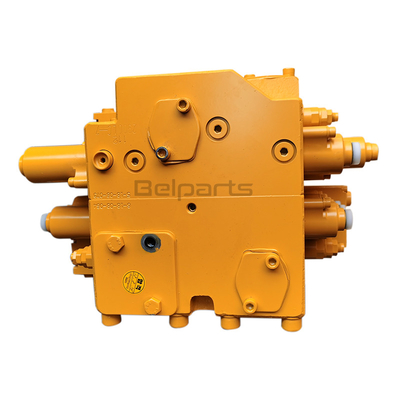

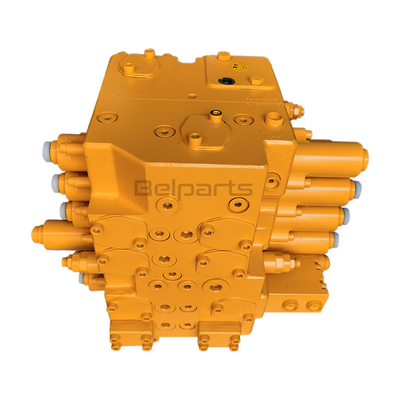

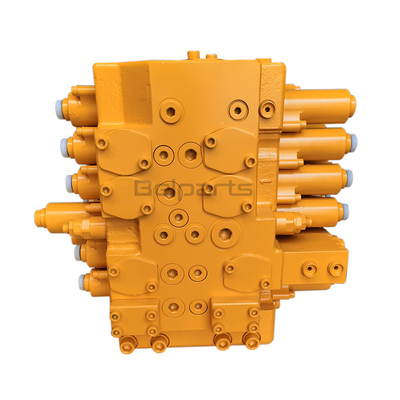

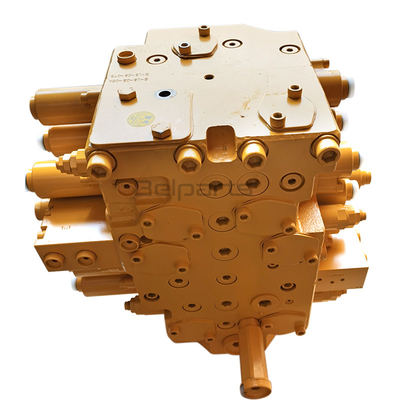

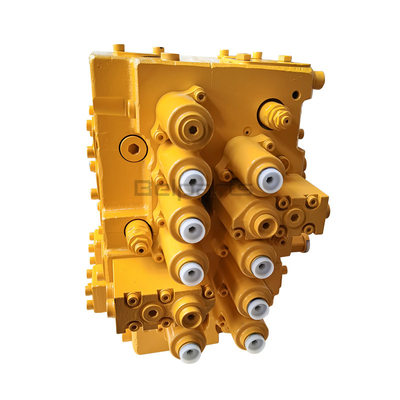

Other product pictures
WhatsApp: +86 18998455434
email:rayhan@belparts-china.com
FAQ
| 1. Are you tranding company or manufacturer? |
| We are a wholesaler in our domestic market,and we have rich experience in spare parts |
| 2. How can i pay for the parts? |
| We will send you invoice once you confirm the order,we offer telegraphic transfer,paypal ,western,union,trade assurance service |
| 3. How about the delivery time ? |
| We have enough stock for each item listed in our website ,in ,our colleague,will inform you before order |
| 4. If i was not satisfied with the products,can i return goods? |
| Yes , Before we send the parts ,we will send you the photos let you confirm,also,we offer exchanged and repair serve in the warranty time please contact us before return |
| 5. What is your main products ? |
| Our main products are final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts If you need any parts for crawler excavator , you can send it to us . We will try our best to find the parts what you need . |
