Parts scheme
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|

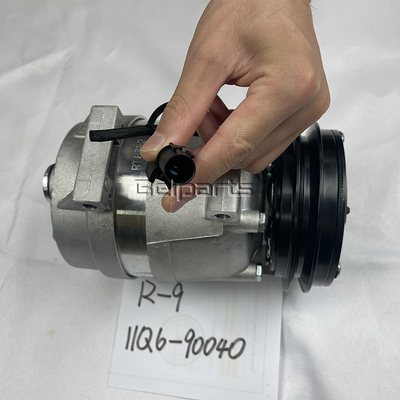

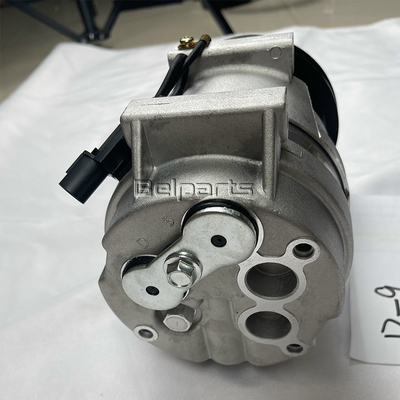

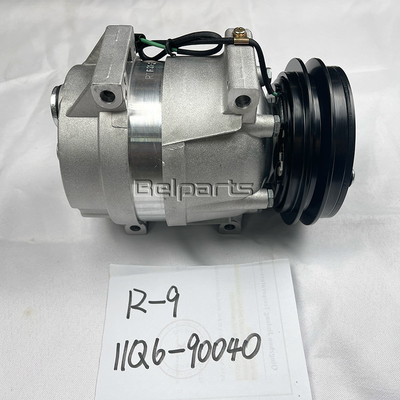

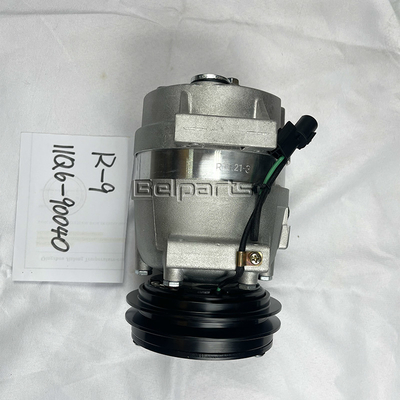

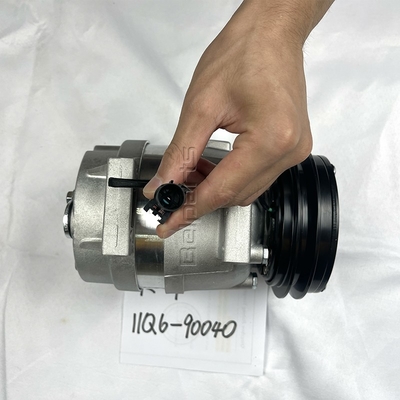

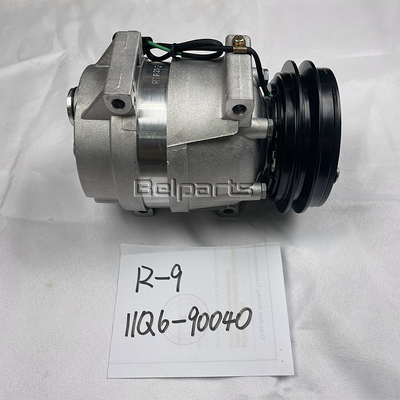

| 1 | 11Q6-90040 | COMPRESSOR ASSY | 1 | |
| 2 | 11Q6-90240 | FILTER-REC | 1 | |
| 3 | 11Q6-90510 | FILTER-AIR CON | 1 | |
| 4 | 11Q4-90410 | HOSE-DISCHARGE | 1 | |
| 4-1 | A3050-002-05-2 | O-RING | 1 | |
| 5 | S091-060206 | BOLT-WING | 3 | |
| 6 | 11N6-90110 | PULLEY-IDLE | 1 | |
| 6-1 | A4760-508-00-2 | BRACKET-PULLEY | 1 | |
| 6-2 | A4700-511-01-2 | PULLEY ASSY | 1 | |
| 6-3 | A8900-518-03-3 | VALVE-HEATER | 1 | |
| 7 | 11E4-3601 | V-BELT | 1 | |
| 8 | S403-06500B | WASHER-PLAIN | 3 | |
| 9 | 14L1-01350 | VALVE-HEATER | 2 | |
| 10 | S572-220006 | CLAMP-HOSE WIRE TYPE | 2 | |
| 11 | 11N5-93010 | CONNECTOR-HEAT VLV | 1 | |
| 12 | S109-080956 | BOLT-SOCKET | 4 | |
| 14 | S035-082526 | BOLT W/WASHER-HEX | 1 | |
| 15 | S018-100356 | WASHER-HARDENED | 1 | |
| 16 | S035-062556 | BOLT-W/WASHER | 1 | |
| 18 | S037-102022 | BOLT-W/WASHER HEX | 4 | |
| 19 | S403-101006 | WASHER-PLAIN | 1 | |
| 20 | S411-100006 | WASHER-SPRING | 1 | |
| 21 | 11N3-92010 | PULLEY-AIR CON | 1 | |
| 22 | S017-100406 | BOLT-HEX | 4 | |
| 23 | 31L7-10230 | CLAMP | 1 | |
| 24 | S403-081006 | WASHER-PLAIN | 4 | |
| 25 | S411-080006 | WASHER-SPRING | 4 | |
| 28 | P392-160000 | WASHER-COPPER | 2 | |
| 29 | 11N5-93021 | CONNECTOR-HEAT VLV | 1 |
|

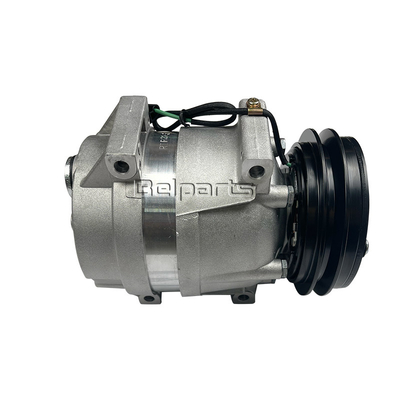

11Q6-90041 Excavator R140lc-9 R210lc-9 R210-7 Air Compressor auto ac compressor
