Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 11LH-90022 | [1] | AIR CONDITIONER | FAR AND HEATER ASSY |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CON AIRCONDITIONING AND HEATER UNIT |
| 1-2. | 11LB-90112 | [1] | CONTROL | FAR ASSY |
| 1-21. | 11LB-90220 | [1] | DECAL | FAR |
| 1-3. | 11N6-90040 | [1] | COMPRESSOR | FAR ASSY, Serial Range: -10171 |
| . . | 11N6-90040R | [1] | REMAN-COMPRESSOR | FAR 1221E, TIER 3 ( 3/08-) |
| . . | 11N6-90040C | [1] | CORE-COMPRESSOR | FAR Return Number |
| 1-3. | 11Q6-90040 | [1] | AIR COMPRESSOR | FAR , Start Serial: 10172 |
| 1-31. | 11LF-90230 | [1] | SWITCH | FAR THERMAL SW, COMP |
| 1-32. | 87742531 | [1] | CLUTCH | FAR |
| 1-4. | 11LH-90090 | [1] | CONDENSER | FAR COND AND FAN ASSY Superseded by part number: 11Q6-90071 |
| 1-41. | 87742532 | [1] | CONDENSER | FAR |
| 1-42. | 87742533 | [1] | ELECTRIC BLOWER | FAR ASSY |
| 1-42-1. | 87742534 | [1] | FAN | FAR FAN BLADES |
| 1-42-2. | 87700545 | [1] | ELECTRIC MOTOR | FAR ASSY |
| 1-42-3. | 87742535 | [1] | SHROUD | FAR |
| 1-43. | 87742526 | [4] | BOLT | FAR W/WASHER |
| 1-5. | 11N6-90060 | [1] | RECEIVER-DRYER | FAR |
| 1-6. | 11LH-90042 | [1] | A/C HOSE | FAR Discharge, Serial Range: -10171 Superseded by part number: 11LH-90043 |
| 1-6. | 11LH-90044 | [1] | A/C HOSE | FAR Discharge, Start Serial: 10172 |
| 1-61. | 87742536 | [1] | VALVE | FAR CHARGE ASSY, H |
| 1-62. | 87742537 | [1] | O-RING | FAR |
| 1-63. | 87742538 | [1] | O-RING | FAR |
| 1-7. | 11LH-90051 | [1] | HOSE ASSY. | FAR A |
| 1-71. | 87742539 | [2] | O-RING | FAR |
| 1-8. | 11LH-90061 | [1] | A/C HOSE | FAR B Superseded by part number: 11LH-90062 |
| 1-81. | 87742539 | [2] | O-RING | FAR |
| 1-9. | 11LH-90072 | [1] | A/C HOSE | FAR Suction |
| 1-91. | 87742541 | [1] | VALVE | FAR CHARGE ASSY, L |
| 1-92. | 87742537 | [1] | O-RING | FAR |
| 1-93. | 87742544 | [1] | O-RING | FAR |
| 1-10. | 11N6-90110 | [1] | PULLEY | FAR IDLE |
| 1-101. | 87742545 | [1] | BRACKET | FAR PULLEY |
| 1-102. | 87742546 | [1] | PULLEY | FAR ASSY |
| 1-103. | 87742547 | [1] | BOLT | FAR TENSION |
| 1-11. | 11N6-90120 | [1] | BRACKET | FAR R/DRIER |
| 1-12. | 14E7-01240 | [1] | BELT | FAR AC, ISL Item |
| 1-13. | 11EK-92130 | [1] | HOSE | FAR Drain |
| 2. | 11L8-90111 | [1] | HEATER HOSE | FAR |
| 3. | 11L8-90121 | [1] | HEATER HOSE | FAR |
| 4. | 11L7-90150 | [1] | VALVE | FAR HEATER |
| 5. | 14L1-01370 | [1] | VALVE | FAR HEATER |
| 6. | L11541 | [4] | CABLE TIE,203.2mm L, Nylon | CAS CABLE STRAP Superseded by part number: 87000312 |
| 7. | 214-1412 | [4] | HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm | CAS Superseded by part number: 87779385, 86625021 |
| 8. | S131-052046 | [4] | CAPTIVE WASHER SCREW | FAR W/WASHER |
| 9. | 627-6016 | [2] | BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd | CAS Superseded by part number: 86639037 |
| 9. | 896-11006 | [2] | WASHER,6.6mm ID x 12.5mm OD x 2mm Thk | IH Superseded by part number: 87778338, 86588450 |
| 9. | 892-11006 | [2] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 10. | 627-8030 | [4] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43235 |
| 10. | 896-11008 | [4] | WASHER,9mm ID x 17mm OD x 2mm Thk | CAS Superseded by part number: 86624185 |
| 10. | 892-11008 | [4] | LOCK WASHER,8mm ID | IH Superseded by part number: 72187304, 83990583 |
| 11. | 627-10025 | [3] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd | CAS Superseded by part number: 11106231 |
| 11. | 896-11010 | [3] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 11. | 892-11010 | [3] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
| 12. | 43258 | [4] | BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd | FAR |
| 12. | 896-11012 | [4] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 13. | S109-080956 | [3] | BOLT | FAR SOCKET |
| 14. | 829-1406 | [3] | NUT,Hex, M6 x 1, Cl 10.9 | CAS Superseded by part number: 87778396, 86500688 |
| 15. | 829-1408 | [1] | NUT,Hex, M8 x 1.25, Cl 10.9 | CAS Superseded by part number: 87778059, 43362 |
| 16. | 895-11008 | [3] | WASHER,9mm ID x 16mm OD x 1.6mm Thk | CAS Superseded by part number: 86624184 |
| 17. | 214-1406 | [1] | HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm | CAS Superseded by part number: 244358 |
| 18. | 31L6-02470 | [5] | CLAMP | FAR |
| 19. | 627-8030 | [2] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43235 |
| 20. | 14L3-00741 | [4] | ISOLATOR | FAR RESILIENT |
| 21. | 21L1-4006 | [1] | ADAPTER | FAR |
| 22. | 11LH-90082 | [1] | BRACKET | FAR WA |
| 23. | S151-040156 | [4] | SCREW | FAR TAPPING; Replaces S152-040126 |
| 24. | 895-11006 | [3] | WASHER,6.6mm ID x 12mm OD x 1.6mm Thk | CAS Superseded by part number: 86588450 |
| 25. | 627-8016 | [5] | BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd | CAS Superseded by part number: 16043231 |
| 25. | 896-11008 | [5] | WASHER,9mm ID x 17mm OD x 2mm Thk | CAS Superseded by part number: 86624185 |
| 25. | 892-11008 | [5] | LOCK WASHER,8mm ID | IH Superseded by part number: 72187304, 83990583 |
| 26. | 627-10030 | [4] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | CAS Superseded by part number: 9515003 |
| 26. | 896-11010 | [4] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 26. | 892-11010 | [4] | LOCK WASHER,M10 | CAS Superseded by part number: 140028 |
Product details

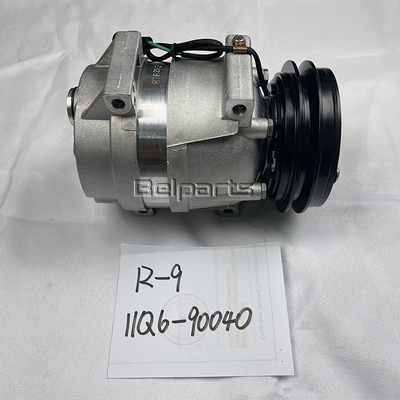

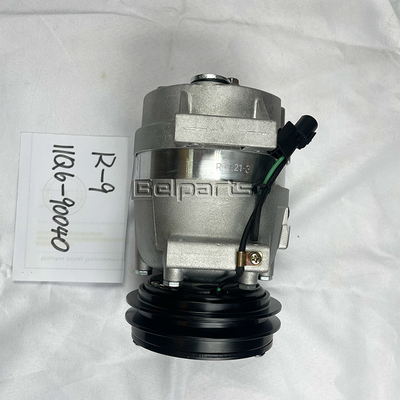

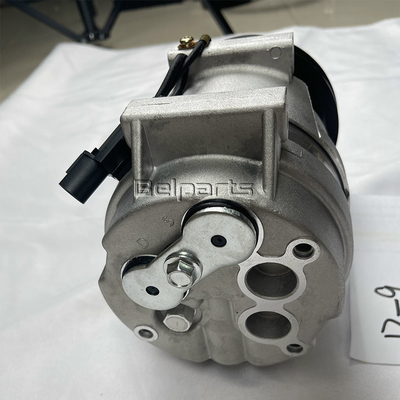

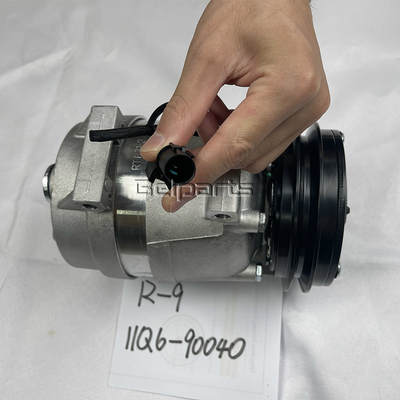

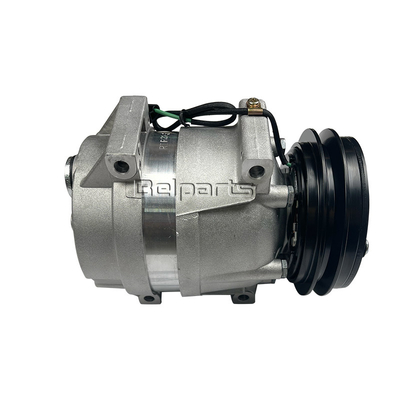

| Product name | A/C compressor assy |
| Part number | 11Q6-90040 |
| Model | R-9 R210-7 R210LC-7 |
| egory group | HYUNDAI Machinery Spare Parts |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, PAYPAL,Alibaba Trade Assurance |
| Delivery time | 1-5 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
