Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN11M00018F1 | [1] | CONTROL ASSY, ENGINE | |
| 1. | YN11M01195P1 | [1] | BRACKET | KOB |
| 2. | YN11M01102P1 | [1] | PLATE | KOB COVER |
| 4. | YN11M01185P1 | [1] | U-BRACKET | KOB |
| 5. | YN11M01207P1 | [1] | LEVER | KOB |
| 6. | YN11M01186F1 | [1] | LEVER | KOB ASSY |
| 6-1. | YN11M01188P1 | [1] | PLATE | KOB |
| 6-2. | YN11M01190F1 | [1] | LEVER | KOB ASSY |
| 6-2A. | YN11M01189P1 | [1] | LEVER | KOB |
| 6-2B. | 2405R312D1215 | [1] | BUSHING | KOB Superseded by part number: 2405R61D2 |
| 6-3. | YN11M01210P1 | [1] | SPRING | KOB |
| 6-4. | ZW16X12000 | [1] | WASHER | KOB ID 12 x OD 24 x Th 2.3mm |
| 6-5. | ZR16X01200 | [1] | RING | KOB Retaining, ID 11.1 x OD 12 x Th 1.0mm |
| 7. | YN20S00002F1 | [1] | MOTOR | KOB ASSY, GOVERNOR |
| . . | YN20S00002F1R | [1] | REMAN-ELECTRIC MOTOR | KOB SK200-6ES BTW YN10-38001 - YN10-41732, SK200LC-6ES BTW YQ10-05501 - YQ10-05981 |
| . . | YN20S00002F1C | [1] | CORE-ELECTRIC MOTOR | KOB Return Number |
| 8. | LQ11M01053P1 | [1] | ROD | KOB |
| 9. | LQ11M01058P1 | [1] | CABLE | KOB Control, 4675mm Long (184-3/64 in) |
| 10. | LQ11M01071P3 | [1] | FLEXIBLE CONTROL | KOB Superseded by part number: LQ11M01083P1 |
| 11. | HR37C08000G1 | [1] | BALL JOINT | KOB Replaces 2425R227D2, M08 x 1.25 x 45.5mm Long |
| 12. | LC11M01034P1 | [1] | ROD | KOB END |
| 13. | 2419R9D1 | [2] | COTTER PIN | KOB OD 06mm x 21.2mm Long |
| 14. | YN11M01114P2 | [2] | PIN | KOB Superseded by part number: ZP45X06018 |
| 15. | 2432R233D3 | [1] | CLIP | KOB 50 x 16 x 60mm |
| 16. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOB M06 x 1.0 x 16mm |
| 17. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOB M08 x 1.25 x 30mm |
| 18. | ZS18C10020 | [3] | SCREW,Hex, M10 x 20mm | KOB M10 x 1.50 x 20mm |
| 19. | ZS28C06025 | [1] | SCREW,Hex Socket Head, M6 x 25mm | KOB M06 x 1.0 x 25mm |
| 20. | ZS28C10030 | [3] | SCREW,Hex Socket Head, M10 x 30mm | KOB M10 x 1.50 x 30mm |
| 21. | ZM22C10025 | [4] | BOLT | KOB M10 x 1.50 x 25mm (Incls. Washer & Lockwasher) |
| 22. | ZM61C06016 | [2] | BOLT | KOB M06 x 1.0 x 16mm (Incls. Washer & Lockwasher) |
| 23. | ZN18C08007 | [3] | NUT | KOB M08 x 1.25mm |
| 24. | 2420T4505 | [2] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOB ID 07 x OD 16 x Th 1.0mm |
| 25. | ZW26X06000 | [3] | LOCK WASHER | KOB ID 06 x OD 07 x Th 1.5mm |
| 26. | ZW26X08000 | [4] | LOCK WASHER | KOB Lock, ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 27. | ZW26X10000 | [3] | LOCK WASHER | KOB ID 10 x OD 18 x Th 2.5mm |
| 28. | 2420Z1330 | [1] | GROMMET | KOB |
| 29. | 2432T4615 | [1] | LABEL | KOB 45 x 45mm Red Triangle |
| 33. | YN03M01159P1 | [1] | GROMMET | KOB |
| 36. | 2420T7359 | [1] | NUT | KOB M08 x 1.25mm, Left Hand Threads |
| 37. | YN11M01013D1 | [1] | BALL JOINT | KOB M08x1.25x36mm Long (Left hand thread) Superseded by part number: HR37D08000G1 |
Product details

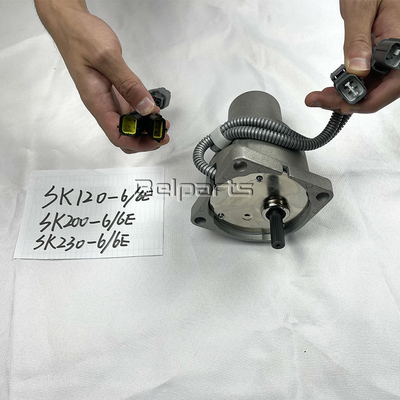

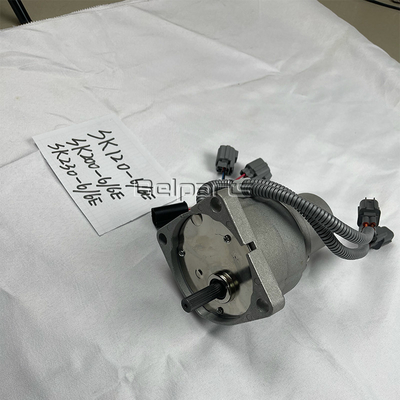

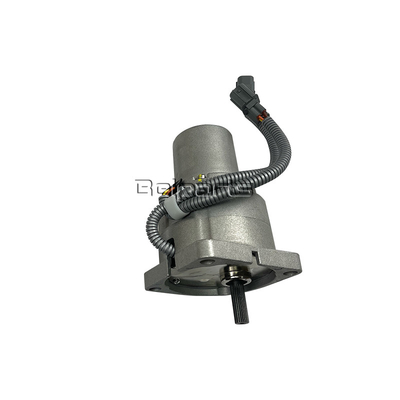

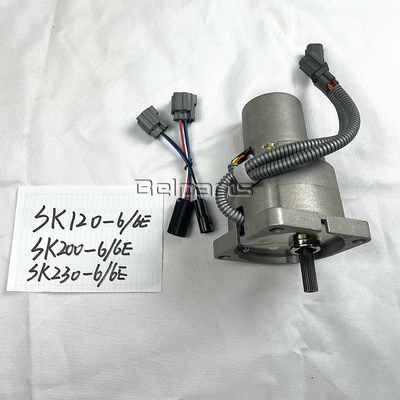

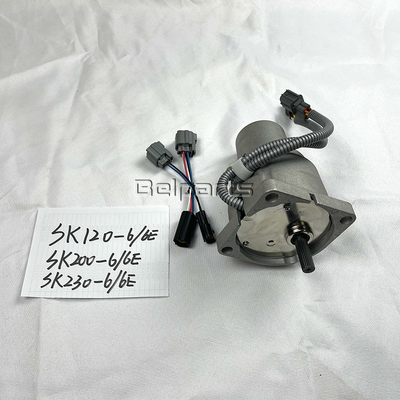

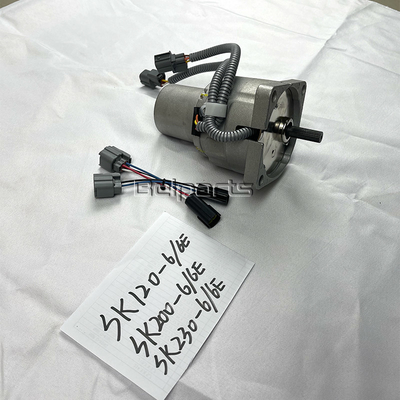

| Product name | Kobelco excavator SK120-6 SK200-6 throttle motor gas motor YN20S00002F1 |
| Brand | Belparts |
| apply to | SK120-6 SK200-6 SK210-6 SK230-6 SK250-6 |
| Part name | Excavator throttle motor |
| Part number | YN20S00002F1 YN20S00002F3 |
| Warranty3 | 3 month |
| MOQ | 1 piece |
| Other Available Model | SK120-2 SK120-3 SK135-6 SK200-2 SK200-3 SK200-6 SK200-6E SK-8 |
| Other Available part number | LP22E00004F2 YW22E00007F1 YN22E00015F3 YN22E00020F1 YN22E0012F3 YN59S00002F5 YN10M00001S013 |
| Hot selling related product | monitor,controller,throttle motor ,solenoid valve,wire harness,pump ,engine,gasket ,turbo charger,liner kit,relay,switch ,blower motor . |
