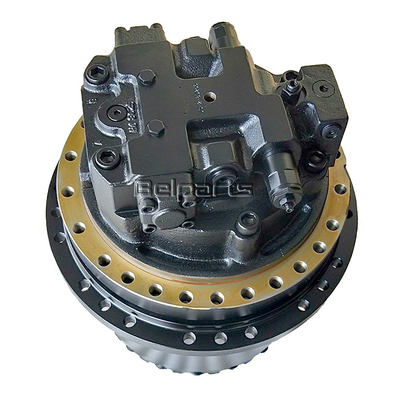

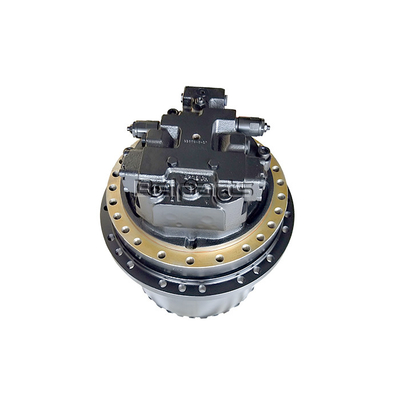

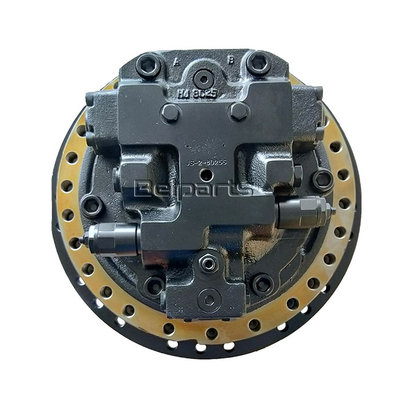

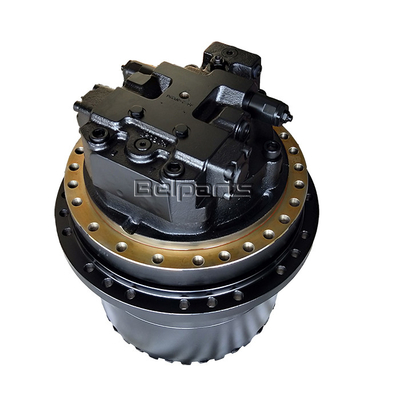

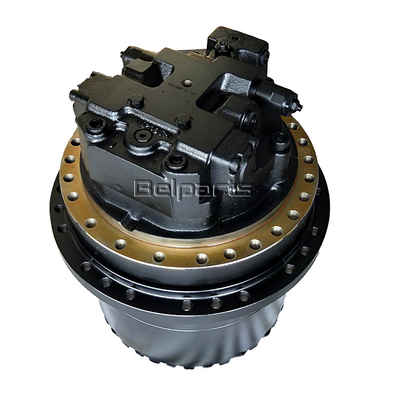

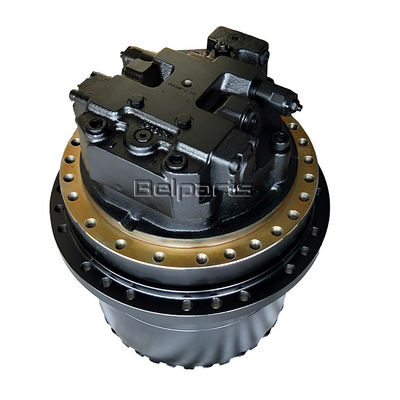

Travel Motor Assy HYUNDAI R360 R370 31NA-40010
Production Description
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| * | 31NA-40010 | TRAVEL MOTOR *-1,*-2 |
1 |
| *-1 | XJBN-00519 | TRAVEL MOTOR UNIT | 1 |
| 022 | XJBN-00513 | SPOOL-C/BALANCE | 1 |
| 101 | XJBN-00512 | SHAFT-DRIVE | 1 |
| 102 | XJBN-00511 | BEARING-ROLLER | 1 |
| 103 | XJBN-00510 | BEARING-NEEDLE | 1 |
| 106 | XJBN-00509 | SPACER-BEARING | 1 |
| 107 | XJBN-00600 | RING-SNAP | 1 |
| S111 | XJBN-00507 | BLOCK-CYLINDER | 1 |
| 113 | XJBN-00506 | BUSHING-SPHERICAL | 1 |
| 114 | XJBN-00022 | SPRING-CYLINDER | 9 |
| 116 | XJBN-00368 | SPACER | 1 |
| NS121 | XJBN-00504 | PISTON | 9 |
| NS122 | XJBN-00503 | SHOE | 9 |
| 123 | XJBN-00020 | PLATE-SET | 1 |
| NS131 | XJBN-00638 | PLATE-VALVE | 1 |
| 161 | XJBN-00403 | O-RING | 2 |
| 162 | XJBN-00397 | RING-BACK UP | 2 |
| 201 | XJBN-00502 | PLATE-SWASH | 1 |
| 202 | XJBN-00501 | SUPPROT | 1 |
| S272 | XJBN-00500 | CASING | 1 |
| S303 | XJBN-00499 | CASING-VALVE | 1 |
| 304 | XJBN-00498 | COVER-SEAL | 1 |
| 350 | XJBN-00497 | VALVE-RELIEF | 2 |
| 361 | XJBN-00496 | WASHER | 2 |
| 362 | XJBN-00495 | SPRING-C/BALANCE | 2 |
| 364 | XJBN-00494 | COVER-C/BALANCE | 2 |
| K365 | XJBN-00493 | O-RING | 2 |
| 366 | XJBN-00492 | BOLT-SOCKET | 8 |
| 401 | XJBN-00491 | BOLT-SOCKET | 8 |
| 402 | XJBN-00490 | BOLT-SOCKET | 4 |
| 435 | XJBN-00489 | RING-SNAP | 1 |
| S451 | XJBN-00053 | PIN-2 | 1 |
| S452 | XJBN-00488 | PIN-1 | 2 |
| 461 | XJBN-00032 | PLUG | 10 |
| 464 | XJBN-00409 | PLUG | 4 |
| K471 | XJBN-00286 | O-RING | 1 |
| K472 | XJBN-00486 | O-RING | 1 |
| K485 | XJBN-00097 | O-RING | 4 |
| K491 | XJBN-00485 | SEAL-OIL | 1 |
| 501 | XJBN-00484 | PISTON-TILTING | 1 |
| 502 | XJBN-00483 | PISTON-TILTING | 1 |
| 503 | XJBN-00482 | STOPPER | 1 |
| 504 | XJBN-00481 | STOPPER-S | 1 |
| 505 | XJBN-00480 | ROD-TILTING | 1 |
| 506 | XJBN-00479 | SCREW | 2 |
| 507 | XJBN-00478 | NUT | 2 |
| K508 | XJBN-00477 | O-RING | 1 |
| K509 | XJBN-00283 | O-RING | 2 |
| K510 | XJBN-00398 | RING-BACK UP | 1 |
| K511 | XJBN-00475 | O-RING | 1 |
| K512 | XJBN-00474 | RING-BACK UP | 1 |
| 531 | XJBN-00473 | SPOOL-TILTING | 1 |
| 533 | XJBN-00472 | SPRING-TILTING | 1 |
| 541 | XJBN-00471 | SEAT | 2 |
| 542 | XJBN-00470 | STOPPER | 2 |
| 543 | XJBN-00359 | BALL-STEEL | 2 |
| 545 | XJBN-00469 | ORIFICE | 1 |
| 546 | XJBN-00468 | ORIFICE | 2 |
| K547 | XJBN-00231 | O-RING | 3 |
| 567 | XJBN-00356 | PLUG | 7 |
| K568 | XJBN-00362 | O-RING | 7 |
| 571 | XJBN-00639 | PLUG | 1 |
| K572 | XJBN-00233 | O-RING | 1 |
| 702 | XJBN-00640 | PISTON-BRAKE | 1 |
| 705 | XJBN-00466 | SPRING-BRAKE | 10 |
| K707 | XJBN-00465 | RING 252-PISTON | 1 |
| K708 | XJBN-00464 | RING 278-PISTON | 1 |
| S709 | XJBN-00463 | PIN-CENTER | 4 |
| 710 | XJBN-00462 | GUIDE-SPRING | 1 |
| 711 | XJBN-00641 | SPOOL | 1 |
| 712 | XJBN-00460 | BUSHING | 1 |
| 713 | XJBN-00459 | SPRING | 1 |
| 714 | XJBN-00458 | PLUG | 1 |
| 741 | XJBN-00457 | PLATE-SEPARATOR | 1 |
| 742 | XJBN-00456 | PLATE-FRICTION | 2 |
| 801 | XJBN-00156 | NAME PLATE | 1 |
| 802 | XJBN-00341 | PIN | 2 |
| K | XJBN-00514 | SEAL KIT SEE ILLUST |
1 |
| 011 | XJBN-00515 | VALVE CASING SUB ASSY SEE ILLUST |
1 |
| 012 | XJBN-00516 | CASING SUB ASSY SEE ILLUST |
1 |
| 013 | XJBN-00517 | CYLINDER SUB ASSY SEE ILLUST |
1 |
| 014 | XJBN-00518 | PISTON SUB ASSY SEE ILLUST |
9 |
