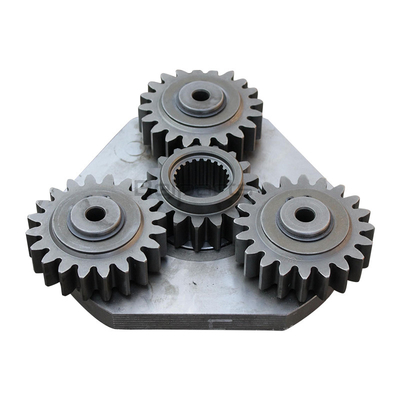

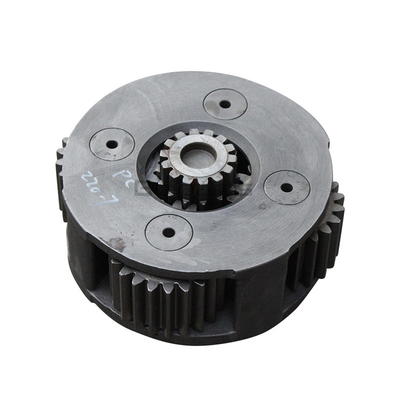

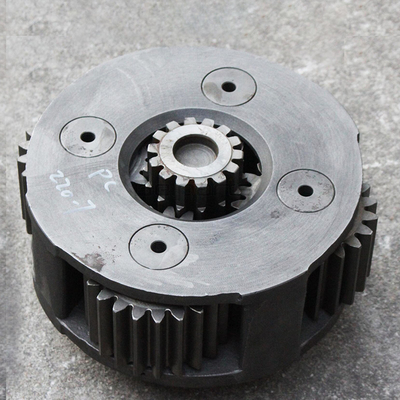

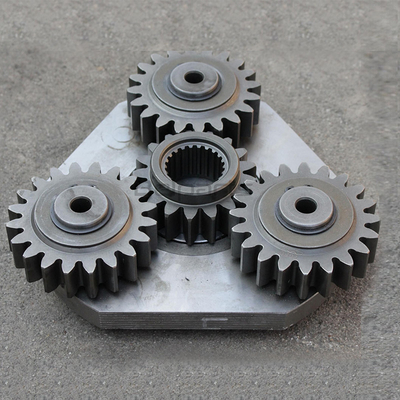

Belparts Swing Gearbox 1st 2nd Carrier Assembly 206-26-71480 PC270-7 PC220-7 Travel For Komatsu Planetary
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Warranty | 3 Months |
|---|---|---|---|
| Material | Steel | Appliion | Excavator |
| Model | PC270-7 PC220-7 | Product Name | Travel Gearbox Carrier Assy |
| Highlight | Swing Gearbox 1st 2nd Carrier Assembly,206-26-71480 Carrier Assembly,PC220-7 Travel Gearbox Carrier Assy |
||
Product Description
Belparts Swing Gearbox 1st 2nd carrier Assembly 206-26-71480 PC270-7 PC220-7 Travel for Komatsu Planetary
Parts scheme
List of spare parts
| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| 1 | 206-26-71490 | 1 | ||
| 2 | 07029-00000 | VALVE, RELIEF | 1 | |
| 3 | 20Y-26-22330 | Bearing | 1 | |
| 4 | 206-26-71240 | Bearing | 1 | |
| 5 | 206-26-71460 | Shaft | 1 | |
| 6 | 07012-00115 | SEAL,OIL | 1 | |
| 7 | 206-26-71310 | Spacer | 1 | |
| 8 | 07000-15310 | O-RING,FLANGE | 1 | |
| 9 | 206-26-71480 | Carrier | 1 | |
| 10 | 206-26-71440 | Gear | 4 | |
| 11 | 22U-26-21320 | Bearing | 8 | |
| 11 | 22U-26-21330 | Bearing | 8 | |
| 12 | 206-26-71520 | THRUST WASHER | 8 | |
| 13 | 206-26-71510 | Pin | 4 | |
| 14 | 20Y-26-21330 | Pin | 4 | |
| 15 | 20Y-26-21240 | Plate | 1 | |
| 16 | 112-32-11211 | BOLT? SHOE (Y0320-K1) | 1 | |
| 17 | 206-26-71452 | Gear | 1 | |
| 17 | 206-26-71450 | Gear | 1 | |
| 18 | 20K-22-11190 | O-ring | 1 | |
| 19 | 01010-81440 | CAPSCREW | 22 | |
| 20 | 01643-31445 | WASHER,(FOR QUICK SHIFT) (MITSUBISHI) | 22 | |
| 21 | 206-26-71430 | Gear | 1 | |
| 22 | 04260-01270 | BALL,(-40 DEG. SPEC.) | 1 | |
| 23 | 206-26-71470 | Carrier | 1 | |
| 24 | 206-26-71420 | Gear | 3 | |
| 25 | 20Y-27-22210 | Bearing | 3 | |
| 26 | 22U-26-21230 | WASHER,THRUST | 6 | |
| 27 | 206-26-71210 | Pin | 3 | |
| 28 | 04064-03515 | RING,BACK-UP | 6 | |
| 29 | 206-26-71350 | HOLDER | 1 | |
| 30 | 206-26-71410 | Gear | 1 | |
| 31 | 206-26-71340 | Plate | 1 | |
| 32 | 195-03-13241 | VALVE,WATER DRAIN | 1 | |
| 33 | 07270-21560 | Tube | 1 | |
| 34 | 07281-00197 | CLAMP,(WITH PRE-FUEL FILTER) | 1 | |
| 35 | 01010-81035 | BOLT,(F4320-52A0 -5 ) | 6 | |
| 36 | 01643-51032 | WASHER, (WITHOUT EMERGENCY STEERING) | 6 | |
| 37 | 22U-26-21280 | Ring | 1 | |
| 38 | 07043-00312 | PLUG,(FOR SHIPPING) (NOT SHOWN) | 1 | |
| 39 | (706-7G-01040) | MOTOR ASS'Y | 1 | |
| 40 | 07000-15250 | O-RING (KIT) | 1 | |
| 41 | 01010-82070 | Bolt | 14 | |
| 42 | 01643-32060 | FLAT WASHER - M20 (HARDENED) | 14 | |
| 43 | 20Y-26-31410 | Tube | 1 | |
| 44 | 20Y-26-31420 | Filler | 1 | |
| 45 | 20Y-26-31430 | GAUGE | 1 | |
| 46 | 20Y-26-31441 | Bracket | 1 | |
| 47 | 22U-26-21460 | Cap | 1 | |
| 48 | 07238-10630 | Connector | 1 | |
| 49 | 07283-32738 | U-BOLT, L.H. TUBE CLAMPING | 1 | |
| 50 | 04434-51710 | CLIP,SEE FIG. K4010-05A0 | 1 | |
| 51 | 01597-01009 | NUT,(FOR JAPAN) | 2 | |
| 52 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 2 | |
| 53 | 01010-81030 | BOLT,(WITH BODY POSITIONER) | 2 | |
| 54 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 2 | |
| 55 | 01010-81025 | BOLT,(FOR CANVAS CANOPY?HEAD GUARD) | 1 | |
| 56 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 1 |
|
Supply Ability
Supply Ability: 1000 Piece / Pieces per Month
Packaging & Delivery
Packaging Details Standard Export Wooden
Port; Huangpu
Lead Time
| Quantity(Pieces) | 1 - 1 | >1 |
| Est. Time(days) | 2 | To be negotiated |
Our advantages:
Ø Strong part number database.
If you can provide the right model and part number, we can supply the right product.
Ø Professional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences
Ø Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Ø Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
Ø Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
FAQ
1. Is small order available ?
Yes , small order can accept .
2. What's the shipping way ?
By courier , air , or ship .
3. What ' s package ? Can you supply the package according my requirement ?
Export wooden carton , or we can customize it according to the requirement according to the customer's requirement .
4. How can you guarantee the quality ?
If you meet with quality problem , we promise to replace goods or return your funds .
