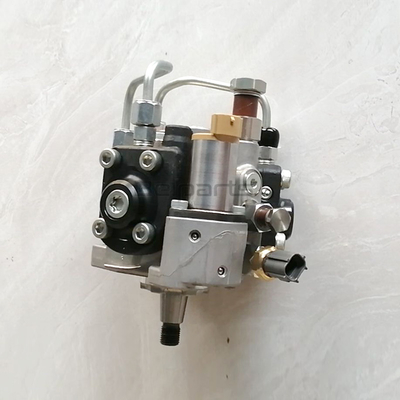

8-98181831-0 SCV Control Valve ISUZU JS360LC Belparts Injection Pump 6HK1-XDHA Precision Machinery

1 piece
MOQ
Negotiable price
Price
8-98181831-0 SCV Control Valve ISUZU JS360LC Belparts Injection Pump 6HK1-XDHA Precision Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 8-98181831-0
Condition: New
Usage: Oil
Appliion: EXCAVATOR
Power: Hydraulic
Theory: Fuel Injection Pump
High Light:

8-98181831-0 Control Valve

,

JS360LC Control Valve
Basic Infomation
Place of Origin: Guangdong，China
Brand Name: Belparts
Certifiion: OEM
Payment & Shipping Terms
Packaging Details: Wooden packing
Delivery Time: 1-5days
Payment Terms: T/T, Paypal and Alibaba Trade Assurance
Supply Ability: 1000pieces
Product Description

8-98181831-0 SCV Control Valve ISUZU JS360LC Belparts injection pump Precision Machinery

Parts scheme

8-98181831-0 SCV Control Valve ISUZU JS360LC Belparts Injection Pump 6HK1-XDHA Precision Machinery 0

List of spare parts



KEY No. Part no. qty Part description Engine serial no.
1 8-98091-565-3 1 PUMP ASM; INJ
2 8-94399-256-0 3 BOLT; INJ PUMP
M8X28
6 8-97601-154-1 1 BRACKET; INJ PUMP TO C/BL
16 8-97602-674-3 1 PIPE; INJ NO.1
17 8-97602-675-3 1 PIPE; INJ NO.2
18 8-97601-771-3 1 PIPE; INJ NO.3
19 8-97600-996-4 1 PIPE; INJ NO.4
20 8-97600-997-3 1 PIPE; INJ NO.5
21 8-97600-998-3 1 PIPE; INJ NO.6
31 8-97329-703-6
<8-97329-703-2>		 6 NOZZLE ASM; INJ UP TO 574127
31 8-98151-837-3 6 NOZZLE ASM; INJ 574128 - 590156
31 8-98284-393-0 6 NOZZLE ASM; INJ 590157 - UP
61 8-98008-895-0 6 BOLT; CLAMP NOZZLE HOLDER
M8X54
66(A) 8-94173-412-0 6 GASKET; INJ NOZZLE
ID=23.3
66(B) 8-98079-248-0
<8-97601-447-2>		 6 GASKET; INJ NOZZLE
ID=9.2 T=8.1
68(A) 1-09701-172-3
<1-09701-172-2>		 5 CLIP; INJ PIPE UP TO 515424
68(A) 8-97330-118-3 5 CLIP; INJ PIPE 515425 - UP
68(B) 1-09701-173-2
<1-09701-173-1>		 5 CLIP; INJ PIPE UP TO 515424
68(B) 8-97330-119-3 5 CLIP; INJ PIPE 515425 - UP
69 1-13319-065-0 1 BRACKET; INJ PIPE CLIP
71(A) 0-28050-870-0 1 BOLT; BRKT
M8X70 FLANGE
71(B) 0-28151-200-0 1 BOLT; BRKT
M12X100 FLANGE
94 8-98028-999-1 6 BRACKET; INJ NOZZLE
110 0-91180-106-0 4 NUT; CLIP
M6 FLANGE
118 0-28650-625-0 1 BOLT; CLIP,INJ PIPE
M6X25 FLANGE		 UP TO 515424
118 0-28650-635-0 1 BOLT; CLIP,INJ PIPE
M6X35 FLANGE		 515425 - UP
121 8-97383-427-0 2 PIPE; FUEL,FEED PUMP,SUCTION UP TO 534685
121 8-97383-427-0 4 PIPE; FUEL,FEED PUMP,SUCTION 534686 - UP
133 8-98203-705-1 1 PIPE; INJ NOZZLE LEAK OFF
134(A) 1-09675-037-1 6 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT
134(B) 8-94396-711-0 2 BOLT; JOINT,LEAK OFF PIPE
M10X21 FLANGE
135(A) 1-09630-083-0 4 GASKET; JOINT BOLT,LEAK OFF PIPE
ID=10.2 OD=15.2		 UP TO 574127
135(B) 8-97600-925-0 6 GASKET; JOINT BOLT,LEAK OFF PIPE
ID=8.3		 UP TO 574127
135(B) 8-98065-992-0 6 GASKET; JOINT BOLT,LEAK OFF PIPE
ID=8.3		 574128 - UP
135(C) 8-98079-755-0 1 GASKET; JOINT BOLT,LEAK OFF PIPE
ID=10.2 OD=17		 574128 - UP
135(D) 8-97240-975-0 1 GASKET; JOINT BOLT,LEAK OFF PIPE
ID=10.6		 574128 - 576049
135(D) 8-98231-393-0 1 GASKET; JOINT BOLT,LEAK OFF PIPE
ID=10.6		 576050 - UP
154 9-09561-111-0 6 GASKET; CONNECTOR
ID=11.0		 UP TO 574127
154 0-95690-111-0 6 GASKET; CONNECTOR
ID=11.0		 574128 - UP
169(A) 0-91180-110-0 2 NUT; BRKT
M10  FLANGE
169(B) 0-91180-112-0 1 NUT; BRKT
M12 FLANGE
176(A) 1-09675-095-1 2 BOLT; EYE,FEED PUMP
M16X30 FLANGE		 UP TO 534685
176(A) 1-09675-095-1 4 BOLT; EYE,FEED PUMP
M16X30 FLANGE		 534686 - UP
176(B) 8-98011-269-0 1 BOLT; EYE,FEED PUMP
M10X38 EYE BOLT
177 1-09630-086-0 4 GASKET; EYE BOLT,INL,FUEL FEED
PUMP		 UP TO 534685
177 1-09630-086-0 8 GASKET; EYE BOLT,INL,FUEL FEED
PUMP		 534686 - UP
199 8-97602-218-0 2 GASKET; EYE BOLT
200 8-98008-791-0 1 PIPE; FUEL FEED
205 8-98023-581-0 1 SENSOR; FUEL TEMP
210 8-97603-307-0 1 PIPE; INJ,C/R
211 8-98152-950-2
<8-97323-019-0>		 1 RAIL ASM; COMMON
212 1-09040-091-1 2 BOLT; RAIL ASM
M10X34 FLANGE REAMER
216 8-97602-173-0 1 BOLT; EYE
265 8-98074-955-0 1 VALVE; FEED PUMP
271(A) 1-09623-464-0 1 GASKET; INJ PUMP
ID=139.6
271(B) 8-98031-844-0 1 GASKET; INJ PUMP
ID=52
288(A) 1-09630-083-0 3 GASKET
ID=10.2 OD=15.2
288(B) 1-09630-085-0 3 GASKET
ID=14.2 OD=19.2		 UP TO 585209
288(B) 8-98251-345-0 3 GASKET
ID=14.2 OD=19.2		 585210 - UP
382 8-97375-384-0 1 KEY; DRIVE SHAFT UP TO 574127
382 8-98161-995-0 1 KEY; DRIVE SHAFT 574128 - UP
392 0-91180-110-0 2 NUT; RAIL ASM
M10 FLANGE
424 8-98181-831-0 1 OVERHAUL KIT; SUPPLY PUMP
