Parts scheme
List of spare parts
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
4699092 | [1] | MOTOR;OIL (2/2) | This PART NO. consisits of all parts shown in MOTOR;OIL (1/2) to (2/2). | |
2. | +++++++ | [1] | PLATE | |
2-1. | +++++++ | [1] | PLATE | |
2-2. | +++++++ | [1] | SPOOL | |
2-2-1. | +++++++ | [1] | SPOOL | |
2-2-2. | +++++++ | [2] | VALVE;CHECK | |
2-2-3. | +++++++ | [2] | SPRING | |
2-2-4. | +++++++ | [2] | PLUG | |
2-2-5. | +++++++ | [2] | O-RING | |
2-3. | 0356914 | [2] | SEAT;SPRING | |
2-4. | 0417802 | [2] | SPRING | |
2-5. | 0809601 | [2] | SEAT;SPRING | |
2-6. | 0979101 | [2] | CAP; | |
2-6-1. | +++++++ | [1] | CAP | |
2-6-2. | +++++++ | [1] | O-RING | |
2-6-3. | +++++++ | [4] | BOLT;SOCKET | |
2-7. | 0806602 | [2] | VALVE;RELIEF | |
2-7-1. | +++++++ | [1] | SEAT | |
2-7-2. | +++++++ | [1] | HOUSING;RELIEF | |
2-7-3. | +++++++ | [1] | POPPET | |
2-7-4. | +++++++ | [1] | SEAT;SPRING | |
2-7-5. | +++++++ | [1] | SPRING | |
2-7-6. | +++++++ | [1] | PLUG | |
2-7-7. | +++++++ | [1] | GUIDE;SPRING | |
2-7-8. | +++++++ | [1] | SCREW;SET | |
2-7-9. | +++++++ | [1] | NUT;LOCK | |
2-7-10. | +++++++ | [1] | PISTON | |
2-7-11. | +++++++ | [1] | O-RING | |
2-7-12. | +++++++ | [1] | O-RING | |
2-7-13. | +++++++ | [1] | O-RING | |
2-7-14. | +++++++ | [1] | O-RING | |
2-7-15. | +++++++ | [1] | RING;BACK-UP | |
2-7-16. | +++++++ | [2] | RING;BACK-UP | |
2-7-17. | +++++++ | [2] | RING;BACK-UP | |
2-9. | +++++++ | [1] | SPOOL | |
2-11. | +++++++ | [2] | ORIFICE | |
2-13. | XB00001457 | [1] | SPRING | |
2-14. | 0671002 | [2] | PLUG | |
2-15. | 4506418 | [2] | O-RING | |
2-19. | 0352304 | [2] | VALVE;CHECK | |
2-20. | 0352305 | [2] | SPRING | |
2-21. | 0352306 | [2] | PLUG | |
2-22. | 4506429 | [2] | O-RING | |
2-23. | +++++++ | [2] | ORIFICE | |
2-24. | +++++++ | [1] | ORIFICE | |
2-25. | 0436608 | [6] | PLUG | |
2-26. | 957366 | [6] | O-RING | |
2-27. | +++++++ | [1] | PLUG | |
2-28. | +++++++ | [7] | PLUG | |
16. | 0682803 | [1] | PIN | |
26. | 0809604 | [10] | SPRING | |
27. | 0251319 | [4] | PIN | |
33. | 0168008 | [9] | BOLT;SOCKET | |
51. | +++++++ | [1] | NAME-PLATE | |
52. | +++++++ | [2] | SCREW;DRIVE | |
400. | XB00001431 | [1] | PLATE | NOTE) The KIT;SEAL of this system is indied at 「MOTOR;OIL (1/2)」. |
Product details

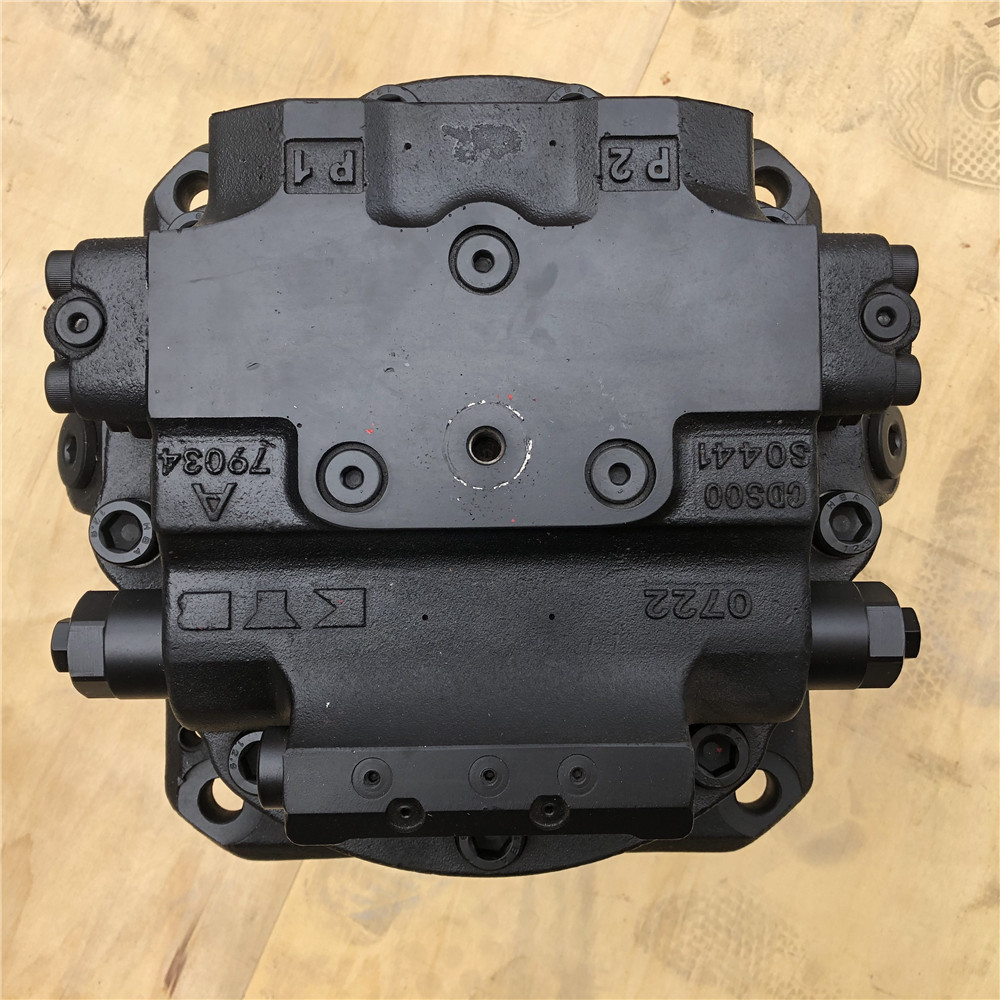

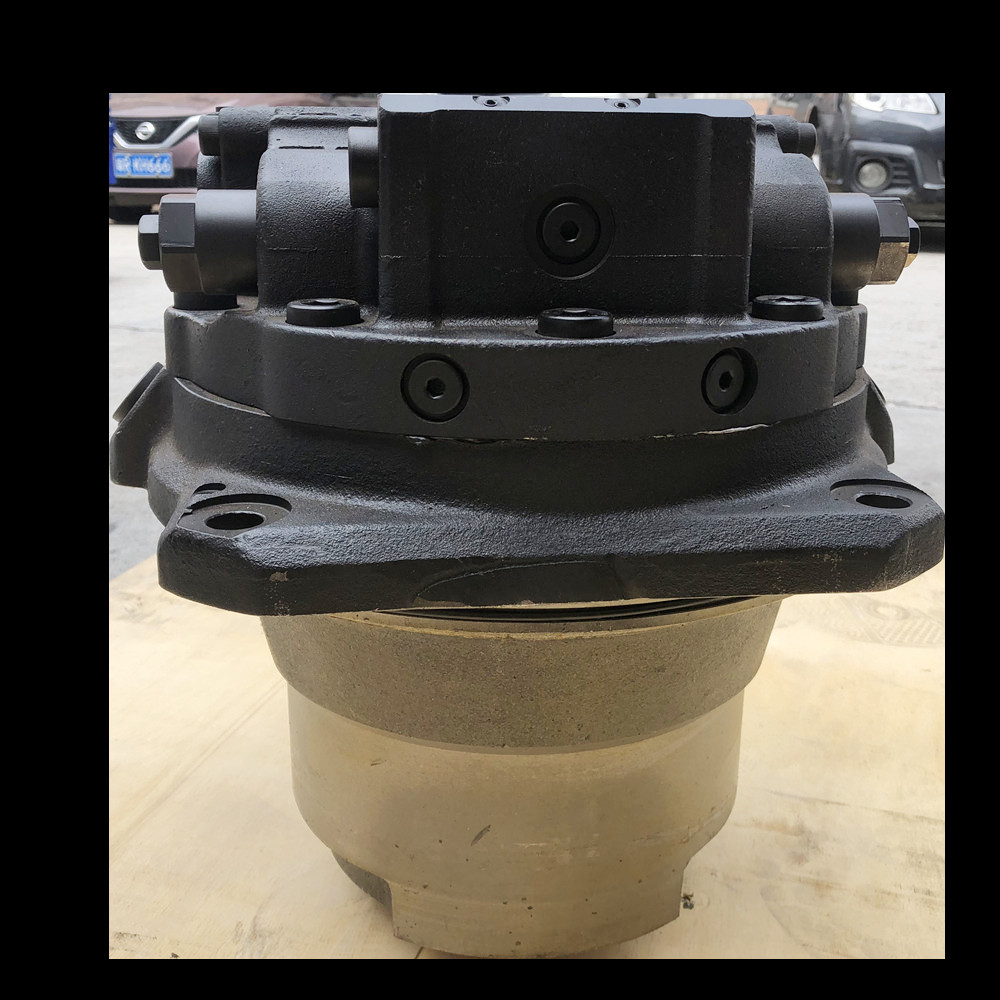

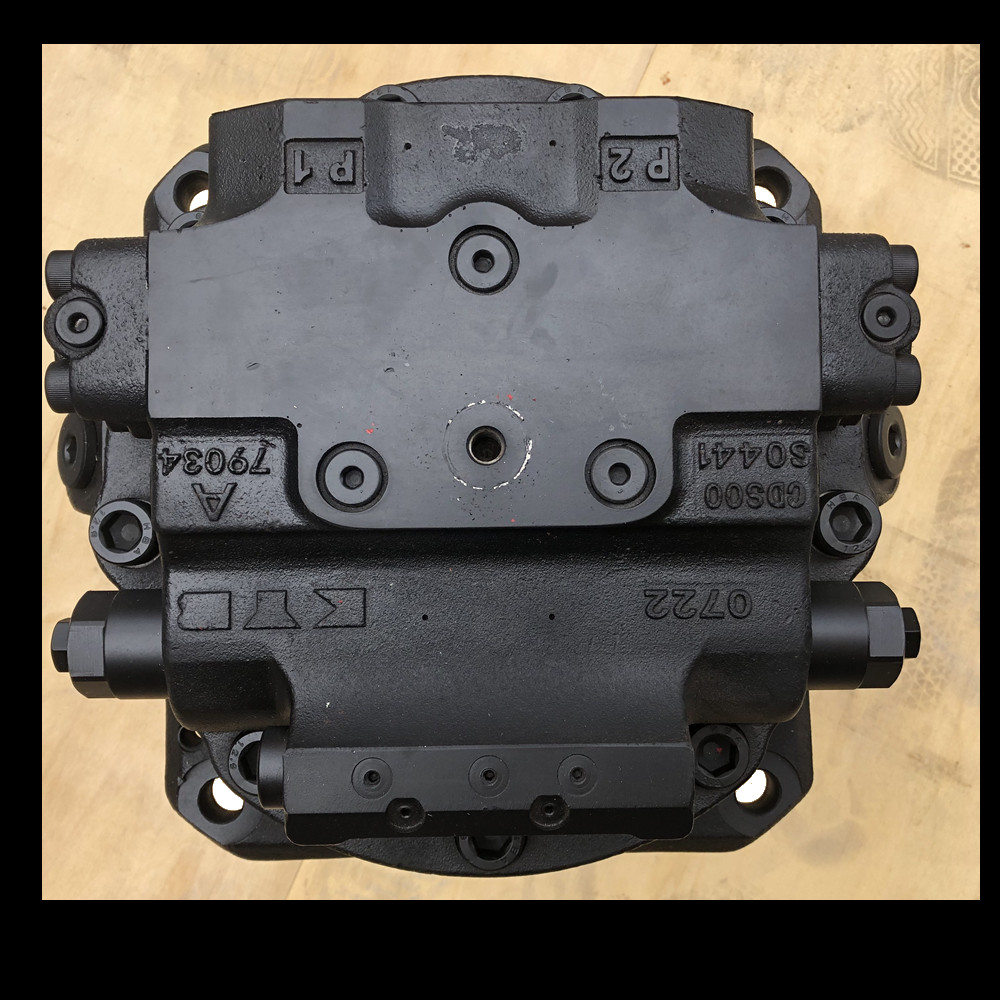

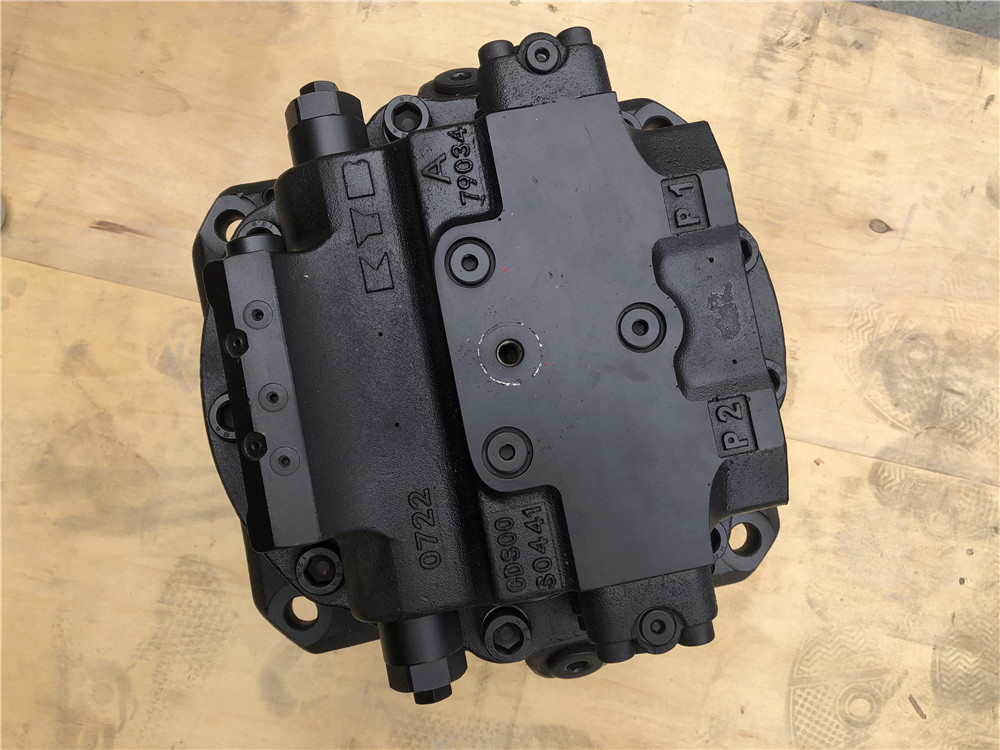

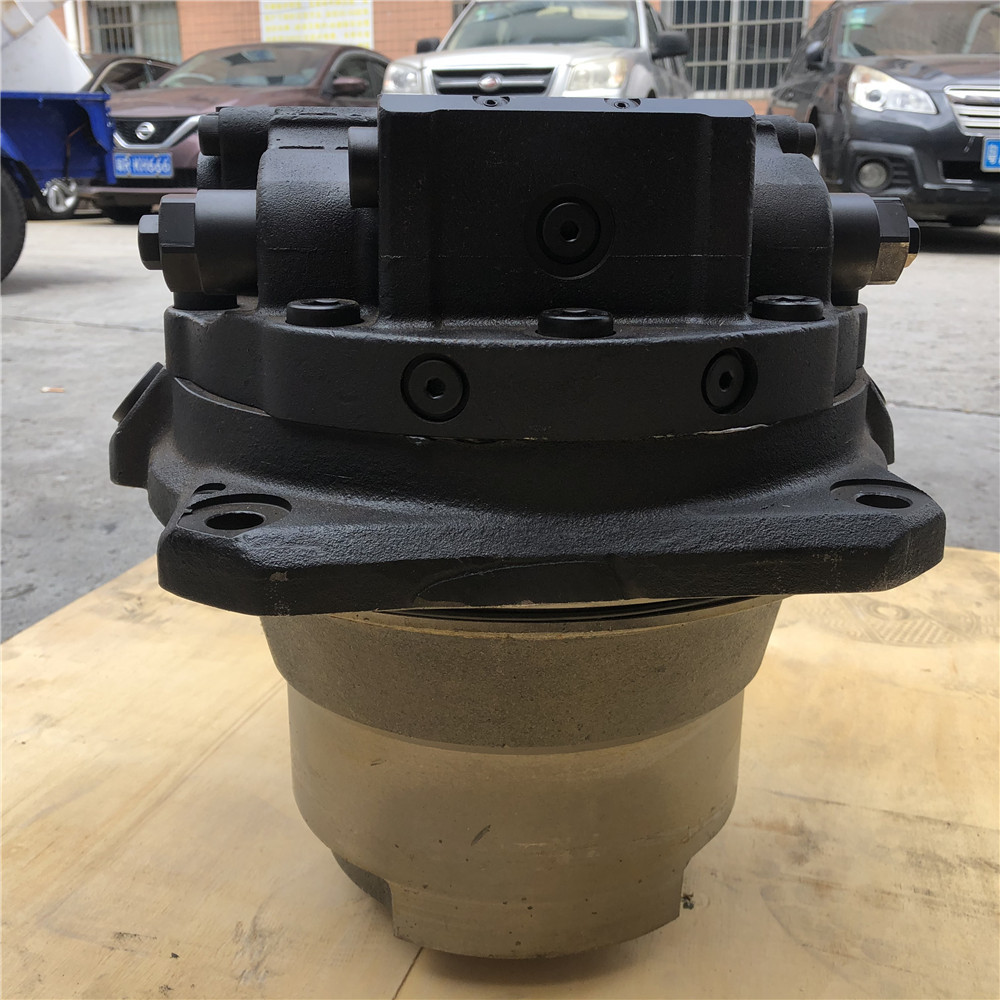

4699092 | |
ZX470LC-5G | |
Factory
Certifiion
Product Testing
Product Packing
Company Information
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.
Our Services
In-sale service:
After-sale service:
Delivery
