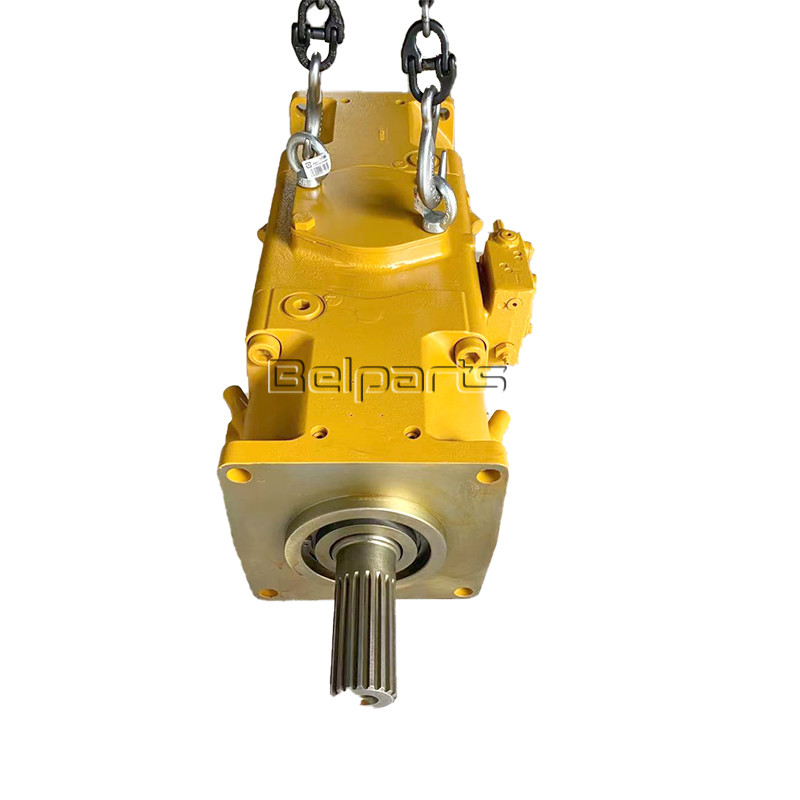

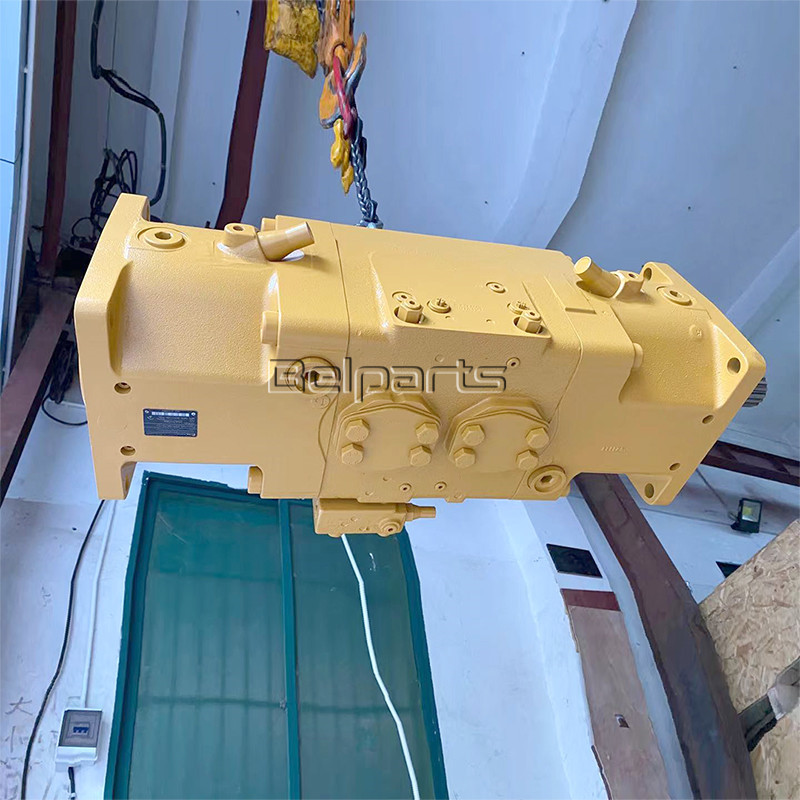

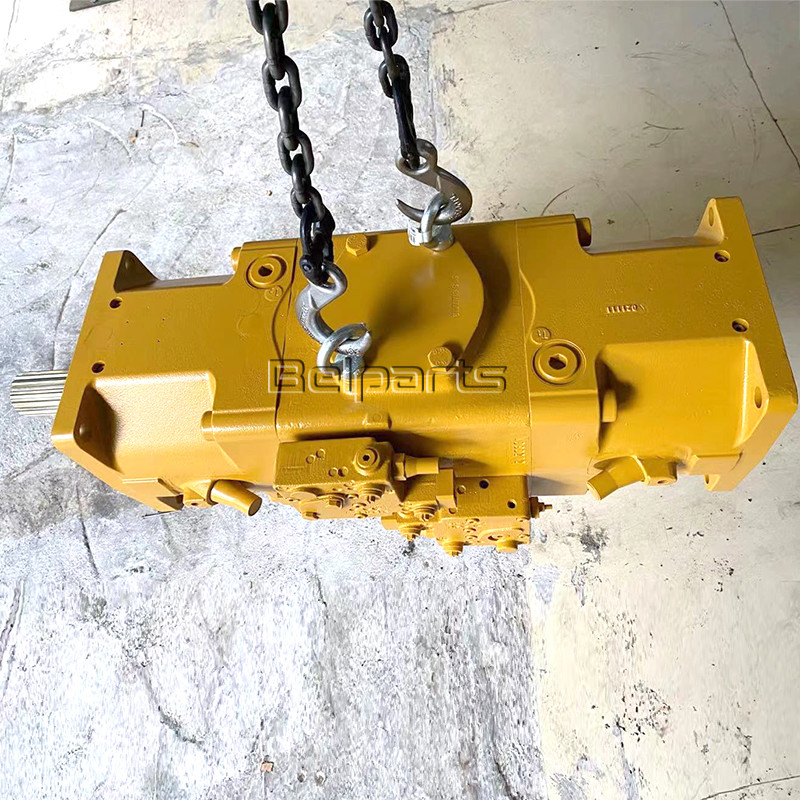

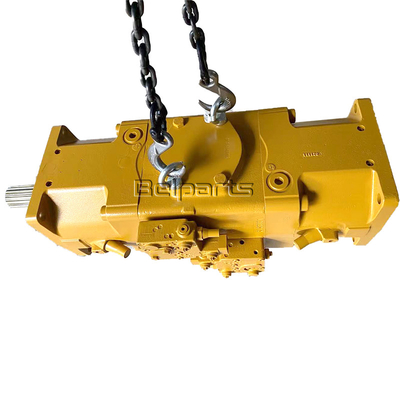

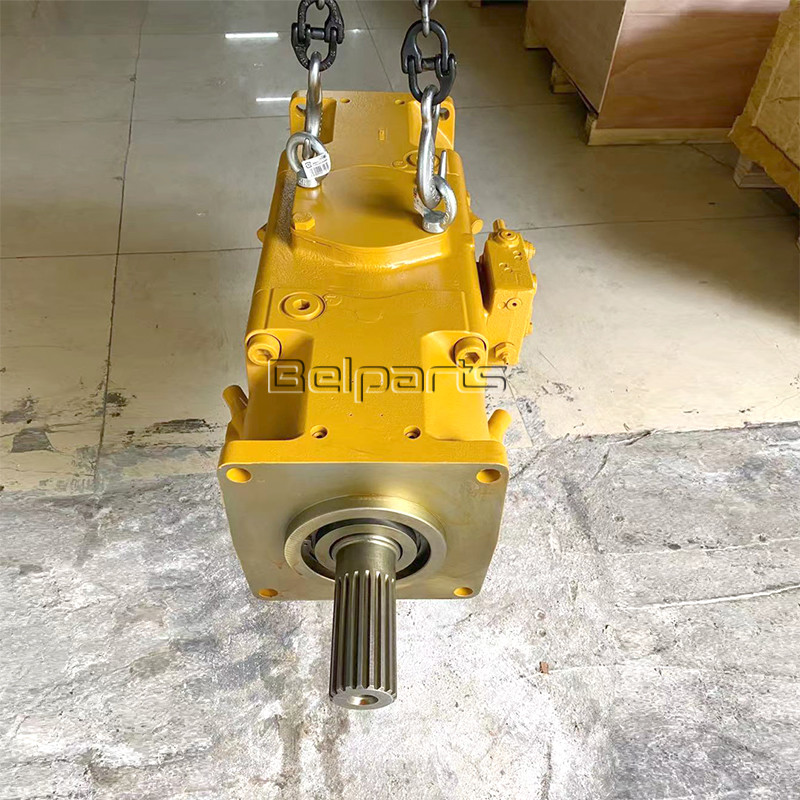

Excavator Hydraulic pump E374 2977684 2W4332 Hydraulic Main Pump For erpillar
Main excavator parts as below:
| PARTS | PARTS NAME |
| Hydraulic parts |
pump assy, final drive, gearbox, drive motor, swing device, swing motor, piston shoe, cylinder block, valve plate, set plate, travle motor, rotary motor and gearbox, main valve, steering pump, gear pump, valve block, control valve |
| Engine parts |
Cylinder Block, Cylinder Head, Cylinder Liner, Cylinder Gasket, Overhaul kit,Crankshaft, Camshaft, Main Bearing,Water Pump, Oil Pump, Air Compressor, Fuel transfer pump,Piston, Piston Pin, Piston Ring, liner kits,Connection Rod, Bushing, Gear, Gear Housing, Belt Tensioner |
Picture of Hitachi ZX870 ZX870-5 ZX870-5G ZX670 Hydraulic main pump
| Part No | Part Name | Price request |
|---|---|---|
| 2977684 | PUMP & MTG GROUP-MAIN HYDRAULIC |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 2W4332 | HOSE ASSEMBLY, -6 x 29.5 in. (749 mm) | 1 | |
| 2 | 1968173 | ELBOW | 1 | |
| 3 | 2228350 | COUPLING GROUP-PUMP | 1 | |
| 4 | 2331153 | CLAMP | 1 | |
| 5 | 2331154 | PLATE | 1 | |
| 6 | 2331155 | TUBE AS | 1 | |
| 7 | 2331194 | COVER | 1 | |
| 8 | 2959676 | PUMP GROUP-MAIN HYDRAULIC | 1 | |
| 9 | 0672551 | CLAMP | 1 | |
| 10 | 6V5043 | SEAL-O-RING | 1 | |
| 11 | 2147568 | SEAL-O-RING (11.89-MM ID) | 1 | |
| 12 | 6V7681 | SEAL-O-RING | 1 | |
| 13 | 7X0314 | BOLT-PLT (7/16UNC X 3) | 10 | |
| 14 | 7X0316 | BOLT-PLT (7/16UNC X 3 1/2) | 2 | |
| 15 | 7X2537 | BOLT-PLT (M8 X 1.25 X 35) | 2 | |
| 16 | 8T4121 | WASHER-HARD (11X21X2.5-MM THK)(M10X1.50X30MM) | 1 | |
| 17 | 8T4123 | WASHER-PLATED (22X35X3.5-MM THK) | 4 | |
| 18 | 8T4136 | CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9) | 1 | |
| 19 | 8T4141 | BOLT-PLT (M20 X 2.5 X 70) | 4 | |
| 20 | 8T4224 | WASHER-TO ASSEMBLE VALVE AS AND PLATES | 2 | |
| 21 | 8T5360 | WASHER-HARD (FOR USE WITH 7/16 IN BOLTS) | 12 | |
| REFER TO HYDRAULIC INFORMATION SYSTEM | ||||
| METRIC PART | ||||
| SEPARATE ILLUSTRATION |
Supply Ability
Supply Ability: 500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details: First layer is packed in plastic and the second in wooden s
Port: Huangpu
Lead Time
| Quantity(Pieces) | 1 - 10 | 11 - 100 | 101 - 1000 | >1000 |
| Est. Time(days) | 1 | 3 | 7 | To be negotiated |
| Our advantages | |
| Strong support | We have factory product support and financial support, so the product cost is very low , and the price given is also pretty acceptable . |
| Sufficient product information | We have detailed parameters , so send us the right model and correct number , we can supply the exact product . |
| Salesperson with professional knowledge and abundant experience | Belparts has been developing on this area for more than 7 years , so we have wealthy experience . |
| Strict and integral company system | We will try our best to obey customer’s delivery time . Before delivering your products , we must check the part number or pictures of the products carefully to let our customers receive high-quality and right-quantity goods . |
| Good management system | No matter how big or small the trade is , as long as customers place the order , we will provide exporting service for free . |
| Good service attitude | If you have any questions about the product , after knowing the situation , we will help the customer to solve the problem at the first time . As long as customers’ requirements are reasonable , we will endeavour to satisfy them . |
FAQ
| 1 . What kind of information I need to send you? |
| For different parts it need distinct information , for hydraulic pump , it needs the nameplate and picture . For the final drive , it needs the number of the frame hole and sprocket hole ,and the inner diamter of the sprocket . If we need information , we will ask you to check . |
| 2 . Do you have stock? |
| For our main products , we have stock for most of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it . |
| 3 . Can I get the picture of the part I need before payment ? |
| For almost parts , we can send you the pictures of it , but some parts we don't have picture , but anyway will show you before the shipment . |
| 4 . When will the delivery be arranged after the payment |
| After we received the money , we will arrange the shipment within 1 days ; |
| 5 . How can I do if there is something wrong with the items ? |
| First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item . |
| 6 . What is your advantage products ? |
| Our advantage products are final drive / hydraulic pump / swing gearbox / travel gearbox / swing motor / hydraulic parts . If you need any parts for crawler excavator , you can ask us . We will try our best to find the parts what you need . |
