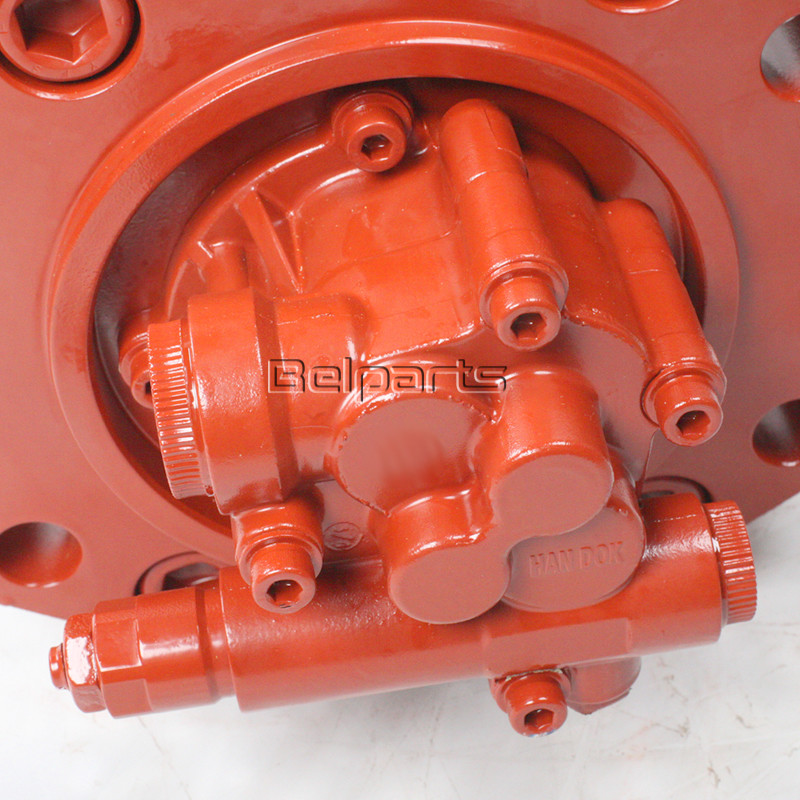

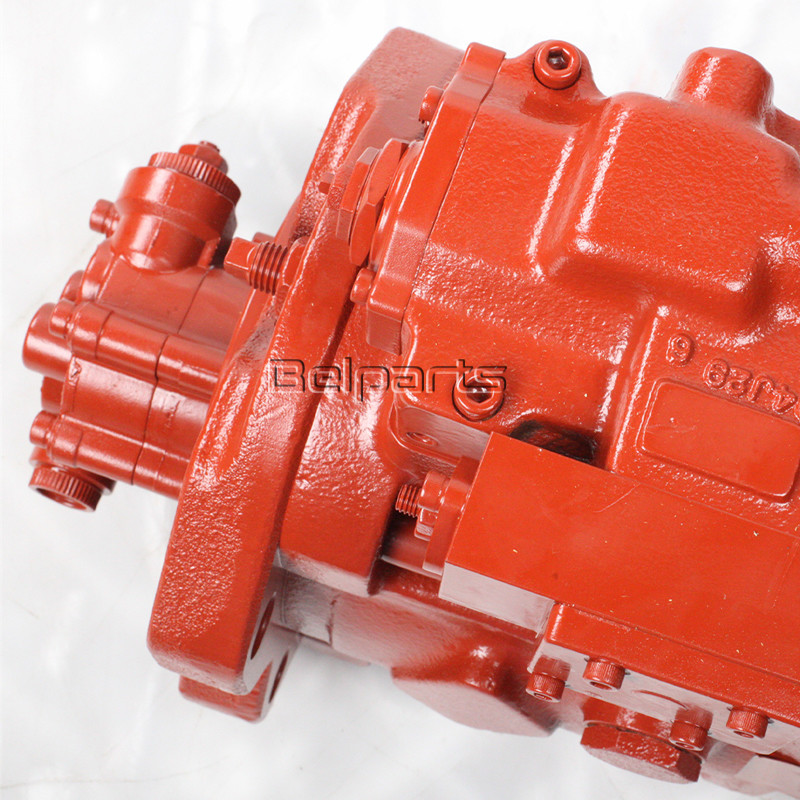

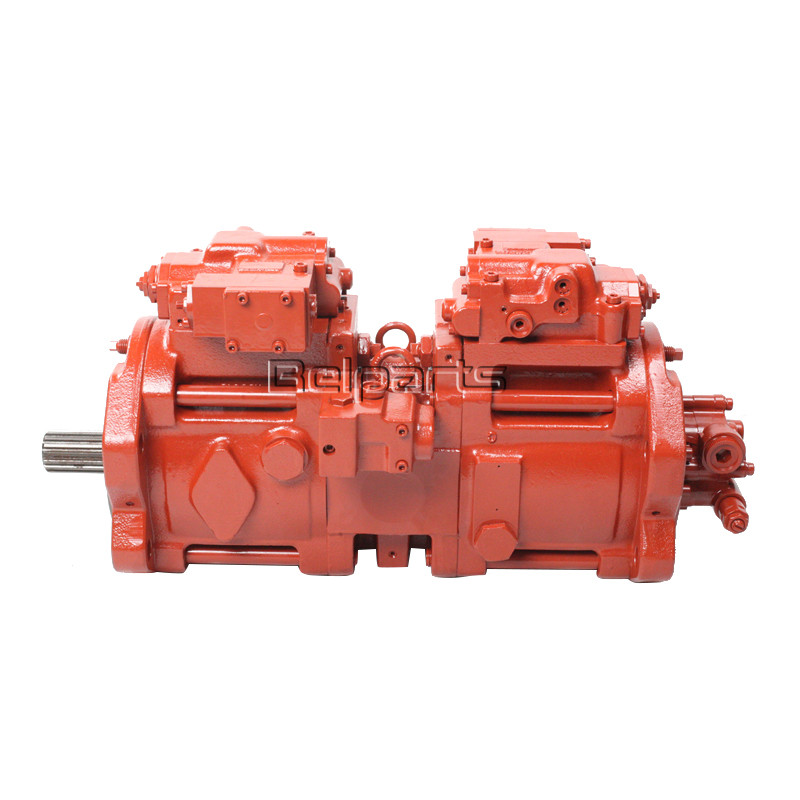

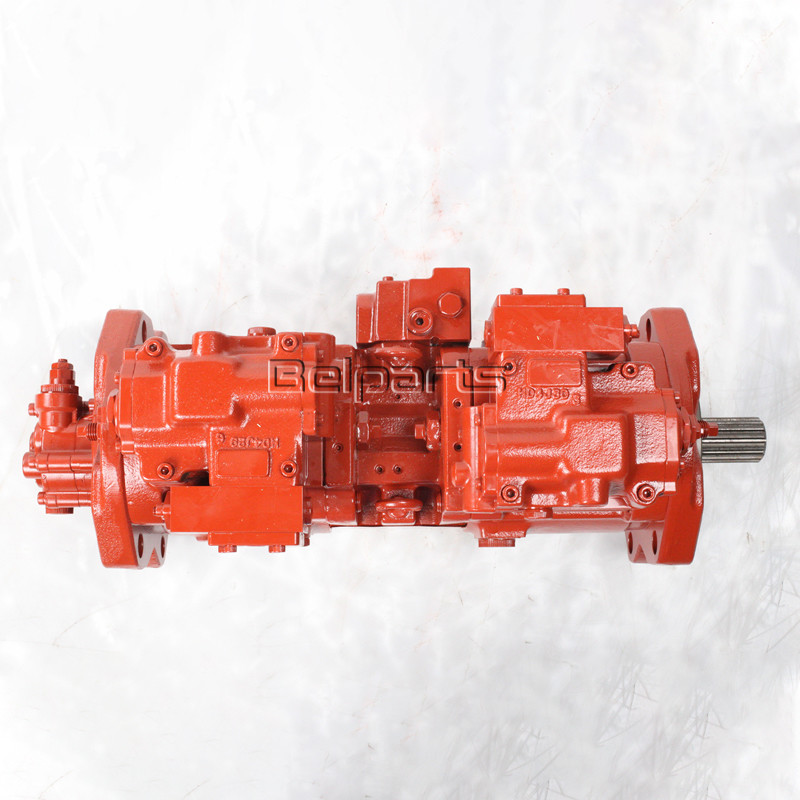

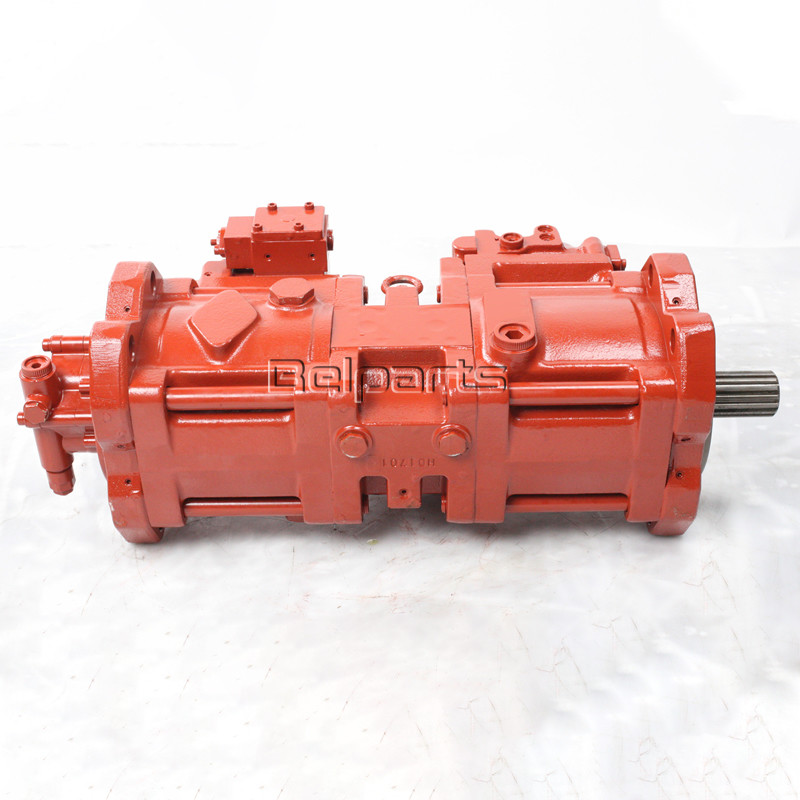

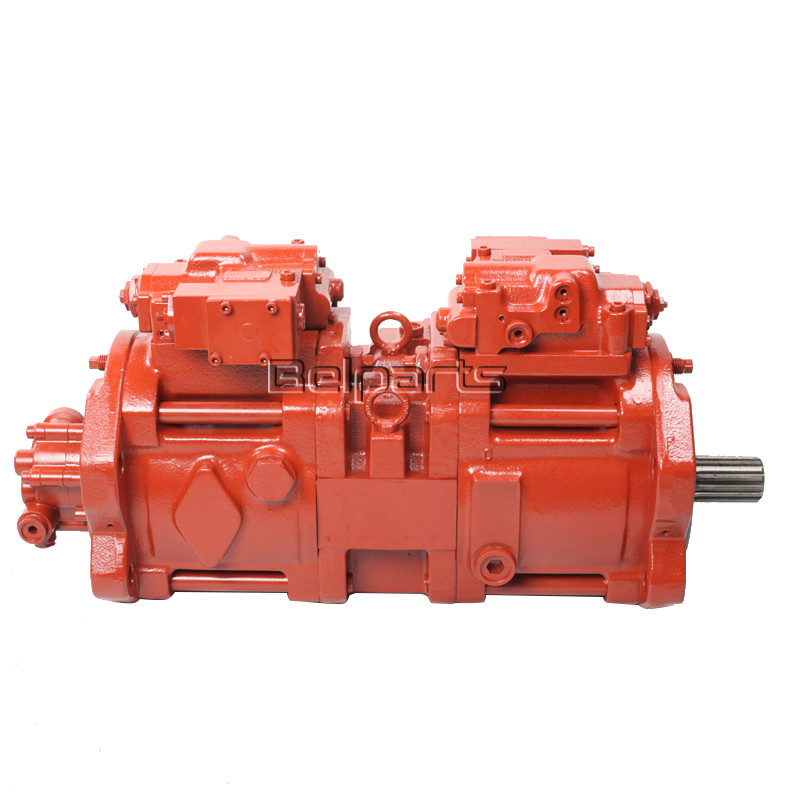

PC200-35 Excavator Hydraulic Pump K3V112DTK-YISER-6N00 Piston Hydraulic Pump
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Red | Place Of Origin | Guangdong, China |
|---|---|---|---|
| Model | PC200-35 K3V112DTK | Apply To | Excavators |
| Pressure | High Pressure | Type | Hydraulic Power Units |
| Highlight | PC200-35 Excavator Hydraulic Pump,K3V112DTK-YISER-6N00 Excavator Hydraulic Pump,PC200-35 Hydraulic Piston Pump |
||
Product Description
PC200-35 Excavator hydraulic pump K3V112DTK-YISER-6N00 piston
Product Description
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 708-25-01064 | PUMP ASS'Y | 1 | |
| 1 | (708-25-10200) | PUMP ASS'Y | 1 | |
| 1 | (708-25-01250) | PUMP SUB ASS'Y | 1 | |
| 1 | (708-25-11101) | PUMP SUB ASS'Y | 1 | |
| 1 | (708-25-11100) | PUMP SUB ASS'Y | 1 | |
| 2 | (704-24-28201) | PUMP ASS'Y | 1 | |
| 2 | (704-24-28200) | PUMP ASS'Y (BAR 25) | 1 | |
| (704-24-28203{704-28-02710)} | ||||
| 3 | (708-25-14902) | RELIEF VALVE ASS'Y | 1 | |
| 3 | (708-25-14800) | RELIEF VALVE ASS'Y | 1 | |
| 4 | (708-25-07111) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 4 | (708-25-15100) | SERVO VALVE ASS'Y,FRONT | 1 | |
| 5 | (708-25-07212) | SERVO VALVE ASS'Y,REAR | 1 | |
| 5 | (708-25-16600) | SERVO VALVE ASS'Y,REAR | 1 | |
| 6 | 01010-31260 | BOLT, TRUNNION CAP | 2 | |
| 7 | 01602-01236 | WASHER,RADIO CONTROLLED SLAG HANDLING | 2 | |
| 8 | 708-25-05030 | SHIM KIT | 1 | |
| 8 | Shim | 1 | ||
| 8 | Shim | 2 | ||
| 8 | Shim | 2 | ||
| 9 | 708-25-19111 | JOINT | 1 | |
| 10 | 07042-20108 | PLUG,(FOR W/O. CORROSION RESISTOR) | 1 | |
| 11 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 4 | |
| 12 | 07239-12410 | NUT (ITL) | 1 | |
| 13 | 07230-10422 | UNION,(WITH POWER TILT) | 1 | |
| 14 | 07002-02034 | O-RING,(NOT USED WHEN (B) SPEC.) | 2 | |
| 15 | 07102-20404 | HOSE,INLET | 1 | |
| 16 | 07232-20422 | ELBOW,(FOR TBG/ABE SPEC.) | 1 | |
| 17 | 07239-12009 | NUT,(FOR LONG LEVER CONTROL) | 1 | |
| 18 | 708-25-19120 | Flange | 1 | |
| 19 | 720-68-15240 | Filter | 1 | |
| 20 | 07000-02021 | O-RING,WATER PIPING | 1 | |
| 21 | 01010-30820 | BOLT,(SANDY? DUSTY TERRAIN SPEC.) | 2 | |
| 22 | 01602-20825 | WASHER,SPRING?FOR ADDITIONAL REAR LAM | 2 | |
| 23 | 07044-02412 | PLUG,MAGNETIC | 3 | |
| 24 | 706-46-53260 | Plug | 2 | |
| 25 | 07002-01423 | O-RING,(CRUSHER?OTHER ATT.FOR PPC CON | 2 | |
| 26 | 708-25-19140 | Tube | 1 | |
| 27 | 706-46-53180 | BOLT,JOINT | 2 | |
| 28 | 07000-02012 | O-RING, BETWEEN VALVE AND PUMP | 4 | |
| 29 | (708-25-19130) | Bolt | 8 | |
| 30 | (01602-00825) | WASHER,SPRING (SEE FIG.0331 OR 0331A) | 8 | |
| 31 | (04020-00616) | PIN,SEE FIG. K4010-71A0 | 4 | |
| 32 | 08036-21814 | CLIP,(FOR SLAG HANDLING) (FOR USA) | 1 | |
| 33 | 04530-01018 | BOLT, EYE | 3 | |
| 33 | 04530-01018 | BOLT, EYE | 2 | |
| 34 | 01010-31016 | BOLT,(SANDY AND DUSTY SPEC.) | 1 | |
| 35 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 1 |
Guangzhou Belparts Engineering Machinery Limited
A foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
Similar Products
Our Partners
FAQ
| 1. Are you tranding company or manufacturer? |
| We are a wholesaler in our domestic market,and we have rich experience in spare parts |
| 2. How can i pay for the parts? |
| We will send you invoice once you confirm the order,we offer telegraphic transfer,paypal ,western,union,trade assurance service |
| 3. How about the delivery time ? |
| We have enough stock for each item listed in our website ,in ,our colleague,will inform you before order |
| 4. If i was not satisfied with the products,can i return goods? |
| Yes , Before we send the parts ,we will send you the photos let you confirm,also,we offer exchanged and repair serve in the warranty time please contact us before return |
| 5. What is your main products ? |
| Our main products are final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts If you need any parts for crawler excavator , you can send it to us . We will try our best to find the parts what you need . |
