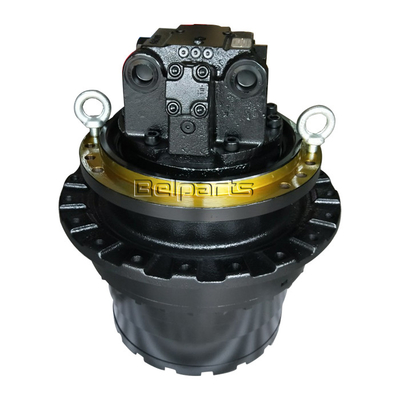

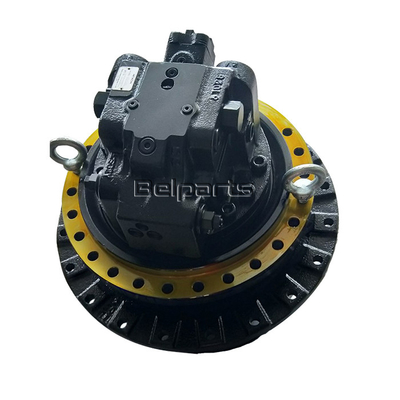

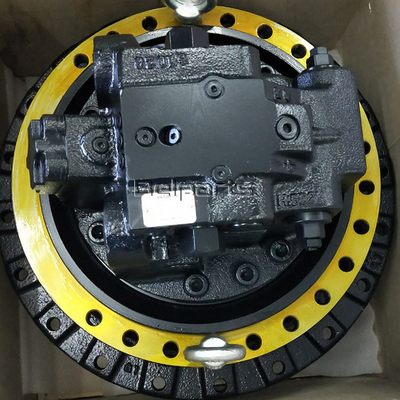

Travel Motor Assy EX300-5 EX270-5 EX330-5 Final Drive Motor Excavator Parts
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 9149237 | TRAVEL DEVICE ASS'Y (FOR ASSEMBLY OF MACHINE) | 2 | |
| (9155748) | TRAVEL DEVICE ASS, Y (FOR TRANSPORTATION) | 2 | |
| 00 | 9149125 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 |
| 00 | (9155694) | . MOTOR; OIL (FOR TRANSPORTATION) | 1 |
| 02 | 1022194 | . HOUSING | 1 |
| 03 | 4066695 | . SEAL; GROUP | 1 |
| 04 | 4192975 | . BRG.; ROL. | 2 |
| 05 | 1022179 | . DRUM | 1 |
| 06 | 1022168 | . SPROCKET | 1 |
| 07 | A590920 | . WASHER; SPRING | 20 |
| 08 | J932060 | . BOLT | 20 |
| 10 | 3036256 | . NUT | 1 |
| 11 | 4192974 | . PLATE; LOCK | 1 |
| 12 | J901225 | . BOLT | 2 |
| 14 | 1022198 | . CARRIER | 1 |
| 15 | 4192979 | . SPACER | 2 |
| 16 | 3075003 | . GEAR; PLANETARY | 3 |
| 18 | 4269470 | . PLATE; THRUST | 6 |
| 19 | 4269452 | . PIN | 3 |
| 20 | 4192021 | . PIN; SPRING | 3 |
| 21 | 3075005 | . GEAR; SUN | 1 |
| 22 | 4371402 | . BRG.; NEEDLE | 6 |
| 23 | 1022195 | . GEAR; RING | 1 |
| 24 | J931640 | . BOLT | 28 |
| 26 | 1022197 | . CARRIER | 1 |
| 27 | 3075002 | . GEAR; PLANETARY | 3 |
| 28 | 4183818 | . BRG.; NEEDLE | 3 |
| 29 | 4284521 | . PLATE; THRUST | 6 |
| 30 | 4269451 | . PIN | 3 |
| 31 | 4197763 | . PIN; SPRING | 3 |
| 32 | 3074989 | . GEAR; SUN | 1 |
| 34 | 1022196 | . CARRIER | 1 |
| 35 | 4308769 | . SPACER | 1 |
| 36 | 3075001 | . GEAR; PLANETARY | 3 |
| 37 | 4269471 | . BRG.; NEEDLE | 3 |
| 38 | 4284520 | . PLATE; THRUST | 6 |
| 39 | 4269472 | . PIN | 3 |
| 40 | 4192020 | . PIN; SPRING | 3 |
| 41 | 2038915 | . SHAFT; PROP. | 1 |
| 43 | 2038904 | . COVER | 1 |
| 44 | 4277474 | . PIN; STOPPER | 1 |
| 45 | 4278168 | . BRG.; BALL | 1 |
| 46 | 930451 | . RING; RETAINING | 1 |
| 47 | J011230 | . BOLT; SEMS | 16 |
| 48 | 4245797 | . PLUG | 3 |
| 50 | 4269473 | . O-RING | 1 |
| 51 | 4287213 | . WASHER; SPRING | 4 |
| 52 | M341885 | . BOLT; SOCKET | 4 |
| 54 | 3053559 | . NAME-PLATE | 1 |
| 55 | M492564 | . SCREW; DRIVE | 2 |
| FAQ |
| Q1: What is your main products ? |
|
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts, |
| Q2: How can you guarantee the quality? |
| If you meet with quality problem, we promise to replace goods or return your funds. And the warranty is 6/12 Months based on the item details. |
| Q3: Can we buy 1 pc of each item for quality testing? |
| Yes, we are glad to send 1pc for quality testing if we have the item you need in stock |
