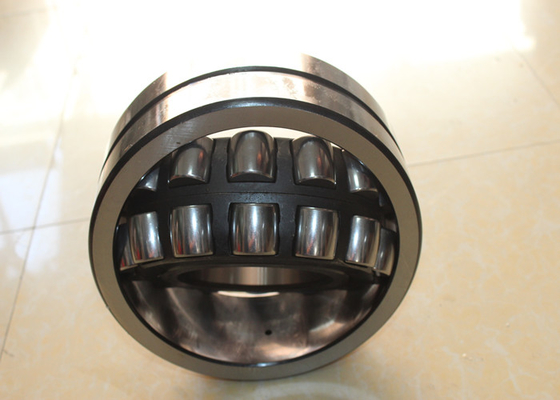

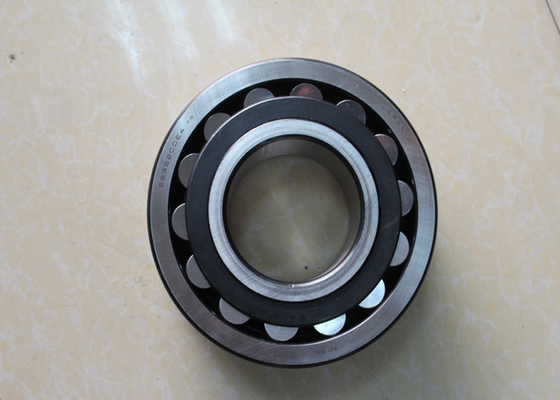

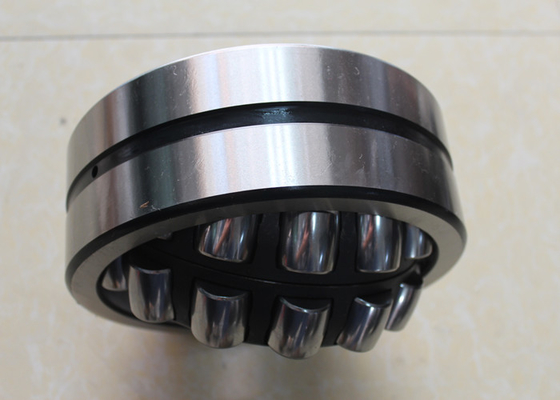

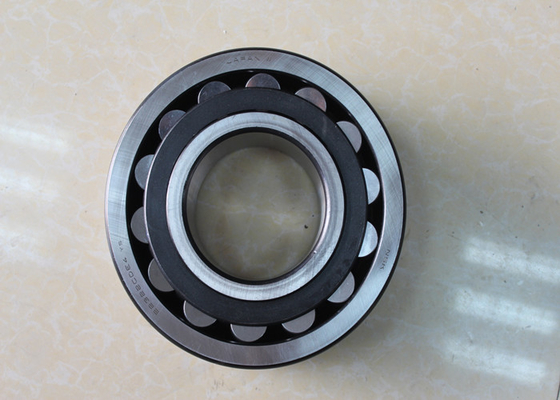

XKAQ-00117 Excavator Spare Parts Swing Device R250LC-7 R250LC-9 R290-7 22322 Bearing
Product description
| Appliion | Crawler excavator |
| Part name | Bearing |
| Bearing number | 22322 |
| Machine model | R250LC-7 R250LC-9 R290-7 |
| Material | Alloy steel |
| Warranty | 3 months |
| Part number | XKAQ-00117 |
| Quality | Chinese quality |
| Pos. | Part No | Qty | Parts name | Remark |
|---|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31EN-10070 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31EN-10071 | [1] | SWING REDUCTION GEAR | |
| 1. | XKAQ-00632 | [1] | CASING | |
| 1. | XKAQ-00633 | [1] | CASING | |
| 2. | XKAQ-00115 | [1] | SHAFT | |
| 3. | XKAQ-00116 | [1] | SPACER | |
| 4. | XKAQ-00117 | [1] | BEARING-ROLLER | |
| 5. | XKAQ-00118 | [1] | PLATE-COVER | |
| 6. | XKAQ-00064 | [8] | BOLT-HEX | |
| 7. | XKAQ-00119 | [1] | SEAL-OIL | |
| 8. | XKAQ-00120 | [1] | BEARING-ROLLER | |
| 9. | XKAQ-00121 | [1] | CARRIER 2 | |
| 10. | XKAQ-00122 | [1] | GEAR-SUN 2 | |
| 10. | XKAQ-00634 | [1] | GEAR-SUN 2 | |
| 11. | XKAQ-00123 | [4] | GEAR-PLANET 2 | |
| 12. | XKAQ-00124 | [4] | PIN 2 | |
| N13. | XKAQ-00533 | [4] | BUSHING 2 | |
| N34. | @ | [4] | PIN-SPRING | |
| 14. | XKAQ-00050 | [4] | PIN-SPRING | |
| 15. | XKAQ-00071 | [4] | WASHER-THRUST | |
| 16. | XKAQ-00126 | [1] | CARRIER 1 | |
| 17. | XKAQ-00127 | [1] | GEAR-SUN 1 | |
| 18. | XKAQ-00128 | [4] | GEAR-PLANET 1 | |
| 19. | XKAQ-00019 | [4] | PIN 1 | |
| 20. | XKAQ-00030 | [4] | CAGE-NEEDLE | |
| 21. | XKAQ-00129 | [4] | NEEDLE CAGE | |
| 22. | XKAQ-00635 | [1] | GEAR-RING | |
| 23. | XKAQ-00072 | [4] | PIN-KNOCK | |
| 24. | XKAQ-00131 | [12] | BOLT-SOCKET | |
| 25. | XKAQ-00132 | [1] | GEAR-PINION | |
| 26. | XKAQ-00296 | [1] | PLATE-LOCK | |
| 27. | XKAQ-00292 | [1] | WASHER-LOCK | |
| 28. | XKAQ-00042 | [2] | BOLT-HEX | |
| 29. | XKAQ-00066 | [2] | PLUG | |
| 30. | XKAQ-00049 | [1] | PLUG | |
| 31. | XKAQ-00040 | [4] | PLATE-SIDE 2 | |
| 32. | XKAQ-00041 | [4] | RING-STOP | |
| 33. | XKAQ-00048 | [4] | PIN-SPRING | |
| 34. | XKAQ-00133 | [1] | PIN-SPRING | |
| 35. | XKAQ-00166 | [1] | BAR-GAUGE | |
| 35. | XKAQ-00034 | [1] | BAR-GAUGE | |
| 36. | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 36. | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 37. | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 37-1. | @ | [1] | POST | |
| 37-2. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [1] | NOT SUPPLIED PARTS |
Excavator used bearings all types of excavator bearings features :
1) Excavator bearing specialized angular ball bearing are used for the appliion of excavator machinery.
2) Excavator angular contact bearing has big contact angle(40 degree), so can undertake big axial load .
3) Excavator bearing can carry heavier load capacity than the same size bearings because it has
4) High-accuracy, low-noise, long-life and this kink of bearing are widely used in excavator.
All types of excavator used bearings excavator angular contact ball bearing models series for your reference :
| Bearing NO. | d | D | H | W |
| AC5836 | 289 | 355 | 34 | 4.6 |
| AC5033 | 250 | 330 | 37 | 6 |
| AC463240 | 230 | 320 | 40 | 7.2 |
| AC4629 | 230 | 290 | 27 | 3.2 |
| AC4531 | 225 | 315 | 36 | 5 |
| AC423040 | 210 | 300 | 40 | 5.4 |
| AC4630 | 230 | 300 | 35 | 5.4 |
| AC6037 | 300 | 370 | 33 | 5.8 |
| AC4631 | 230 | 310 | 39 | 5.4 |
| AC523438-1 | 260 | 340 | 38 | 6 |
| BA195-3A | 195 | 280 | 36.5 | 6.2 |
| BA152-2036 | 150 | 203 | 26 | 1.5 |
| BA222-1WSA | 222 | 273 | 26 | 2.3 |
| BA220-6WSA | 220 | 276 | 26 | 2.7 |
| BA240-3WSA | 240 | 310 | 33.5 | 4.5 |
| BA230-7WSA | 230 | 300 | 35 | 5.4 |
| BA180-4WSA | 180 | 250 | 33 | 3.2 |
| BA280-2WSA | 280 | 370 | 40 | 6 |
| BA300-4WSA | 300 | 395 | 50 | 11.5 |
| BA205-1 | 202 | 295 | 40 | 7 |
| BA180-2256 | 180 | 2250 | 21.5 | 1.5 |
| BA184-2251 | 184 | 226 | 21.5 | 1.6 |
| BA290-3A | 290 | 280 | 40 | 9.4 |
| BA250-4A | 250 | 330 | 38 | 6.2 |
| BA246-2A | 246 | 313 | 32 | 4.3 |
| BA289-1 | 289 | 355 | 33 | 4.6 |
| BA210-10 | 300 | 280 | 38 | 5.5 |
| BA300-5 | 300 | 380 | 40 | 9.5 |
| BA230-2 | 230 | 320 | 40 | 5.4 |
| BA260-3 | 260 | 340 | 38 | 7.2 |
| Bearing NO. | d | D | H | W |
| BA260-4 | 260 | 340 | 38 | 7.2 |
| BA-220-1 | 220 | 280 | 28 | 3 |
| BA270-3 | 270 | 350 | 40 | 6.6 |
| BA16519 | 165 | 203 | 19 | 1.5 |
| 120BA16 | 120 | 165 | 22 | 1.1 |
| 260BA355-2 | 260 | 355 | 44 | 6 |
| 180BN19W | 180 | 250 | 33 | 3.5 |
| MC6034 | 600 | 340 | 18 | 3.2 |
| BA168-1 | 168 | 205 | 20 | |
| BA200-7B | 200 | 250 | 24 | 2.1 |
| SF2812PX1 | 140 | 175 | 17.5 | 0.6 |
| SF3227VPX1 | 160 | 200 | 10 | 1.2 |
| SF3607 | 180 | 225 | 24 | 1.2 |
| SF4826VPX1 | 240 | 310 | 33 | 5.1 |
| SF4852VPX1 | 240 | 310 | 33 | 5 |
| SF4820PX1 | 240 | 310 | 34 | 5.2 |
| SF4815VPX1 | 240 | 310 | 34 | 5 |
| SF4831VPX1 | 240 | 310 | 33.4 | 5.2 |
| SF4007VPX1 | 200 | 250 | 24 | 1.7 |
| SF4019VPX1 | 200 | 260 | 30 | 3.5 |
| SF3235VPX1 | 260 | 330 | 35 | 5.2 |
| SF4444VPX1 | 220 | 295 | 32 | 4.5 |
| SF4454VPX1 | 220 | 295 | 33 | 4.8 |
| SF4411VPX1 | 220 | 290 | 32.5 | 5.5 |
| SF6015PX1 | 300 | 372 | 36 | 6 |
| 200BA27V | 200 | 270 | 33 | |
| 210BA29V | 210 | 295 | 35 | |
| 240BA3251 | 240 | 320 | 38 | 5 |
| BD130-1WSA | 130 | 166 | 34 | 1.4 |
About our company
Guangzhou Belparts Engineering Machinery Limited, is a foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
About our products
Our main products are Excavator Hydraulic spare parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality.
