Kobelco SK250-8 SK480-8 Planetary Gear Parts Gear Ring LQ32W01005P1
Decription
| Appliion | Crawler Excavator |
| Part name | Gear Ring |
| Part No. | LQ32W01005P1 |
| Machine models | SK250-8 SK480-8 |
| MOQ | 1PCS |
| Condition | New |
| Delivery time | Within 2 working days |
| Warranty | 3 months |

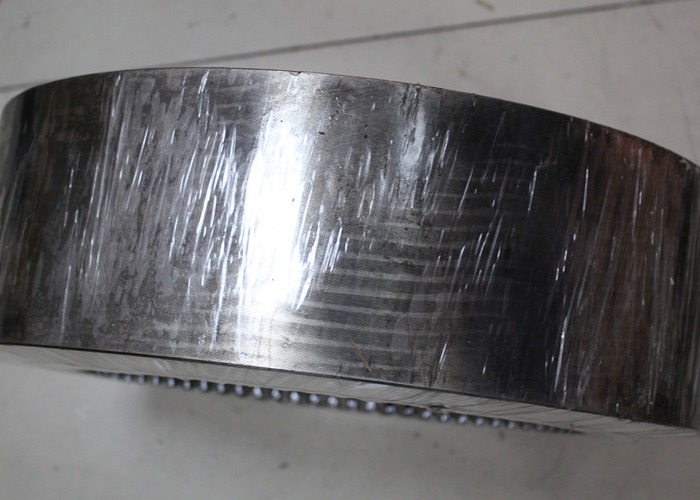

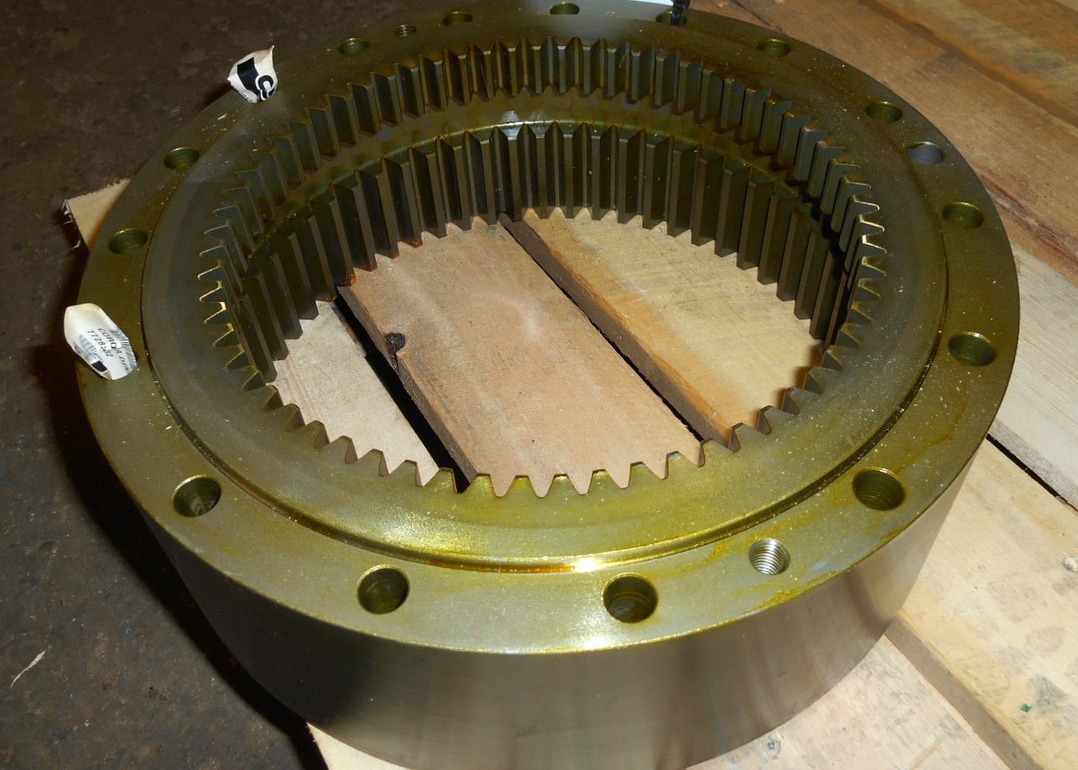

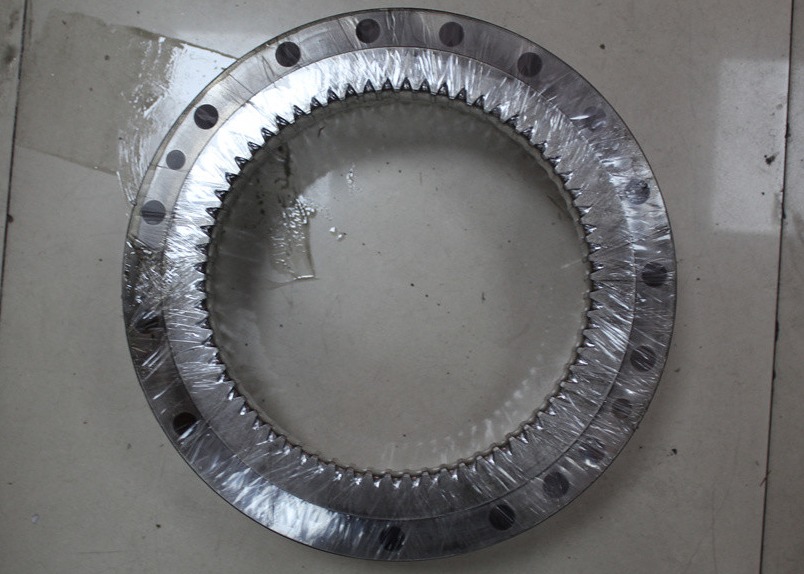

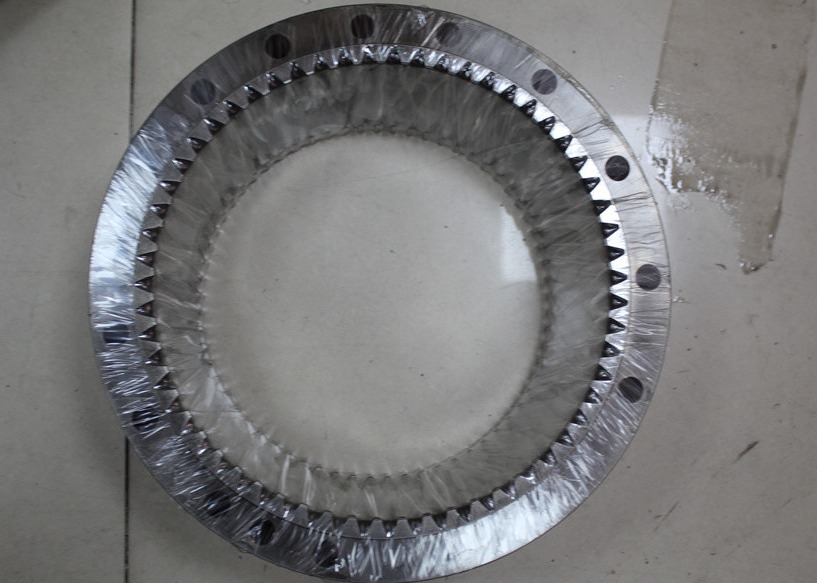

Picture disply
Number on alog scheme: 19
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | LQ32W00007F1 | [1] | HYDRAULIC MOTOR | KOB F1 ONLY, Serial Range: -5/2/00 Superseded by part number: LQ32W00007F3 |
| . . | LQ32W00007F3 | [1] | REDUCER | KOB REDUCTION ASSY, SWING (F2 ONLY), Start Serial: 5/2/00 |
| 1. | LQ32W01002P1 | [1] | DRIVEN SPROCKET | KOB SHAFT, PINION |
| 2. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB ID 109.40 ± 0.91 x OD 115mm |
| 3. | LQ32W01014P1 | [1] | BUSHING | KOB SLEEVE |
| 4. | LQ32W01021P1 | [1] | SEAL | KOB SEAL, OIL, (200.235.26) |
| 5. | 2418T17494 | [1] | SPACER | KOB |
| 6. | ZS23C10030 | [14] | SCREW,Hex Socket Head, M10 x 30mm | KOB M10x1.50x30mm Superseded by part number: ZS28C10030 |
| 7. | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| 8. | LQ32W01003P1 | [1] | RETAINER | KOB |
| 9. | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL, (110.240.80) |
| 10. | LQ32W01001P1 | [1] | HOUSING | HOUSING |
| 11. | LQ32W01012P1 | [1] | SPACER | KOB |
| 12. | ZS83C20030 | [2] | SCREW | KOB Set -- M20x2.50x30mm |
| 13. | 2420T6698D6 | [1] | PIPE | KOB |
| 14. | ZG31U12000 | [1] | ELBOW | KOB |
| 15. | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL (100.180.46) |
| 16. | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 17. | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 18. | LQ32W01010P1 | [1] | GEAR | KOB SUN |
| 19. | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 20. | LQ32W01007F1 | [1] | SPIDER | KOB ASSY |
| 21. | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 22. | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 23. | LQ32W01018P1 | [8] | WASHER | KOB THRUST |
| 24. | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 25. | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB NEEDLE (40.54.50) |
| 26. | LQ32W01013P1 | [8] | WASHER | KOB THRUST |
| 27. | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB NEEDLE (40.48.25) |
| 28. | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 29. | ZR16X04000 | [5] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 30. | ZS23C14150 | [14] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm, (F1 Only) |
| 31. | LQ32W01020P1 | [1] | SUN GEAR | KOB |
| 32. | 2420T4530 | [2] | SCREW,M14 x 2 x 185mm | KOB M14x2.0x185mm, (F1 ONLY) |
