Swing Motor Housing Planetary Gear Parts SK200-8 YN15V00035S301 M5X130 Part
| Place of Origin | China |
|---|---|
| Brand Name | Belparts |
| Model Number | SK170-8 SK170-9 SK210-8 SK210DLC-8 SK210-9 |
| Minimum Order Quantity | 1PC |
| Price | Negotiated price |
| Packaging Details | Wooden /Carton/Standard shipping package |
| Delivery Time | Within 2 working days |
| Payment Terms | T/T, trade assurance,,Paypal |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Planetary Gear | Machine Moldel | SK170-8 SK170-9 SK210-8 SK210DLC-8 SK210-9 |
|---|---|---|---|
| Part Number | YN15V00035S301 | Quality | After Market |
| MOQ | 1PC | Warranty | 3 Months |
| Highlight | M5X130 Planetary Gear Parts,YN15V00035S301 Planetary Gear Parts,M5X130 Swing Motor Housing |
||
Product Description

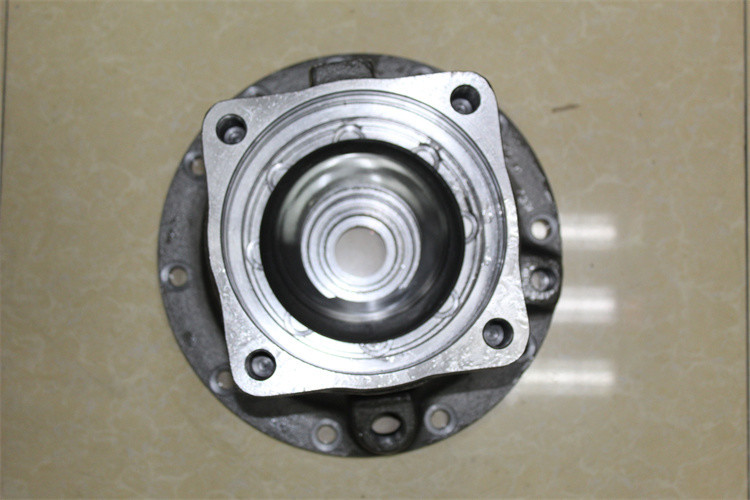

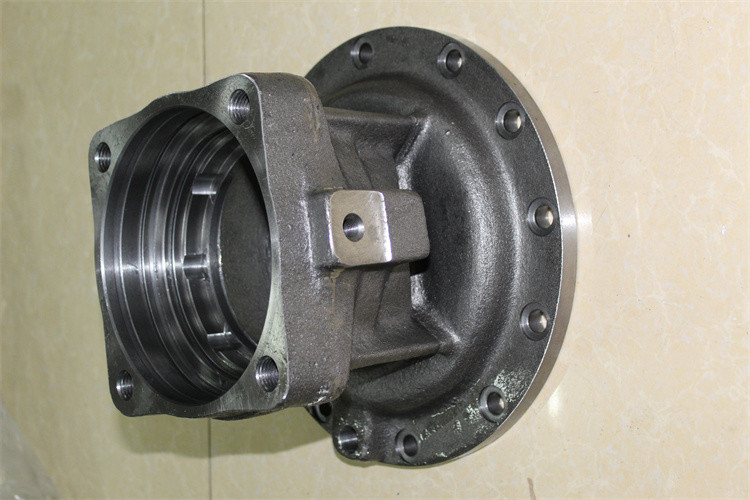

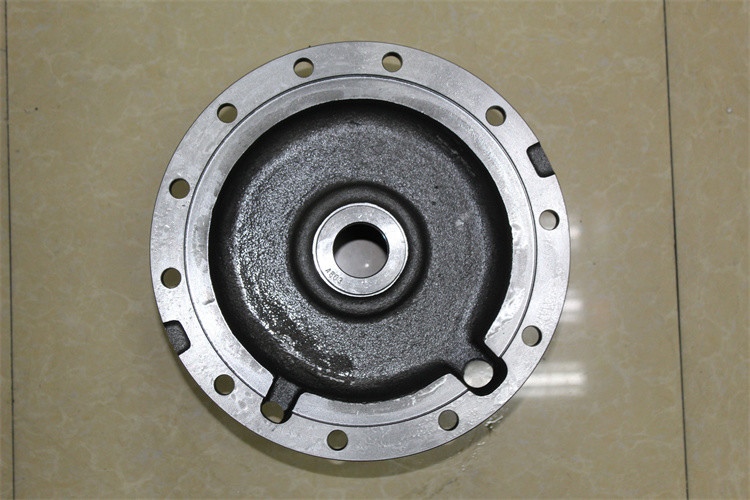

Swing Motor Housing Planetary Gear Parts SK200-8 YN15V00035S301 M5X130 Part
Description
| Appliion | Excavator |
| Part name | Swing Motor Housing |
| Model | Kobelco |
| Model | SK170-8 SK170-9 SK210-8 SK210DLC-8 SK210-9 |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | YN15V00035S301 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures
Drawing of the planrtary gear
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 51. | YN22V00042F1 | [2] | HYDRAULIC VALVE | SM Relief, Incl 51-1 |
| 51-1. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB ID 29.4 ± 0.29 x OD 35mm |
| 52. | YN20V00004F4 | [1] | CONTROL VALVE | KOB Assy - See Fig. 07-001[02] |
| 101. | 72209976 | [1] | SHAFT | SM (YN15V00025S101) Superseded by part number: YN15V00025S101 |
| 111. | 72209977 | [1] | CYLINDER | SM (YN15V00025S111) Superseded by part number: YN15V00025S111 |
| 114. | 72209978 | [1] | SPRING | SM (YN15V00025S114) Superseded by part number: YN15V00025S114 |
| 121. | NSS | [1] | NOT SOLD SEPARAT | CON Piston |
| 122. | NSS | [1] | NOT SOLD SEPARAT | CON Shoe |
| 123. | 72209979 | [1] | PLATE | SM (YN15V00025S123) Superseded by part number: YN15V00025S123 |
| 124. | 72209980 | [1] | PLATE | SM (YN15V00025S124) Superseded by part number: YN15V00025S124 |
| 131. | 72209981 | [1] | PLATE | SM (YN15V00025S131) Superseded by part number: YN15V00025S131 |
| 301. | YN15V00035S301 | [1] | BOX | SM |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 351. | 72209982 | [2] | HYDRAULIC VALVE | SM (YN15V00025S351) Superseded by part number: YN15V00025S351 |
| 355. | 72209983 | [2] | SPRING | SM (YN15V00002S355) Superseded by part number: YN15V00002S355 |
| 390. | NSS | [1] | NOT SOLD SEPARAT | CON Name Plate |
| 391. | 2437U407S983 | [2] | RIVET | KOB |
| 401. | 72209984 | [4] | SCREW,Hex Socket Head, M20 x 45mm | SM Screw, M20x2.5x45mm Superseded by part number: ZS23C20045 |
| 443. | 72209985 | [1] | BEARING | SM (YN15V00002S011) Superseded by part number: YN15V00002S011 |
| 444. | 72209986 | [1] | BEARING | SM (LQ15V00008S010) Superseded by part number: LQ15V00008S010 |
| 451. | NSS | [1] | NOT SOLD SEPARAT | CON Pin |
| 469. | 72209987 | [2] | PLUG | SM Plug, (YN15V00002S012) Superseded by part number: YN15V00002S012 |
| 472. | 72215374 | [1] | GASKET,3.5mm Thk x 173mm ID, 75 Duro | SM (YN15V00025S489) Superseded by part number: YN15V00025S489 |
| 488. | 72209989 | [2] | O-RING | IMO ID 27.70 ± 0.27 x OD 34mm, (ZD12P02800) Superseded by part number: ZD12P02800 |
| 491. | YN15V00035S491 | [1] | OIL SEAL | SM Oil Seal |
| 702. | 72209991 | [1] | PLUNGER | SM (YN15V00002S014) Superseded by part number: YN15V00002S014 |
| 706. | 72209992 | [1] | O-RING | SM Superseded by part number: 2441U736S706 |
| 707. | 72209993 | [1] | O-RING | SM Superseded by part number: 2415U188S707 |
| 712. | 72209994 | [18] | SPRING | SM (YN15V00025S712) Superseded by part number: YN15V00025S712 |
| 742. | 72209995 | [3] | PLATE | SM Superseded by part number: YN15V00025S742 |
| 743. | 72209996 | [4] | PLATE | SM Superseded by part number: YN15V00025S743 |
| 980. | YN15V00035S980 | [1] | PLUG | SM Plug |
| 984. | YN15V00035S984 | [1] | PLUG | SM Plug |
| 985. | YN15V00035S985 | [3] | PLUG | SM Plug |
| 993. | 72210000 | [1] | PLUG | SM 1/2" PT, (ZE82T08000) Superseded by part number: ZE82T08000 |
| 994. | 72210001 | [1] | PLUG | SM 3/4" PT, (ZE82T12000) Superseded by part number: ZE82T12000 |
| 995. | YN15V00055R100 | [1] | KIT | SM Incl 121 - 122, Not Shown |
| 996. | YM15V00006R100 | [1] | KIT | SM Incl 472, 488, 491, 706 - 707, Not Shown |
| 997. | 72210005 | [1] | KIT | SM Incl 303, 451, (YN15V00025R200) Not Shown Superseded by part number: YN15V00025R200 |
