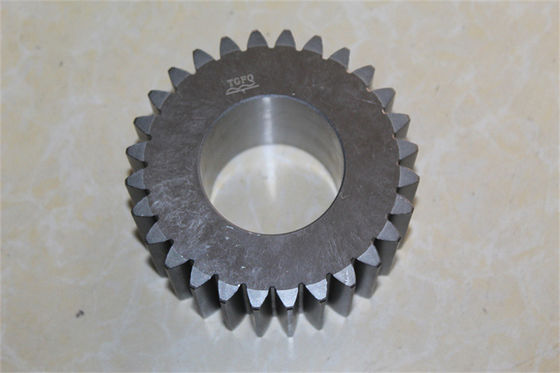

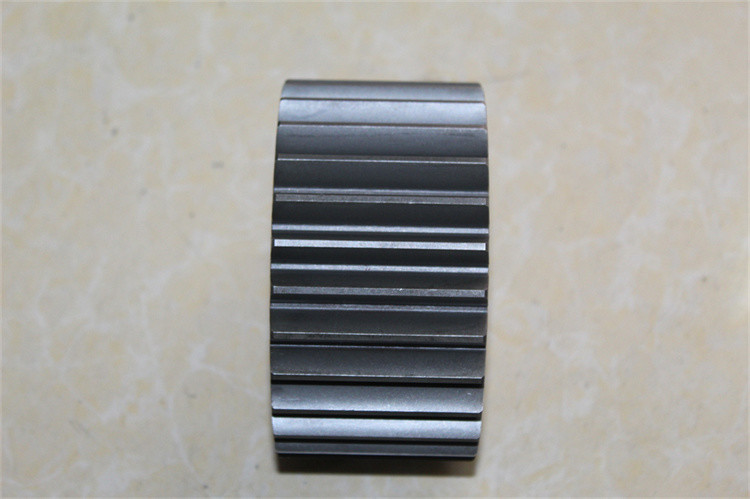

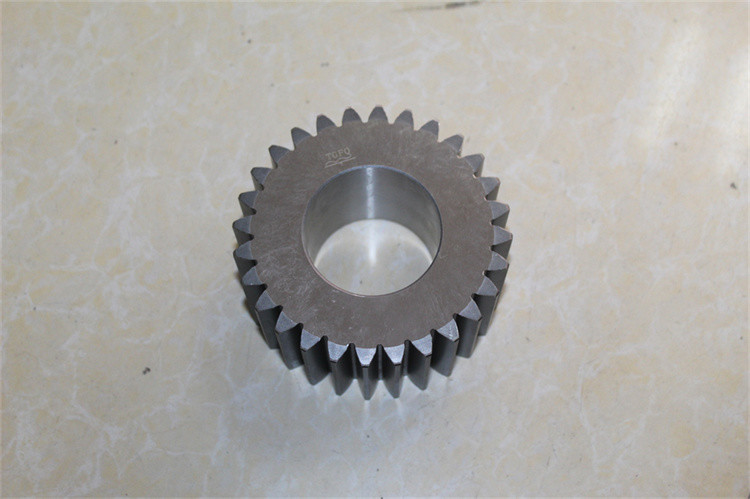

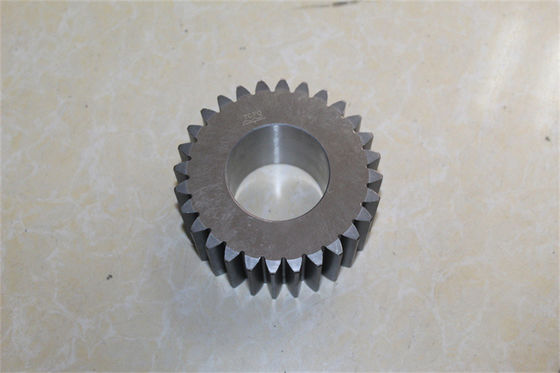

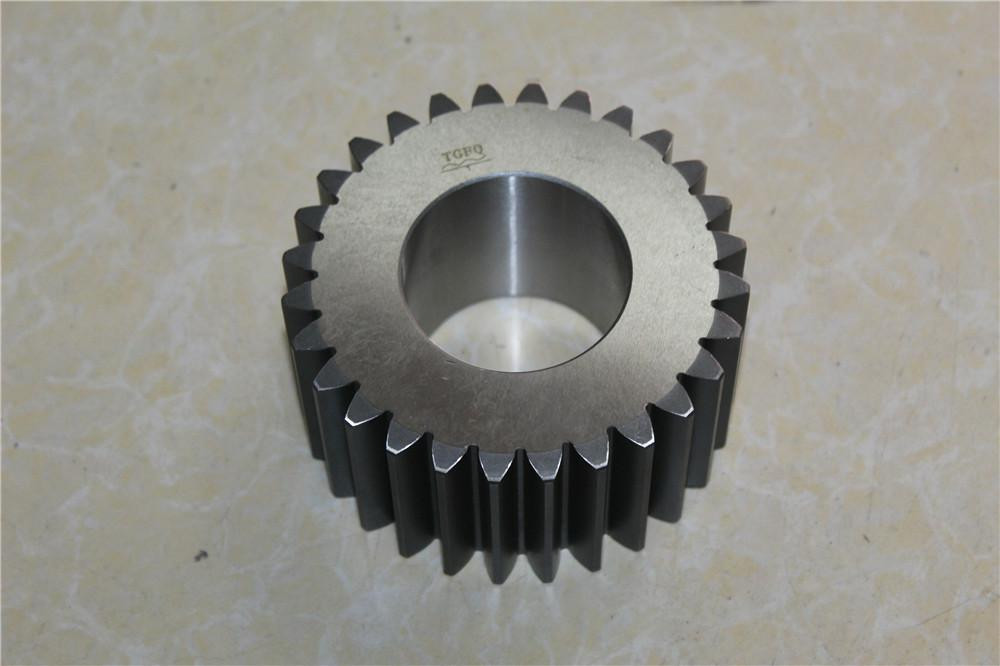

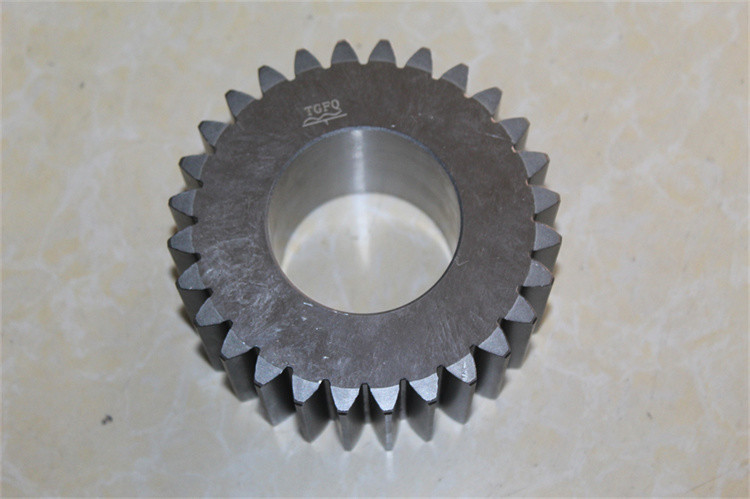

Travel Gearbox 3rd Planetary Gear Spare Gear Parts ZX200 ZX230 ZX225 3085966
Description
| Appliion | Excavator |
| Part name | 3rd Planetary Gear |
| Model | Hitachi |
| Model | ZX200 ZX230 ZX240H ZX450 |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | 3085966 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9181678 | [2] | TRAVEL DEVICE | I 9195448 (for assembly of machine) | |
| 9233689 | [2] | TRAVEL DEVICE | (for assembly of machine) | |
| 9195448 | [2] | TRAVEL DEVICE | (for transportation) | |
| 9233690 | [2] | TRAVEL DEVICE | (for transportation) | |
| 00. | 9190294 | [1] | MOTOR;OIL | I 9237803 (for assembly of machine) |
| 00. | 9234159 | [1] | MOTOR;OIL | I 9237803 (for assembly of machine) |
| 00. | 9196318 | [1] | MOTOR;OIL | (for transportation) |
| 00. | 9237803 | [1] | MOTOR;OIL | (for transportation) |
| 02. | 4114753 | [1] | SEAL;GROUP | I 4634693 |
| 02. | 4634693 | [1] | SEAL;GROUP | |
| 03. | 4246793 | [2] | BRG.;ROL. | |
| 04. | 1027152 | [1] | DRUM | |
| 05. | 1010203 | [1] | SPROCKET | |
| 06. | J932055 | [16] | BOLT | |
| 07. | A590920 | [16] | WASHER;SPRING | |
| 08. | 3086531 | [1] | NUT | |
| 11. | 4436242 | [1] | PIN;KNOCK | |
| 12. | 1026779 | [1] | CARRIER (3) | |
| 13. | 3085966 | [3] | GEAR;PLANETARY (3) | |
| 14. | 4445531 | [6] | BRG.;NEEDLE | |
| 15. | 4284521 | [6] | PLATE;THRUST | |
| 16. | 4139975 | [3] | PIN | |
| 17. | 4116309 | [3] | PIN;SPRING | |
| 18. | 3085927 | [1] | GEAR;SUN (3) | |
| 20. | 1027158 | [1] | GEAR;RING | |
| 21. | J931640 | [28] | BOLT | |
| 23. | 1027161 | [1] | CARRIER (2) | |
| 24. | 4401293 | [2] | SPACER | |
| 25. | 3085985 | [3] | GEAR;PLANETARY (2) | |
| 26. | 4445529 | [3] | BRG.;NEEDLE | |
| 27. | 4210851 | [6] | PLATE;THRUST | |
| 28. | 4309995 | [3] | PIN | |
| 29. | 4246358 | [3] | PIN;SPRING | |
| 30. | 3085941 | [1] | GEAR;SUN (2) | |
| 32. | 1027160 | [1] | CARRIER (1) | |
| 33. | 3086006 | [3] | GEAR;PLANETARY (1) | |
| 34. | 4406589 | [3] | BRG.;NEEDLE | |
| 35. | 4192910 | [6] | PLATE;THRUST | |
| 36. | 4210853 | [3] | PIN | |
| 37. | 4173093 | [3] | PIN;SPRING | |
| 38. | 2043851 | [1] | SHAFT;PROP. | |
| 38. | 2051204 | [1] | SHAFT;PROP. | |
| 40. | 2043868 | [1] | COVER | |
| 41. | 4285323 | [1] | PIN;STOPPER | Y 4478346 |
| 41. | 4478346 | [1] | PIN;STOPPER | |
| 42. | J011230 | [12] | BOLT;SEMS | |
| 42. | J271230 | [12] | BOLT;SEMS | T J901230 |
| J222012 | ||||
| 43. | 4245797 | [3] | PLUG | |
| 46. | +++++++ | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | SCREW;DRIVE |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
