EC290B SA7117-38400 Planetary Gear Parts Travel Gearbox 1st Sun Gear Parts
Description
| Appliion | Excavator |
| Part name | Sun gear |
| Model | |
| Model | EC290B EC290C EC240B EC330B |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | SA7117-38400 |
| Delivery Time | Within 2 days after receiving the payment |

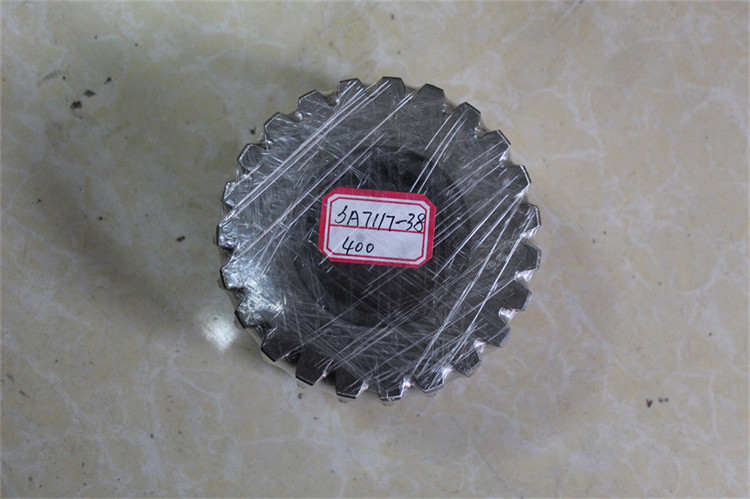

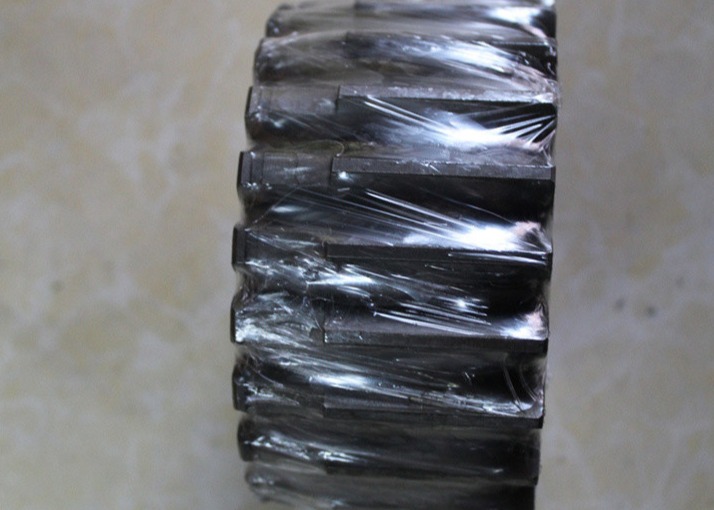

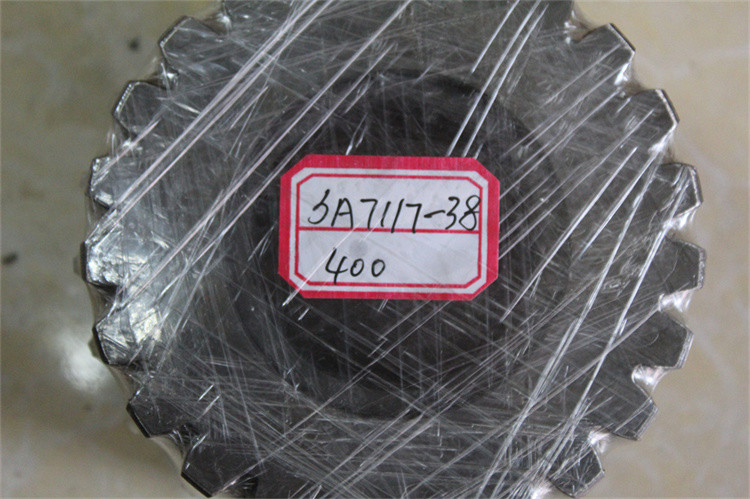

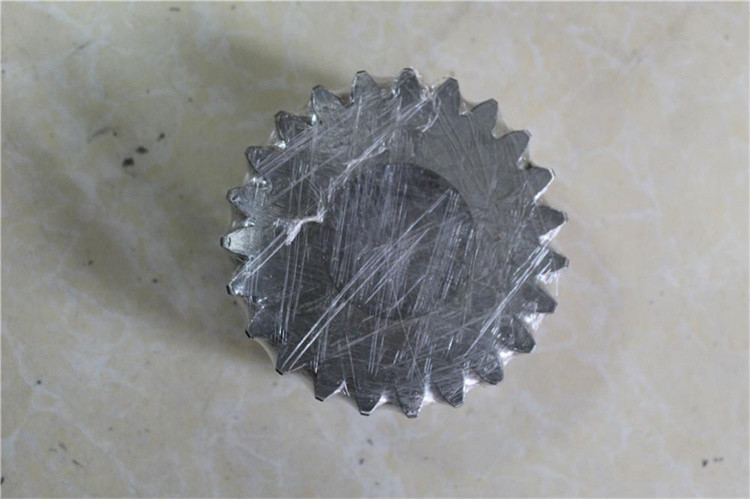

Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14528258 | [1] | Travel Gearbox | ||
| 1. | SA7117-38221 | [1] | Housing | SER NO 10001-10928 |
| VOE14521858 | [1] | Housing | SER NO 10929-11467 | |
| VOE14522896 | [1] | Housing | SER NO 11468- | |
| 2. | SA7117-38230 | [2] | Bearing | |
| 3. | SA7117-38240 | [1] | Seal | SER NO 10001-11467 |
| VOE14579901 | [1] | Seal | SER NO 11468- | |
| 4. | SA7117-38251 | [1] | Nut | SER NO 10001-12345 |
| VOE14528319 | [1] | Nut | SER NO 12346- | |
| 5. | SA9023-10803 | [2] | Set screw | SER NO 10001-12345 |
| VOE14526459 | [3] | Screw | SER NO 12346- | |
| 6. | SA7117-38190 | [1] | Cover | SER NO 10001-10255 |
| VOE14517931 | [1] | Cover | SER NO 10256-11311 | |
| VOE14601855 | [1] | Cover | SER NO 11312- | |
| 7. | VOE983524 | [3] | O-ring | SER NO 10256- SER NO 30001- |
| 8. | SA9415-43042 | [3] | Plug | SER NO 10001-10255 |
| VOE14883848 | [3] | Plug | SER NO 10256- SER NO 30001- | |
| 9. | SA7117-38311 | [1] | Gear | SER NO 10001-11311 |
| VOE14522897 | [1] | Gear | SER NO 11312- | |
| 10. | SA9016-21620 | [20] | Hex. socket screw | |
| 11. | VOE14551153 | [1] | Planet carrier | |
| 12. | VOE14556491 | [6] | Washer | |
| 13. | SA7117-38320 | [1] | Planet carrier | |
| 14. | SA7117-38330 | [1] | Gear | |
| 15. | SA7117-38340 | [1] | Ring | |
| 16. | SA7117-38350 | [3] | Planetary Gear | |
| 17. | SA7117-38360 | [3] | Needle bearing | |
| 18. | SA7117-38380 | [1] | Pin | |
| 19. | SA9325-06012 | [3] | Spring pin | |
| 20. | VOE14551156 | [1] | Planet carrier | |
| 21. | SA9325-06012 | [3] | Spring pin | |
| 22. | VOE13914468 | [3] | Snap ring | |
| 23. | SA7117-38180 | [1] | Pin | |
| 24. | SA7117-38391 | [1] | Planet carrier | |
| 25. | SA7117-38400 | [1] | Gear | |
| 26. | SA7117-38410 | [1] | Ring | |
| 27. | SA7117-38420 | [3] | Needle Bearing | |
| 28. | [3] | Planetary Gear | ||
| 29. | VOE14556489 | [1] | Washer | |
| 30. | VOE14556490 | [1] | Washer | |
| 31. | SA1036-00290 | [1] | Thrust ring | |
| 32. | SA7117-38371 | [1] | Gear | |
| 33. | VOE914467 | [1] | Retaining ring | |
| 34. | SA7117-38271 | [4] | Planet gear | |
| 35. | SA7117-38520 | [4] | Needle bearing | |
| 36. | SA7117-38301 | [4] | Pin | |
| 37. | SA7117-38460 | [4] | Inner ring | |
| 38. | VOE14546062 | [8] | Washer | |
| 39. | SA9325-06012 | [4] | Spring pin | |
| 40. | SA8230-21020 | [1] | Thrust ring | |
| 41. | VOE967631 | [16] | Hex. socket screw | SER NO 10001-11311 |
| VOE983252 | [16] | Hexagon screw | SER NO 11312- | |
| 42. | VOE955922 | [16] | Spring washer | SER NO 11312- |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
