Excavator Travel Gearbox Gear Ring Planetary Gear Parts E320C E320D 191-2676
Description
| Appliion | Excavator |
| Part name | Gear Ring |
| Model | E |
| Model | E320C E320D |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | 191-2676 |
| Delivery Time | Within 2 days after receiving the payment |

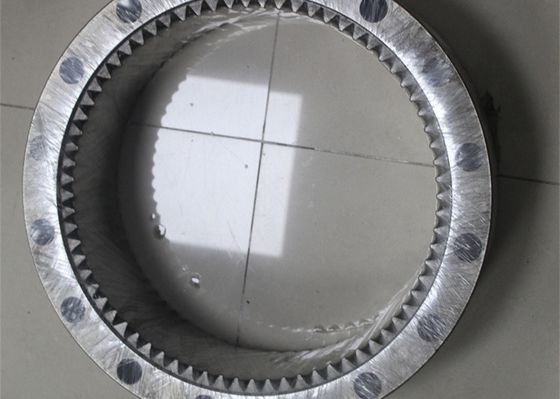

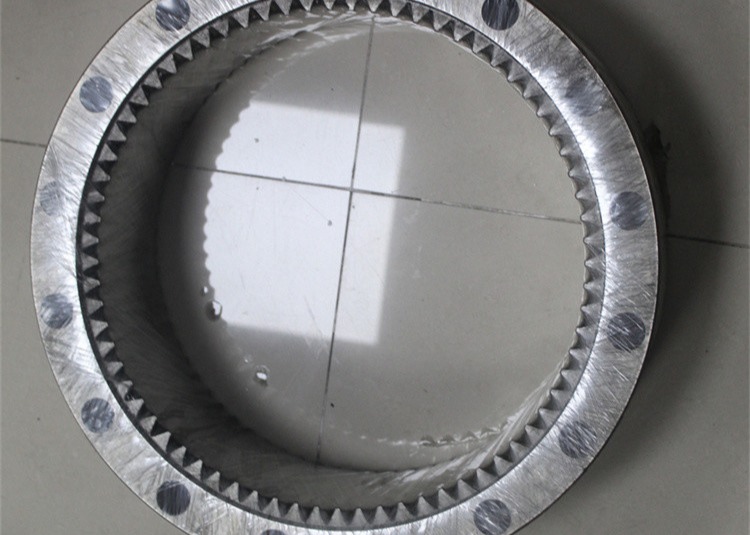

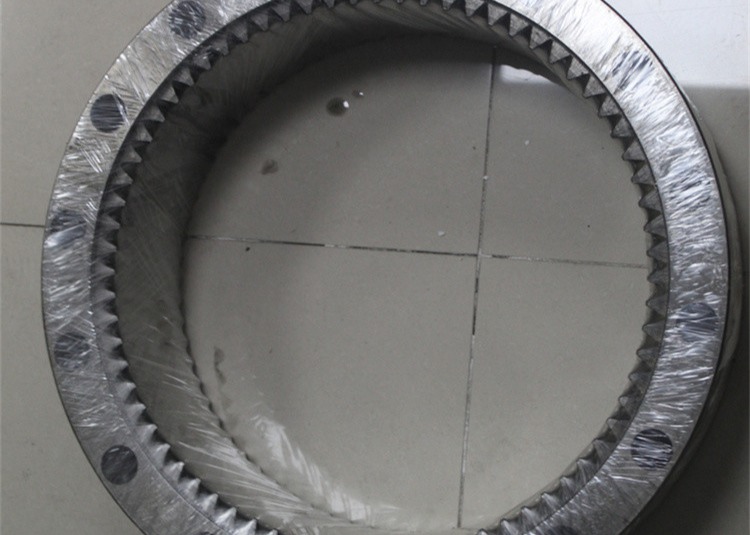

Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3E-2338 | [2] | PLUG-PIPE | |
| 2. | 267-6863 BJ | [1] | SHIM (0.75-MM THK) | |
| 7Y-0752 BJ | [1] | SHIM (0.8-MM THK) | ||
| 267-6864 BJ | [1] | SHIM (0.85-MM THK) | ||
| 267-6865 BJ | [1] | SHIM (0.9-MM THK) | ||
| 267-6866 BJ | [1] | SHIM (0.95-MM THK) | ||
| 7Y-0753 BJ | [1] | SHIM (1-MM THK) | ||
| 267-6867 BJ | [1] | SHIM (1.2-MM THK) | ||
| 267-6868 BJ | [1] | SHIM (1.4-MM THK) | ||
| 7Y-0754 BJ | [1] | SHIM (1.6-MM THK) | ||
| 267-6869 BJ | [1] | SHIM (1.8-MM THK) | ||
| 267-6870 BJ | [1] | SHIM (2-MM THK) | ||
| 267-6871 BJ | [1] | SHIM (2.3-MM THK) | ||
| 5. | 094-0578 B | [1] | PLATE (8-MM THK) | |
| 094-0579 B | [1] | PLATE (9-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 8. | 094-1528 | [12] | WASHER (53X84X1-MM THK) | |
| 9. | 114-1540 J | [4] | PIN-DOWEL | |
| 10. | 168-8452 J | [2] | BALL BEARING | |
| 11. | 169-5589 | [1] | GEAR-SUN (24-TEETH) | |
| 12. | 169-5590 | [1] | GEAR-SUN (24-TEETH) | |
| 13. | 169-5592 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 14. | 169-5593 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 15. | 169-5601 | [3] | SHAFT-PLANETARY | |
| 16. | 169-5602 | [3] | SHAFT-PLANETARY | |
| 17. | 171-9387 | [1] | GEAR-RING (64-TEETH) | |
| 18. | 191-2569 | [3] | BEARING AS (CAGED ROLLER) | |
| 19. | 191-2570 | [6] | BEARING AS (CAGED ROLLER) | |
| 20. | 191-2571 | [1] | CARRIER-PLANETARY | |
| 21. | 191-2676 | [1] | GEAR-RING (72-TEETH) | |
| 22. | 191-2683 | [1] | GEAR-SUN (20-TEETH) | |
| 23. | 191-2684 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 24. | 191-2685 | [3] | BEARING AS | |
| 25. | 191-2686 | [1] | CARRIER AS | |
| 191-2687 | [3] | RACE-BEARING | ||
| 26. | 191-2689 | [3] | WASHER (34X70X1-MM THK) | |
| 27. | 191-2690 | [3] | WASHER (42.3X70X1-MM THK) | |
| 28. | 199-4503 | [1] | COVER | |
| 29. | 207-1571 J | [1] | SEAL GP-DUO-CONE | |
| 214-3570 | [2] | RING-TORIC | ||
| 30. | 267-6797 J | [1] | HOUSING-MOTOR | |
| 31. | 267-6798 J | [1] | HOUSING | |
| 32. | 267-6799 | [1] | CARRIER-PLANETARY | |
| 33. | 267-6800 J | [1] | GEAR-COUPLING | |
| 43. | 093-1731 | [2] | RING-RETAINING | |
| 44. | 095-0891 | [6] | PIN-SPRING | |
| 45. | 096-0433 | [3] | RING-RETAINING | |
| 46. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 47. | 171-9298 | [1] | SEAL-O-RING | |
| 48. | 179-8733 M | [16] | BOLT (M20X2.5X170-MM) | |
| 49. | 7M-8485 | [2] | SEAL-O-RING | |
| 50. | 7Y-0595 | [3] | SPACER (58X79.6X6-MM THK) | |
| 51. | 7Y-5217 JM | [16] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 52. | 8T-3282 J | [16] | WASHER-HARD (22X35X3.5-MM THK) | |
| 53. | 8T-4123 | [16] | WASHER (22X35X3.5-MM THK) | |
| 54. | 9X-6032 M | [12] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 55. | 1U-8846 B | SEALANT-GASKET | ||
| AVAILABLE REPAIR KIT(S): | ||||
| 267-6818 J | [1] | KIT-FINAL DRIVE BEARING | ||
| B | USE AS REQUIRED | |||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
