E320C E320D 094-1528 Planetary Gear Parts Travel Gearbox 1st Carrier Washer
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Planetary Gear | Machine Moldel | E320C E320D |
|---|---|---|---|
| Part Number | 094-1528 | Quality | After Market |
| MOQ | 1PC | Warranty | 3 Months |
| Highlight | 094-1528 Planetary Gear Parts,E320C Planetary Gear Parts,E320D Planetary Gear Parts |
||
Product Description
E320C E320D 094-1528 Planetary Gear Parts Travel Gearbox 1st Carrier Washer
Description
| Appliion | Excavator |
| Part name | Carrier Washer |
| Model | E |
| Model | E320C E320D |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | 094-1528 |
| Delivery Time | Within 2 days after receiving the payment |

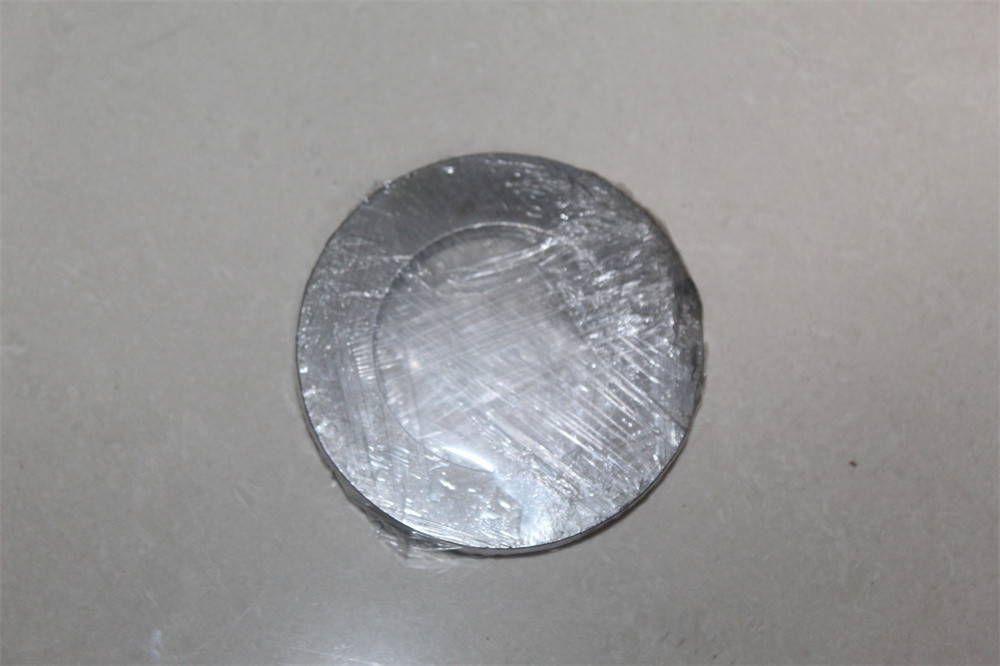

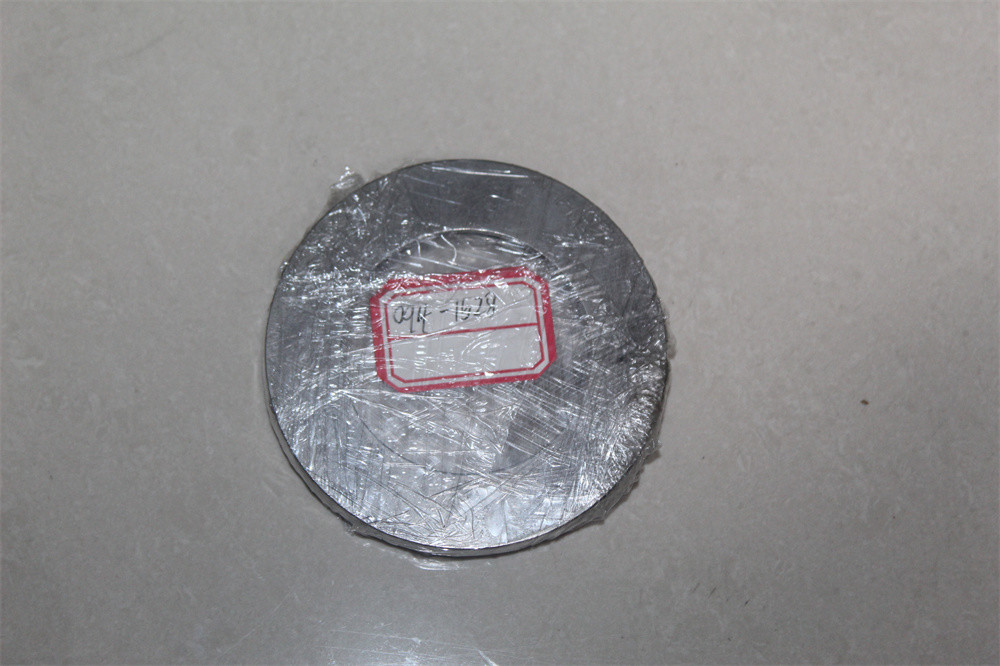

Pictures
Drawing of the planrtary gear
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6V-7238 | [1] | VALVE-SHUTOFF | |
| 2. | 7I-7611 | [1] | CAGE | |
| 3. | 094-1528 | [6] | WASHER (53X84X1-MM THK) | |
| 4. | 110-7149 | [1] | RING-RETAINING | |
| 5. | 114-1322 | [1] | RING-RETAINING | |
| 6. | 171-9413 | [1] | SPACER (140.5X160X103.2-MM THK) | |
| 7. | 199-4496 | [1] | SHAFT-PINION | |
| 8. | 227-6221 | [1] | BREATHER AS (SWING DRIVE) | |
| 4H-6112 | [1] | BREATHER (SWING DRIVE) | ||
| 227-6215 | [1] | BOSS (1/4-18-THD) | ||
| 267-6785 | [1] | PIPE | ||
| 9. | 526-1112 | [1] | PIPE AS | |
| 10. | 526-1111 | [1] | GAUGE-OIL LEVEL (DIPSTICK) | |
| 11. | 378-9523 | [1] | CARRIER-PLANETARY | |
| 12. | 378-9524 | [4] | SHAFT | |
| 13. | 378-9525 | [8] | WASHER (62.3X104X1-MM THK) | |
| 14. | 378-9526 | [1] | GEAR-RING (67-TEETH) | |
| 15. | 378-9527 | [4] | GEAR-PLANETARY (24-TEETH) | |
| 16. | 378-9528 | [3] | GEAR-PLANETARY (24-TEETH) | |
| 17. | 378-9529 | [1] | GEAR-SUN (13-TEETH) | |
| 18. | 378-9530 | [1] | GEAR-SUN (17-TEETH) | |
| 19. | 378-9531 | [1] | CARRIER AS | |
| 20. | 378-9534 | [1] | COVER-HOUSING | |
| 21. | 378-9535 | [1] | HOUSING | |
| 22. | 451-2175 | [24] | WASHER-HARD (17.5X30X3.5-MM THK) | |
| 23. | 451-2182 | [22] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 24. | 453-3447 M | [22] | BOLT (M12X1.75X40-MM) | |
| 25. | 093-1730 | [1] | RING-RETAINING | |
| 26. | 095-0927 | [3] | RING-RETAINING | |
| 27. | 096-1441 | [1] | RING-RETAINING | |
| 28. | 510-1989 | [4] | PIN-SPRING | |
| 29. | 128-9170 | [2] | SEAL-LIP TYPE | |
| 30. | 153-6247 | [1] | CONNECTOR AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 8C-6875 | [1] | CONNECTOR | ||
| 31. | 296-6269 | [3] | BEARING-ROLLER | |
| 32. | 378-9593 | [8] | BEARING AS | |
| 33. | 3K-0360 | [1] | SEAL-O-RING | |
| 34. | 5M-4454 | [1] | SEAL-O-RING | |
| 35. | 7I-7619 | [1] | BEARING-ROLLER | |
| 36. | 7I-7684 M | [2] | SPACER (50X79.6X6-MM THK) | |
| 37. | 8T-0348 M | [24] | BOLT-SOCKET HEAD (M16X2X50-MM) | |
| 38. | 9U-8693 | [1] | BEARING-ROLLER | |
| 1U-8846 BF | SEALANT-GASKET | |||
| B | USE AS REQUIRED | |||
| F | NOT SHOWN | |||
| M | METRIC PART | |||
