EX200-5 EX200-3 1014547 Hitachi Planetary Gear Parts Traveling Motor Housing
| Place of Origin | China |
|---|---|
| Brand Name | Belparts |
| Model Number | EX200-2 EX200-3 EX200-5 EX200K-2 |
| Minimum Order Quantity | 1PC |
| Price | Negotiated price |
| Packaging Details | Wooden /Carton/Standard shipping package |
| Delivery Time | Within 2 working days |
| Payment Terms | T/T, trade assurance,,Paypal |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Planetary Gear | Machine Moldel | EX200-2 EX200-3 EX200-5 EX200K-2 |
|---|---|---|---|
| Part Number | 1014547 | Quality | After Market |
| MOQ | 1PC | Warranty | 3 Months |
| Highlight | EX200-5 Planetary Gear Parts,EX200-3 Planetary Gear Parts,1014547 Planetary Gear Parts |
||
Product Description

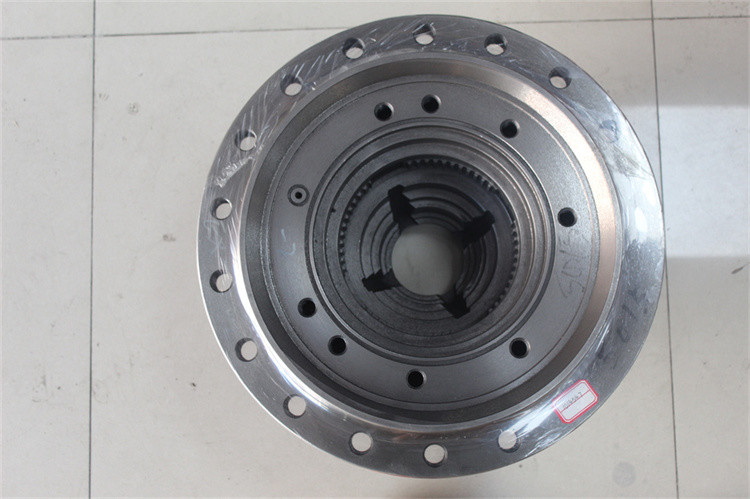

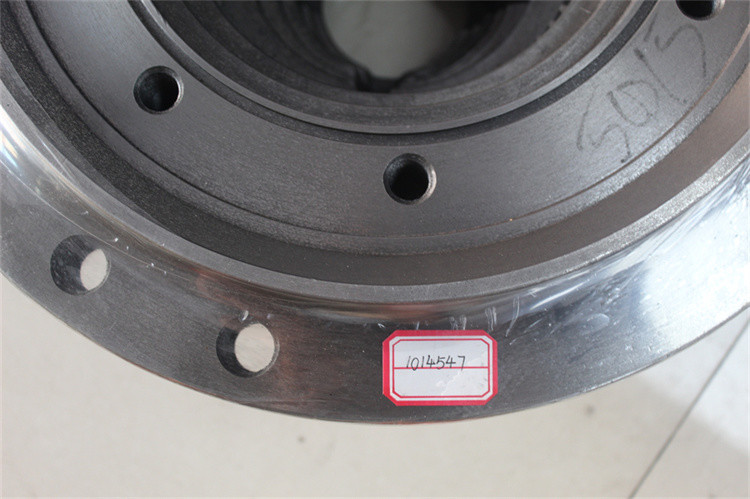

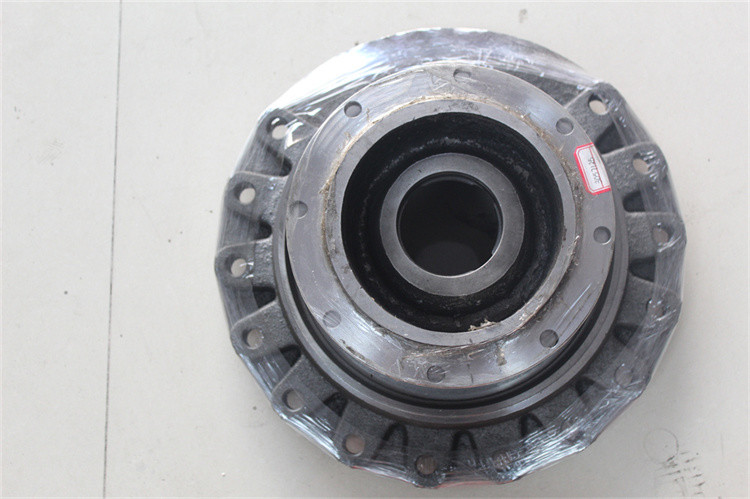

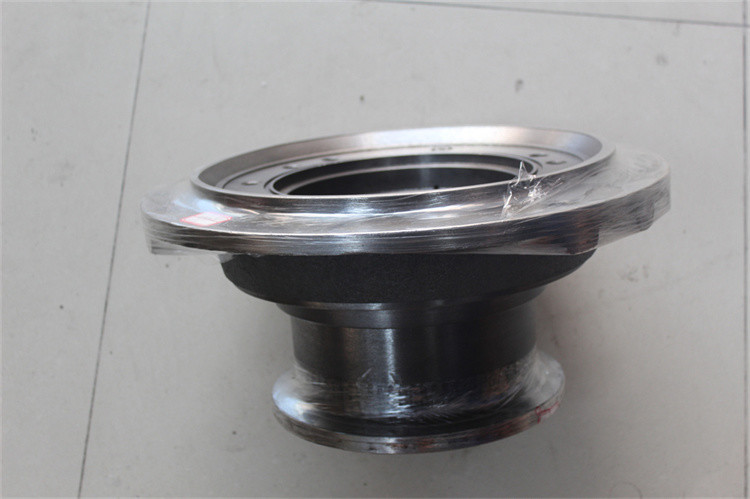

EX200-5 EX200-3 1014547 Hitachi Planetary Gear Parts Traveling Motor Housing
Description
| Appliion | Excavator |
| Part name | Traveling Motor Housing |
| Model | Hitachi |
| Model | EX200-2 EX200-3 EX200-5 EX200K-2 |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | 1014547 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures
Drawing of the planrtary gear
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9133918 | [1] | MOTOR;OIL | I 9149085 9133918<for assembly of machine> | |
| (9149085) | [1] | MOTOR;OIL | <for transportation> | |
| 02. | 1014547 | [1] | HOUSING | |
| 04. | 2026713 | [1] | DISC;DRIVING | |
| 06. | 4198783 | [1] | BRG.;ROL. | |
| 07. | 4198998 | [1] | BRG.;ROL. | |
| 08. | 4222980 | [1] | SPACER | |
| 09. | 4178173 | [1] | NUT;BRG. | |
| 11. | 4260561 | [1] | SEAL;OIL | |
| 12. | 4116290 | [1] | RING;RETAINING | |
| 14. | 2034880 | [1] | ROTOR | |
| 17. | 8050658 | [7] | PISTON | |
| 19. | 3064069 | [1] | SHAFT;CENTER | |
| 20. | 4179181 | [1] | SPRING;COMPRES. | |
| 21. | 4198956 | [1] | PIN | |
| 24. | 3037401 | [4] | PLATE;FRICTION | |
| 25. | 3032432 | [5] | PLATE | |
| 26. | 4246784 | [1] | SPACER | |
| 28. | 3047473 | [1] | PISTON | |
| 29. | 4232766 | [1] | D-RING | |
| 30. | 4232767 | [1] | D-RING | |
| 31. | 3047472 | [1] | SPRING;DISC | |
| 33. | 4248871 | [1] | O-RING | Y 4396017 |
| 33. | 4396017 | [1] | O-RING | |
| 34. | 4506415 | [1] | O-RING | |
| 36. | 9145186 | [1] | VALVE;BRAKE | I 9149086 9145186<for assembly of machine> |
| 36. | (9149086) | [1] | VALVE;BRAKE | <for transportation> |
| 38. | M341650 | [8] | BOLT;SOCKET | |
| 40. | 3064074 | [1] | PLATE | |
| 41. | 4266256 | [2] | PIN;KNOCK | Y 4364104 |
| 41. | 4364104 | [2] | PIN;KNOCK | |
| 45. | 2034875 | [1] | VALVE | |
| 46. | 4234628 | [1] | BUSHING | |
| 48. | 3052403 | [1] | LINK | |
| 49. | 4255238 | [2] | PLUG | |
| 51. | 4262561 | [1] | BOLT;REAMER | |
| 53. | 9130524 | [1] | PISTON;SERVO | 9130524 |
| 55. | 4260308 | [2] | RING;PISTON | |
| 56. | 4332406 | [1] | COVER | |
| 57. | 4265579 | [1] | O-RING | |
| 58. | M341225 | [4] | BOLT;SOCKET | |
| 63. | 9134112 | [1] | PLUG | |
| 63A. | 4506418 | [1] | O-RING | |
| 64. | 9134109 | [1] | PLUG | |
| 64A. | 4506408 | [1] | O-RING |
