| MOQ: | 1PC |
| Price: | Negotiated price |
| Standard Packaging: | Wooden /Carton/Standard shipping package |
| Delivery Period: | Within 2 working days |
| Payment Method: | T/T, trade assurance,,Paypal |
| Supply Capacity: | 1000 pieces per month |

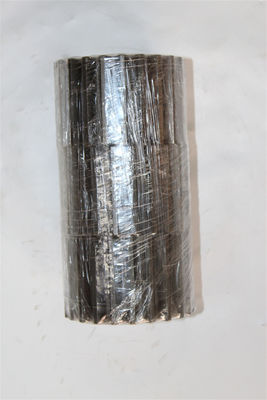

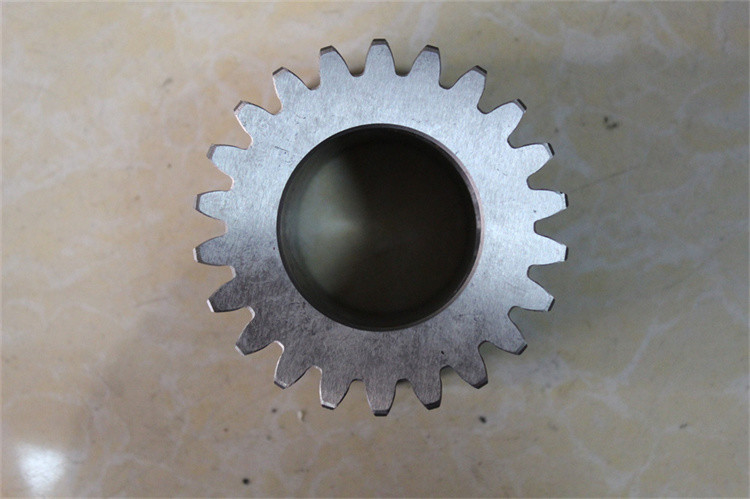

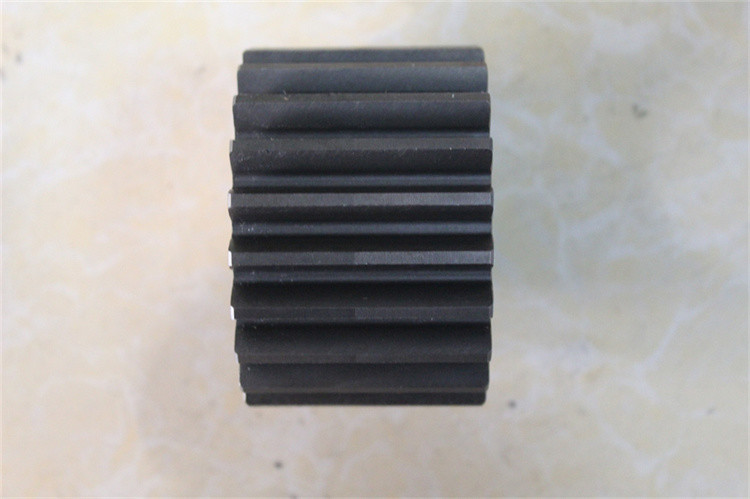

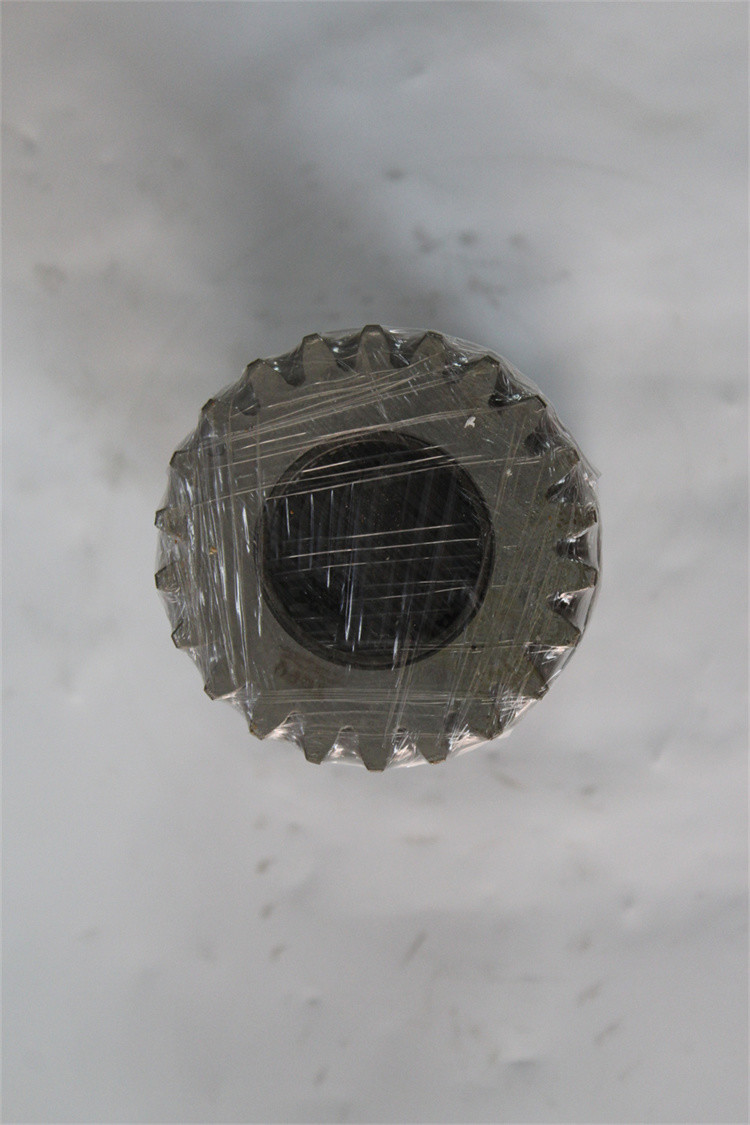

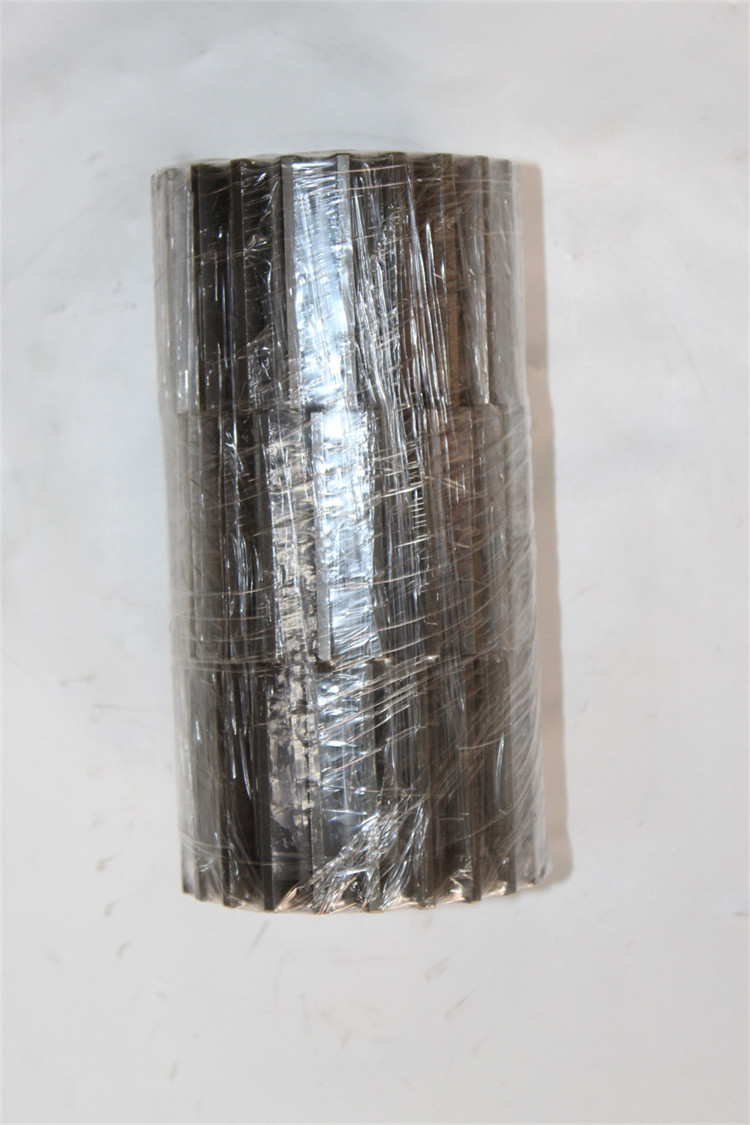

Hitachi Planetary Gear Parts EX200-5 9742777 Swing Gearbox 2nd Planetary Gear Bearing
Description
| Appliion | Excavator |
| Part name | Swing Gearbox 2nd Planetary Gear Bearing |
| Model | Hitachi |
| Model | EX200-5 EX200-3 EX210H-5 |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | 9742777 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures
Drawing of the planrtary gear
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 2036775 | [1] | SHAFT;PROP. | |
| 01. | 3045362 | [1] | SLEEVE | |
| 02. | A811120 | [1] | O-RING | |
| 04. | 4281798 | [1] | BRG.;SPH.ROL. | |
| 06. | 4246275 | [1] | SEAL;OIL | |
| 08. | 3060672 | [1] | COVER | |
| 10. | 1020333 | [1] | HOUSING | |
| 11. | 4364756 | [1] | BRG.;ROL. | |
| 12. | 991352 | [1] | RING;RETAINING | |
| 13. | J011240 | [8] | BOLT;SEMS | |
| 16. | 1020329 | [1] | CARRIER | |
| 17. | 4176073 | [2] | PLATE;THRUST | |
| 19. | 9742777 | [3] | GEAR;PLANETARY | |
| 21. | 4266933 | [6] | PLATE;THRUST | |
| 23. | 4336925 | [3] | PIN | |
| 24. | 4027427 | [3] | PIN;SPRING | |
| 26. | 4337206 | [1] | O-RING | |
| 28. | 1019790 | [1] | GEAR;RING | |
| 29. | M341645 | [12] | BOLT;SOCKET | |
| 30. | 3069514 | [1] | GEAR;SUN | |
| 32. | 1020328 | [1] | CARRIER | |
| 33. | 3069510 | [3] | GEAR;PLANETARY | |
| 34. | 4336945 | [3] | BRG.;NEEDLE | Y 4404506 |
| 34. | 4404506 | [3] | BRG.;NEEDLE | |
| 35. | 4336926 | [6] | PLATE;THRUST | |
| 36. | 4336923 | [3] | PIN | |
| 37. | 4051262 | [3] | PIN;SPRING | |
| 39. | 3069512 | [1] | GEAR;SUN | |
| 41. | 425176 | [2] | CORK | |
| 43. | 8060496 | [1] | PIPE | |
| 44. | 94-2013 | [1] | PLUG | |
| 61. | (8053414) | [1] | COVER(for transportation) | |
| 62. | (J011250) | [8] | BOLT;SEMS(for transportation) | |
| 63. | (94-2011) | [1] | PLUG(for transportation) | |
| 100. | 4330222 | [1] | MOTOR;OIL | |
| 101. | 962002 | [1] | RING;RETAINING | |
| 103. | M341228 | [8] | BOLT;SOCKET | |
| 104. | 4264452 | [1] | PIPE | |
| 106. | 4332658 | [1] | PIPE | |
| 107. | 4343365 | [1] | CAP | |
| 109. | 3074223 | [1] | GAUGE;LEVEL | |
| 111. | 3053093 | [1] | NAME-PLATE | |
| 112. | M492564 | [2] | SCREW;DRIVE | |
| 200. | 9148922 | [1] | SWING DEVICE(WITHOUT MOTOR) |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
About company
Excavator parts
Packaging Details:
Our advantage
| 1. Quality and delivery under control. |
| 2. Original packing, neutral packing or customized packing. |
| 3. Our price is very competitive compared with other suppliers'. |
| 4. If you only can supply the part No. No problem, just send thepart no. to me, I will give you the right product. We have a good system about part No |
| 5. More than 10 years of professional manufacture experience. |
| 6. Small order allowed |
