SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier

  • SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier
  • SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier
  • SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier
  • SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier
  • SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier
Place of Origin China
Brand Name Belparts
Model Number SK485-8 SK220 SK250-8 SK480-8
Minimum Order Quantity 1PC
Price Negotiated price
Packaging Details Wooden /Carton/Standard shipping package
Delivery Time Within 2 working days
Payment Terms T/T, trade assurance,,Paypal
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Swing Gearbox 2nd Carrier Machine Moldel SK485-8 SK220 SK250-8 SK480-8
Part Number 2413J376 Quality After Market
MOQ 1PC Warranty 3 Months
Highlight

Kobelco Planetary Gear Parts

,

SK250-8 Planetary Gear Parts

,

Swing Gearbox 2nd Carrier
Leave a Message
Product Description

SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier

Description



Appliion Excavator
Part name Swing Gearbox 2nd Carrier
Model Kobelco
Model SK485-8 SK220 SK250-8 SK480-8
MOQ 1PC
Warranty 3 months
Part number 2413J376
Delivery Time Within 2 days after receiving the payment



Pictures

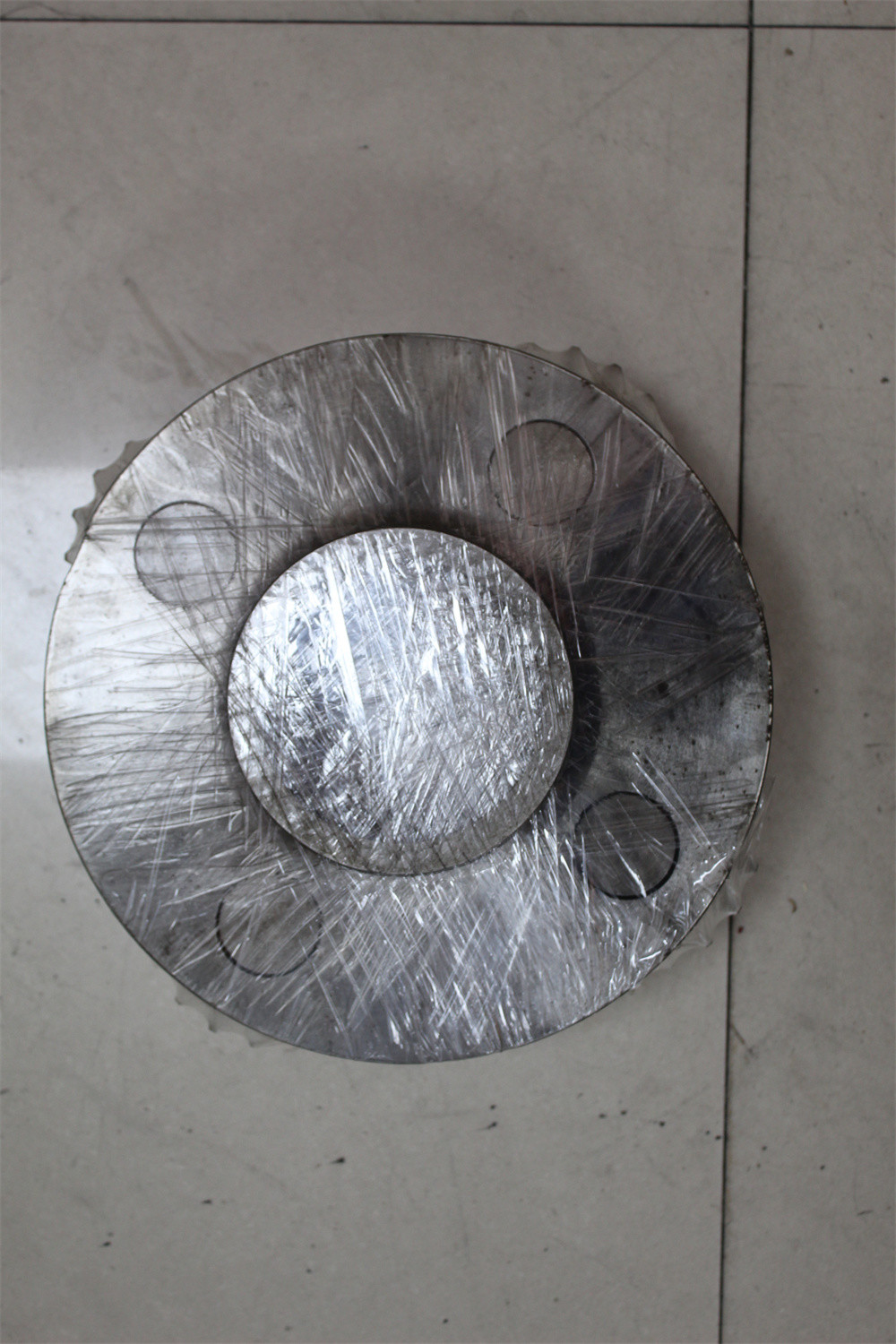

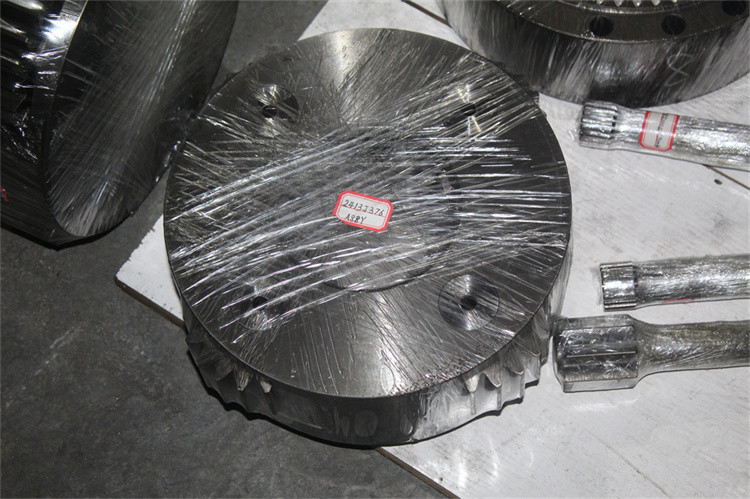

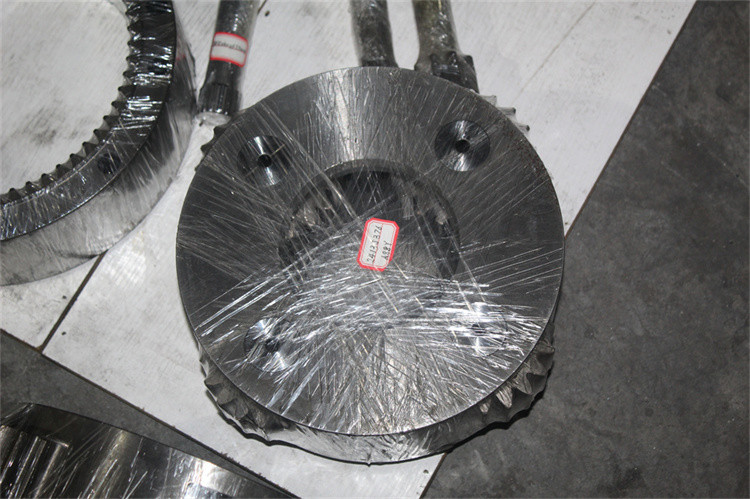

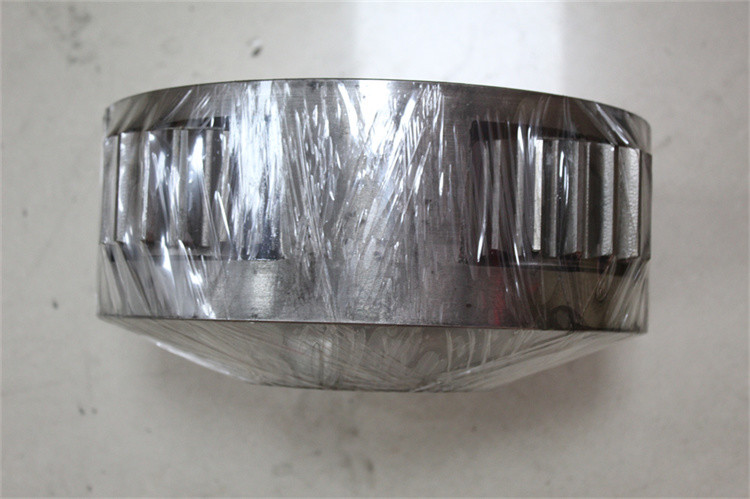

SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier 0
Drawing of the planrtary gear

SK250-8 SK480-8 2413J376 Kobelco Planetary Gear Parts Swing Gearbox 2nd Carrier 1



List of spare parts



Pos. Part No Qty Parts name Comments
. . LQ32W00007F1 [1] HYDRAULIC MOTOR KOB F1 ONLY, Serial Range: -5/2/00 Superseded by part number: LQ32W00007F3
. . LQ32W00007F3 [1] REDUCER KOB REDUCTION ASSY, SWING (F2 ONLY), Start Serial: 5/2/00
1. LQ32W01002P1 [1] DRIVEN SPROCKET KOB SHAFT, PINION
2. ZD11G11000 [1] O-RING,109.40mm ID x 115.60mm OD x 3.10mm KOB ID 109.40 ± 0.91 x OD 115mm
3. LQ32W01014P1 [1] BUSHING KOB SLEEVE
4. LQ32W01021P1 [1] SEAL KOB SEAL, OIL, (200.235.26)
5. 2418T17494 [1] SPACER KOB
6. ZS23C10030 [14] SCREW,Hex Socket Head, M10 x 30mm KOB M10x1.50x30mm Superseded by part number: ZS28C10030
7. ZE82T12000 [1] PLUG KOB 3/4" PT
8. LQ32W01003P1 [1] RETAINER KOB
9. LQ32W01016P1 [1] SPHERICAL BEARING KOB SPHERICAL, (110.240.80)
10. LQ32W01001P1 [1] HOUSING HOUSING
11. LQ32W01012P1 [1] SPACER KOB
12. ZS83C20030 [2] SCREW KOB Set -- M20x2.50x30mm
13. 2420T6698D6 [1] PIPE KOB
14. ZG31U12000 [1] ELBOW KOB
15. LQ32W01015P1 [1] SPHERICAL BEARING KOB SPHERICAL (100.180.46)
16. ZR16X10000 [1] RING KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm
17. 2413J376 [1] DIFF. SPIDER KOB
18. LQ32W01010P1 [1] GEAR KOB SUN
19. LQ32W01005P1 [1] RING GEAR KOB
20. LQ32W01007F1 [1] SPIDER KOB ASSY
21. 2410T352 [4] ROLLER SHAFT KOB
22. ZP26D08032 [4] PIN KOB Roll -- OD 08 x 32mm Long
23. LQ32W01018P1 [8] WASHER KOB THRUST
24. LQ32W01009P1 [4] DRIVEN SPROCKET KOB PINION
25. 2425Z541 [4] NEEDLE BEARING,40mm ID x 54mm OD x 50mm W KOB NEEDLE (40.54.50)
26. LQ32W01013P1 [8] WASHER KOB THRUST
27. 2425Z540 [4] NEEDLE BEARING,40mm ID x 48mm OD x 25mm W KOB NEEDLE (40.48.25)
28. LQ32W01011P1 [4] DRIVEN SPROCKET KOB PINION
29. ZR16X04000 [5] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30. ZS23C14150 [14] SCREW,Hex Socket Head, M14 x 150mm KOB M14x2.0x150mm, (F1 Only)
31. LQ32W01020P1 [1] SUN GEAR KOB
32. 2420T4530 [2] SCREW,M14 x 2 x 185mm KOB M14x2.0x185mm, (F1 ONLY)
