SK200-1 2410T340 Kobelko Planetary Gear Parts Swing Gearbox 2nd Planetary Gear Pin
Description
| Appliion | Excavator |
| Part name | Swing gearbox 2nd planetary gear pin |
| Model | Kobelko |
| Model | SK200-1 SK200 SK200LC SK210LC |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | 2410T340 |
| Delivery Time | Within 2 days after receiving the payment |

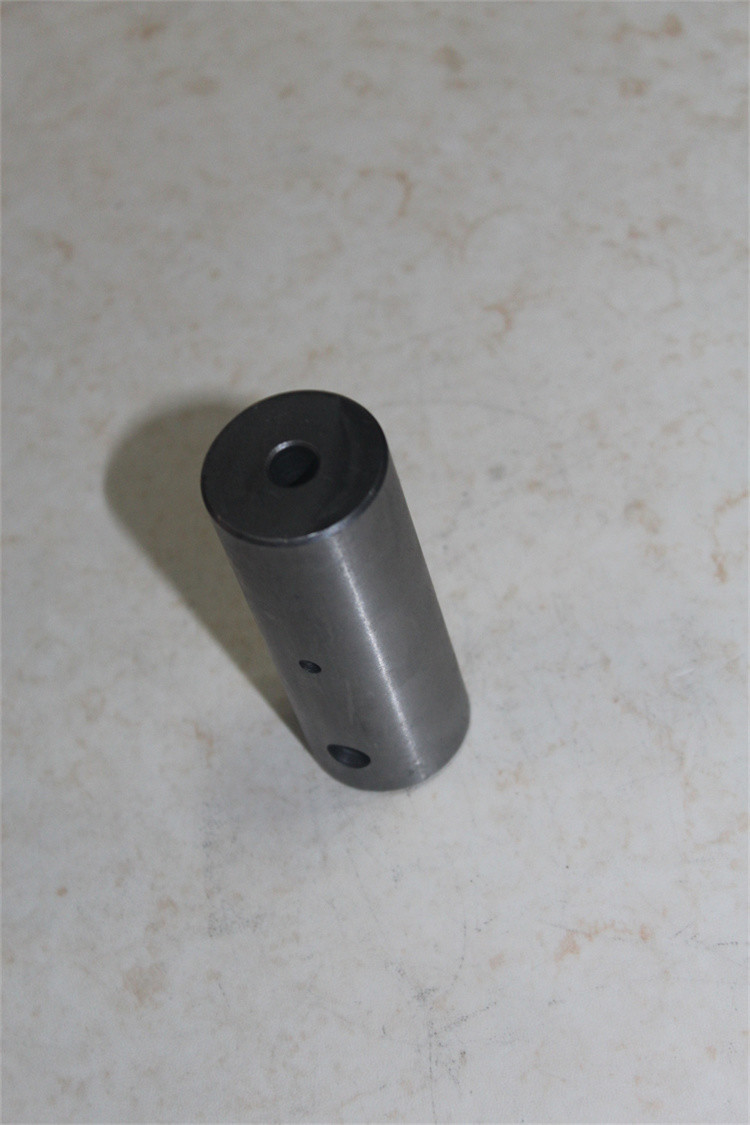

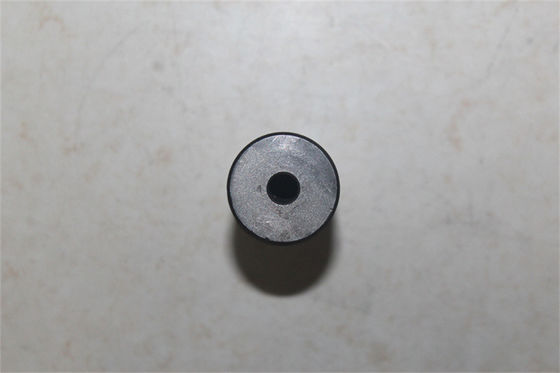

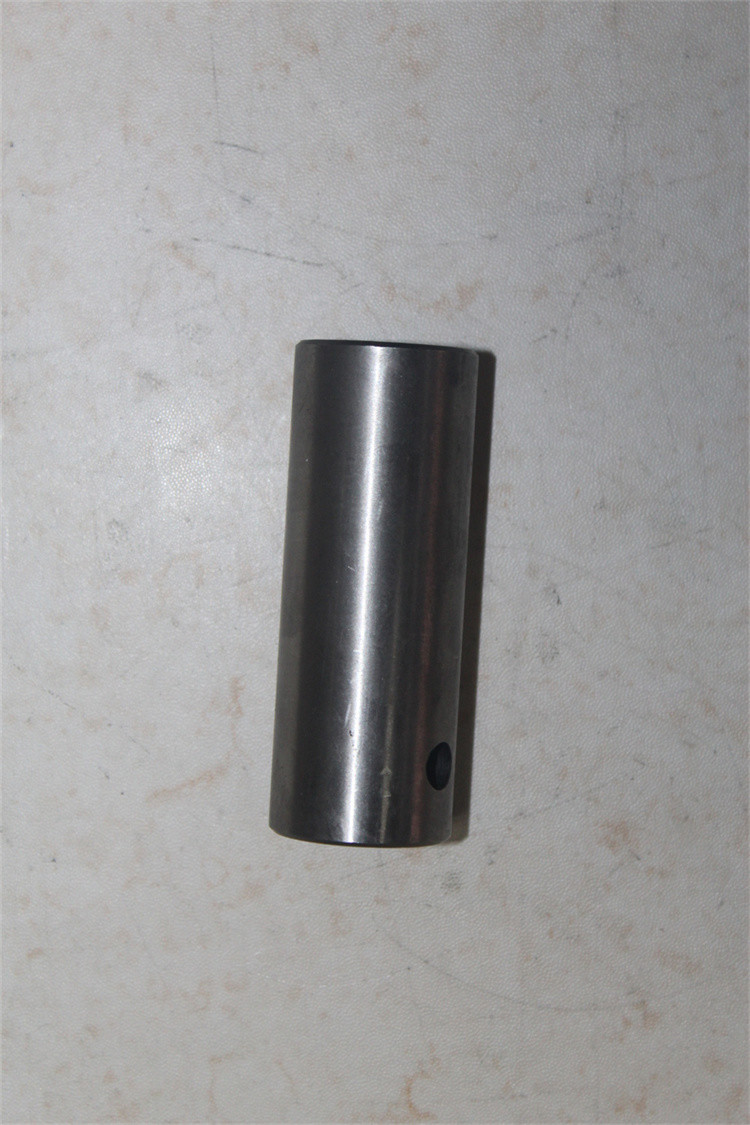

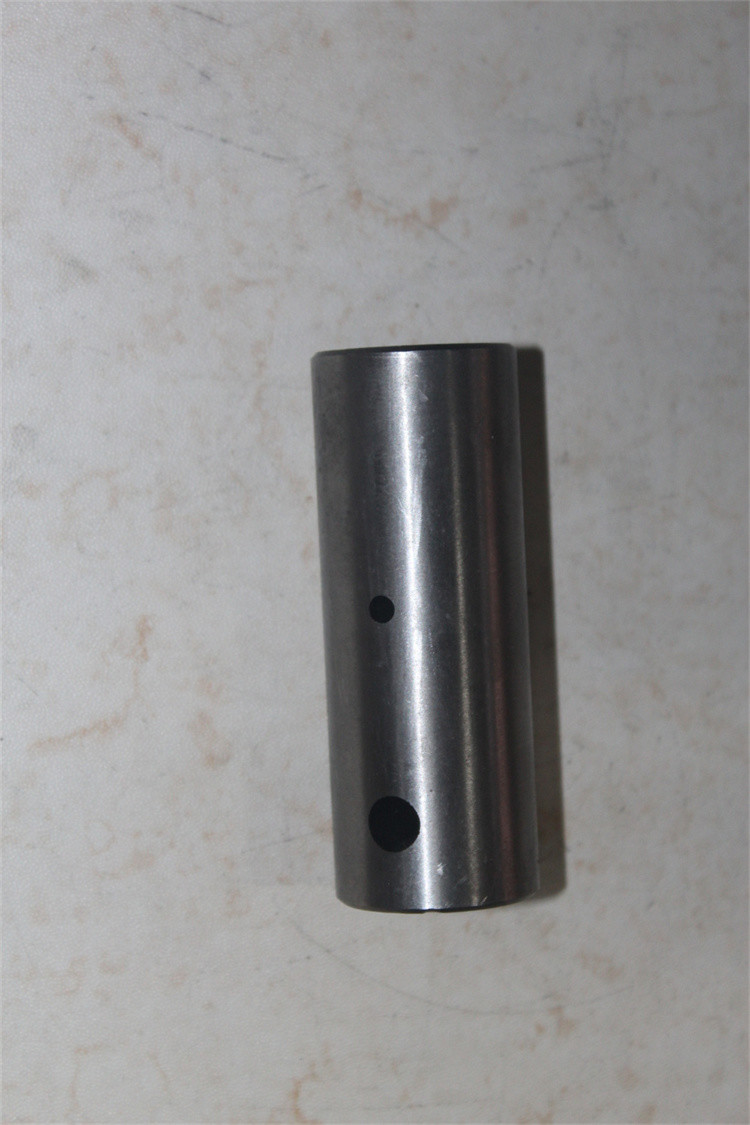

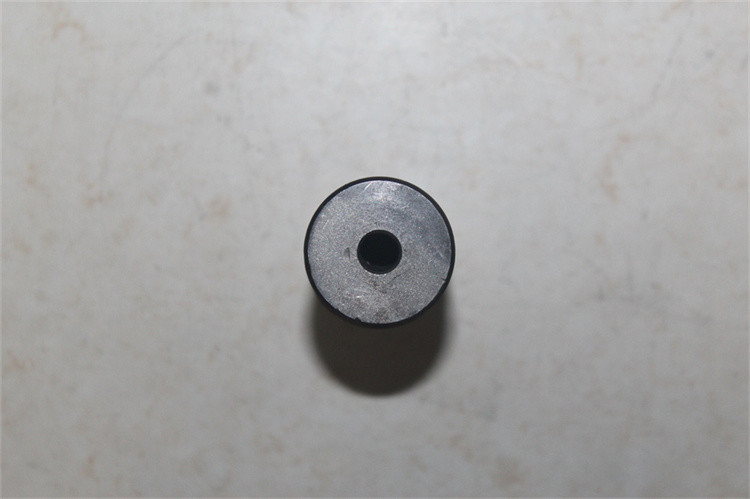

Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | 24100J11091F3 | [1] | MOTOR ASSY, SWING, APPLICABLE: YQ01701-01840 YN12201-13216 | MOTOR ASSY, SWING, APPLICABLE: YQ01701-01840 YN12201-13216 |
| . . | 24100J11091F5 | [1] | MOTOR ASSY, SWING, APPLICABLE: YQ01841-01866 YN13217-13486 | MOTOR ASSY, SWING, APPLICABLE: YQ01841-01866 YN13217-13486 |
| . . | 24100J11091F7 | [1] | MOTOR ASSY, SWING, APPLICABLE: YQ1867-01948 YN13487-14590 | MOTOR ASSY, SWING, APPLICABLE: YQ1867-01948 YN13487-14590 |
| . . | 24100J11091F9 | [1] | HYDRAULIC MOTOR | KOB MOTOR ASSY, SWING, APPLICABLE: YQ01949- YN14591- Superseded by part number: 24100J11091F10 |
| 5. | R25P0047D8 | [1] | BEARING | KOB ROLLER |
| 6. | 25Z494D11 | [1] | BEARING | KOB ROLLER |
| 9. | 2410T340 | [4] | ROLLER SHAFT | KOB SHAFT |
| 10. | 2401N468 | [1] | RING GEAR | KOB GEAR, INTERNAL |
| 11. | 2401P1276 | [1] | SUN GEAR | KOB GEAR, SUN |
| 12. | 2401P1277 | [4] | PINION | KOB PLANETARY |
| 13. | 2401P1279 | [4] | KIT | KOB PINION, PLANETARY, APPLICABLE: YQ01701-01840 YN12201-13216 Superseded by part number: 24001T71F2 |
| 15. | ZS23C08030 | [12] | SCREW,Hex Socket Head, M8 x 30mm | KOB M08x1.25x30mm Superseded by part number: ZS28C08030 |
| 18. | 2418P20198D3 | [2] | SPACER | KOB (4.0) |
| 19. | 2401P1278 | [1] | SUN GEAR | KOB GEAR, SUN, APPLICABLE: YQ01701-01840 YN12201-13216 Superseded by part number: 2401P1434 |
| 20. | ZR16X04500 | [1] | RING | KOB Retaining -- ID 45 x OD 58 x Th 1.8mm |
| 23. | 2425T383 | [76] | NEEDLE, ROLLER, APPLICABLE: YQ01701-01840 YN12201-13216 | NEEDLE, ROLLER, APPLICABLE: YQ01701-01840 YN12201-13216 |
| 24. | 2425T384 | [140] | NEEDLE BEARING | KOB NEEDLE, ROLLER |
| 25. | ZR16X08500 | [1] | LOCKING RING | KOB SNAP RING |
| 26. | ZS83C20020 | [2] | SCREW | KOB Set -- M20x2.50x20mm |
| 28. | 2420T6698D3 | [1] | RIGID TUBE | KOB PIPE |
| 29. | ZG31U12000 | [1] | ELBOW | KOB 90?? |
| 30. | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| 33. | ZS23C14140 | [10] | SCREW,Hex Socket Head, M14 x 140mm | KOB M14x2.0x140mm |
| 34. | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 37. | 2410N519 | [1] | FINGER ASSY. | KOB SHAFT, PINION |
| 38. | 2418P23538 | [1] | HOSE | KOB SLEEVE |
| 39. | ZD11P09500 | [1] | O-RING | KOB ID 94.6 ± 0.81 x OD 105mm |
| 40. | 2418R259 | [1] | OIL SEAL | KOB |
| 41. | 2418R2D60 | [1] | SNAP RING | KOB |
| 42. | 2418T21667 | [1] | PLATE | KOB |
| 43. | 2418T20987 | [1] | PLATE | KOB |
| 44. | 2418T20986 | [1] | PLATE | KOB |
| 45. | 2418P22799 | [1] | RETAINER | KOB |
| 46. | 2418T20988 | [1] | SPACER | KOB (4.0) |
| 47. | 2414J2298 | [1] | HOUSING | KOB |
| 48. | 2418T20989 | [1] | SPACER | KOB |
| 49. | 2413J381 | [1] | DIFF. SPIDER | KOB SPIDER |
| 50. | ZP26D08025 | [4] | PIN | KOB Roll -- OD 08 x 25mm Long |
| 51. | 2418T20963 | [8] | THRUST WASHER | KOB WASHER, THRUST, APPLICABLE: YQ01701-01840 YN12201-13216 Superseded by part number: 2418T25314 |
| 52. | 2413N462F1 | [1] | SPIDER | KOB ASSY |
| 53. | 2418T20962 | [4] | THRUST WASHER | KOB WASHER, THRUST |
| 54. | 2418T19775D3 | [4] | THRUST WASHER | KOB WASHER, THRUST |
| 56. | 2441U819F2 | [1] | HYDRAULIC MOTOR | KOB MOTOR, SWING, APPLICABLE: YQ01841-01856 YN13217-13486, Remarks: (61) Superseded by part number: 2441U819F3 |
| 56-2. | 2441U804F1 | [1] | HYDRAULIC MOTOR | KOB MOTOR, Remarks: SEE(C.P.M) |
| 56-3. | 2436U1283F1 | [1] | VALVE PRESSURE RELIE | KOB VALVE, REDUCTION, Remarks: SEE(C.P.M) |
| 56-5. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB ID 34.40 ± 0.33 x OD 40mm |
| 56-6. | 2436U1431F4 | [1] | CONTROL VALVE | KOB VALVE, CONTROL, Remarks: SEE(C.P.M) Superseded by part number: 2436U1431F6 |
| 57. | 2401P1434 | [1] | SUN GEAR | KOB GEAR, SUN, APPLICABLE: YQ01841- YQ13217- |
| 58. | 2401P1438 | [4] | PINION | KOB APPLICABLE: YQ01841-01948 YN13217-14590, Remarks: (63) Superseded by part number: 2401P1440 |
| 59. | 2425R332 | [4] | NEEDLE BEARING | KOB BEARING, NEEDLE, APPLICABLE: YQ01841- YN13217- |
| 60. | 2418T24791 | [8] | RING | KOB WASHER, THRUST, APPLICABLE: YQ01841-01948 YN13217-14590, Remarks: (62) |
| 61. | 2441U819F3 | [1] | HYDRAULIC MOTOR | KOB MOTOR, SWING, APPLICABLE: YQ01867- YN13487- |
| 61-2. | 2441U804F1 | [1] | HYDRAULIC MOTOR | KOB MOTOR, Remarks: SEE(C.P.M) |
| 61-3. | 2436U1283F1 | [1] | VALVE PRESSURE RELIE | KOB VALVE, Remarks: SEE(C.P.M) |
| 61-4. | ZS23C12135 | [6] | SCREW,Hex Socket Head, M12 x 135mm | KOB M12x1.75x135mm |
| 61-5. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB ID 34.40 ± 0.33 x OD 40mm |
| 61-7. | 2436U1431F6 | [1] | CONTROL VALVE | KOB VALVE, CONTROL, Remarks: SEE(C.P.M) |
| 62. | 2418T25314 | [8] | THRUST WASHER | KOB WASHER, THRUST, APPLICABLE: YQ01949- YN14591- |
| 63. | 2401P1440 | [4] | PINION | KOB APPLICABLE: YQ01949- YN14591- |
| . . | 24100J13639F1 | [1] | HYDRAULIC MOTOR | KOB REDUCTION UNIT, APPLICABLE: YQ01701-01840 YN12201-13216, Remarks: CONSISTS OF ITEM 5, 6, 9 to 13, 15, 18, 19, Start Serial: 23 Superseded by part number: 24100J13639F4 |
| . . | 24100J13639F2 | [1] | HYDRAULIC MOTOR | KOB REDUCTION UNIT, APPLICABLE: YQ01841-01948 YN13217-14590, Remarks: CONSISTS OF ITEM 5, 6, 9 TO 12, 15, 18, 24 to 26 3 Superseded by part number: 24100J13639F4 |
| . . | 24100J13639F3 | [1] | HYDRAULIC MOTOR | KOB REDUCTION UNIT, APPLICABLE: YQ01949- YN14591-, Remarks: CONSISTS OF ITEM 5, 6, 9 to 12, 15, 18, 24 to 26 3 Superseded by part number: 24100J13639F4 |
| . . | 24025T2F1 | [19] | KIT, SERVICE, Remarks: CONSISTS OF ITEM 23 | |
| . . | 24025T2F2 | [35] | SERVICE KIT | KOB KIT, SERVICE, Remarks: CONSISTS OF ITEM 24 |
| 70. | 2418T23087 | [1] | SPACER | |
| 71. | 2418T5028 | [1] | COVER | COVER |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
