Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear

  • Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear
  • Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear
  • Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear
  • Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear
Place of Origin China
Brand Name Belparts
Model Number SK250-8 SK480-8 SK250LC SK235SR
Minimum Order Quantity 1PC
Price Negotiated price
Packaging Details Wooden /Carton/Standard shipping package
Delivery Time Within 2 working days
Payment Terms T/T, trade assurance,,Paypal
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Planetary Gear Machine Moldel SK250-8 SK480-8 SK250LC SK235SR
Part Number 230-00067 Quality After Market
MOQ 1PC Warranty 3 Months
Highlight

LQ32W01010P1 Planetary Gear Parts

,

SK480-8 Planetary Gear Parts

,

SK250-8 Swing Gearbox 2nd Sun Gear
Leave a Message
Product Description

Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing gearbox 2nd Sun Gear


Description



Appliion Excavator
Part name Swing gearbox 2nd sun gear
Model Kobelco
Model SK250-8 SK480-8 SK250LC SK235SR
MOQ 1PC
Warranty 3 months
Part number LQ32W01010P1
Delivery Time Within 2 days after receiving the payment



Pictures

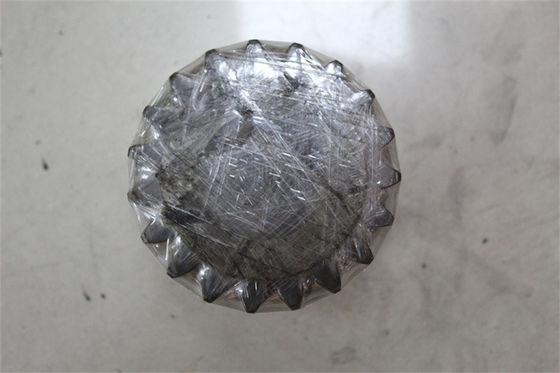

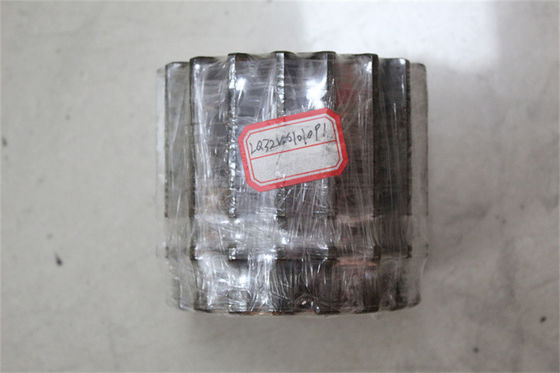

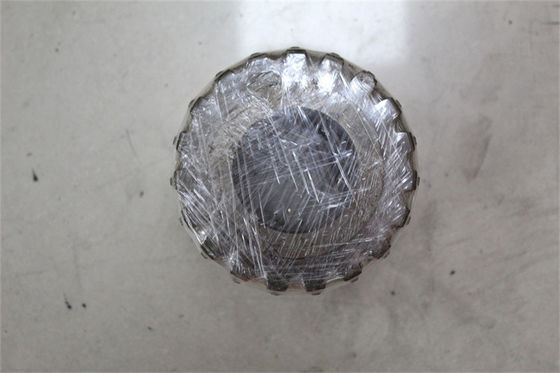

Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear 0
Drawing of the planrtary gear
Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear 1


List of spare parts

Pos. Part No Qty Parts name Comments
. . LQ32W00007F1 [1] HYDRAULIC MOTOR KOB F1 ONLY, Serial Range: -5/2/00 Superseded by part number: LQ32W00007F3
. . LQ32W00007F3 [1] REDUCER KOB REDUCTION ASSY, SWING (F2 ONLY), Start Serial: 5/2/00
1. LQ32W01002P1 [1] DRIVEN SPROCKET KOB SHAFT, PINION
2. ZD11G11000 [1] O-RING,109.40mm ID x 115.60mm OD x 3.10mm KOB ID 109.40 ± 0.91 x OD 115mm
3. LQ32W01014P1 [1] BUSHING KOB SLEEVE
4. LQ32W01021P1 [1] SEAL KOB SEAL, OIL, (200.235.26)
5. 2418T17494 [1] SPACER KOB
6. ZS23C10030 [14] SCREW,Hex Socket Head, M10 x 30mm KOB M10x1.50x30mm Superseded by part number: ZS28C10030
7. ZE82T12000 [1] PLUG KOB 3/4" PT
8. LQ32W01003P1 [1] RETAINER KOB
9. LQ32W01016P1 [1] SPHERICAL BEARING KOB SPHERICAL, (110.240.80)
10. LQ32W01001P1 [1] HOUSING HOUSING
11. LQ32W01012P1 [1] SPACER KOB
12. ZS83C20030 [2] SCREW KOB Set -- M20x2.50x30mm
13. 2420T6698D6 [1] PIPE KOB
14. ZG31U12000 [1] ELBOW KOB
15. LQ32W01015P1 [1] SPHERICAL BEARING KOB SPHERICAL (100.180.46)
16. ZR16X10000 [1] RING KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm
17. 2413J376 [1] DIFF. SPIDER KOB
18. LQ32W01010P1 [1] GEAR KOB SUN
19. LQ32W01005P1 [1] RING GEAR KOB
20. LQ32W01007F1 [1] SPIDER KOB ASSY
21. 2410T352 [4] ROLLER SHAFT KOB
22. ZP26D08032 [4] PIN KOB Roll -- OD 08 x 32mm Long
23. LQ32W01018P1 [8] WASHER KOB THRUST
24. LQ32W01009P1 [4] DRIVEN SPROCKET KOB PINION
25. 2425Z541 [4] NEEDLE BEARING,40mm ID x 54mm OD x 50mm W KOB NEEDLE (40.54.50)
26. LQ32W01013P1 [8] WASHER KOB THRUST
27. 2425Z540 [4] NEEDLE BEARING,40mm ID x 48mm OD x 25mm W KOB NEEDLE (40.48.25)
28. LQ32W01011P1 [4] DRIVEN SPROCKET KOB PINION
29. ZR16X04000 [5] RING KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
30. ZS23C14150 [14] SCREW,Hex Socket Head, M14 x 150mm KOB M14x2.0x150mm, (F1 Only)
31. LQ32W01020P1 [1] SUN GEAR KOB
32. 2420T4530 [2] SCREW,M14 x 2 x 185mm KOB M14x2.0x185mm, (F1 ONLY)



FAQ

1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.



2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.



3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.



4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.



5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.



About company

Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear 2



Exhibition





Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear 3



Excavator parts



Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear 4



Delivery



Kobelco SK250-8 SK480-8 LQ32W01010P1 Planetary Gear Parts Swing Gearbox 2nd Sun Gear 5



Packaging Details:



1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden package.
7.We support the custom-made demand for package



Our advantage



1. Quality and delivery under control.
2. Original packing, neutral packing or customized packing.
3. Our price is very competitive compared with other suppliers'.
4. If you only can supply the part No. No problem, just send thepart no. to me, I will give you the right product. We have a good system about part No
5. More than 10 years of professional manufacture experience.
6. Small order allowed
