SK250 SK480 LQ32W01027P1 Kobelco Planetary Gear Parts Swing Gearbox 1st Sun Gear
Description
| Appliion | Excavator |
| Part name | sun gear |
| Model | Kobelco |
| Model | SK250-8 SK480-8 SK485-8 SK250LC-6E |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | LQ32W01027P1 |
| Delivery Time | Within 2 days after receiving the payment |

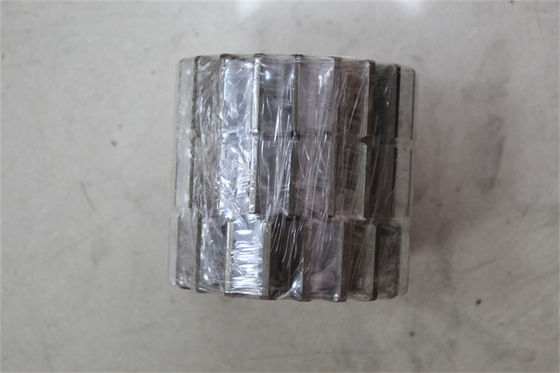

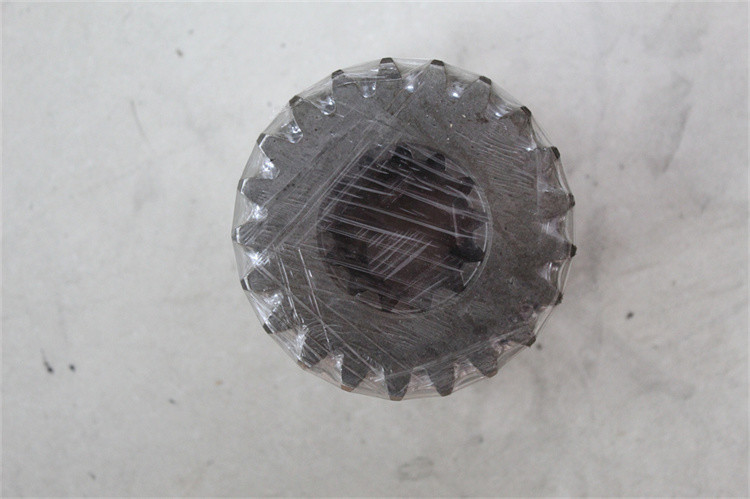

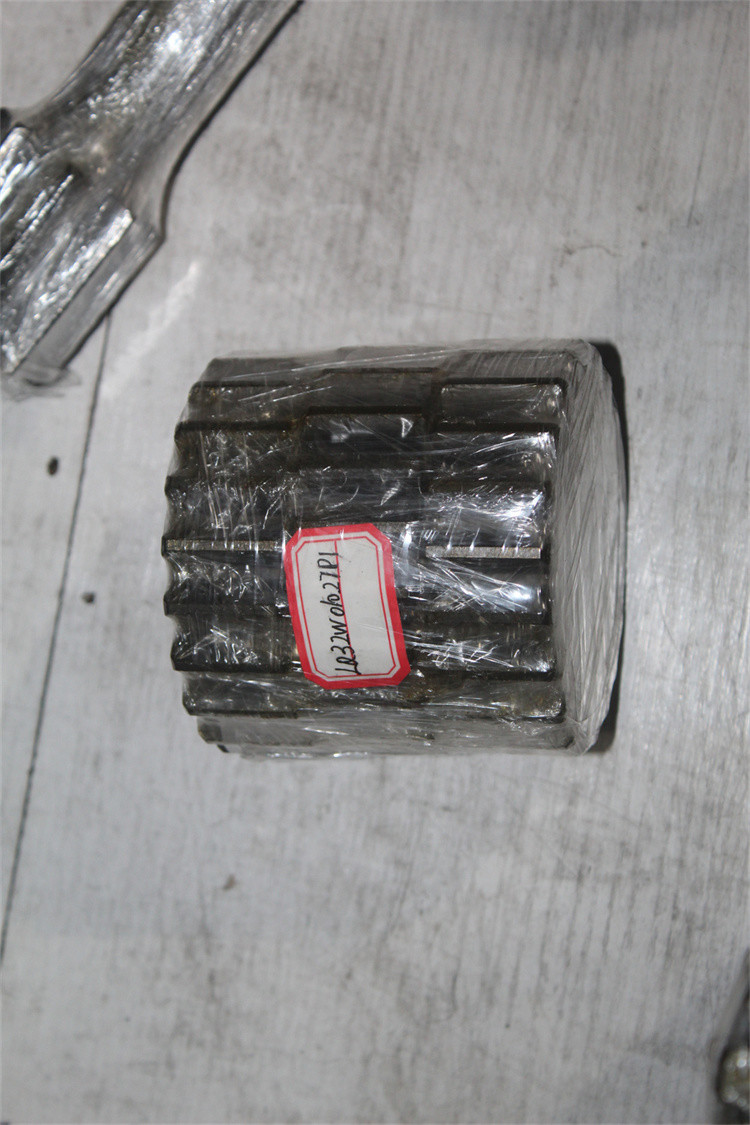

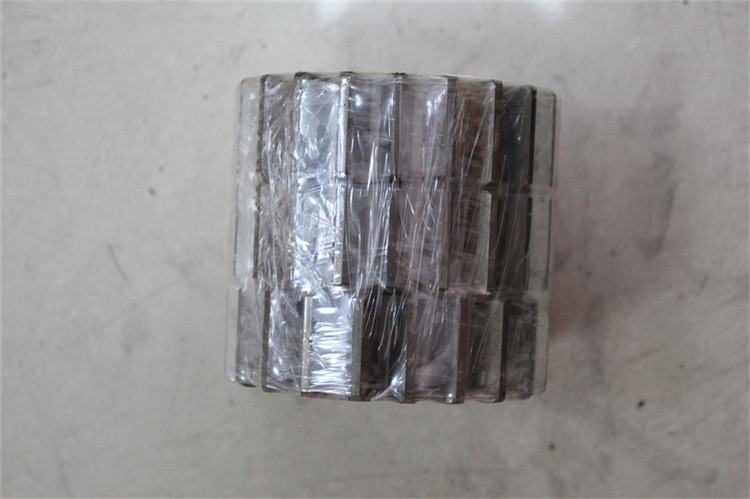

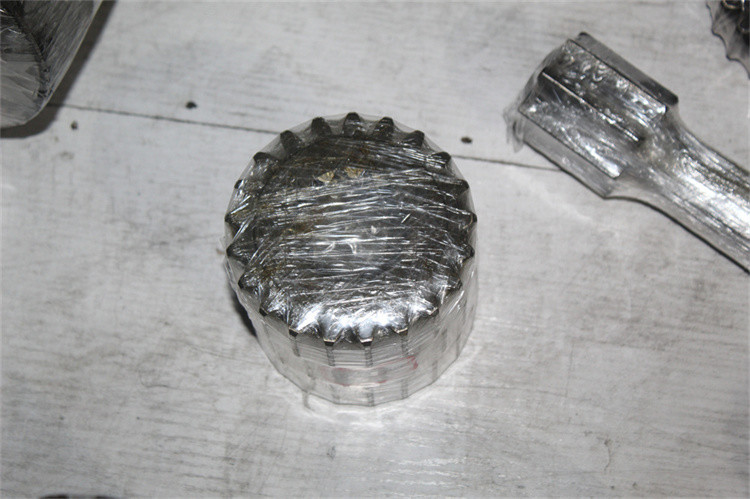

Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | LQ32W00009F1 | [1] | GEAR REDUCTION UNIT | KOB ASSY, SWING |
| 1. | LQ32W01002P1 | [1] | DRIVEN SPROCKET | KOB SHAFT, PINION |
| 2. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB ID 109.40 ± 0.91 x OD 115mm |
| 3. | LQ32W01014P1 | [1] | BUSHING | KOB SLEEVE |
| 4. | LQ32W01021P1 | [1] | SEAL | KOB SEAL, OIL |
| 5. | 2418T17494 | [1] | SPACER | KOB |
| 6. | ZS23C10030 | [14] | SCREW,Hex Socket Head, M10 x 30mm | KOB M10x1.50x30mm Superseded by part number: ZS28C10030 |
| 7. | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| 8. | LQ32W01003P1 | [1] | RETAINER | KOB |
| 9. | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL |
| 10. | LQ32W01022P1 | [1] | BEARING ASSY | KOB HOUSING |
| 11. | LQ32W01012P1 | [1] | SPACER | KOB |
| 12. | ZS83C20030 | [2] | SCREW | KOB Set -- M20x2.50x30mm |
| 13. | 2420T6698D6 | [1] | PIPE | KOB |
| 14. | ZG31U12000 | [1] | ELBOW | KOB |
| 15. | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL |
| 16. | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 17. | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 18. | LQ32W01010P1 | [1] | GEAR | KOB SUN |
| 19. | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 20. | LQ32W01007F1 | [1] | SPIDER | KOB ASSY |
| 21. | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 22. | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 23. | LQ32W01018P1 | [8] | WASHER | KOB THRUST |
| 24. | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 25. | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB NEEDLE |
| 26. | LQ32W01013P1 | [8] | WASHER | KOB THRUST |
| 27. | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB NEEDLE |
| 28. | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 29. | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 30. | ZS23C14150 | [16] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm |
| 31. | LQ32W01027P1 | [1] | SHAFT, PLANETARY CAR | KOB GEAR, SUN |
| 32. | 2420T4530 | [2] | SCREW,M14 x 2 x 185mm | KOB M14x2.0x185mm |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
About company
Excavator parts
Packaging Details:
Our advantage
| 1. Quality and delivery under control. |
| 2. Original packing, neutral packing or customized packing. |
| 3. Our price is very competitive compared with other suppliers'. |
| 4. If you only can supply the part No. No problem, just send thepart no. to me, I will give you the right product. We have a good system about part No |
| 5. More than 10 years of professional manufacture experience. |
| 6. Small order allowed |
