kobelco SK210-8S YN32W01123F1 Planetary Gear Parts Swing Gearbox 1st carrier
Description
| Appliion | Excavator |
| Part name | Swing Gearbox 1st carrier |
| Model | Kobelco |
| Model | SK210-8S SK210-9 SK215SRLC 230SR-3 |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | YN32W01123F1 |
| Delivery Time | Within 2 days after receiving the payment |

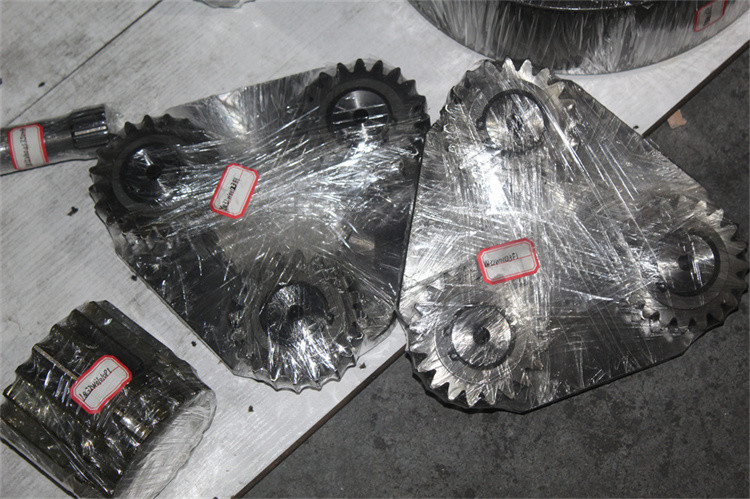

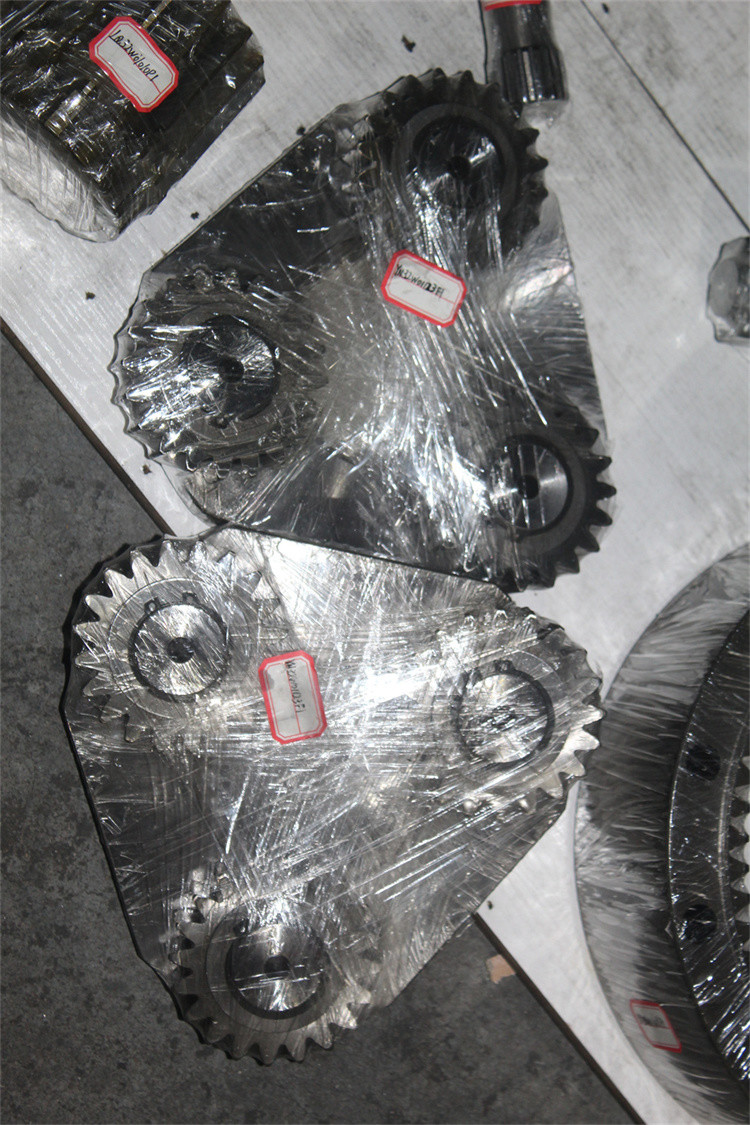

Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YM32W00008F2 | [1] | MOTOR | KOB Includes Ref. 1-32, See Fig. 01-015[00] |
| 1. | YM32W01002P1 | [1] | GEAR | SM Shaft |
| 2. | YN32W01052P1 | [1] | GEAR | SM |
| 3. | YN32W01117P1 | [3] | GEAR | SM |
| 4. | YN32W01054P1 | [1] | GEAR | SM |
| 5. | YN32W01055P1 | [4] | GEAR | SM |
| 6. | YN32W01056P1 | [1] | RING GEAR | SM |
| 7. | YN32W01123F1 | [1] | SPIDER | KOB Assy, Incls. Refs. 7-1 & 7-2 |
| 7-1. | NSS | [1] | NOT SOLD SEPARAT | CON Spider |
| 7-2. | NSS | [3] | NOT SOLD SEPARAT | CON Shaft |
| 8. | YN32W01058P1 | [1] | CARRIER,Housing, Spider | SM |
| 9. | YN32W01067P1 | [4] | SHAFT | SM |
| 10. | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: 25Z804D18 |
| 11. | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Superseded by part number: R25P0047D9 |
| 12. | YN32W01060P1 | [1] | OIL SEAL | SM |
| 13. | YN32W01104P1 | [1] | BOX | SM Superseded by part number: YN32W00022F2 |
| 14. | YN32W01026P1 | [3] | THRUST WASHER | KOB |
| 15. | YN32W01028P1 | [3] | THRUST WASHER | KOB |
| 16. | YN32W01022P1 | [102] | ROLLER | KOB |
| 17. | YN32W01072P1 | [4] | NEEDLE BEARING | SM |
| 18. | YN32W01063P1 | [8] | WASHER | SM |
| 19. | ZR16X03500 | [1] | RING | KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 20. | ZR16X09000 | [1] | RING | KOB Retaining -- ID 84.50 x OD 108 x 3.0mm |
| 21. | YN32W01082P1 | [1] | SLEEVE | SM |
| 22. | ZP26D08025 | [4] | PIN | KOB Roll -- OD 08 x 25mm Long |
| 23. | HS23C14135G1 | [11] | SCREW,M14 x 135mm | SM M14x2.0x135mm |
| 24. | PV02B01073DB | [2] | CAP | KOB 18.4mm Plastic |
| 25. | YN32W01080D1 | [1] | RIGID TUBE | SM 1/2" PT x 112mm Long |
| 26. | ZG31U08000 | [1] | HYD CONNECTOR | SM Elbow, 90° -- 1/2" PT |
| 27. | ZE82T08000 | [1] | PLUG | KOB 1/2" PT |
| 28. | ZR16X04000 | [3] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 30. | YN32W01081P1 | [1] | OIL SEAL | SM |
| 31. | ZG91V02000 | [1] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB 67° x 1/8" PT Superseded by part number: 72283072 |
| 32. | 2444Z3305 | [1] | BREATHER | KOB 1/8"PT |
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
