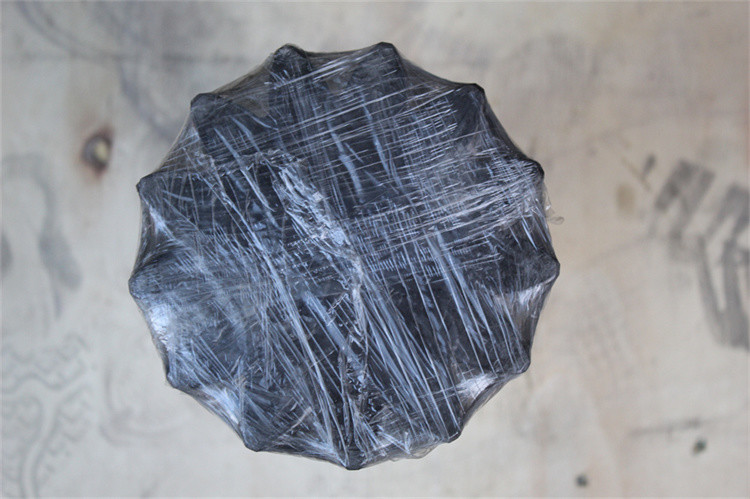

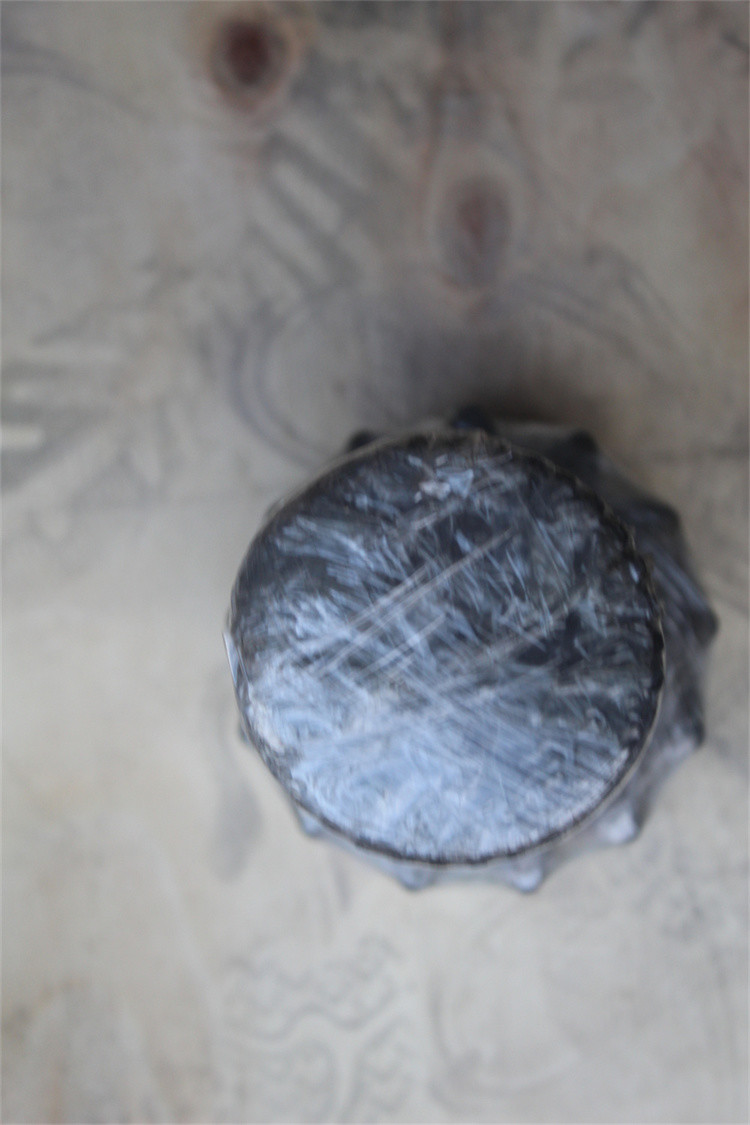

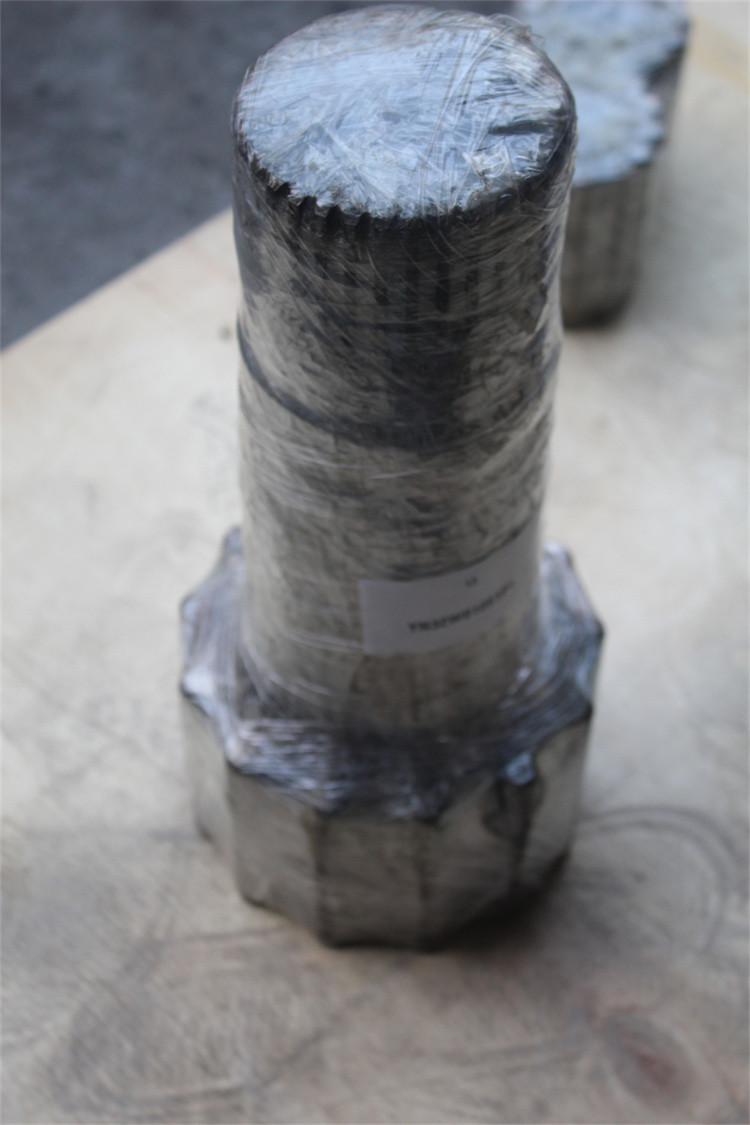

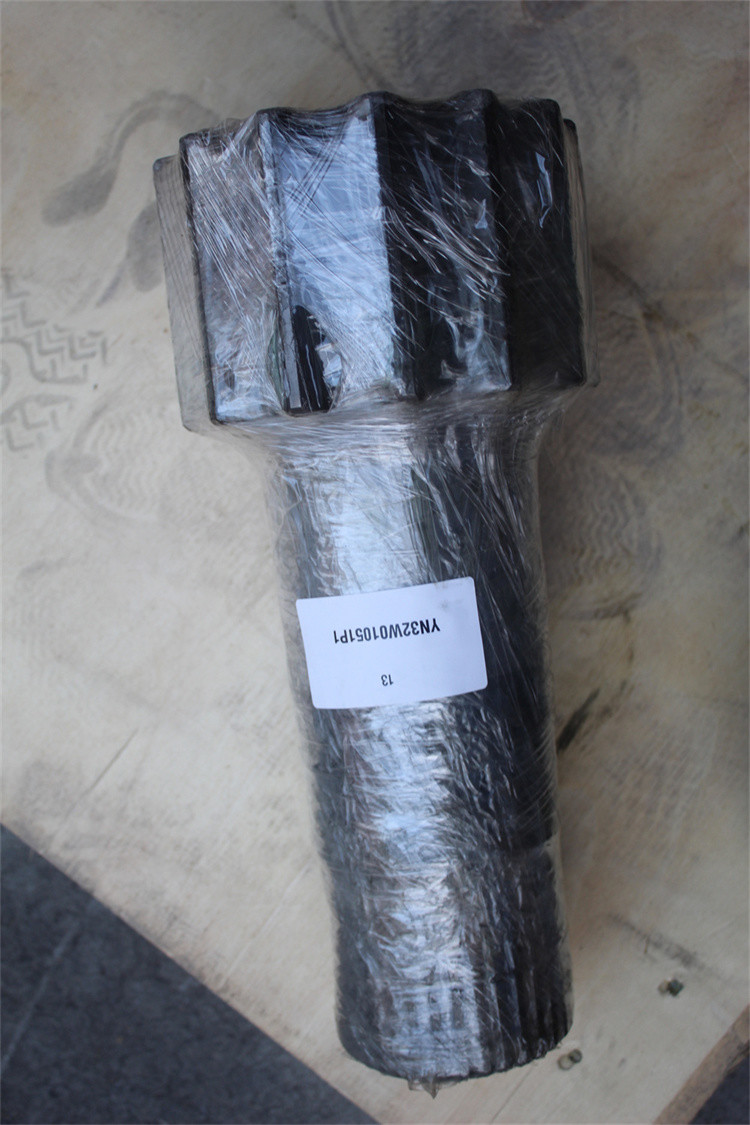

Kobelco SK210-8S Planetary Gear Parts YN32W01051P1 Swing Gearbox Vertical Shaft
Description
| Appliion | Excavator |
| Part name | Swing Gearbox Vertical Shaft |
| Model | Kobelco |
| Model | SK210-8S SK210DLC-8 SK215SRLC |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | YN32W01051P1 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN32W00019F1 | [1] | GEAR REDUCTION UNIT | SM Reduction Assy (Swing) Superseded by part number: YN32W00022F2 |
| 1. | YN32W01051P1 | [1] | SHAFT | SM |
| 2. | YN32W01052P1 | [1] | GEAR | SM Sun |
| 3. | YN32W01053P1 | [3] | GEAR | SM Pinion |
| 4. | YN32W01054P1 | [1] | GEAR | SM Sun |
| 5. | YN32W01055P1 | [4] | GEAR | SM Pinion |
| 6. | YN32W01056P1 | [1] | RING GEAR | SM |
| 7. | YN32W01057F1 | [1] | CARRIER | SM Spider Assy |
| 7-1. | YN32W01009P1 | [1] | ||
| 7-2. | YN32W01066P1 | [3] | SHAFT | KOB |
| 8. | YN32W01058P1 | [1] | CARRIER,Housing, Spider | SM Spider |
| 9. | YN32W01067P1 | [4] | SHAFT | SM |
| 10. | YN32W01030P1 | [1] | SPHERICAL BEARING | KOB Spherical Superseded by part number: 25Z804D18 |
| 11. | YN32W01029P1 | [1] | SPHERICAL BEARING | KOB Spherical Superseded by part number: R25P0047D9 |
| 12. | YN32W01060P1 | [1] | OIL SEAL | SM Oil Seal |
| 13. | YN32W01104P1 | [1] | BOX | SM Housing Superseded by part number: YN32W00022F2 |
| 15. | YN32W01071P1 | [6] | WASHER | SM Washer, Thrust |
| 16. | YN32W01073P1 | [3] | NEEDLE BEARING | SM Needle |
| 17. | YN32W01072P1 | [4] | NEEDLE BEARING | SM Needle |
| 18. | YN32W01063P1 | [8] | WASHER | SM Thrust |
| 19. | ZR16X03500 | [1] | RING | KOB Retaining |
| 20. | ZR16X09000 | [1] | RING | KOB Retaining |
| 21. | YN32W01082P1 | [1] | SLEEVE | SM |
| 22. | ZP26D08025 | [4] | PIN | KOB Spring |
| 23. | HS23C14135G1 | [11] | SCREW,M14 x 135mm | SM Cap |
| 24. | PV02B01073D8 | [2] | CAP | KOB |
| 25. | YN32W01080D1 | [1] | RIGID TUBE | SM |
| 26. | ZG31U08000 | [1] | HYD CONNECTOR | SM Elbow |
| 27. | ZE82T08000 | [1] | PLUG | KOB |
| 28. | ZR16X04000 | [3] | RING | KOB Retaining |
| 30. | YN32W01081P1 | [1] | OIL SEAL | SM Oil Seal |
| 31. | ZG91V02000 | [1] | LUBE NIPPLE,67 Degree x 1/8" PT | KOB 67° x 1/8" PT Superseded by part number: 72283072 |
| 32. | 2444Z3305 | [1] | BREATHER | KOB Valve, Relief |
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibaba trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
About company
Excavator parts
Packaging Details:
Our advantage
| 1. Quality and delivery under control. |
| 2. Original packing, neutral packing or customized packing. |
| 3. Our price is very competitive compared with other suppliers'. |
| 4. If you only can supply the part No. No problem, just send thepart no. to me, I will give you the right product. We have a good system about part No |
| 5. More than 10 years of professional manufacture experience. |
| 6. Small order allowed |
