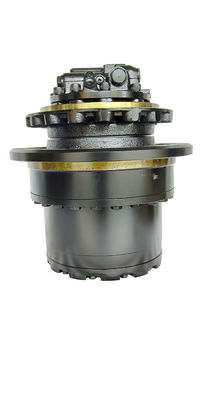

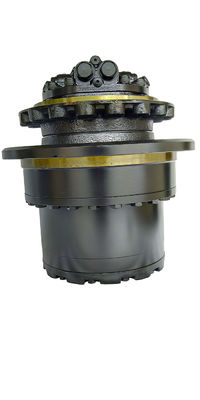

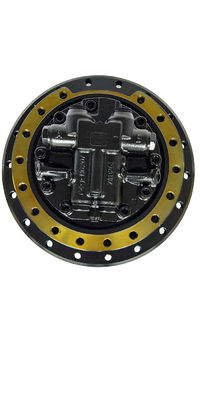

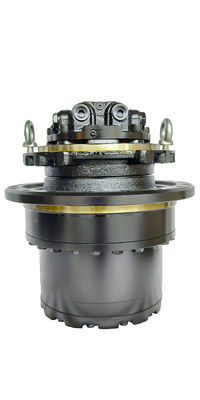

Product Name | Final Drive / Travel Motor Assy |
Product Number | 9170996 9195447 |
Used For | ZX200 ZX200-1 |
Brand | Belparts |
agory Group | Travel Motor Assy |
Packing | Wooden Box |
Color | Grey / Black |
Condition | New |
Stock Condition | In Stock |
Delivery Port | Huangpu Port |
Delivery Time | Depends On Order |
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
9170996 | [2] | TRAVEL DEVICE | I 9195447 | |
9233687 | [2] | TRAVEL DEVICE | I 9233688 (for assembly of machine) | |
9195447 | [2] | TRAVEL DEVICE | ||
9233688 | [2] | TRAVEL DEVICE | (for transportation) | |
00. | 9168003 | [1] | MOTOR;OIL | I 9195451 |
00. | 9234034 | [1] | MOTOR;OIL | I 9237802 (for assembly of machine) |
00. | 9195451 | [1] | MOTOR;OIL | |
00. | 9237802 | [1] | MOTOR;OIL | (for transportation) |
02. | 4114753 | [1] | SEAL;GROUP | I 4634693 |
02. | 4634693 | [1] | SEAL;GROUP | |
03. | 4246793 | [2] | BRG.;ROL. | |
04. | 1025833 | [1] | DRUM | |
05. | 1018740 | [1] | SPROCKET | |
06. | J932055 | [16] | BOLT | |
07. | A590920 | [16] | WASHER;SPRING | |
08. | 3086531 | [1] | NUT | |
10. | 4436242 | [1] | PIN;KNOCK | |
12. | 1025875 | [1] | CARRIER | |
14. | 4438593 | [6] | BRG.;NEEDLE | |
15. | 4284521 | [6] | PLATE;THRUST | |
16. | 4315838 | [3] | PIN | |
17. | 4116309 | [3] | PIN;SPRING | |
18. | 3082156 | [1] | GEAR;SUN | |
19. | 3084353 | [3] | GEAR;PLANETARY | |
20. | 1025787 | [1] | GEAR;RING | |
21. | J931640 | [24] | BOLT | |
23. | 2042432 | [1] | CARRIER | |
24. | 4401293 | [2] | SPACER | |
25. | 3082155 | [3] | GEAR;PLANETARY | |
26. | 4438592 | [3] | BRG.;NEEDLE | |
27. | 4192982 | [6] | PLATE;THRUST | |
28. | 4402086 | [3] | PIN | |
29. | 4192020 | [3] | PIN;SPRING | |
30. | 3082149 | [1] | GEAR;SUN | |
32. | 1025826 | [1] | CARRIER | |
33. | 3082148 | [3] | GEAR;PLANETARY | |
34. | 4387383 | [3] | BRG.;NEEDLE | |
35. | 4192910 | [6] | PLATE;THRUST | |
36. | 4210853 | [3] | PIN | |
37. | 4173093 | [3] | PIN;SPRING | |
38. | 2042351 | [1] | SHAFT;PROP. | |
38. | 2049585 | [1] | SHAFT;PROP. | |
40. | 2034833 | [1] | COVER | |
41. | 4285323 | [1] | PIN;STOPPER | Y 4478346 |
41. | 4478346 | [1] | PIN;STOPPER | |
42. | J011230 | [12] | BOLT;SEMS | I 4609016 |
42. | 4609016 | [12] | BOLT;SEMS | |
43. | 4245797 | [3] | PLUG | |
46. | 3053559 | [1] | NAME-PLATE | |
47. | M492564 | [2] | SCREW;DRIVE |
We can supply you all kinds of excavator spare parts as following
Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc. |
Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion ,coil adjuster,rubber track,etc. |
Cab parts: operator’s cab assy, wiring harness, monitor, controller, seat, door etc. |
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
