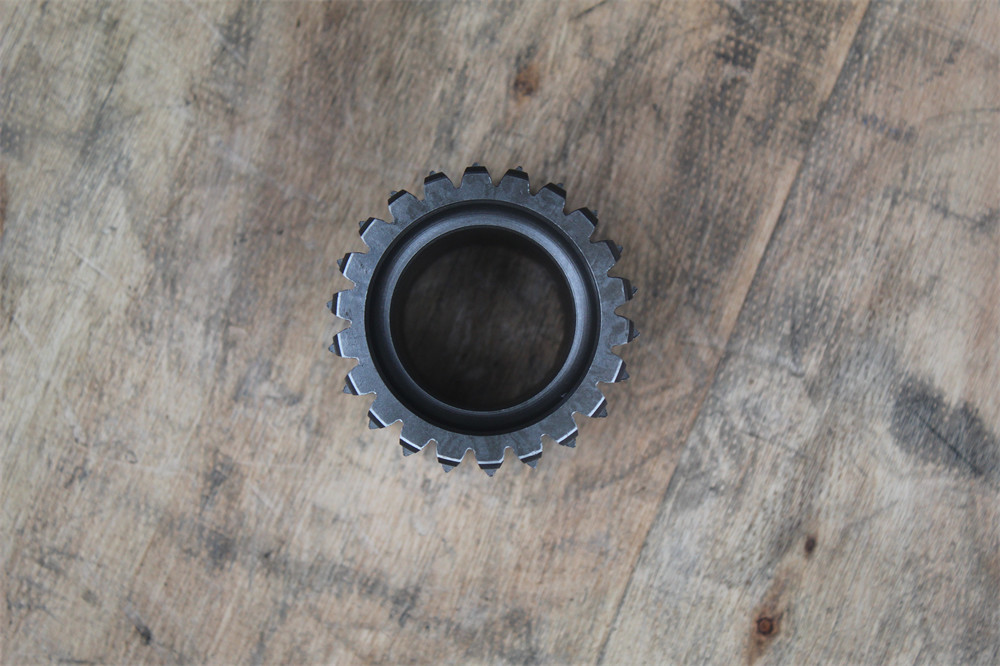

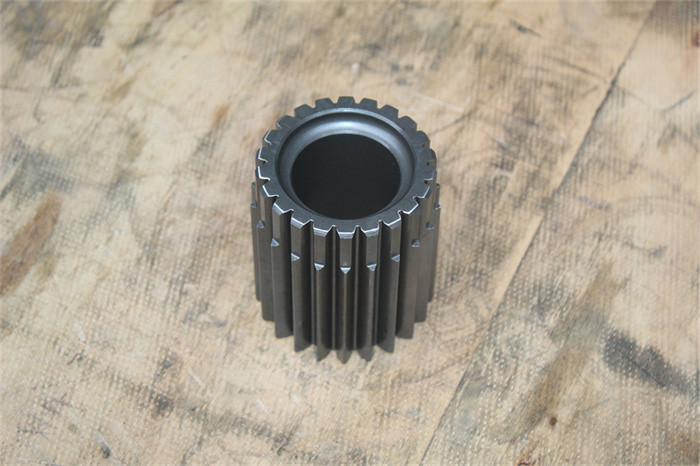

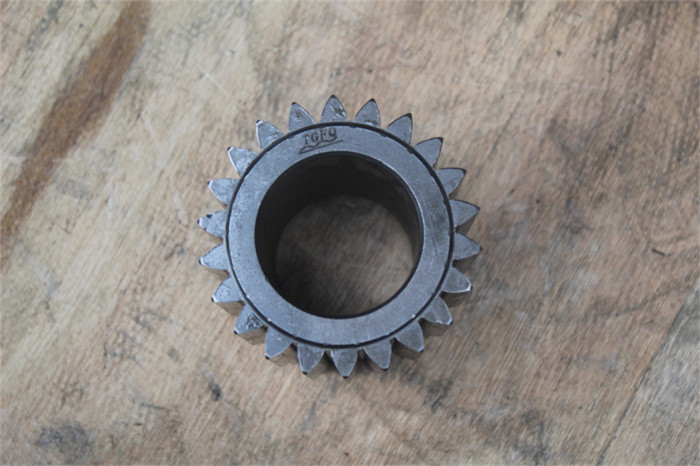

Swing Reduction Assembly Doosan Planetary Gear Parts DX300 101-00024 1st sun gear
Description
|
Brand: |
Belparts
|
|
Name: |
Swing gearbox 1st sun gear
|
|
Model: |
DX300LC DX300LCA SOLAR 300LC-V
|
|
Part number
|
101-00024 |
|
Delivery: |
By sea,by air,by express
|
|
After-sales service provided: |
Online support
|
|
Hight light: |
Donsan sun gear
|
|
Warranty: |
3 months
|
Drawing of the pump
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1002518B | [1] | REDUCTION GEAR;SWING | 130401-00021 |
| -. | K1002518 | [1] | REDUCTION GEAR;SWING | K1002518A |
| -. | K1002518A | [1] | REDUCTION GEAR;SWING | K1002518B |
| -. | 130401-00021 | [1] | ||
| 1. | 105-00011 | [1] | SHAFT | 105-00011A |
| 1. | 105-00011A | [1] | SHAFT | |
| 10. | 101-00024 | [1] | GEAR;SUN NO.1 | |
| 11. | 104-00041 | [4] | GEAR;PLANETARY NO.1 | |
| 12. | 223-00044 | [4] | PLATE;SIDE NO.1 | |
| 13. | 123-00457 | [4] | PIN ASS'Y | 120501-00457 |
| 13. | 120501-00457 | [4] | ||
| 14. | 104-00046 | [1] | GEAR;RING | |
| 15. | 223-00045 | [1] | PLATE;THRUST | |
| 17. | 705-00008 | [4] | PIN;LOCK | |
| 18. | 114-00543 | [1] | SPACER | |
| 19. | 114-00544 | [1] | COLLAR | |
| 2. | 245-00001 | [1] | ;GEAR | |
| 20. | 159-00233 | [1] | PLATE | |
| 21. | 278-00090 | [1] | RING;LOCK | |
| 22. | 109-00168 | [1] | BEARING;SPHERICAL ROLLER | |
| 23. | 109-00169 | [1] | BEARING;SPHERICAL ROLLER | |
| 24. | 180-00472 | [1] | SEAL;OIL | |
| 25. | S5741361 | [4] | PIN;SPRING | |
| 26. | 2181-1116D4 | [1] | PLUG | |
| 27. | S5810010 | [2] | PLUG | |
| 28. | 404-00092A | [1] | PINION;GEAR | |
| 29. | 120-00298 | [16] | BOLT;SOCKET M16X180 | |
| 3. | 230-00059 | [1] | CARRIER NO.2 | 230-00059A |
| 3. | 230-00059A | [1] | CARRIER NO.2 | |
| 30. | 140-01343A | [1] | PIPE | |
| 31. | 119-00020 | [1] | BAR;LEVEL | |
| 32. | 223-00046 | [4] | PLATE;SIDE NO.3 | 250122-00098 |
| 32. | 250122-00098 | [4] | ||
| 33. | S6500400 | [4] | RING,RETAINING | |
| 34. | 2120-1363 | [4] | BOLT | |
| 35. | 2403-1046A | [1] | COVER | |
| 36. | 2126-9001 | [1] | WIRE | |
| 37. | S6500450 | [1] | RING;SNAP | |
| 38. | 403-00013 | [1] | COVER | |
| 39. | 120-00293 | [16] | BOLT;SOCKET M16X40 | |
| 4. | 104-00045 | [1] | GEAR;SUN NO.2 | |
| 40. | 230-00066 | [1] | CARRIER NO.1 ASS'Y | 230-00066A |
| 40. | 230-00066A | [1] | ||
| 41. | 230-00067 | [1] | CARRIER NO.2 ASS'Y | |
| 5. | 104-00044 | [4] | GEAR;PLANETARY NO.2 | |
| 6. | 223-00043 | [4] | PLATE;SIDE NO.2 | |
| 7. | 123-00471 | [4] | SHAFT FOR PIN NO.2 | |
| 8. | 110-00231 | [4] | BUSH NO.2 | |
| 9. | 230-00058 | [1] | CARRIER NO.1 | 100502-00074 |
| 9. | 100502-00074 | [1] |
Company Adavantages
ØStrong part number database.
If you can provide the right model and part number, we can supply the right product.
ØProfessional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
ØStrict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
ØGood management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
ØGood service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
| Company Information |
Exhibition:
Factory:
Good reputation:
FAQ
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
Other planetary gear
The travel and swing gearbox parts we deal with 1st carrier, 2nd carrier, 3rd carrier, sun gear, gear shaft, vertical shaft, housing, hub, washer, planetary gear, pin, gear ring, cover, etc.
