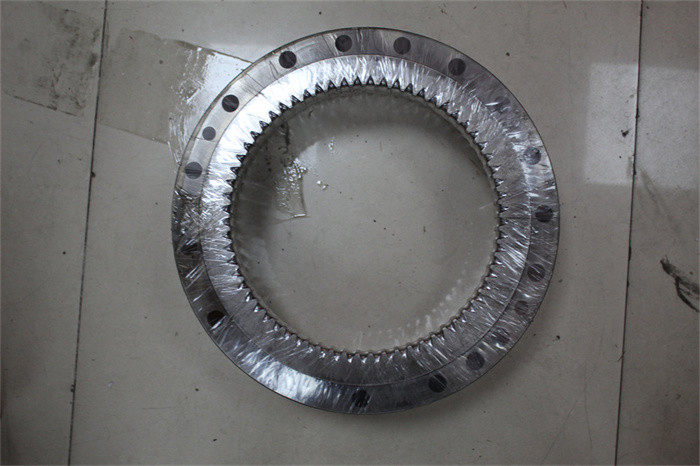

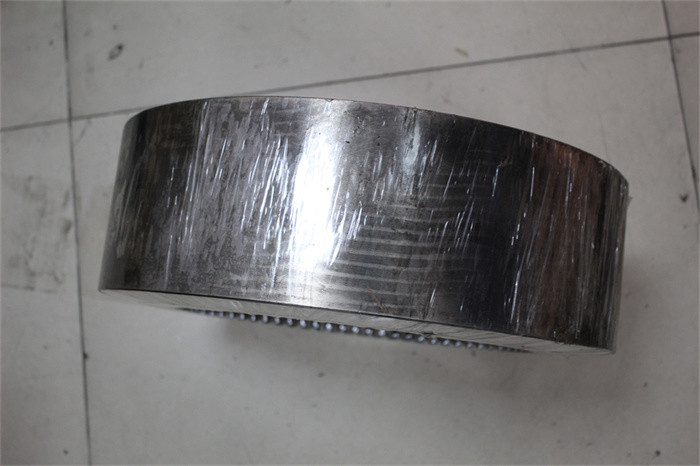

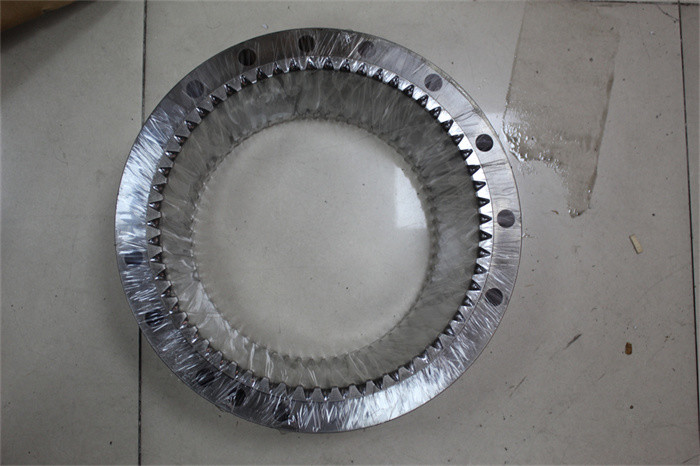

Swing Reduction Assembly Planetary Gear Parts SK250 SK480 LQ32W01005P1 Gear Ring
Description
|
Brand: |
Belparts
|
|
Name: |
Gear ring
|
|
Model: |
SK250-8 SK480-8 SK235SR-2 SK485-8
|
|
Part number
|
LQ32W01005P1 |
|
Delivery: |
By sea,by air,by express
|
|
After-sales service provided: |
Online support
|
|
Hight light: |
Hyundai sun gear
|
|
Warranty: |
3 months
|
Drawing of the pump
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | LQ32W00009F1 | [1] | GEAR REDUCTION UNIT | KOB ASSY, SWING |
| 1. | LQ32W01002P1 | [1] | DRIVEN SPROCKET | KOB SHAFT, PINION |
| 2. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB ID 109.40 ± 0.91 x OD 115mm |
| 3. | LQ32W01014P1 | [1] | BUSHING | KOB SLEEVE |
| 4. | LQ32W01021P1 | [1] | SEAL | KOB SEAL, OIL |
| 5. | 2418T17494 | [1] | SPACER | KOB |
| 6. | ZS23C10030 | [14] | SCREW,Hex Socket Head, M10 x 30mm | KOB M10x1.50x30mm Superseded by part number: ZS28C10030 |
| 7. | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| 8. | LQ32W01003P1 | [1] | RETAINER | KOB |
| 9. | LQ32W01016P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL |
| 10. | LQ32W01022P1 | [1] | BEARING ASSY | KOB HOUSING |
| 11. | LQ32W01012P1 | [1] | SPACER | KOB |
| 12. | ZS83C20030 | [2] | SCREW | KOB Set -- M20x2.50x30mm |
| 13. | 2420T6698D6 | [1] | PIPE | KOB |
| 14. | ZG31U12000 | [1] | ELBOW | KOB |
| 15. | LQ32W01015P1 | [1] | SPHERICAL BEARING | KOB SPHERICAL |
| 16. | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 17. | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 18. | LQ32W01010P1 | [1] | GEAR | KOB SUN |
| 19. | LQ32W01005P1 | [1] | RING GEAR | KOB |
| 20. | LQ32W01007F1 | [1] | SPIDER | KOB ASSY |
| 21. | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 22. | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 23. | LQ32W01018P1 | [8] | WASHER | KOB THRUST |
| 24. | LQ32W01009P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 25. | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB NEEDLE |
| 26. | LQ32W01013P1 | [8] | WASHER | KOB THRUST |
| 27. | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB NEEDLE |
| 28. | LQ32W01011P1 | [4] | DRIVEN SPROCKET | KOB PINION |
| 29. | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 30. | ZS23C14150 | [16] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm |
| 31. | LQ32W01027P1 | [1] | SHAFT, PLANETARY CAR | KOB GEAR, SUN |
| 32. | 2420T4530 | [2] | SCREW,M14 x 2 x 185mm | KOB M14x2.0x185mm |
Company Adavantages
ØStrong part number database.
If you can provide the right model and part number, we can supply the right product.
ØProfessional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
ØStrict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
ØGood management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
ØGood service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
| Company Information |
Exhibition:
Factory:
Good reputation:
FAQ
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
Other planetary gear
The travel and swing gearbox parts we deal with 1st carrier, 2nd carrier, 3rd carrier, sun gear, gear shaft, vertical shaft, housing, hub, washer, planetary gear, pin, gear ring, cover, etc.
