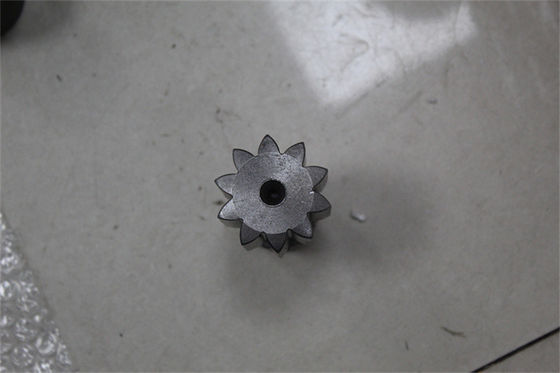

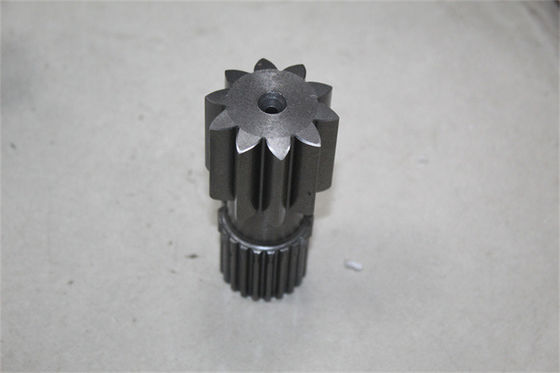

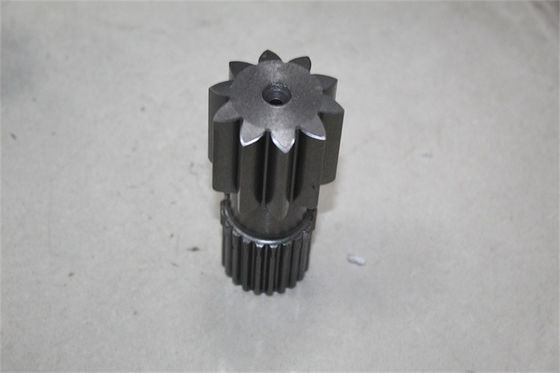

Travel Gearbox 1st Sun Gear Planetary Gear Parts R140 R300 XKAQ-00242 Travel Gearbox
| Place of Origin | China |
|---|---|
| Brand Name | Belparts |
| Model Number | R140LC-7 R140LC-7A R210LC-7 R210LC-7A |
| Minimum Order Quantity | 1 PC |
| Price | Negotiated Price |
| Packaging Details | Standard shipping package/wooden package/carton |
| Delivery Time | Within 2 working days |
| Payment Terms | T/T,Paypal, trade assurance |
| Supply Ability | 1000PCS/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Model | R250LC-9 R300LC-9A R320LC-9 R330LC-9SH | Part Number | XKAQ-00402 XKAQ-00242 |
|---|---|---|---|
| Name | Travel Gearbox 1st Sun Gear | Appliion | Crawler Excavator |
| Quality | Aftermatket | Warranty | 3 Months |
| Highlight | XKAQ-00242 Planetary Gear Parts,R300 Planetary Gear Parts,R140 Planetary Gear Parts |
||
Product Description
Travel gearbox 2nd planetary gear parts R250LC R300LC XKAQ-00535 Travel gearbox
Description
|
Brand: |
Belparts
|
|
Name: |
Travel gearbox 2nd planetary gear
|
|
Model: |
R250LC-9 R300LC-9A R320LC-9 R330LC-9SH
|
|
Part number |
XKAQ-00402 XKAQ-00242 |
|
Delivery: |
By sea,By air,By express
|
|
After-sales Service Provided: |
Online support
|
|
Hight light: |
Hyundai planetary gear
|
|
Warranty: |
3 months
|
Drawing of the pump
Parts of group travel reduction gear
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4151 |
1 | |
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4151 |
1 | |
| *-2 | 31N6-40040 | T/REDUCTION GEAR | 1 | |
| *-2 | 31N6-40041 | T/REDUCTION GEAR | 1 | |
| *-2 | 31N6-40041BG | T/REDUCTION GEAR | 1 | |
| N1 | XKAQ-00217 | HOUSING | 1 | |
| 2 | XKAQ-00218 | BEARING-MAIN | 2 | |
| 3 | XKAQ-00219 | SEAL-FLOATING | 1 | |
| 4 | XKAQ-00220 | SHIM | 1 | |
| 5 | XKAQ-00221 | RETAINER | 1 | |
| 6 | XKAQ-00222 | BOLT-HEX | 12 | |
| 7 | XKAQ-00223 | PIN-PARALLEL | 2 | |
| N8 | XKAQ-00224 | GEAR-RING | 1 | |
| 9 | XKAQ-00225 | COUPLING | 1 | |
| 10 | XKAQ-00226 | CARRIER ASSY 2 | 1 | |
| 10-1 | XKAQ-00227 | CARRIER 2 ILL.CHANGE |
1 | |
| 10-2 | XKAQ-00228 | GEAR PLANET 2 ILL.CHANGE |
4 | |
| 10-3 | XKAQ-00229 | BEARING-NEEDLE 2 | 8 | |
| 10-4 | XKAQ-00230 | WASHER-THRUST | 8 | |
| 10-5 | XKAQ-00231 | PIN 2 | 4 | |
| 10-6 | XKAQ-00232 | PIN-SPRING | 4 | |
| 10-7 | XKAQ-00208 | RING-THRUST 1 | 2 | |
| 11 | XKAQ-00653 | CARRIER 1 ASSY | 1 | |
| 11-1 | XKAQ-00234 | CARRIER 1 | 1 | |
| 11-2 | XKAQ-00235 | GEAR-SUN 2 | 1 | |
| 11-3 | XKAQ-00236 | RING-RETAINING | 1 | |
| 11-4 | XKAQ-00237 | GEAR-PLANET 1 | 3 | |
| 11-5 | XKAQ-00238 | BEARNG-NEEDLE 1 | 3 | |
| 11-6 | XKAQ-00239 | WASHER-THRUST | 6 | |
| 11-6 | XKAQ-00657 | WASHER-THRUST | 6 | |
| 11-7 | XKAQ-00240 | PIN 1 | 3 | |
| 11-8 | XKAQ-00241 | PIN-SPRING | 3 | |
| 11-9 | XKAQ-00655 | PIN-SPRING | 3 | |
| 12 | XKAQ-00242 | GEAR-SUN 1 | 1 | |
| 12 | XKAQ-00402 | GEAR-SUN 1 | 1 | |
| 13 | XKAQ-00243 | COVER | 1 | |
| 14 | XKAQ-00214 | PAD | 1 | |
| 15 | XKAQ-00244 | BOLT-HEX SOCKET | 20 | |
| 16 | XKAQ-00245 | SCREW-HEX SOCKET | 2 | |
| 17 | XKAQ-00246 | PLUG-HYDRAULIC | 3 | |
| 18 | XKAQ-00247 | O-RING | 3 | |
| 19 | XKAQ-00248 | NAME PLATE | 1 |
