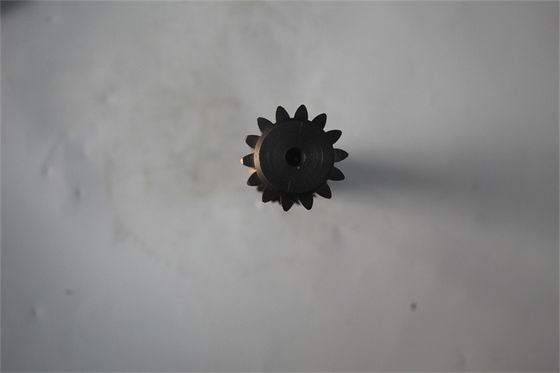

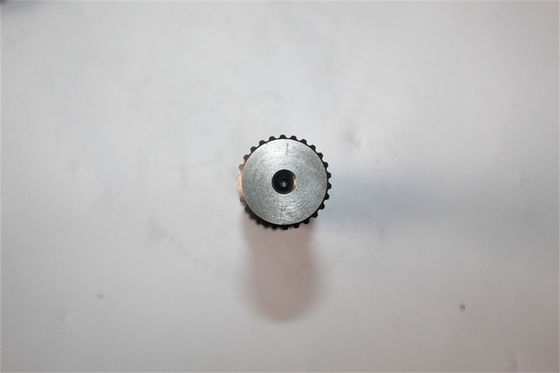

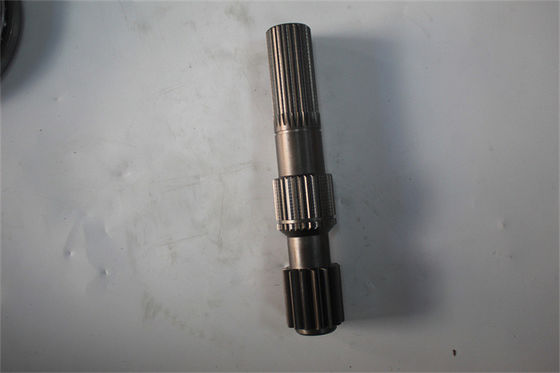

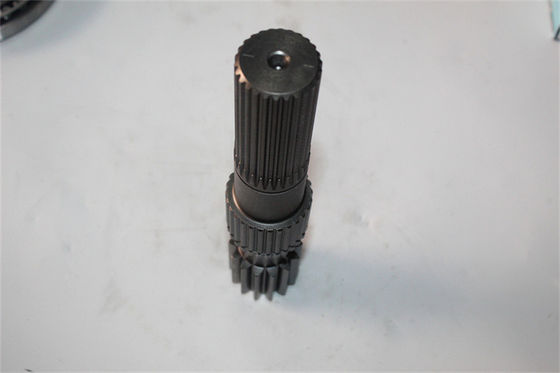

Doosan Hyundai Before the Sun Round Planetary Gear Parts S130W 4472319157 Swing Motor
Description
|
Brand: |
Belparts
|
|
Name: |
Before the Sun Round
|
|
Model: |
S130W R170W-7
|
|
Part number
|
4472319157 |
|
Delivery: |
By sea,by air,by express
|
|
After-sales service provided: |
Online support
|
|
Hight light: |
Hyundai sun gear
|
|
Warranty: |
3 months
|
Drawing of the pump
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 0750 110 156 | [2] | SEAL;SHAFT | |
| 10. | 0730 502 079 | [2] | RING;RETAINING | |
| 11. | 4472 319 218 | [2] | GEAR;RING | |
| 12. | 4472 319 220 | [2] | PISTON | |
| 13. | 0734 317 249 | [4] | U-RING | |
| 14. | 0501 314 506 | [2] | RING;SUPPORT | |
| 16. | 0501 314 461 | [2] | RING | |
| 17. | 4472 319 102 | [2] | SHIM;SUPPORT | |
| 18. | 0632 041 095 | [12] | SPRING;COMPR. | |
| 19. | 0637 011 591 | [12] | NUT;LOCKING | |
| 2. | 0735 370 269 | [2] | BEARING;ROLLER | |
| 20. | 0636 104 158 | [12] | SCREW;CAP | |
| 21. | 4472 320 071 | [12] | SLEEVE;SPRING | |
| 22. | 4462 305 079 | [10] | DISC;O.CLUTCH A=2.0 | |
| 22. | 4462 305 080 | [10] | DISC;O.CLUTCH A=2.5 | |
| 22. | 4462 305 081 | [10] | DISC;O.CLUTCH A=3.0 | |
| 23. | 0501 314 381 | [8] | DISC;I.CLUTCH | |
| 24. | 4462 305 077 | [2] | SHIM;END | |
| 25. | 0630 502 187 | [2] | RING;RETAINING | |
| 26. | 0730 106 288 | [2] | WASHER;THRUST | |
| 27. | 4472 319 157 | [2] | SHAFT;SUN GEAR | |
| 28. | 4472 377 037 | [2] | CARRIER;DISK | |
| 29. | 0630 531 057 | [2] | RING;RETAINING | |
| 3. | 0730 161 833 | [2] | RING;OPTIONAL S=15.2 | |
| 3. | 0730 161 832 | [2] | RING;OPTIONAL S=15.0 | |
| 3. | 0730 161 831 | [2] | RING;OPTIONAL S=14.8 | |
| 3. | 0730 161 830 | [2] | RING;OPTIONAL S=14.6 | |
| 3. | 0730 161 829 | [2] | RING;OPTIONAL S=14.4 | |
| 3. | 0730 161 828 | [2] | RING;OPTIONAL S=14.2 | |
| 3. | 0730 161 827 | [2] | RING;OPTIONAL S=14.0 | |
| 3. | 0730 162 560 | [2] | RING;OPTIONAL S=14.42 | |
| 3. | 0730 162 561 | [2] | RING;OPTIONAL S=14.45 | |
| 3. | 0730 162 562 | [2] | RING;OPTIONAL S=14.48 | |
| 3. | 0730 162 563 | [2] | RING;OPTIONAL S=14.51 | |
| 3. | 0730 162 564 | [2] | RING;OPTIONAL S=14.54 | |
| 30. | 0630 502 075 | [2] | RING;RETAINING | |
| 31. | 4472 386 005 | [2] | CARRIER;PLANET | |
| 32. | 4472 364 006 | [6] | GEAR;PLANET | |
| 33. | 0735 455 281 | [6] | BEARING;ROLLER | |
| 34. | 0501 309 954 | [12] | RING;ANGLE | |
| 35. | 0630 501 029 | [6] | RING;RETAINING | |
| 36. | 0730 104 159 | [2] | WASHER;THRUST OPTIONAL S=1.5 | |
| 36. | 0730 104 160 | [2] | WASHER;THRUST OPTIONAL S=2.0 | |
| 36. | 0730 105 126 | [2] | WASHER;THRUST OPTIONAL S=2.5 | |
| 36. | 0730 105 385 | [2] | WASHER;THRUST OPTIONAL S=3.0 | |
| 36. | 0730 105 400 | [2] | WASHER;THRUST OPTIONAL S=1.7 | |
| 36. | 0730 105 401 | [2] | WASHER;THRUST OPTIONAL S=2.2 | |
| 36. | 0730 105 800 | [2] | WASHER;THRUST OPTIONAL S=2.7 | |
| 37. | 0634 303 485 | [2] | O-RING | |
| 38. | 0736 302 046 | [2] | PLUG;SCREW | |
| 39. | 0636 102 041 | [4] | SCREW;CAP | |
| 4. | 0750 117 167 | [2] | BEARING;ROLLER | |
| 40. | 4472 319 208 | [16] | BOLT;WHEEL | |
| 41. | 0630 307 004 | [16] | WASHER;SPRING | |
| 42. | 0750 101 082 | [16] | RING;CENTERING | |
| 43. | 0637 018 009 | [16] | NUT;WHEEL | |
| 44. | 0636 302 003 | [2] | PLUG;SCREW | |
| 45. | 0634 306 523 | [2] | O-RING | |
| 5. | 4472 373 226 | [2] | HUB | |
| 6. | 0634 303 227 | [2] | O-RING | |
| 7. | 0631 405 028 | [8] | PLUG | |
| 8. | 0634 313 188 | [4] | O-RING | |
| 9. | 0730 005 271 | [2] | RING;ANGLE |
Company Adavantages
ØStrong part number database.
If you can provide the right model and part number, we can supply the right product.
ØProfessional and experienced salesperson.
Our founder has been into this field for more than 7 years, with rich experiences.
ØStrict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
ØGood management system.
No matter how big or small order, as long as customers place the order, we will provide exporting service free for charge.
ØGood service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place.As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
| Company Information |
Exhibition:
Factory:
Good reputation:
FAQ
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
Other planetary gear
The travel and swing gearbox parts we deal with 1st carrier, 2nd carrier, 3rd carrier, sun gear, gear shaft, vertical shaft, housing, hub, washer, planetary gear, pin, gear ring, cover, etc.
