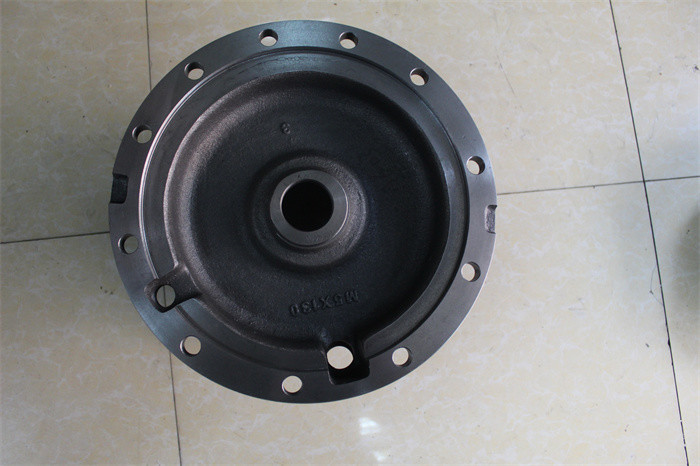

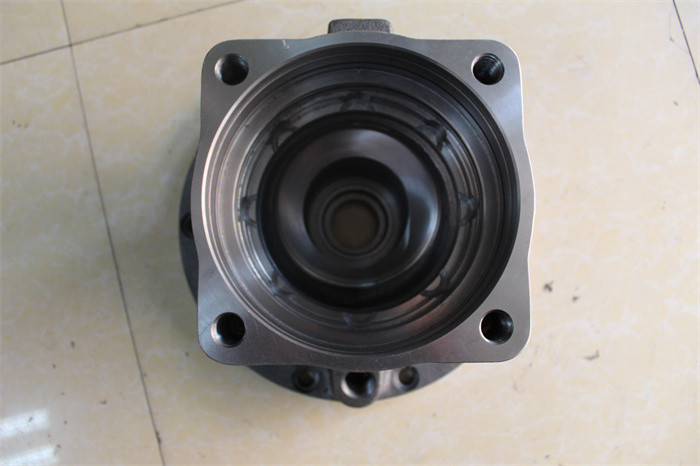

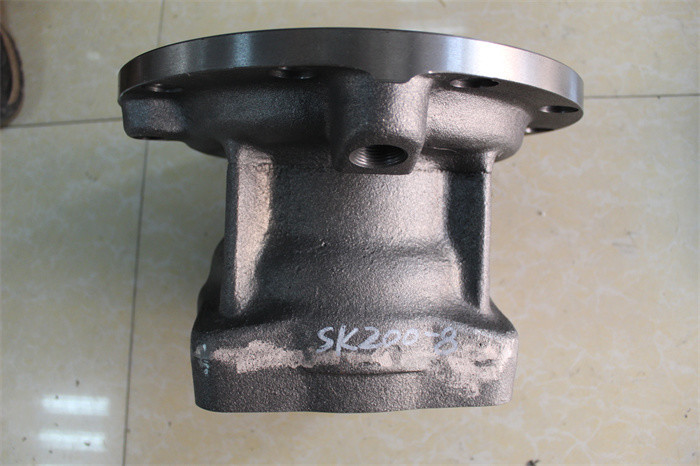

Kobelco Planetary Gear Parts SK200 SK170 YN15V00035S301 Swing Motor Housing
Description
|
Brand: |
Belparts
|
|
Name: |
Swing motor housing
|
|
Model: |
SK200-8 SK170-8 SK210-9 SK215SRLC
|
|
part number
|
YN15V00035S301 |
|
Delivery: |
By sea,By air,By express
|
|
After-sales Service Provided: |
Online support
|
|
Hight light: |
Kobelco swing motor housing
|
|
Warranty: |
3 months
|
Drawing of the pump
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN15V00035F1 | [1] | HYDRAULIC MOTOR | SM Assy (Swing) Superseded by part number: YN15V00055F1 |
| 51. | YN22V00014FA | [2] | VALVE | KOB Assy, Relief (See HC325) |
| 52. | YN20V00004F1 | [1] | VALVE | KOB Assy, Swing-reactionless (See HC315) |
| 101. | YN15V00025S101 | [1] | SHAFT | KOB |
| 111. | YN15V00025S111 | [1] | CYLINDER | KOB |
| 114. | YN15V00025S114 | [1] | SPRING | KOB |
| 121. | NSS | [9] | NOT SOLD SEPARAT | CON Piston |
| 122. | NSS | [9] | NOT SOLD SEPARAT | CON Shoe |
| 123. | YN15V00025S123 | [1] | PLATE | KOB Set |
| 124. | YN15V00025S124 | [1] | PLATE | KOB Shoe |
| 131. | YN15V00025S131 | [1] | PLATE | KOB Valve |
| 301. | YN15V00035S301 | [1] | BOX | SM |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 351. | YN15V00025S351 | [2] | SPOOL | KOB Plunger |
| 355. | YN15V00002S355 | [2] | SPRING | KOB |
| 390. | YB15V00003S390 | [1] | PLATE | KOB Name Plate not serviced |
| 391. | 2437U407S983 | [2] | RIVET | KOB Pin |
| 401. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOB |
| 443. | YN15V00002S011 | [1] | ROLLER BEARING | KOB Roller |
| 444. | LQ15V00008S010 | [1] | ROLLER BEARING | KOB Roller |
| 451. | NSS | [2] | NOT SOLD SEPARAT | CON Pin |
| 469. | YN15V00002S012 | [2] | PLUG | KOB |
| 472. | YN15V00025S489 | [1] | O-RING,3.5mm Thk x 173mm ID, 75 Duro | KOB |
| 488. | ZD12P02800 | [2] | O-RING | KOB |
| 491. | YN15V00035S491 | [1] | OIL SEAL | SM Oil Seal |
| 702. | YN15V00002S014 | [1] | PISTON | KOB Brake |
| 706. | 2441U736S706 | [1] | O-RING | KOB |
| 707. | 2415U188S707 | [1] | O-RING | KOB |
| 712. | YN15V00025S712 | [18] | SPRING,ID1.1mm : OD1.8mm : W=3.7mm (this is spring) | KOB |
| 742. | YN15V00025S742 | [3] | PLATE,ID14mm : OD15.5mm : W=1.7mm | KOB Friction |
| 743. | YN15V00025S743 | [4] | PLATE,ID14mm : OD15.5mm : W=2mm | KOB Separator |
| 980. | YN15V00035S980 | [1] | PLUG | SM |
| 984. | YN15V00035S984 | [1] | PLUG | SM |
| 985. | YN15V00035S985 | [3] | PLUG | SM |
| 993. | ZE82T08000 | [1] | PLUG | KOB |
| 994. | ZE82T12000 | [1] | PLUG | KOB |
| . . | YN15V00025R100 | [1] | REPAIR KIT | KOB Consists Of Ref. 121x9, 122x9 |
| . . | YN15V00025R200 | [1] | REPAIR KIT | KOB Consists Of Ref. 303x1, 451x2 |
| . . | YM15V00006R100 | [1] | KIT | SM Repair Consists Of Ref. 472x1, 488x2, 491x1 |
