XKAH-01427 Hyundai R330 R320 Planetary Gear Parts Swing Gearbox 2nd Sun Gear
| Place of Origin | China |
|---|---|
| Brand Name | Belparts |
| Model Number | R330LC-9S R330LC-9 R320LC-9 R330LC-9A |
| Minimum Order Quantity | 1PC |
| Price | Negotiated price |
| Packaging Details | Wooden /Carton/Standard shipping package |
| Delivery Time | Within 2 working days |
| Payment Terms | T/T, trade assurance,,Paypal |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Sun Gear | Machine Moldel | R330LC-9S R330LC-9 R320LC-9 R330LC-9A |
|---|---|---|---|
| Part Number | XKAH-01427 | Quality | After Market |
| MOQ | 1PC | Warranty | 3 Months |
| Highlight | R320 Planetary Gear Parts,R330 Planetary Gear Parts,XKAH-01427 Planetary Gear Parts |
||
Product Description

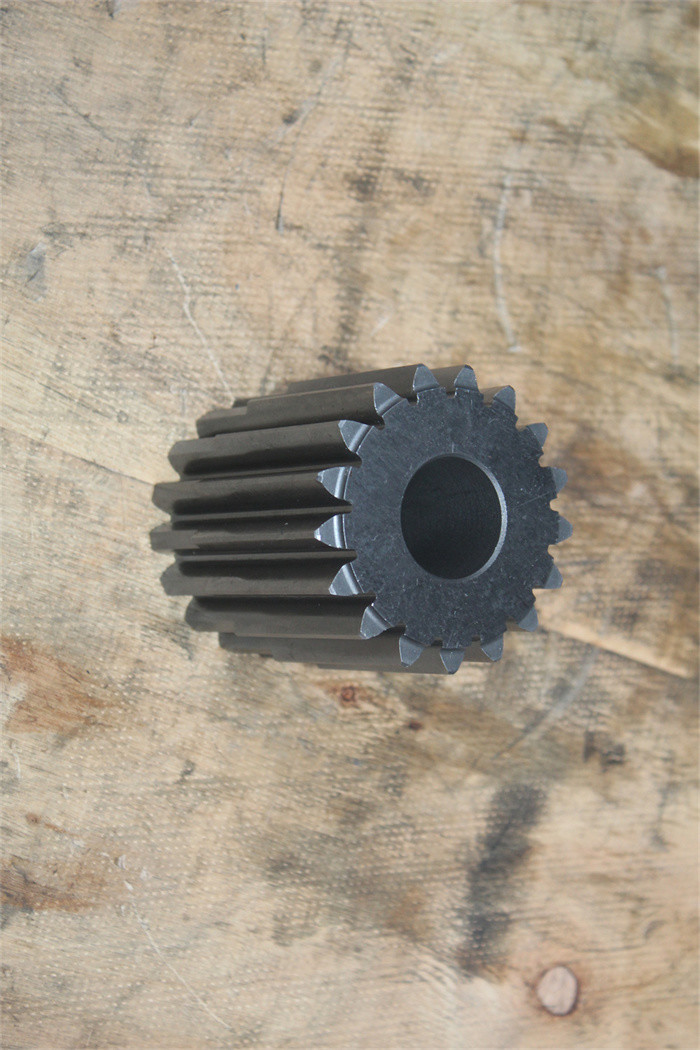

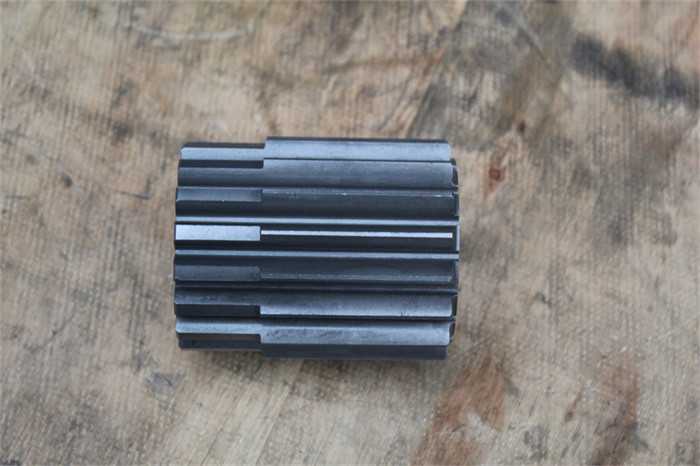

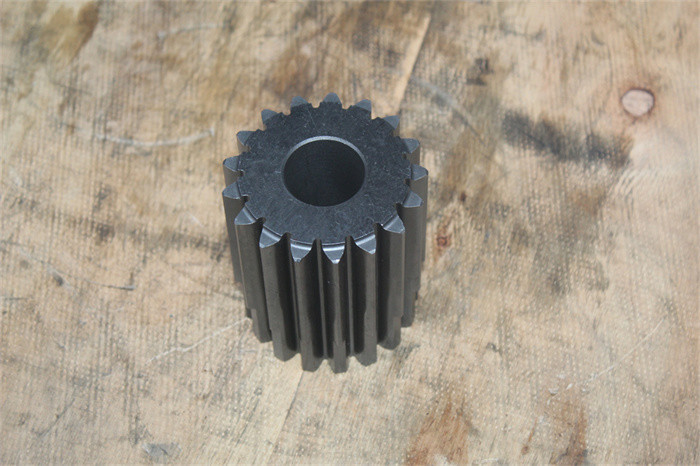

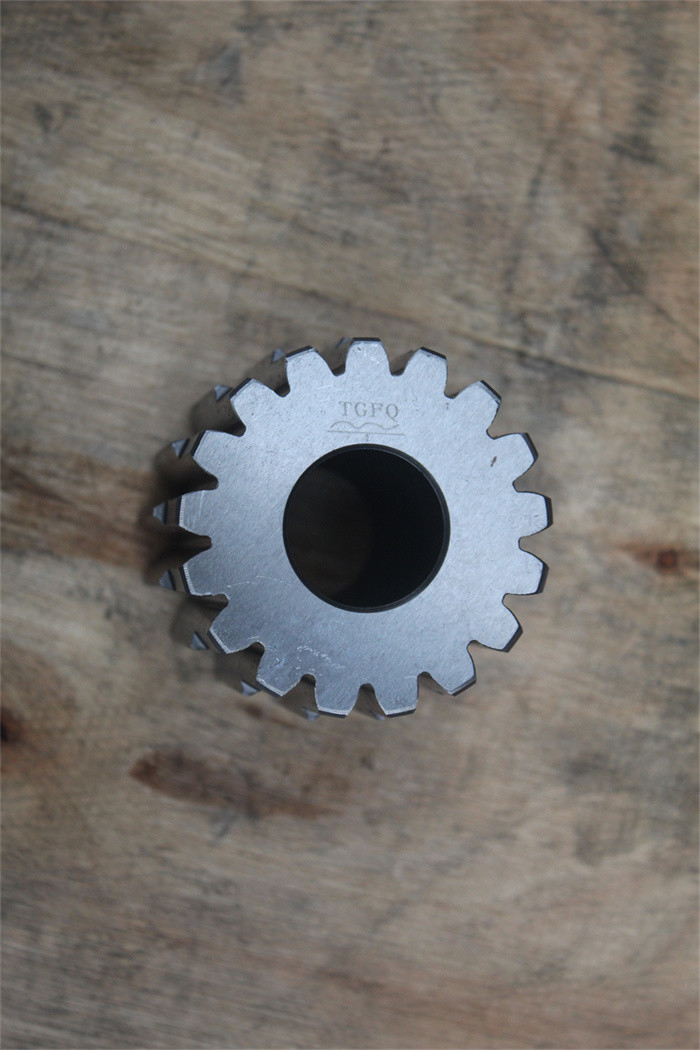

XKAH-01427 Hyundai R330 R320 Planetary Gear Parts Swing Gearbox 2nd Sun Gear
Description
| Appliion | Excavator |
| Part name | Sun gear |
| Model | Hyundai |
| Model | R330LC-9S R330LC-9 R320LC-9 R330LC-9A |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | XKAH-01427 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures
Drawing of the planrtary gear
Parts on group swing reduction gear
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | XKAH-01597 | [1] | SWING REDUCTION GEAR | |
| 201. | XKAH-01425 | [1] | CASING | |
| 202. | XKAH-01426 | [1] | SHAFT-PINION | |
| 203. | XKAH-01240 | [1] | PLATE-PRELOAD | |
| 204. | XKAH-01241 | [1] | CARRIER 2 | |
| 205. | XKAH-01242 | [4] | GEAR-PLANET 2 | |
| 206. | XKAH-01243 | [4] | PIN | |
| 207. | XKAH-01244 | [4] | BUSHING | |
| 208. | XKAH-01245 | [1] | CARRIER 1 | |
| 209. | XKAH-01246 | [3] | GEAR-PLANET 1 | |
| 210. | XKAH-01247 | [6] | WASHER-THRUST 1 | |
| 211. | XKAH-01427 | [1] | GEAR-SUN 2 | |
| 212. | XKAH-01249 | [1] | GEAR-SUN 1 | |
| 213. | XKAH-01428 | [1] | GEAR-RING | |
| 214. | XKAH-01251 | [1] | COVER | |
| 215. | XKAH-01252 | [8] | WASHER-THRUST 2 | |
| 216. | XKAH-01253 | [1] | PLATE-THRUST | |
| 217. | XKAH-01254 | [1] | WASHER-THRUST | |
| K218. | XKAH-01255 | [1] | SEAL-OIL | |
| 219. | XKAH-01256 | [8] | BOLT-SOCKET | |
| 220. | XKAH-01257 | [1] | ROLLER BEARING | |
| 221. | XKAH-01429 | [1] | ROLLER BEARING | |
| 222. | XKAH-01259 | [4] | PIN-SPRING | |
| 223. | XKAH-01260 | [12] | BOLT-SOCKET | |
| 224. | XKAH-01261 | [1] | BOLT-HEX | |
| 225. | XKAH-01003 | [3] | BEARING-NEEDLE | |
| 226. | XKAH-01262 | [3] | RING-INNER | |
| 227. | XKAH-01263 | [1] | BOLT-SOCKET | |
| 228. | XKAH-00977 | [2] | PLUG | |
| 229. | XKAH-00026 | [1] | RING-SNAP | |
| 230. | XKAH-01264 | [6] | MAGNET | |
| 231. | XKAH-01216 | [3] | SCREW | |
| 232. | XKAH-01430 | [1] | CONECTOR | |
| 233. | XKAH-01431 | [1] | HOSE ASSY | |
| 234. | XKAH-01432 | [1] | VALVE-DRAIN | |
| 235. | XKAH-01433 | [3] | PIN | |
| 236. | XKAH-01266 | [1] | LEVEL GAUGE ASSY | |
| 237. | XKAH-01267 | [1] | AIR BREATHER ASSY | |
| N. | XKAH-01424 | [1] | SEAL KIT | SEE ILLUST |
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
About company
Excavator parts
Good reputation
Other planetary gear
The travel and swing gearbox parts we deal with 1st carrier, 2nd carrier, 3rd carrier, sun gear, gear shaft, vertical shaft, housing, hub, washer, planetary gear, pin, gear ring, cover, etc.
