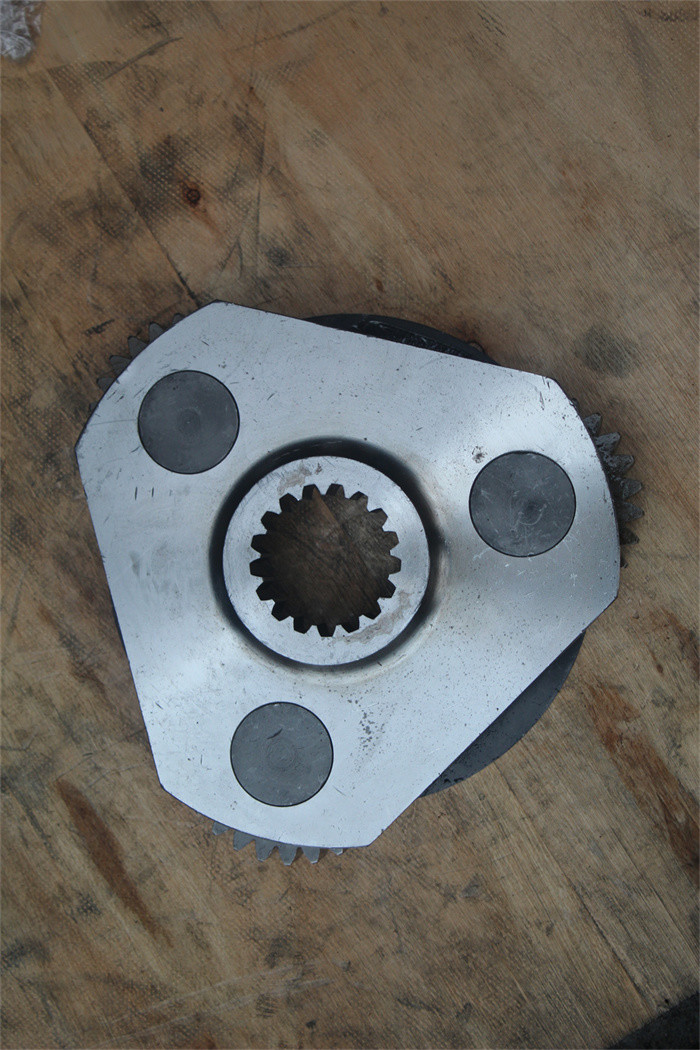

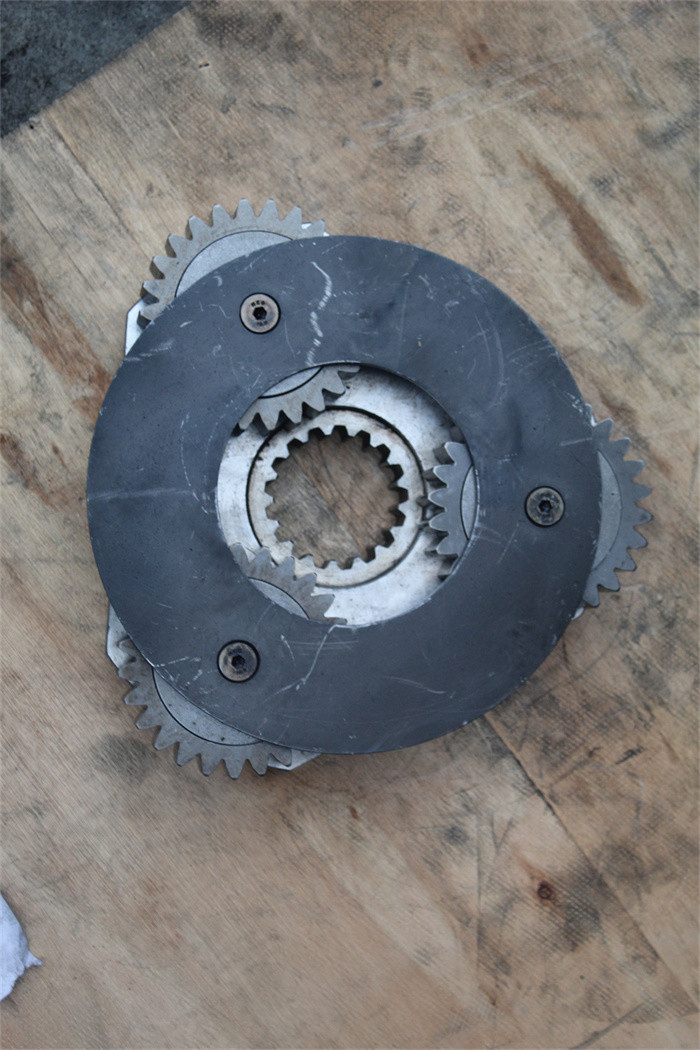

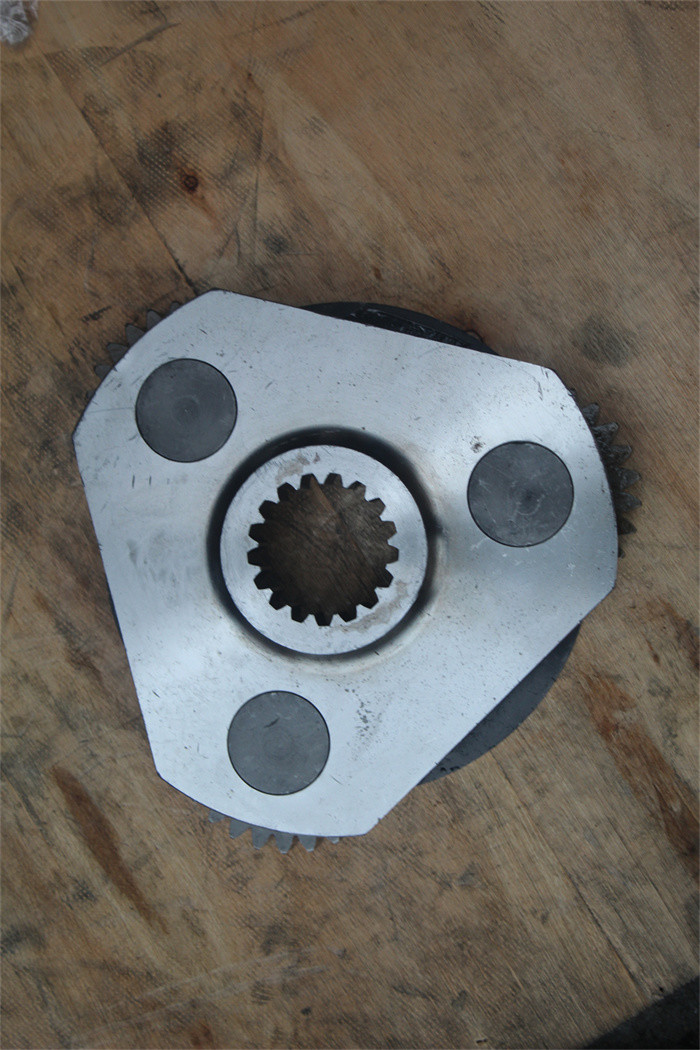

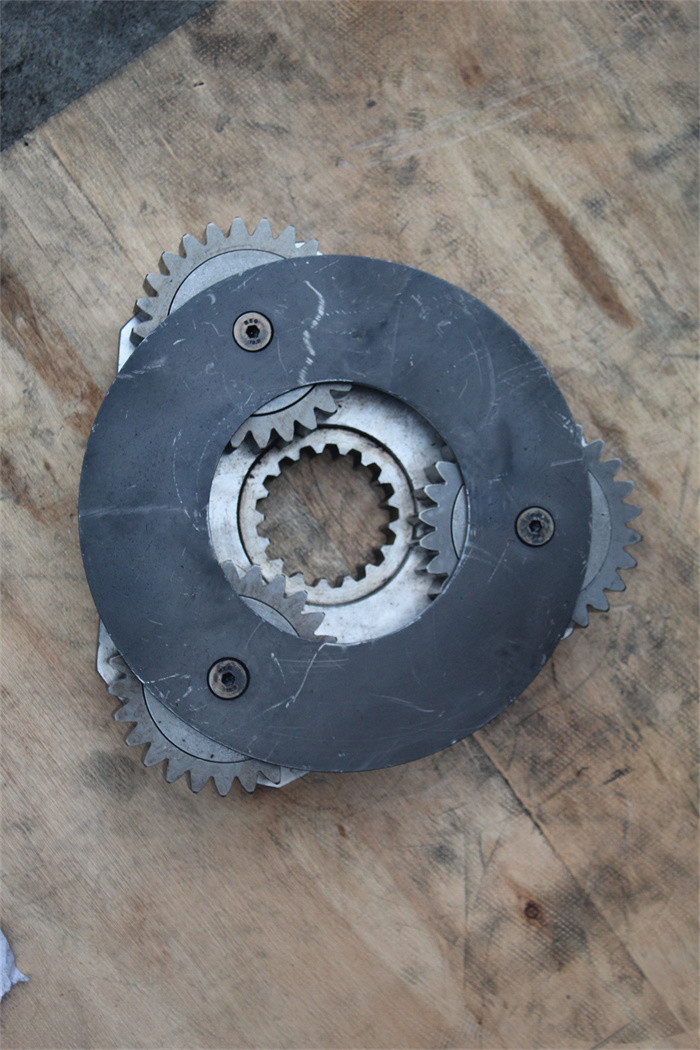

Hyundai R330 R320 Planetary Gear Parts XKAH-01245 Swing gearbox 1st planetary holder
Description
| Appliion | Excavator |
| Part name | planetary holder |
| Model | Hyundai |
| Model | R320LC-9 R330LC-9S R330LC-9 R330LC-9A |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | XKAH-01245 |
| Delivery Time | Within 2 days after receiving the payment |
Pictures
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | XKAH-01597 | [1] | SWING REDUCTION GEAR | |
| 201. | XKAH-01425 | [1] | CASING | |
| 202. | XKAH-01426 | [1] | SHAFT-PINION | |
| 203. | XKAH-01240 | [1] | PLATE-PRELOAD | |
| 204. | XKAH-01241 | [1] | CARRIER 2 | |
| 205. | XKAH-01242 | [4] | GEAR-PLANET 2 | |
| 206. | XKAH-01243 | [4] | PIN | |
| 207. | XKAH-01244 | [4] | BUSHING | |
| 208. | XKAH-01245 | [1] | CARRIER 1 | |
| 209. | XKAH-01246 | [3] | GEAR-PLANET 1 | |
| 210. | XKAH-01247 | [6] | WASHER-THRUST 1 | |
| 211. | XKAH-01427 | [1] | GEAR-SUN 2 | |
| 212. | XKAH-01249 | [1] | GEAR-SUN 1 | |
| 213. | XKAH-01428 | [1] | GEAR-RING | |
| 214. | XKAH-01251 | [1] | COVER | |
| 215. | XKAH-01252 | [8] | WASHER-THRUST 2 | |
| 216. | XKAH-01253 | [1] | PLATE-THRUST | |
| 217. | XKAH-01254 | [1] | WASHER-THRUST | |
| K218. | XKAH-01255 | [1] | SEAL-OIL | |
| 219. | XKAH-01256 | [8] | BOLT-SOCKET | |
| 220. | XKAH-01257 | [1] | ROLLER BEARING | |
| 221. | XKAH-01429 | [1] | ROLLER BEARING | |
| 222. | XKAH-01259 | [4] | PIN-SPRING | |
| 223. | XKAH-01260 | [12] | BOLT-SOCKET | |
| 224. | XKAH-01261 | [1] | BOLT-HEX | |
| 225. | XKAH-01003 | [3] | BEARING-NEEDLE | |
| 226. | XKAH-01262 | [3] | RING-INNER | |
| 227. | XKAH-01263 | [1] | BOLT-SOCKET | |
| 228. | XKAH-00977 | [2] | PLUG | |
| 229. | XKAH-00026 | [1] | RING-SNAP | |
| 230. | XKAH-01264 | [6] | MAGNET | |
| 231. | XKAH-01216 | [3] | SCREW | |
| 232. | XKAH-01430 | [1] | CONECTOR | |
| 233. | XKAH-01431 | [1] | HOSE ASSY | |
| 234. | XKAH-01432 | [1] | VALVE-DRAIN | |
| 235. | XKAH-01433 | [3] | PIN | |
| 236. | XKAH-01266 | [1] | LEVEL GAUGE ASSY | |
| 237. | XKAH-01267 | [1] | AIR BREATHER ASSY | |
| N. | XKAH-01424 | [1] | SEAL KIT | SEE ILLUST |
Our main products:
Our main products are excavator hydraulic pump, hydraulic spare parts, travel motor, swing motor, final drive assembly, swing device assembly, travel geabox, swing gearbox, gears, pilot pump, fan motor, relief valve.
