Hyundai R250LC R320LC Planetary Gear Parts XKAQ-00399 Travel Gearbox 2nd Carrier
| Place of Origin | China |
|---|---|
| Brand Name | Belparts |
| Model Number | R320LC-9 R300LC-7 R305LC-7 R290LC-7 |
| Minimum Order Quantity | 1PC |
| Price | Negotiated price |
| Packaging Details | Wooden /Carton/Standard shipping package |
| Delivery Time | Within 2 working days |
| Payment Terms | T/T, trade assurance,,Paypal |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Planetary Gear | Machine Moldel | R320LC-9 R300LC-7 R305LC-7 R290LC-7 |
|---|---|---|---|
| Part Number | XKAQ-00399 | Quality | After Market |
| MOQ | 1PC | Warranty | 3 Months |
| Highlight | R320LC Planetary Gear Parts,R250LC Planetary Gear Parts,XKAQ-00399 Planetary Gear Parts |
||
Product Description
Hyundai R250LC R320LC Planetary Gear Parts XKAQ-00399 Travel Gearbox 2nd Carrier
Description
| Appliion | Excavator |
| Part name | Sun gear |
| Model | Hyundai |
| Model | R320LC-9 R300LC-7 R305LC-7 R290LC-7 |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | XKAQ-00399 |
| Delivery Time | Within 2 days after receiving the payment |

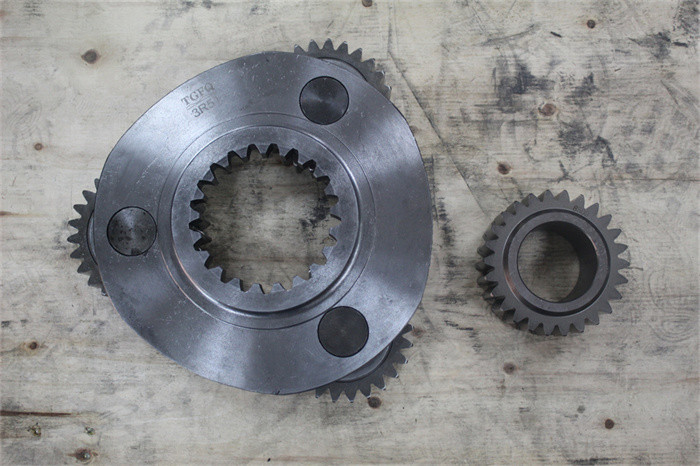

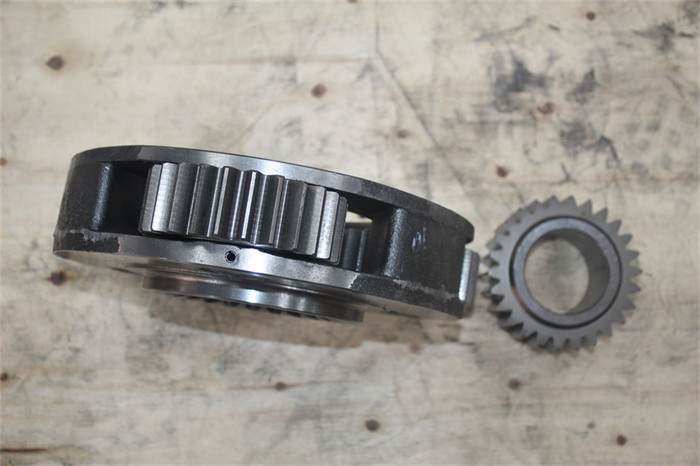

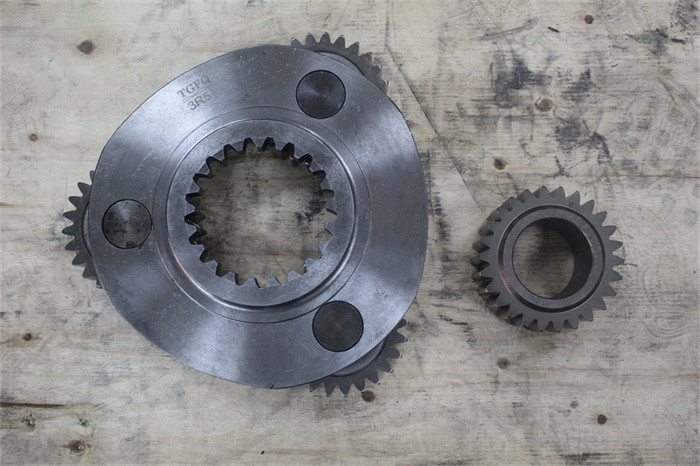

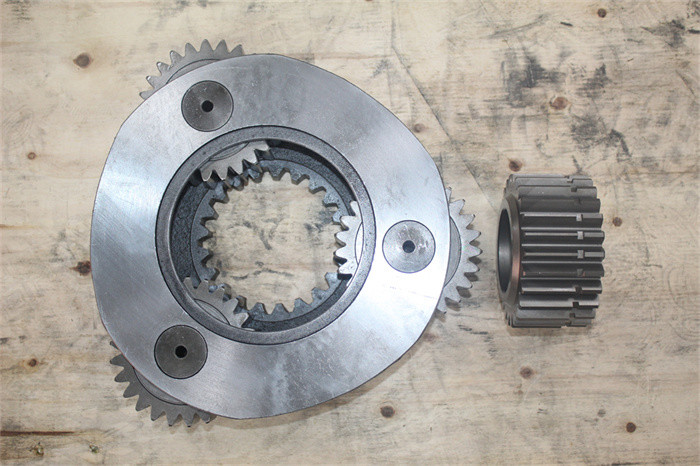

Pictures
Drawing of the planrtary gear
Parts on group travel reduction gear
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *-2. | 31N8-40070 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40070BG | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071BG | [1] | T/REDUCTION GEAR | |
| 2. | XKAQ-00173 | [1] | SEAL-FLOATING | |
| 3. | XKAQ-00174 | [1] | HOUSING | |
| 4. | XKAQ-00175 | [2] | BEARING-ANGULAR | |
| 4. | XKAQ-00175-AS | [2] | BEARING-ANGULAR | FOR AS ONLY |
| 5. | XKAQ-00176 | [1] | SHIM | STD |
| 5. | XKAQ-00992 | [1] | SHIM | 0.5T |
| 5. | XKAQ-00993 | [1] | SHIM | 0.9T |
| 5. | XKAQ-00994 | [1] | SHIM | 1.0T |
| 5. | XKAQ-00995 | [1] | SHIM | 1.2T |
| 6. | XKAQ-00177 | [1] | RETAINER | |
| 7. | XKAQ-00178 | [17] | BOLT-WRENCH | |
| 8. | XKAQ-00179 | [1] | CARRIER ASSY-NO.3 | |
| 8. | XKAQ-00398 | [1] | CARRIER 3 ASSY | |
| 8-1. | XKAQ-00180 | [1] | CARRIER-NO.3 | |
| 8-1. | XKAQ-00396 | [1] | CARRIER 3 | |
| 8-2. | XKAQ-00181 | [4] | GEAR-PLANETARY NO.3 | |
| 8-2. | XKAQ-00389 | [4] | GEAR 3-PLANETARY | |
| 8-3. | XKAQ-00182 | [72] | NEEDLE-NO.3 | |
| 8-3. | XKAQ-00390 | [72] | NEEDLE 3 | |
| 8-4. | XKAQ-00183 | [8] | WASHER-THRUST NO.3 | |
| 8-4. | XKAQ-00391 | [8] | WASHER 3-THRUST | |
| 8-5. | XKAQ-00184 | [4] | PIN 3 | |
| 8-6. | XKAQ-00185 | [4] | PIN 3-SPRING | |
| 8-7. | XKAQ-00186 | [1] | GEAR 3-SUN | |
| 8-8. | XKAQ-00187 | [1] | RING 3-SNAP | |
| 9. | XKAQ-00188 | [1] | CARRIER ASSY-NO.2 | |
| 9. | XKAQ-00399 | [1] | CARRIER ASSY 2 | |
| 9-1. | XKAQ-00189 | [1] | CARRIER-NO.2 | |
| 9-1. | XKAQ-00397 | [1] | CARRIER 2 | |
| 9-2. | XKAQ-00190 | [3] | GEAR-PLANETARY NO.2 | |
| 9-2. | XKAQ-00392 | [3] | GEAR 2-PLANETERY | |
| 9-3. | XKAQ-00191 | [45] | NEEDLE-NO.2 | |
| 9-3. | XKAQ-00393 | [45] | NEEDLE 2 | |
| 9-4. | XKAQ-00192 | [6] | WASHER-THRUST NO.2 | |
| 9-4. | XKAQ-00394 | [6] | WASHER 2-THRUST | |
| 9-5. | XKAQ-00193 | [3] | PIN 2 | |
| 9-6. | XKAQ-00194 | [6] | PIN 2-SPRING | |
| 9-7. | XKAQ-00195 | [1] | GEAR 2-SUN | |
| 9-8. | XKAQ-00196 | [1] | RING 2-SNAP | |
| 10. | XKAQ-00197 | [1] | CARRIER ASSY-NO.1 |
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
