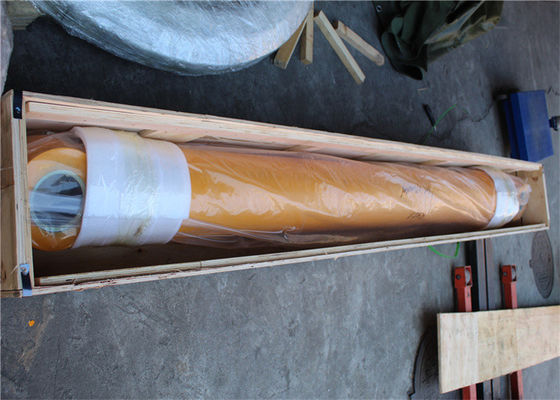

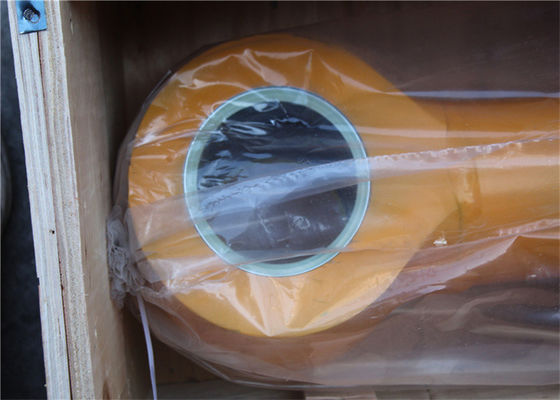

Product Name |
Arm Cylinder Assy |
Part Number |
31NB-50240 |
Fits to the following machine |
R450LC-7 |
Painting Color |
Grey |
Finish |
Smooth |
Transport Weight |
600kg |
Surface Hardness |
HRC44-52, Depth:8mm-12mm |
Packing |
Wooden Box |
Package |
As Requied |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31NB-50240 | ARM CYLINDER ASSY | 1 | |
| * | 31NB-50241 | ARM CYLINDER ASSY | 1 | |
| *-1 | 31Y1-18400 | ARM CYLINDER SUB WITHOUT PIPE |
1 | |
| *-1 | 31Y1-23870 | ARM CYLINDER SUB WITHOUT PIPE |
1 | |
| 1 | 31Y1-09070 | TUBE ASSY | 1 | |
| 2 | 31Y1-09121 | ROD ASSY | 1 | |
| 3 | 31Y1-09151Y | GLAND | 1 | |
| 3 | 31Y1-23650 | GLAND | 1 | |
| 4 | S732-125050 | BUSHING-DD2 | 1 | |
| K5 | Y220-125011 | SEAL-ROD | 1 | |
| K6 | Y180-125020 | RING-BACK UP | 1 | |
| K7 | Y240-125013 | RING-BUFFER | 1 | |
| K8 | Y110-125011 | WIPER-DUST | 1 | |
| 9 | Y190-141000 | RING-SNAP | 1 | |
| K10 | Y320-125000 | RING-WEAR | 1 | |
| K11 | S632-180004 | O-RING | 1 | |
| K12 | S642-180003 | RING-BACK UP | 1 | |
| 13 | 31Y1-09161 | COLLAR | 1 | |
| 14 | 31Y1-09171 | RING | 1 | |
| 15 | 31YC-24011 | RING-CUSHION | 1 | |
| 16 | 31Y1-09181 | PISTON | 1 | |
| K17 | S632-100004 | O-RING | 1 | |
| K18 | S642-100002 | RING-BACK UP | 2 | |
| K19 | Y420-185000 | SEAL-PISTON | 1 | |
| K20 | Y310-185100 | RING-WEAR | 2 | |
| 21 | 31Y1-09190 | RING-PISTON | 2 | |
| 22 | 31Y1-09200 | SPACER | 2 | |
| 23 | S109-180554 | BOLT-SOCKET | 6 | |
| 24 | 31YC-27020 | SPACER-CUSHION | 1 | |
| 25 | 31YC-2A030 | VALVE-CHECK | 1 | |
| 26 | 31YC-99070 | SPRING-COIL | 1 | |
| 27 | Y890-015011 | BALL-STEEL | 14 | |
| 28 | S114-080124 | SCREW-SET | 1 | |
| 29 | S109-301004 | BOLT-SOCKET HEAD | 8 | |
| 43 | 31YC-11201 | BUSHING-PIN | 2 | |
| 44 | Y000-110100 | SEAL-DUST | 4 | |
| 45 | Y191-133000 | RING-SNAP | 1 | |
| 30 | 31Y1-09230 | BAND ASSY-B | 1 | |
| 30 | 31Y1-22060 | BAND ASSY-B | 1 | |
| 30-1 | 31Y1-09240 | BAND SUB ASS'Y | 1 | |
| 30-1 | 31Y1-22070 | BAND SUB ASSY | 1 | |
| 30-2 | 31YC-32140 | BAND | 1 | |
| 30-3 | S015-120452 | BOLT-HEX | 4 | |
| 30-4 | S411-120002 | WASHER-SPRING | 4 | |
| 30-5 | S071-023430 | U-BOLT | 2 | |
| 30-5 | S071-024330 | U-BOLT | 2 | |
| 30-6 | S201-101002 | NUT-HEXAGON HEAD | 4 | |
| 30-7 | S411-100002 | WASHER-SPRING | 4 | |
| 32 | 31Y1-09210 | BAND ASSY-R | 1 | |
| 32 | 31Y1-22040 | BAND ASSY-R | 1 | |
| 32-1 | 31Y1-09220 | BAND SUB ASS'Y | 1 | |
| 32-1 | 31Y1-22050 | BAND SUB ASSY | 1 | |
| 32-2 | 31YC-32140 | BAND | 1 | |
| 32-2 | 31YC-31270 | BAND | 1 | |
| 32-3 | S015-120452 | BOLT-HEX | 2 | |
| 32-4 | S411-120002 | WASHER-SPRING | 2 | |
| 32-5 | S071-023430 | U-BOLT | 2 | |
| 32-5 | S071-024330 | U-BOLT | 2 | |
| 32-6 | S201-101002 | NUT-HEXAGON HEAD | 2 | |
| 32-7 | S411-100002 | WASHER-SPRING | 2 | |
| 39 | 31Y1-09260 | PIPE ASSY-B | 1 | |
| 39 | 31Y1-21970 | PIPE ASSY-B | 1 | |
| 40 | 31Y1-09250 | PIPE ASSY-R | 1 | |
| 40 | 31Y1-22750 | PIPE ASSY-R | 1 | |
| K41 | Y171-024004 | O-RING(AN ??) | 2 | |
| 42 | S107-100554 | BOLT-SOCKET | 4 | |
| 42 | S107-120604 | BOLT-SOCKET | 4 | |
| 46 | S107-100604 | BOLT-SOCKET | 4 | |
| K | 31Y1-18420 | SEAL KIT SEE ILLUST |
1 |
